Torque and Rotational Equilibrium in Physics

Overview of Torque and Rotational Equilibrium

  • Torque is a measure of the rotational force acting on an object, defined as the product of the force and the perpendicular distance from the axis of rotation (lever arm).

  • Rotational equilibrium occurs when the sum of all torques acting on an object equals zero, similar to how translational equilibrium requires the sum of forces to equal zero.

Key Concepts

  • Conditions for Equilibrium:

    • Translational Equilibrium: The sum of forces equals zero (ΣF = 0).

    • Rotational Equilibrium: The sum of torques equals zero (Στ = 0).

  • Free Body Diagrams: To analyze forces and torques acting on an object.

    • Important to clearly represent all forces, including weights, normal forces, and flexing points in a rotational scenario.

Torque Definition

  • Formula:

    • Torque (τ) = Force (F) × Lever Arm (r)

    • Key Point: The force must be perpendicular to the lever arm to maximize torque.

Application of Rotational Equilibrium

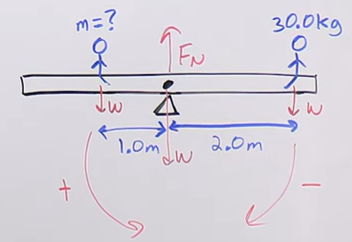

  1. Example with a Seesaw:

    • Problem Statement: What must be the weight of a child on one side of a seesaw for it to be in equilibrium if another child with a mass of 30 kg is 2 m away from the fulcrum?

    • Free Body Diagram: Shows forces acting on the seesaw (weights of both children and the seesaw).

    • Setting Up Equations:

      • Positive torque from the unknown mass (left side) and negative torque from the known mass (30 kg on right side).

      • Left side( mass unknown x gravity x 1 m) = Right side (30 kg x gravity x 2 m)

      • Gravity can be canceled out

      • So Left side (unknown mass x 1 )= Right side (60 kg)

      • So the unknown mass =60/1 =60kg

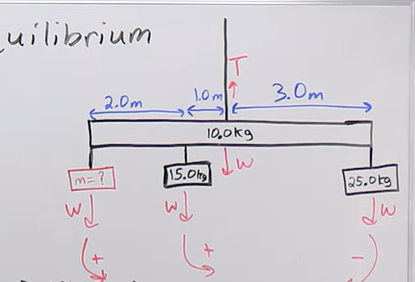

Example with a Platform Suspended:

  • Problem Statement: A 6.0 m long platform with a uniform mass of 10 kg is suspended with weights adding to rotary forces.

  • Use a free body diagram to identify forces and their lever arms connected through tension.

  • Calculate unknown weights and tensions as a combined influence:

    • Sum of torques must equate to zero based on the distances from the pivot (hinge).

    Στ = τclockwise - τcounterclockwise = 0

  • Determine the unknown by isolating it in the torque equation to find it correctly.

Unknown Weight (W) = (Known Weight × Distance from Pivot)/ (Distance of Unknown to Pivot)

M= (15×1-25×3)/3

M=20kg

The total mass in the downwards direction is thus 70kg.

F=m x g so the sum of the downwards torques is F = 70kg × 9.81m/s² = 686.7N.

The upwards torque thus must equal 686.7

Two-Dimensional Equilibrium Problems:

  • Considerations: Multiple forces and components acting on a system (off-axis forces).

  • Resolve forces into components for both X and Y directions in a free body diagram.

  • Use the following equations for equilibrium:

    • ΣFx = 0

    • ΣFy = 0

    • Στ = 0 (Choose appropriate axis’)

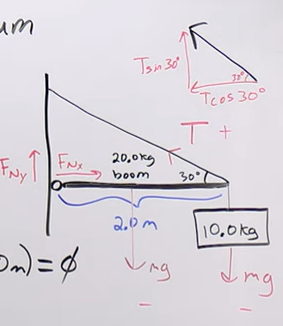

Specific Example of a Boom (something hooked up to a wall and a string):

  • Analyze a boom with attached weights and a cable at an angle; use trigonometry to resolve cable tension into components.

  • Equation structure:

    • For example, (T sin(30°) x 2 m )- (weight of the boom 20kg x gravity x distance to center 2 m ) to find T.

    • T=392Nm

    • Provide component breakdowns for analysis as the forces can generate tangential and perpendicular effects on the support points.

Tips for Solving Problems

  • Always start with a free body diagram to visualize forces and their directions.

  • Choose your axis of rotation based on what makes the math simplest or allows you to eliminate unknowns (lever arms of zero).

  • When forces have gravity, don’t drop it from equations; account for it in every term unless it's manageable (in equilibrium context).

  • When working with angles, resolve forces into their components and maintain consistency (e.g., trigonometric ratios for angles).
