CPE 3600 Midterm 1

Midterm Exam Study Guide

Agile

1. 4 Core Principles of the Agile Manifesto:

   • Individuals and Interactions: Over processes and tools.

   • Working Software: Over comprehensive documentation.

   • Customer Collaboration: Over contract negotiation.

   • Responding to Change: Over following a plan.

2. Define Agile Software Development: Agile is an iterative approach to software development that emphasizes flexibility, collaboration, customer feedback, and rapid delivery of functional software.

3. Agile vs. Waterfall:

   • Agile: Iterative, flexible, continuous delivery and feedback.

   • Waterfall: Sequential, rigid, and requires full completion before moving to the next phase.

4. Example Agile Workflow:

   • Sprint Planning → Sprint Execution → Daily Stand-ups → Sprint Review → Sprint Retrospective.

5. Importance of Unit Testing and Validation in Agile: Unit testing ensures each component functions correctly, supporting the Agile focus on delivering high-quality, working software quickly.

6. Define a Development Sprint: A time-boxed period (usually 1-4 weeks) during which specific work has to be completed and made ready for review.

   • Stages: Planning, Execution, Review, Retrospective.

7. Purpose of Stand-up (Scrum) Meeting: To synchronize team members and discuss progress, roadblocks, and plans for the day.

8. 3 Questions Asked in Each Stand-up Meeting:

   • What did you do yesterday?

   • What will you do today?

   • Are there any impediments in your way?

9. Relationship between Scrum and Agile: Scrum is a framework within Agile methodologies that defines specific roles, events, and artifacts to facilitate Agile practices.

10. Benefits of Agile:

    • Flexibility and adaptability to change.

    • Improved customer satisfaction.

    • Faster delivery of functional software.

    • Increased collaboration and team dynamics.

11. Define Product and Sprint Backlog:

    • Product Backlog: An ordered list of features, enhancements, and fixes needed for the product.

    • Sprint Backlog: A subset of the product backlog items that the team commits to completing in a sprint.

12. Purpose of Each Element of a User Story:

    • As a [type of user]: Who will benefit from the feature.

    • I want [goal]: What the user wants to achieve.

    • So that [reason]: Why the feature is valuable.

13. Role of the Scrum Master: Facilitates the Scrum process, ensures adherence to Agile principles, removes obstacles, and supports the team.

14. Role of the Project Owner: Represents the stakeholders, manages the product backlog, prioritizes needs, and ensures the team delivers value.

Requirements

15. 3 Characteristics of Good Requirements:

    • Clear: Unambiguous and easily understood.

    • Testable: Can be validated through testing.

    • Feasible: Achievable within project constraints.

16. Problematic Qualities of a Requirement:

    • Vague language.

    • Lack of clarity on priority.

    • Dependencies on other requirements.

17. Define Extra-Functional Requirements: Specifications that define the system's operational qualities, such as performance, security, and usability.

18. 6 Cs for Good Requirements:

    • Clear

    • Concise

    • Consistent

    • Correct

    • Complete

    • Cohesive

19. Write a Requirement Using the EARS Template:

    • "In the event that [condition], the system shall [action] to [result]."

Architecture Design

20. Two Components of High-Level Design:

    • Architecture: Overall structure and organization.

    • Components: Individual elements and their interactions.

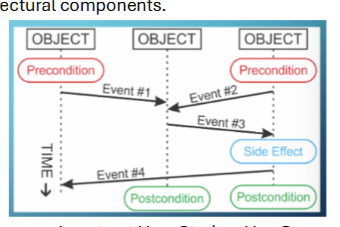

21. Sequence Diagrams for Interactions: Illustrate how objects interact in a particular scenario over time, detailing message flow.

    1.

22. Compare User Stories, Use Cases, and Scenarios:

    • User Stories: High-level requirements focused on user needs.

    • Use Cases: Detailed descriptions of how users will interact with the system.

    • Scenarios: Specific instances or examples of use cases in action.

23. Components Included in a Use Case:

    • Title

    • Actors

    • Preconditions

    • Main flow of events

    • Alternative flows

    • Postconditions

Hardware Abstraction Layer and CubeMX Configuration

24. Benefits and Weaknesses of CubeMX:

    • Benefits: Simplifies configuration, provides graphical interface, reduces human error.

    • Weaknesses: May abstract away important details, learning curve for beginners.

25. Importance of the USER Code Block in CubeMX: Allows developers to add custom code without being overwritten during reconfiguration.

26. Three Modes for Hardware Calls in ST HAL:

    • Blocking Mode

    • Non-blocking Mode

    • Polling Mode

27. Familiar HAL Interfaces:

    • GPIO: General Purpose Input/Output

    • TIM: Timer

    • ADC: Analog to Digital Converter

    • USART: Universal Synchronous/Asynchronous Receiver-Transmitter

    • I2C: Inter-Integrated Circuit

28. Data Passing into a HAL Interface: Data is typically passed via structures or parameters defined in function calls to configure peripherals.

29. Difference Between Interrupt Handler and Callback Function:

    • Interrupt Handler: Executes in response to hardware interrupts.

    • Callback Function: A function passed as an argument to be executed at a later time.

30. Significance of Hardware Handlers: Handle events triggered by hardware (like interrupts) and manage resource allocation efficiently.

Serial Communication

31. Compare SPI, I2C, and UART:

    • SPI: High-speed, synchronous, full-duplex, requires more pins.

    • I2C: Multi-master, supports multiple devices on two wires, slower than SPI.

    • UART: Asynchronous, uses two wires (TX, RX), simpler for point-to-point communication.

32. Consistencies for Successful UART Communication:

    • Baud Rate

    • Data Format (e.g., parity, stop bits)

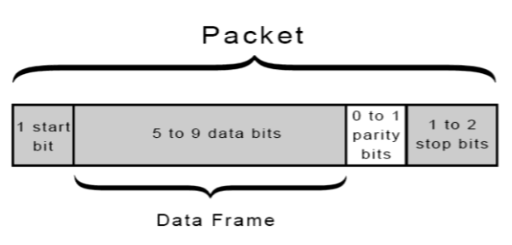

33. Sketch a UART Data Packet:

    • Start Bit → Data Bits → Parity Bit → Stop Bit

    •

34. Explain the 8N1 Protocol:

    • 8 data bits, No parity, 1 stop bit.

35. Difference Between Baud, Bit, and Data Rate:

    • Baud Rate: The number of signal changes per second.

    • Bit Rate: Number of bits transmitted per second.

    • Data Rate: The amount of usable data transmitted per second.

36. Calculate the Parity Bit for a Given Data Sequence:

    • For even parity, count the number of 1s; if odd, set parity bit to 1; if even, set to 0.

    • For odd parity, do the opposite.

37. Why I2C is Common:

    • Simple wiring (two wires), supports multiple devices, widely used in embedded systems.

38. Sketch a Simple I2C Configuration:

    • Master (microcontroller) connected to multiple slave devices via SDA and SCL lines.

39. Importance of Addressing in I2C: Each device has a unique address, ensuring the correct device responds to commands from the master.

Real-Time Operating Systems

40. RTOS vs. General Purpose OS:

    • RTOS: Deterministic, prioritizes time-critical tasks, guarantees response times.

    • General Purpose OS: Non-deterministic, designed for a wide range of tasks, lacks timing guarantees.

41. Motivation for CMSIS-RTOS Interface: Provides a standardized API for RTOS operations, promoting code portability and compatibility.

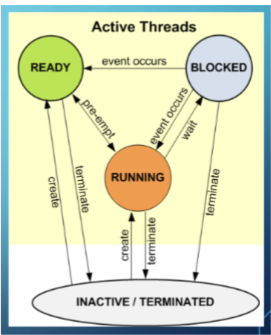

42. Sketch CMSIS-RTOS Model of Thread States:

    • States: Ready, Running, Blocked, Suspended, Terminated with transitions like "Start," "Yield," "Block," etc.

    •

43. Main Features of CMSIS-RTOS:

    • Task Management

    • Event Flags

    • Timers

    • Queues

    • Mutexes

    • Semaphores

    • Memory Pools

44. Advantage of Event Flags vs. Waiting on a Flag: Event flags allow multiple tasks to wait on the same flag and can signal events more efficiently than polling.

45. Why Not All Calls Can Be Made from ISR/Callback: Some operations (like blocking calls) can disrupt real-time performance and may lead to deadlocks or resource conflicts.

46. Advantage of Using osWait vs. HAL_Delay(): osWait allows other tasks to run while waiting, improving multitasking and responsiveness, whereas HAL_Delay() blocks the task.

47. Define OS Tick: A periodic interrupt that increments a system timer, used for task scheduling and timekeeping in an RTOS
