Electromagnetic Radiation Overview

Electromagnetic Waves

Defined as transverse waves consisting of oscillating electric and magnetic fields perpendicular to each other and the direction of wave propagation.

Properties of EM Waves

  • Travel at the speed of light in a vacuum: c=3X10^8 m/s

  • Carry energy and information across distances without requiring a medium.

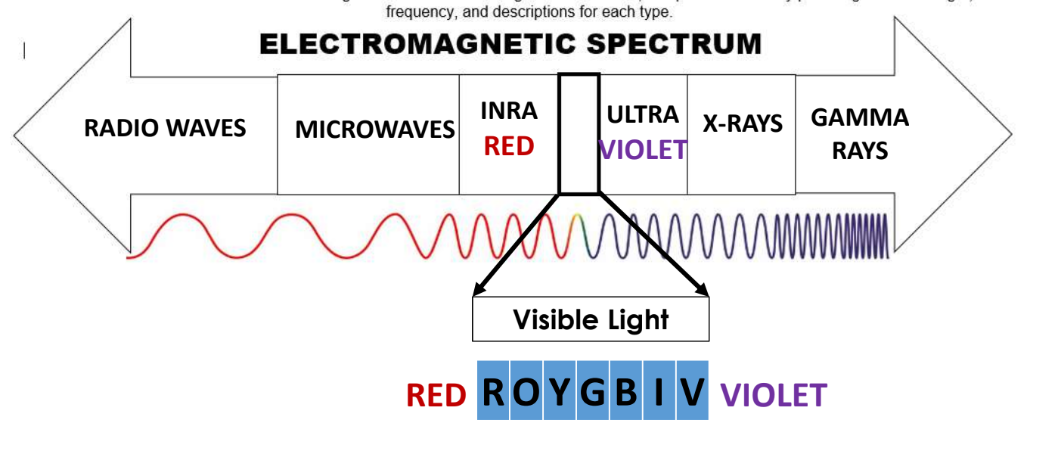

Electromagnetic Spectrum

Ranges from radio waves to gamma rays, organized by wavelength and frequency.

Types:

  • Radio Waves: Longest wavelengths, low frequency; vital for communication technologies.

  • Microwaves: Used in cooking and communication; absorbed by water molecules.

  • Infrared: Experienced as heat; used in remote controls and thermal imaging.

  • Visible Light: Detectable by the human eye; enables vision.

  • Ultraviolet (UV): Known for causing sunburn; used in sterilization and disinfection.

  • X-Rays: Used for medical imaging; considered ionizing radiation.

  • Gamma Rays: Highest energy; produced by nuclear reactions; used in cancer treatment.

Key Figures in Electromagnetism

  • William Gilbert: Studied magnetism, coined "electricus".

  • Hans Christian Ørsted: Discovered the relationship between electricity and magnetism.

  • Michael Faraday: Established principles of electromagnetic induction.

  • James Clerk Maxwell: Formulated Maxwell's equations describing electromagnetic wave propagation.

  • Heinrich Hertz: Confirmed the existence of electromagnetic waves, particularly radio waves.

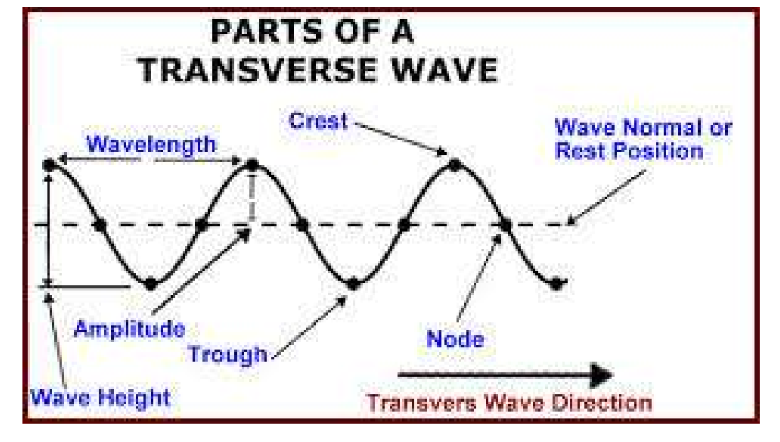

Wave Characteristics

  • Amplitude: Maximum displacement from the rest position; larger amplitude = more energy.

  • Wavelength (\lambda): Distance between consecutive crests or troughs; measured in meters.

  • Frequency (f): Number of cycles per second, typically in Hertz; inversely related to wavelength.

  • Nodes: Points of zero amplitude in a wave.

  • Crests: The highest points of the wave where the amplitude is maximum.

  • Troughs: The lowest points of the wave corresponding to the minimum amplitude.

Applications of Electromagnetic Radiation

Used in modern technology across communication, imaging, medical applications, and environmental monitoring.
