CH.10 | PLC MATH INSTRUCTIONS

INTRODUCTION

  • Uses add, subtract, multiply, and divide to calculate the sum, difference, product, and quotient of the content of registers in two PLC counter instructions.

  • Usual interval to update the results of PLC arithmetic instructions is one scan period.

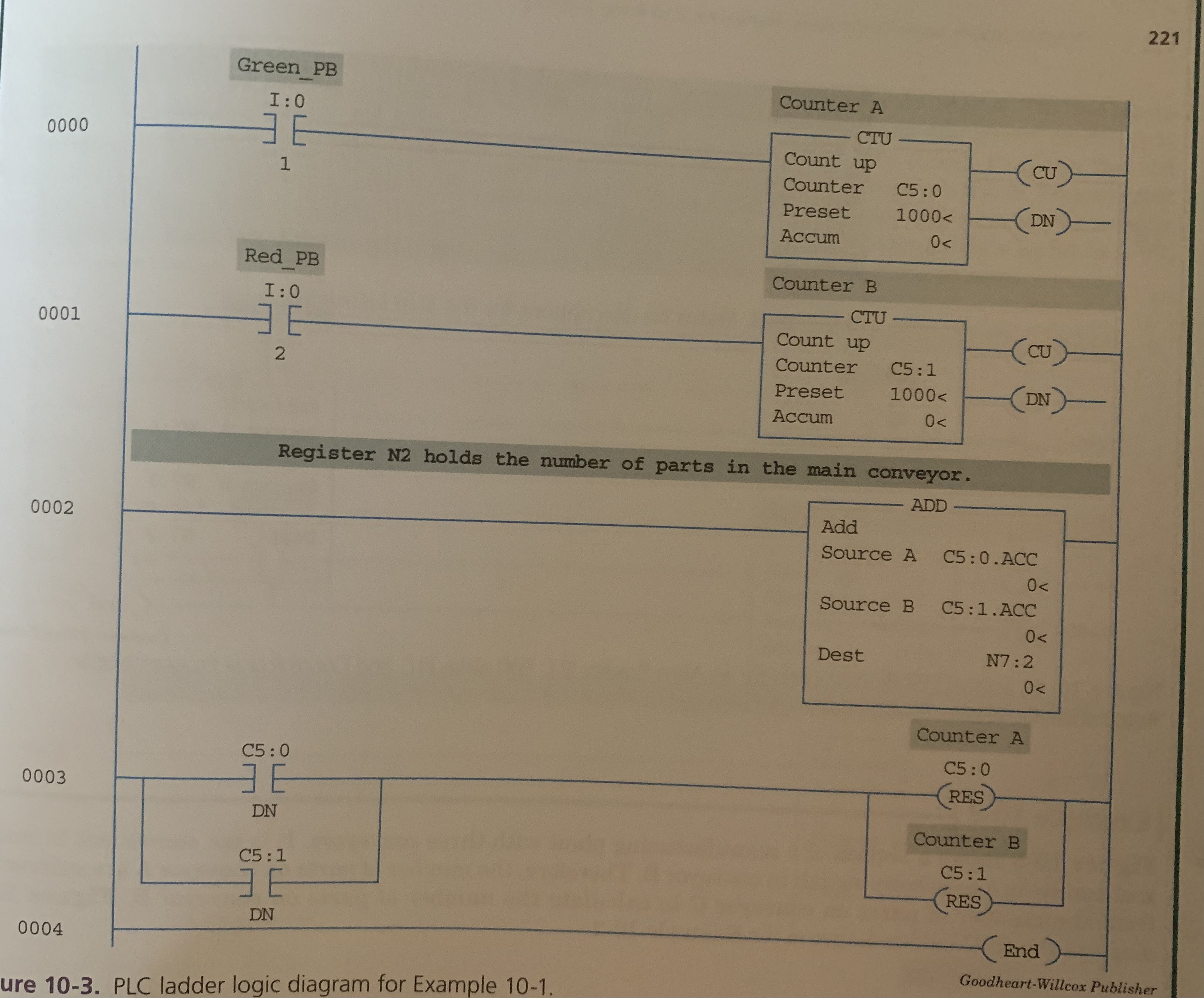

10.1 ADDITION

  • When counted parts on two separate conveyors are placed onto a single conveyor to be counted.

  • ADD (ADD) Instruction

    • calculates the sum of two operands (Source A and Source B)

    • Contains three operands

      • Two hold source data (Source A and B)

        • Both can be registers or

        • One source is a register and other is a number

      • Third is destination which holds the SUM of A and B.

        • MUST BE A REGISTER

  • Description of Bits in the processor status file (S2)

    • Carry (C)

      • S2:0/0

      • Set when carry is generated. Otherwise clear.

    • Overflow (O)

      • S2:0/1

      • Set when result is too large to fit in the destination register.

    • Zero (Z)

      • S2:0/2

      • Set when the result of math/logic or move instruction is zero.

    • Sign (S)

      • S2:0/3

      • Set when the result of math/logic or move instruction is a negative number.

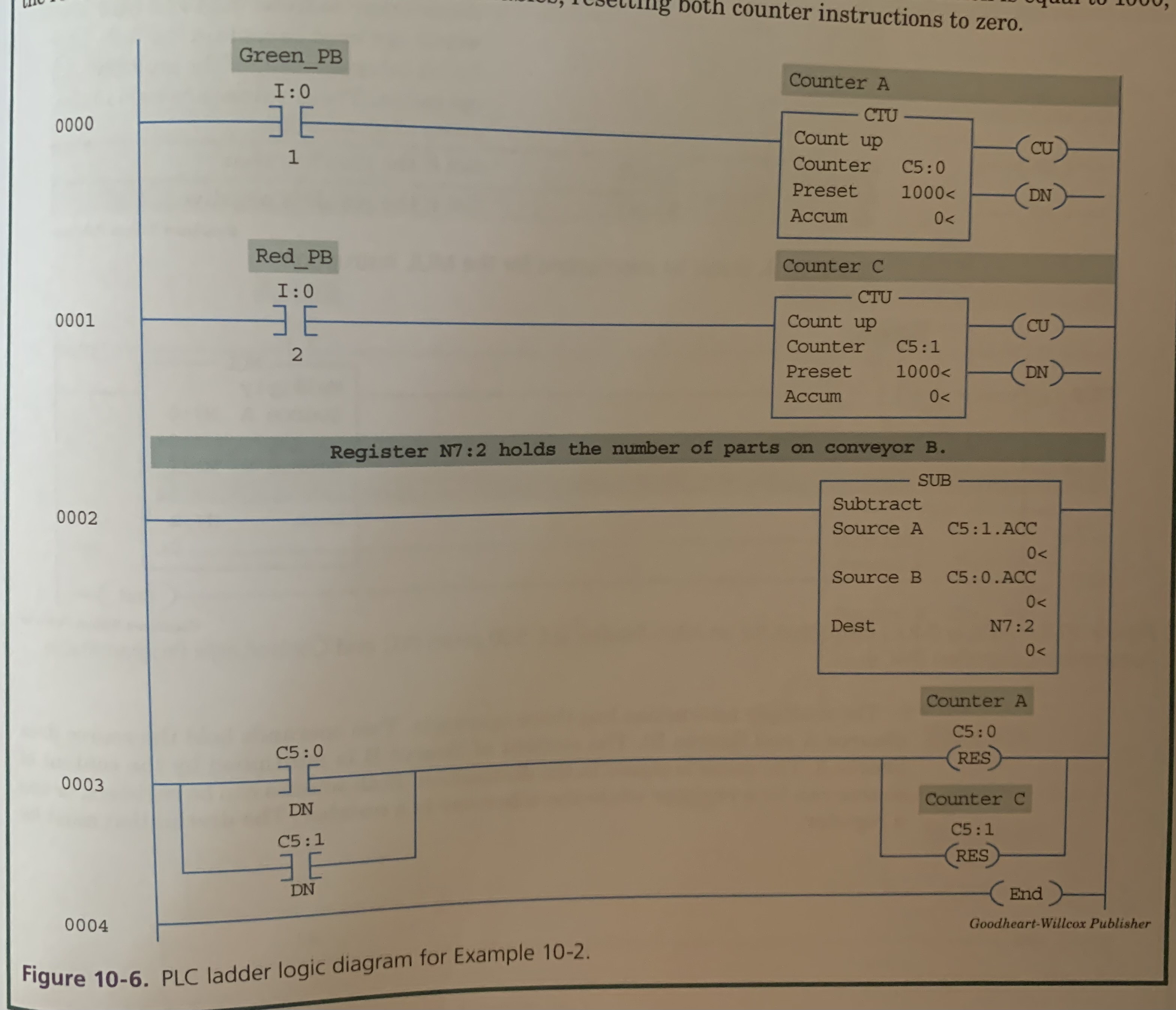

10.2 SUBTRACTION

  • Factory has three conveyors: A, B, and C.

    • A and B merge into C

    • You cant place a sensor on A, but need to know how many A contains.

    • Sensors are placed on B and C then used the Subtract Instruction.

  • Subtract (SUB) Instruction

    • Calculates the difference between two sources.

      • Contains three operands

        • Two hold source data (Source A and B)

          • Both can be registers or

          • One source is a register and other is a number

        • Third is destination which holds the DIFFERENCE of A and B.

          • MUST BE A REGISTER

    • Status Bit descriptions for SUB instruction

      • Carry (C) - Set if borrow is generated. Otherwise clear.

      • Overflow (O) - Set when result underflows.

      • Zero (Z) - Set when the result is zero.

      • Sign (S) - Set when the result is negative.

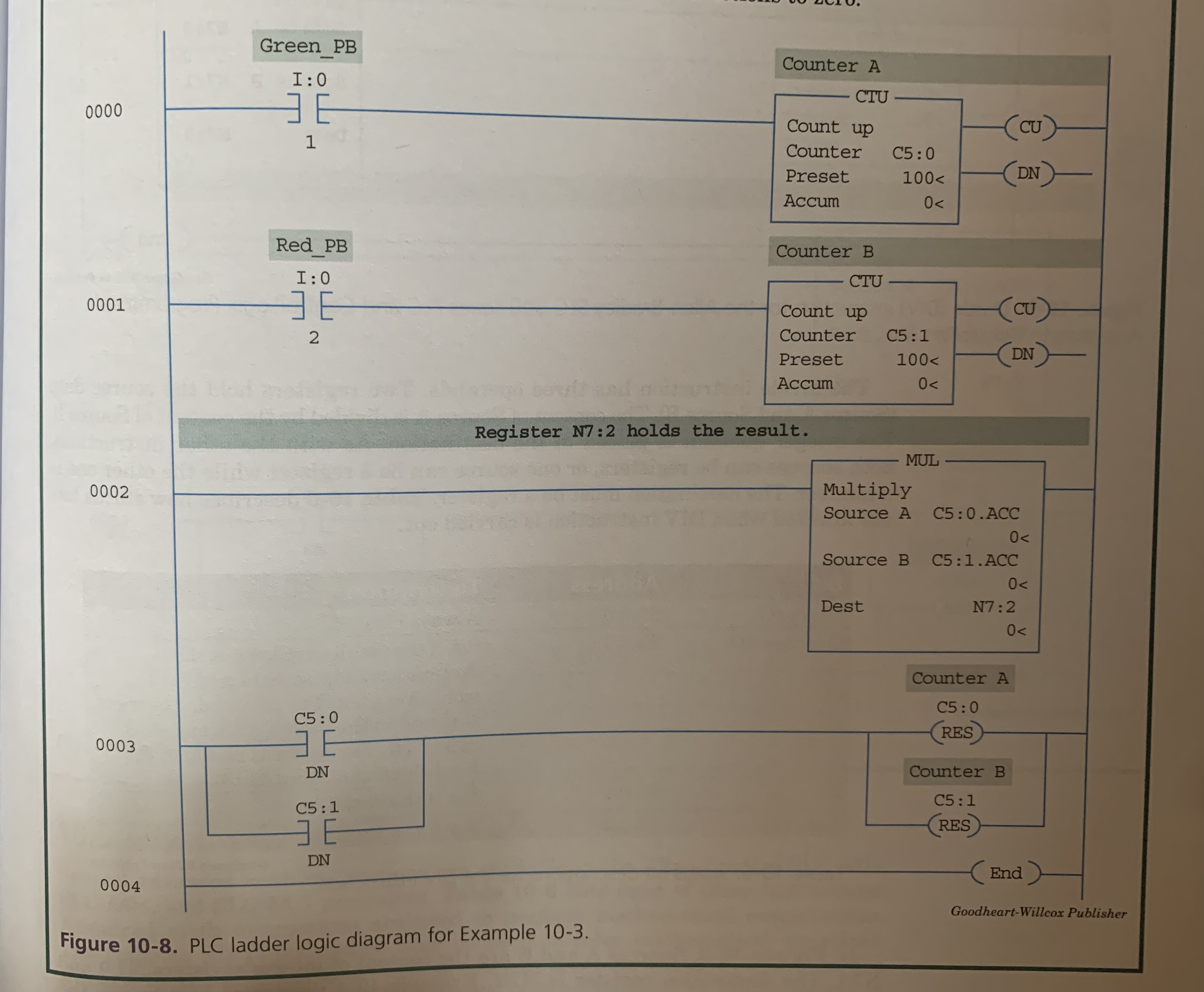

10.3 MULTIPLICATION

  • When multiple parts are packed in containers,

    • the number of parts per container

    • the number of containers

    • and the multiply instruction

    • gives you the TOTAL number of parts.

  • Multiply (MUL) Instruction

    • Calculates the product of two sources (Source A and Source B)

    • Contains three operands

      • Two hold source data (Source A and B)

        • Both can be registers or

        • One source is a register and other is a number

      • Third is destination which holds the PRODUCT of A and B.

        • MUST BE A REGISTER

    • Status Bit descriptions for MUL instruction

      • Carry (C) - Always clear

      • Overflow (O) - Set when result overflows. S:13 and S:14 words are used to contain the full 32 bit (Double Word) integer result. Used in the event of an overflow.

      • Zero (Z) - Set when the result is zero.

      • Sign (S) - Set when the result is negative.

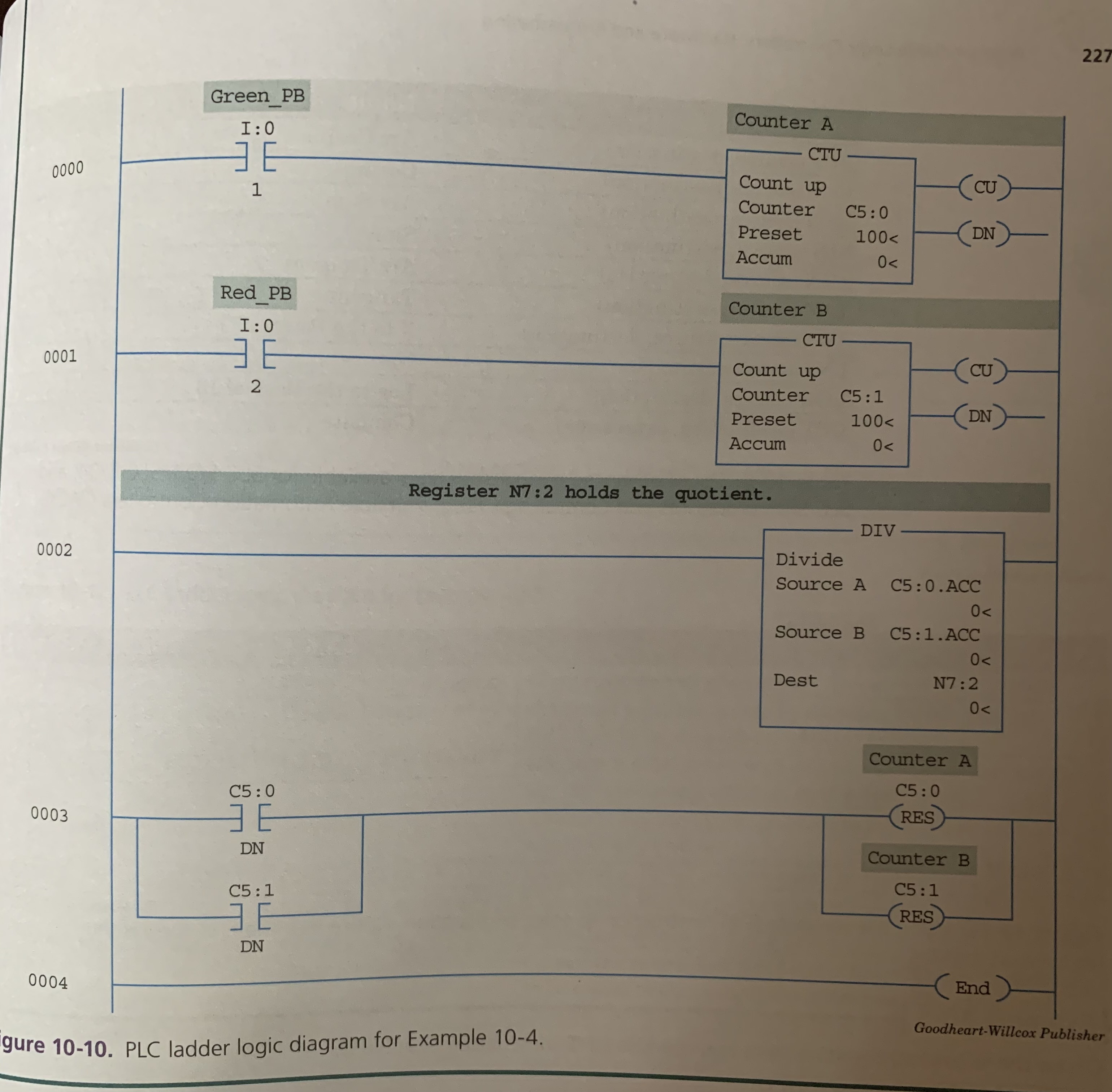

10.4 DIVISION

  • Assume a machine is counting inches of steel that pass by

    • But needs to calculate length in feet or yards before engraving.

    • DIVIDE instruction is used.

  • Divide (DIV) Instruction

    • Calculates the integer value that results from dividing two sources (Source A and Source B)

    • Contains three operands

      • Two hold source data (Source A and B)

        • Both can be registers or

        • One source is a register and other is a number

      • Third is destination which holds the Quotient of A and B.

        • MUST BE A REGISTER

    • Status Bit descriptions for DIV instruction

      • Carry (C) - Always clear

      • Overflow (O) - Set when result overflows. S:13 and S:14 words are used. The unrounded quotient is placed in the most significant word (S:14). The remainder is placed in the least significant word (S:13).

      • Zero (Z) - Set when the result is zero.

      • Sign (S) - Set when the result is negative.

10.5 ADVANCED MATH INSTRUCTIONS

  • Use the Compute (CPT) Instruction to perform advanced math equations.

    • ACS (Source, Destination) - Arc Cosine

    • COS (Source, Destination) - Cosine

    • ASN (Source, Destination) - Arc Sine

    • SIN (Source, Destination) - Sine

    • ATN (Source, Destination) - Arc Tangent

    • TAN (Source, Destination) - Tangent

    • XPY (Source, Source, Destination) - X to the Power of Y

    • LN (Source, Destination) - Natural Log

    • LOG (Source, Destination) - Log to the base of 10

    • CPT (Destination, Expression) - Compute

  • Other Common Math Instructions

    • CLR (Register) - Clear

      • Clears the memory location

    • DDV (Source, Destination) - Double Divide

      • Performs a double divide by dividing 32-bit data in S:13 & S:14 by a 16-bit source.

    • DCD (Source, Destination) - Decode 4 to 1 of 16

      • Decodes a 4-bit number (0-15) in the source and turns the corresponding bit(s) on in the destination.

    • NEG (Source, Destination) - Negate

      • Reverses the sign from positive to negative or from negative to positive

    • TOD (Source, Destination) - Convert to BCD

      • Converts a 16-bit integer value to BCD (Binary Coded Decimal)

    • FRD (Source, Destination) - From BCD to Binary

      • Converts a BCD value to a binary value

    • SQR (Source, Destination) - Square Root

      • Finds the square root of a value

    • COP - Copy Data

      • Causes the entire data file, pointed to by the source address, to be copied to the destination addresses. The number of locations moved is determined by the length value.

    • FILL - Fill Data

      • Contents of the source register or a constant value is copied to the destination register in an ascending order until the value entered in the length variable is zero.

    • SCL - Scale Data

      • Multiplied by the rate value. The rounded result is added to the offset value and placed in the destination.
