Aerobic Respiration

Krebs cycle

Citric acid cycle

Tricarboxylic acid Cycle (TCA cycle)

Oxidative Phosphorylation

Electron transport chain

chemiosmosis

ATP synthase

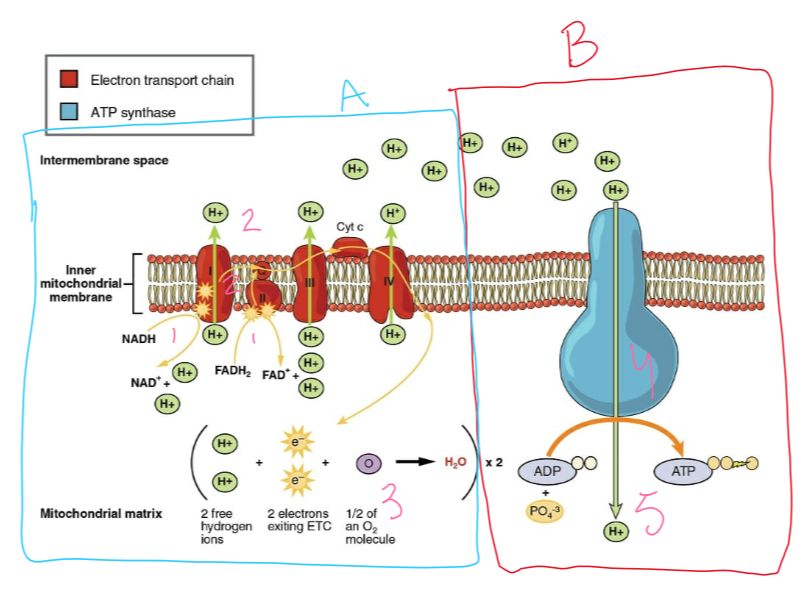

I can explain the inputs, outputs and steps of oxidative phosphorylation

Steps

  • NADH & FADH2 donate electrons to ETC becoming NAD+, FAD

  • electrons move through protein complexes, pumping H+ into intermembrane space

    • creates an H+ concentration gradient

  • oxygen acts as an electron acceptor and combines with e- & H+ to form H2O

  • protons (H+) flows back through ATP synthase

  • ATP is produced from ADP + Pi

    Input

    Output

    • NADH

    • FADH2

    • 02

    • ADP + Pi

    • ATP

    • H2O

    • NAD+

    • FAD

I can list the inputs and outputs of the citric acid cycle

Inputs

Outputs

NET Outpputs

  • acetyl - CoA

  • NAD+

  • FAD

  • ADP

  • Pi

  • H2O

  • NADH

  • FADH2

  • ATP

  • CoA-SH

  • H+

  • CO2

  • 1 ATP

  • 3 NADH

  • 1 FADH2
