ENGR 4503 Robotics & Unmanned Systems Midterm Notes

Python


Variables can be used without type declaration.

Python manages memory automatically.

It is faster to code and debug in Python than in C (Easier to handle numerical data, string and “list”.)

Python and C form a good combo for solving engineering problems!

Better choice for high-level tasks (complicated calculations or image processing, etc.)

However, slower, and may not handle low-level comms w/ sensors and controllers

Coding in Python


Text editor


“.py” files


Python yourcode.py

Python executes the code line by line, same as MatLab not C!

/

Python Variables

Example:

A list in Python can be an array of numbers.


anInt=10

aFloat=10.0

aFloat=float(10)

aString1='hello'

aString2="hello's"

aString3=aString1+aString2

What does this code do?

array3=array1+array2

In the line array3=array1+array2, the operation combines two lists (array1 and array2) to a new list (array3).

array1=[1,2,3]

array2=[4,5,6]

array3=array1+array2

print(array3)

What does this code do?

for x in mylist:

print(x)

This is a for loop. The part of the code inside the loop is marked with “:” and indentation. Will return (1, 2, 3, 1, 2, 3, …).

mylist = []

mylist.append(1)

mylist.append(2)

mylist.append(3)

print(mylist[0])

print(mylist[1])

print(mylist[2])

for x in mylist:

print(x)

Operations in Python


Operations on numbers


Operations on lists and strings

+: combine , *: repeat


Dictionaries

Like an array but uses “keys” instead of index

Stores data structures like phonebooks

Messages/commands followed by arguments

Print Format

Example:

“print” will print data in the default format. No need to specify anything else.


%’s can be used for numerical data and string

  1. name = "yourName"

    data = 10

    print("value of %s is %d." % (name, data))

  2. data = ("yourName", 10, 10.0)

    formattedString = "your name %s int %d float %f."

    print(formattedString % data)

  3. data = ("yourName", 10, 10.0)

    formattedString = "your name %s int %s float %s."

    print(formattedString % data)

Conditions in Python


==

equals, compares two strings

=!

not equals

>, <

greater than, less than

>=, <=

greater than equal to, less than equal to

“in”

check if element is in a container (string or list)

(Ex. if ‘s’ in “show”: print (“yes”)

“is”

check if both variables are the same

“id()”

returns identity of an object; if both have same ID, “is” returns true

Conditions cont.

Example:

Results:




is / ID

x = [1,2,3]

y = [1,2,3]

z = x

print(id(x))

print(id(z))

print(id(y))

print(x is z)

print(x is y)




if

if statement1:

do something

elif statement2:

do something

else:

do something



for loop

primes = [2, 3, 5, 7]

for prime in primes:

print(prime)



# Prints out the numbers 0,1,2,3,4


for loop

primes = [2, 3, 5, 7]

for x in range(5):

print(x)



# Prints out 3,4,5


for loop

primes = [2, 3, 5, 7]

for x in range(3, 6):

print(x)


# Prints out 3,5,7


for loop

words = ['cat', 'window', 'defenestrate’]

for w in words:

print(w, len(w))


# Prints out window

Procedural Programming (PP) *inline programming*

Write down steps and let computer execute them with procedures (or functions)

Efficient for simple tasks


Functional Programming (FP)

Steps are organized in functions

Functions avoid memory (states) and mutable data; different from PP

Such functions are software pieces that can be easily reused

Object Oriented Programming (OOP)

Organized logic in methods of objects

Organized data in properties of objects

Not always best for simple tasks!

PeeDee is lost on the ocean. He has a map with the locations in a local East-North-Up system of three foghorns.

1: [1000, 0, 0] m, scheduled to sound at 12:00:00 am.

2: [2700, 0, 0] m, scheduled to sound at 12:00:10 am.

3: [2020, -680, 0] m, scheduled to sound at 12:00:20 am.

His watch may not be accurate. According to his watch, he heard horns at 12:01:13 am, 12:01:22 am and 12:01:32 am.





  1. In the East-North-Up system, provide the location of PeeDee.

  1. How large is the offset of PeeDee’s watch?

(sqrt((x-1000)2+y2)==340*(13-b),

sqrt((x-2700)2+y2)==340*(12-b),

sqrt((x-2020)2+

(y+680)2)==340*(12-b))


GPS

How does a GPS user determine its position?


2-D Positioning (using single range measurements)

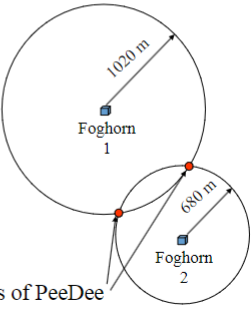

2-D Ranging (using two measurements)

Potential positions of PeeDee

2-D Ranging (using three measurements)

PeeDee is found

Without clock error


&


With clock error

R = (v_sound)*(Δt)

R = range

v_sound = velocity of sound

Δt = transmit/receive time difference


R’ = v_sound*(Δt+ $t)

R’ = range w/ error (psuedo - range)

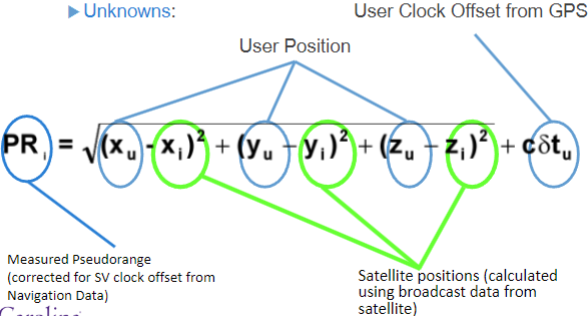

The GPS Equation

Solves the four unknowns x,y,z, and $t



Trilateration

Uses pseudorange (PR) measurements from at least four satellites to solve 3-D position and time.


GPS Position/Time

Three segments of GPS systems:

Space: satellites themselves

Control: monitors/controls satellites and generates ephemeris data

User: anything that receives the GPS signal

Airborne Laser Scanners


How does ALS differ from TLS (terrestrial)?


ALS Limitations?


Example:


ALS Error Sources?

TLS: on the ground


Drone: 100m or less


Plane: up to several thousand m

Geometry - scans terrain top down

Sensor quality - compact units may have lower res./accuracy

Dynamic platform - need to know position/orientation; accurate timing

Point cloud is “seen” by the laser scanner.

Does not directly come w/ 3D coordinates in the world frame.

Ranging errors.

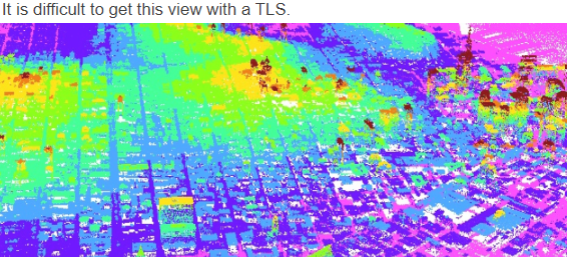

Difficult to get this view w/ TLS

Ranging error - random (can be averaged out)

Position error - systematic (possible biases to all measurements; can be calibrated/corrected)

Orientation error - systematic (possible biases to all measurements; can be calibrated/corrected)

Timing error - systematic (possible biases to all measurements; can be calibrated/corrected)

*Errors can be represented w/ an ellipsoid*

GPS-INS


Inertial Navigation System

Measures acceleration and rotation

(includes gravity/earth rotation; often comped with a barometer and/or magnetometer)

Embedded GPS Inertial System

Accurate position velocity attitude and timing

LIDAR (light detection & ranging)

high-precision mapping, environmental monitoring, and autonomous vehicles

LADAR (radio detection & ranging)

primarily serves military purposes, such as surveillance and target identification

*major difference b/w the wavelength of signal and divergence of signal beam*
