TCP Congestion Control

Goals

• Efficiency

  • High link utilization and low latency

  • Fast re-convergence upon the arrival/completion of a flow

• “Distributedness”

  • The algorithm must operate without central coordination

• Fairness

  • Split bandwidth proportionally between flows

  • Many ways to define fairness for more than 2 hosts

  • Max-min fairness - increase of the bandwidth of a flow, does not decrease the rate of a smaller flow

Approaches Towards Congestion Control

End-End Congestion Control

• No explicit feedback from network

• Congestion inferred from observed loss, delay

• Approach taken by TCP

Network-Assisted Congestion Control

• Routers provide direct feedback to sending/receiving hosts with flows passing through congested router

• May indicate congestion level or explicitly set sending rate

• TCP ECN, ATM, DECbit protocols

TCP Sending Behaviour

• roughly - send cwnd bytes, wait RTT for ACKS, then send more bytes

• TCP rate ~~ cwnd/RTT (bytes/sec)
  TCP sender limits transmission - LastByteSent- LastByteAcked < cwnd
  cwnd is dynamically adjusted in response to observed network congestion (implementing TCP congestion control)

AIMD

• Senders can increase sending rate until packet loss (congestion) occurs, then decrease sending rate on loss event

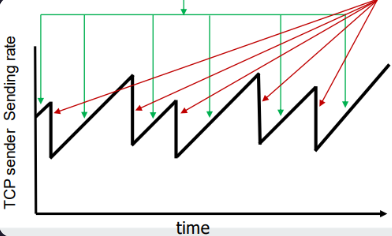

• Sawtooth behaviour - probing for bandwidth

• Additive Increase - increase sending rate by 1maximum segment size every RTT until loss detected

• Multiplicative Decrease - cut sending rate in half at each loss event



  Multiplicative decrease detail: sending rate is

• Cut in half on loss detected by triple duplicate ACK (TCP Reno)

• Cut to 1 MSS (maximum segment size) when loss detected by timeout (TCP Tahoe)

Why AIMD?

AIMD – a distributed, asynchronous algorithm – has been shown to

• Optimise congested flow rates network wide

• Have desirable stability properties

TCP Slow Start

• AI - cwnd +=MSS every RTT

  • Need to wait several RTT to reach link capacity if high RTT or a fast link

• When connection begins, increase rate exponentially until first loss event:

  • Initiall  cwnd = 1 MSS

  • Double cwnd every RTT

  • Done by incrementing cwnd for every ACK received

• Summary - initial rate is slow, but ramps up exponentially fast

From Slow Start to Congestion Avoidance

When should the exponential increase switch to linear?

• When cwnd gets to 1/2 of its value before timeout
  Implementation:

• Variable ssthresh

• On loss event, ssthresh is set to 1/2 of cwnd just before the loss event

TCP CUBIC

Is there a better way than AIMD to “probe” for usable bandwidth?

• Insight/intuition

  • Wmax: sending rate at which congestion loss was detected

  • Congestion state of bottleneck link probably (?) hasn’t changed much

• After cutting rate/window in half on loss, initially ramp to to Wmax faster, but then approach Wmax more slowly

• K - point in time when TCP window size will reach Wmax

  • K itself is tuneable

• Increase W as a function of the cube of the distance between the current time and K

  • Larger increases when further away from K

  • Smaller increases (cautious) when nearer K

The Congested 'Bottleneck Link'

• TCP (classic, CUBIC) increase TCP’s sending rate until packet loss occurs at some router’s output - the bottleneck link

• Understanding congestion - useful to focus on congested bottleneck link

• Insight - increasing TCP sending rate will not increase end-end throughout at congested bottleneck, which is already transmitting at full rate, R

• Multiple flows collectively congest the bottleneck link

  • Each executes its own TCP congestion control

  • Each of N flows should ideally receive a throughput of R/N

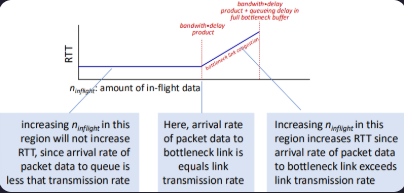

Keeping the Pipe just Full Enough

• Keep bottleneck link busy transmitting, but avoid high delays/buffering

• Measured throughput = # bytes sent (inflight) in RTT interval / RTT

• Ideal amount of inflight data for a connection = connections share of bottleneck bandwidth * min RTT
