W12: Visual and non-Visual Melanopsin Photoreception

Melanopsin Photoreception Notes

Learning Outcomes

  • Understand the neurophysiological characteristics of melanopsin-expressing intrinsically photosensitive Retinal Ganglion Cells (ipRGCs).

  • Learn about ipRGC control of non-visual processes, including:

    • Isolation of melanopsin mediated pupil light responses.

    • Sleep and circadian rhythms.

    • the impact of ipRGC dysfunction in ophthalmic and neurodegenerative disease.

  • Explore Melanopsin as a 5th dimension of human vision.

  • Understand the functional impacts of melanopsin activation on behavioural responses to light.

History of Melanopsin Discovery

  • 1927: A functionally blind mouse (due to retinal degeneration) was found to have robust pupil light responses, despite the absence of rods and cones (Keeler, 1927, Am J Physiol).

  • 2000: A new pigment named melanopsin was discovered to be expressed in the human retina (Provencio et al., 2000, J Neurosci).

  • Melanopsin was detected on a subset of ganglion cell bodies, dendrites, and axons in mice and primates, leading to the name intrinsically photosensitive RGCs (ipRGCs) (Hatter et al., 2002, Science; Dacey et al., 2005, Nature).

  • A blind person (complete rod and cone degeneration) reported experiencing brightness in response to high-intensity blue/cyan light (Zaidi et al., 2007, Curr Biol).

  • The spectral sensitivity of the post-illumination pupil response (PIPR) matched melanopsin (Markwell, Feigl, & Zele, 2010, Clin Exp Opt).

  • In humans, melanopsin can see independent of rods and cones but cannot reconstruct image form (Nugent & Zele, 2024, Proc Natl Acad Sci USA).

ipRGCs

  • Normal Human Fundus: Displays melanopsin expressing intrinsically photosensitive Retinal Ganglion Cells (ipRGCs).

  • Cell Count:

    • >100 million rods (night vision).

    • 4-8 million L, M, S cones (day vision).

    • <5000 melanopsin ipRGCs per eye (<0.5% of all retinal ganglion cells).

  •  Diagram:

    • cells (circle) is a melanopsin cells

    • dark centre is the ON

    • the axons from the melanopsin cells goes to optic disc.

    • visual responses and pupil responses can be mediated by melanopsin at the blind stop.

  • Human ipRGCs form a photoreceptive net across the retina

    • no ipRGC at the fovea.

    • much larger than any other ganglion cells.

  • Macaque ipRGCs in peripheral retina cover 0.6° of visual angle.

  • ipRGCs mediate extrinsic rod & cone photoreceptor signals.

ipRGC Types and Function

  • ipRGCo (M1) - outer cell

  • ipRGCi (M2) - inner cells

  • activation of the melanopsin cells causes feedback pathways to modulate the output of amacrine cells and dopamine amacrine cells and bipolar cells.

    • hence rods and cones are influenced by melanopsin

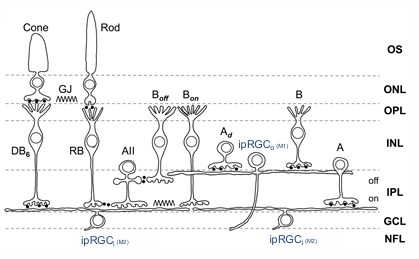

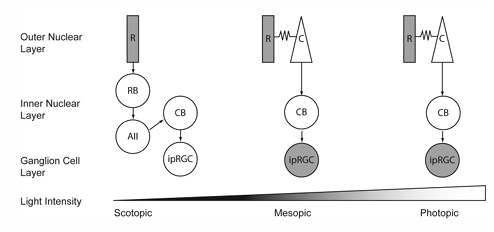

  • Rods and cones, through bipolar cells, AII amacrine and bipolar cells, input into Melanopsin

    • important for circadian rhythms to tell brain that it is nighttime.

  • melanopsin is important for ‘coding’ information for the brain.

Morphological characteristic of ipRGCs in human retina

  • inner (M2 ipRGCs)

  • outer (M1 ipRGCs)

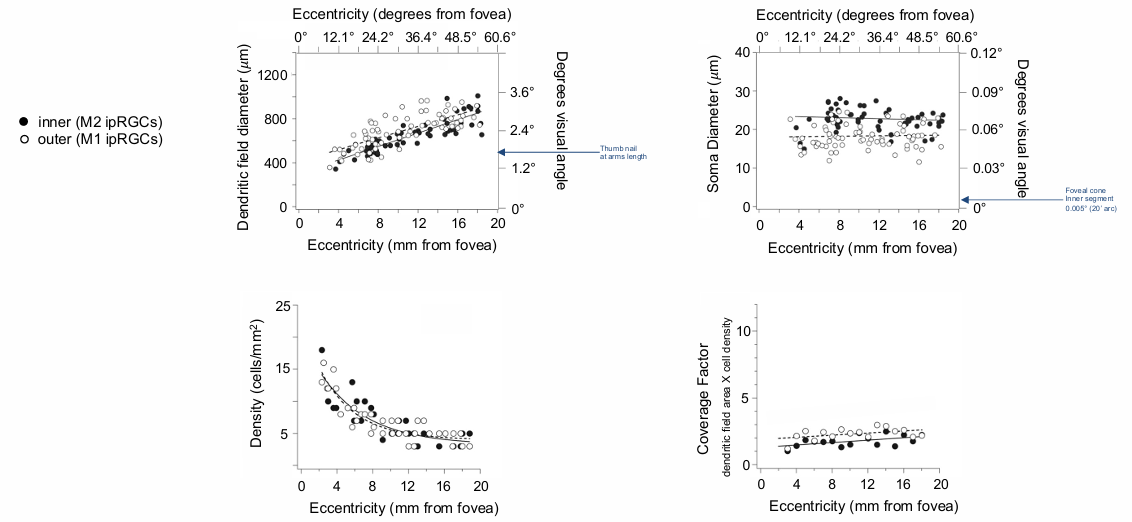

  • Density:

    • Density varies with eccentricity from the fovea.

    • Maximum density near the fovea, decreasing with distance.

  • eccentricity:

    • no melanopsin cells in the central 2 degrees.

  • Dendritic Field Diameter:

    • Increases with eccentricity.

  • Soma (cell body) Diameter:

    • Ranges from ~20-40 𝜇m.

    • doesn’t really change with eccentricity

  • Coverage Factor:

    • Calculated as dendritic field area x cell density.

      • pretty constant - as diameter goes up, but density goes down = roughly CF of 2 melanopsin in an area.

    • density is highest outside of the fovea where the dendritic fields are smallest

    • the density decreases (fewer ipRGs) when you hit 60 deg in the peripheral retina.

Physiological Response Properties of ipRGCs

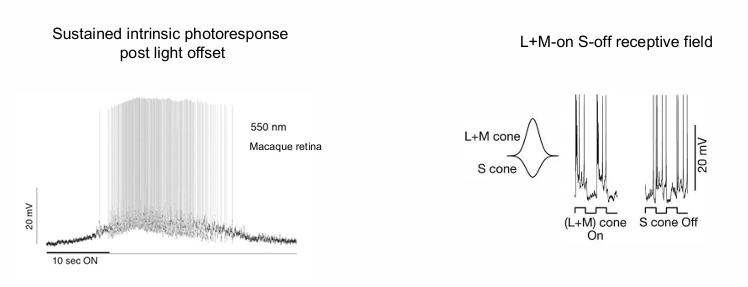

  • Sustained intrinsic photoresponse post light offset.

    • when light is turned off (10 sec point), it continues to fires.

    • the major response is seen after the light is turned off.

    • linear relationship between number of quanta of light and cell spikes after the light turns off.

    • this is the signal that tells the brain it is morning or afternoon. No spikes = nighttime.

  • L+M-on S-off receptive field

    • receptive field has inputs on L+M cone (on) and S cones (off)

    • role in colour constancy.

  • Observed in Macaque retina.

Functions Mediated by ipRGCs

  • ipRGCs mediate the effects of light on circadian rhythms, pupil control, vision & mood.

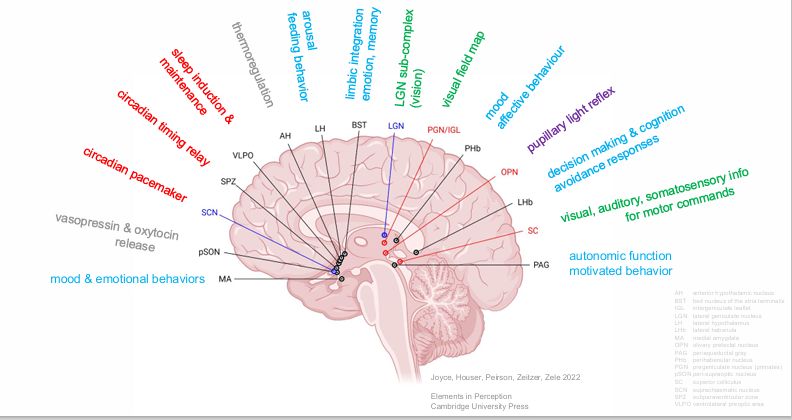

  • ipRGCs inputs to brain areas for visual and non-visual processing

  • These are deep areas of the brain → implies that melanopsin has been around for a long time.

    • AH (anterior hypothalamic nucleus)

    • BST (bed nucleus of the stria terminalis)

    • IGL (intergeniculate leaflet)

    • LGN (lateral geniculate nucleus)

    • LH (lateral hypothalamus)

    • LHb (lateral habenula)

    • MA (medial amygdala)

    • OPN (olivary pretectal nucleus)

    • PAG (periaqueductal gray)

    • PHb (perihabenular nucleus)

    • PGN (pregeniculate nucleus (primates))

    • pSON (peri-supraoptic nucleus)

    • SC (superior colliculus)

    • SCN (suprachiasmatic nucleus)

    • SPZ (subparaventricular zone)

    • VLPO (ventrolateral preoptic area)

    • mood & emotional behaviors

    • autonomic function

    • motivated behavior

Pupil Light Response

  • ipRGCs control the pupil light response via brain projections to the olivary pretectal nucleus (OPN).

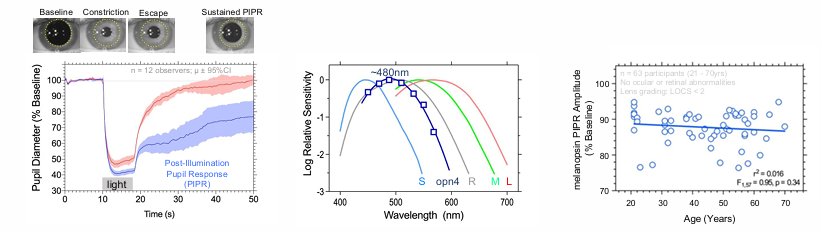

  • The sustained pupil constriction after light offset (PIPR) matches the spectral sensitivity of melanopsin (opn4)

  • ipRGCs are more resilient to ageing than rod and cone pathways.

    • rods and cone degenerate over time - every years more ganglion cells are lost

    • melanopsin cells remain stable until at least the 7th decade.

  • Melanopsin and cone pupil responses combine additively in daylight

  • Melanopsin sets the pupil diameter during extended light exposure.

    • pupil constriction is very very slow when only activating melanopsin

    • after lights turn off, pupil size is sustained.

  • Cone-initiated responses are transient to contrast changes.

    • cones quickly constrict then immediately return back to baseline.

  • melanopsin pupil responses provide a marker of their brain projections

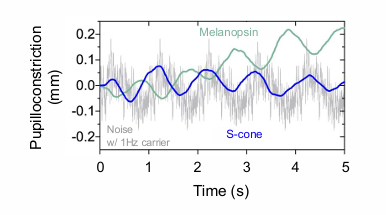

  • Melanopsin pupil flicker responses are opponent to the paradoxical S-cone response that dilates with increasing irradiance, reflecting the neurophysiological properties of the receptive field

    • when the light gets brighter - the pupil gets bigger for s-cone.

    • if the lights gets darker - it will get smaller for s-cone

      • PARADOXICAL S-CONE RESPONSE

    • melanopsin is in counter phase to the S-cones.

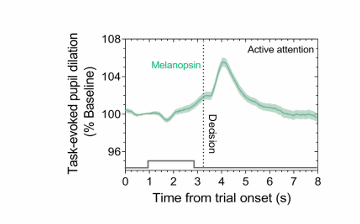

  • Task-evoked pupil dilations are linked to the global cortical arousal state via ipRGCs inputs to the amygdala, pulvinar & superior colliculus

    • pupil dilates on decision making → can activate deep brain through melanopsin pathway

    • marker of someone actively making a cortical decision.

Sleep and Circadian Rhythms

  • ipRGC control of sleep and circadian rhythms via brain projections to the suprachiasmatic nucleus (SCN) & ventrolateral preoptic area (VLPO).

    • circadian rhythm requires IPRGs and melanopsin cells, but cones don’t make a major contribution.

  • High prevalence of circadian disruption in eye disease: due to change in melanopsin function in the eye

    • Blind or partially blind patients

    • AMD (geographic atrophy & neovascular)

    • Glaucoma

    • Diabetes

  • Circadian disruption shows a causal relationship with:

    • Obstructive sleep apnoea

    • Medical and psychiatric illness

    • Restless leg syndrome

    • Autonomic dysfunction

      • how can we change the spectrums of light to account for dysfunctional responses.

  • Sleep & circadian rhythms quantified using objective (e.g., melatonin, polysomnography) & subjective makers (e.g., sleep diary, PSQI sleep quality assessment).

ipRGC Dysfunction in Retinal Disease

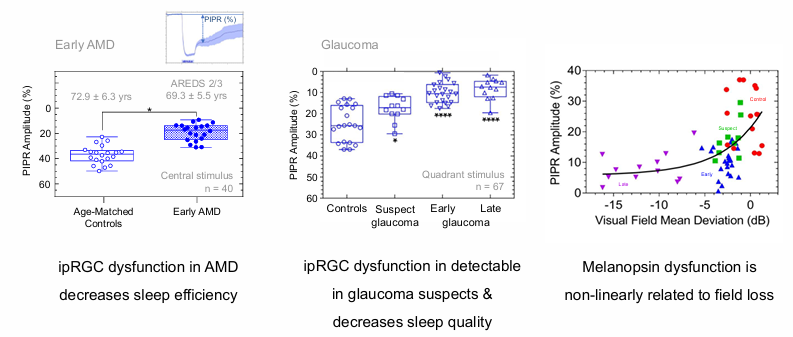

  • Glaucoma PIPR dysfunction is a robust biomarker maker of retinal disease

  • ipRGC dysfunction in AMD decreases sleep efficiency

  • Melanopsin dysfunction is non-linearly related to field loss

  • ipRGC signalling is phase locked to the dark light hormone (melatonin)

  • diabetics: Dysfunctional rod inputs to ipRGCs phase advance the melatonin onset.

    • in Diabetics - rods are primarily affected, leading to an early onset of melatonin (go to sleep early)

    • also leads to decreased sleep quality.

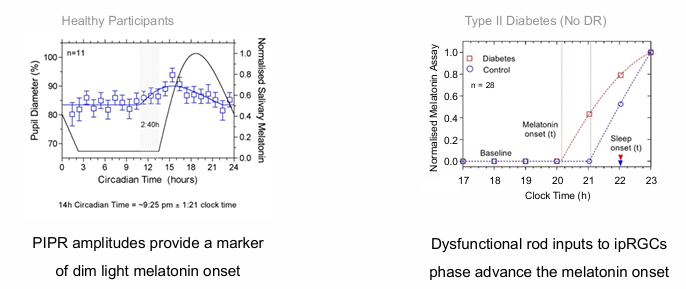

  • healthy participants: PIPR amplitudes provide a marker of dim light melatonin onset.

    • melanopsin function was suppressed through the retina by a higher order process in the brain.

    • Allows us to use melanopsin rather than directly measuring melatonin

    • useful application for shift-workers or jet lag.

ipRGCs and Parkinson's Disease

  • Altered ipRGC morphology is linked to sleep disruption in Parkinson’s disease

    • In PD, there are fewer ipRGCs & a smaller dendritic plexus.

    • Photoentrainment is advanced (phase advanced)

    • Melanopsin mediated PIPR amplitude is reduced.

Photoreceptor Enhanced Light Therapy (PELT)

  • Recreating the biological effects of natural daylight with Photoreceptor Enhanced Light Therapy (PELT)

  • Light is a powerful modulator of sleep, mood & attention.

  • PELT targets the retinohypothalamic tract to synchronise circadian rhythms.

  • Daylight Melanopsin matches the biological effects of melanopsin, rods and cones as they occur natural daylight (3500K).

  • Enhanced Melanopsin lights cause a circadian equivalent increase in melanopsin excitation (5500K) to target melanopsin dysfunction.

  • Daylight & Enhanced Melanopsin PELT have the same colour and photometric luminance (i.e., are rod and cone metamers).

  • Daylight PELT significantly improves non-visual pupillary and circadian functions.

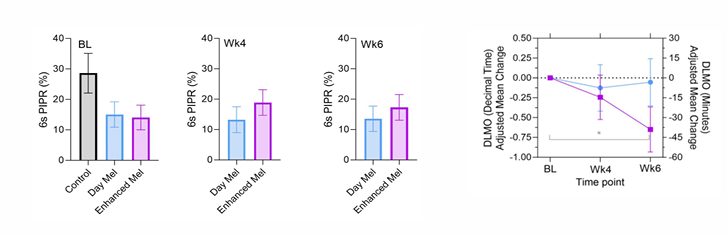

    • Phase II clinical trial evaluated PELT for 30 min/day over 4 weeks at a time pre-determined by chronotype

    • In patients with PD, stimulating the remaining retinal networks with daylight PELT compensates for the melanopsin degeneration to improve restorative deep sleep, wellbeing, pupil & motor function

      • purple line = enhanced melanopsin group → shift circadian rhythms by 36 minutes on average.

Melanopsin as the 5th Dimension of Vision

  • Melanopsin creates the 5th dimension of human vision via brain projections to the Lateral Geniculate Nucleus (LGN).

  • Isolating Melanopsin in humans:

    • melanopsin has lower sensitivity than rods and cones.

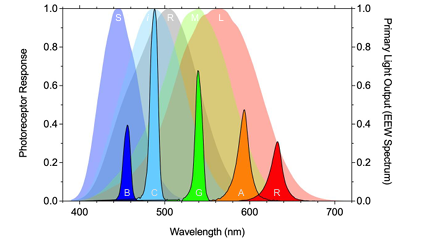

    • silent substitution using 5-primary lights (B C G A R) is needed to isolate melanopsin (i) function independent of the rhodopsin (R) & 3 cone opsins (S M L)

    • have to turn up the cyan and amber lights and town down a bit of red and blue, a lot of the green → activating melanopsin without seeing any changes from rods and cones.

  • Observer calibrations minimise the effect of individual differences with reference to the CIE S026 2018 Standard Observer photoreceptor spectral sensitivities.

Melanopsin and Visual Perception

  • Melanopsin mediates conscious visual percepts

  • Hue percepts match the ipRGC colour response property (L+M-on / S-off).
    Visual

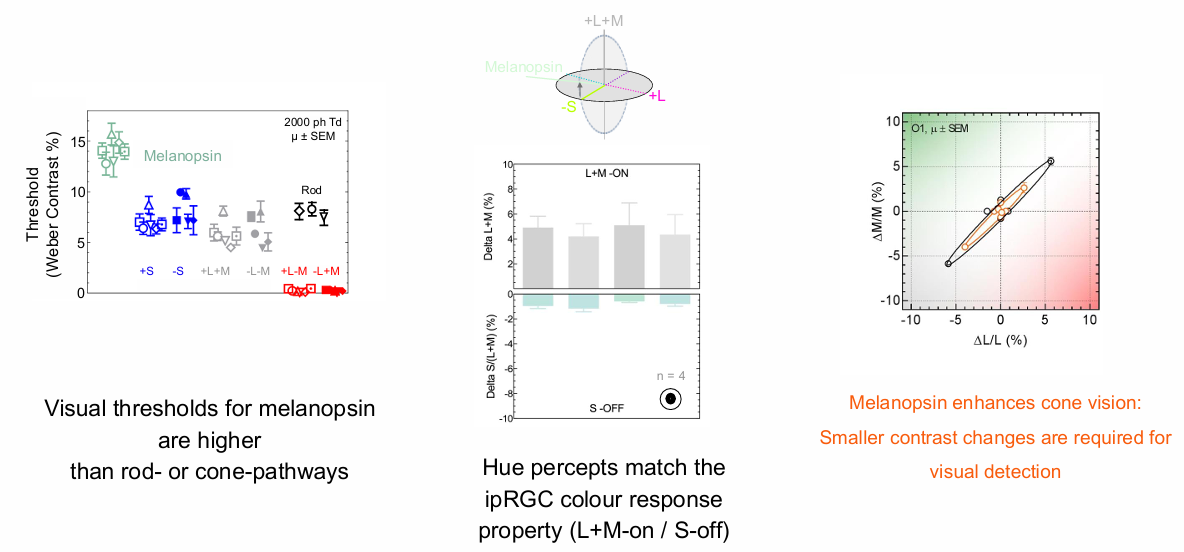

  • thresholds for melanopsin are higher than rod- or cone-pathways.

  • Melanopsin enhances cone vision: Smaller contrast changes are required for visual detection.

  • Melanopsin can detect low spatiotemporal patterns at high contrast.

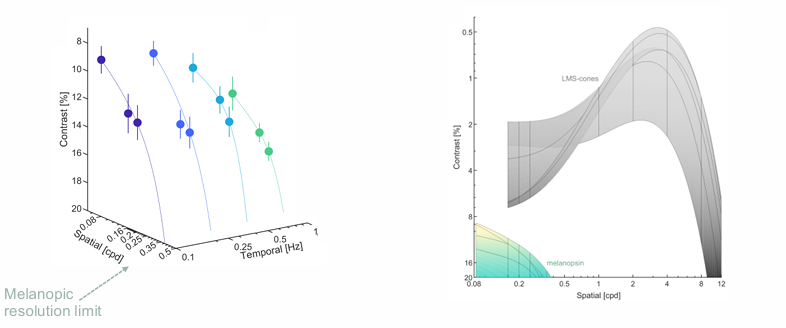

  • Melanopsin’s unique detection tuning to low spatiotemporal elements (<0.4 cpd) is insufficient to create form for identifying image structure.

  • Melanopic spatial reconstruction using anatomical maps of human ipRGCs closely matches the dendritic field diameter of inner-stratifying M2 ipRGCs.

  • Visual percepts arising from melanopsin:

    • Melanopsin can see, but does not support form vision.

    • Melanopic gratings are perceived as spatially chaotic visual patterns.

    • Fixation losses lead to the disappearance of the melanopsin percept, consistent with sustained ipRGC signalling.

    • Percept described as fluorescent with a shared hue ranging from: sand-like faint yellow / orange with increased melanopsin activation, to a faint cyan (similar to a clear sky) with decreased melanopsin activation.

    • Melanopic hue may be used in colour appearance to ‘yellow-shift’ colour perception at cooler colour temperatures (e.g., bluish appearing daylight spectra) while ‘blue-shifting’ warmer colour temperatures (e.g., orangish appearing sunset spectra).

Melanopsin's Role in Daylight Visual Performance

  • Daylight visual performance is regulated by cones, rods & melanopsin

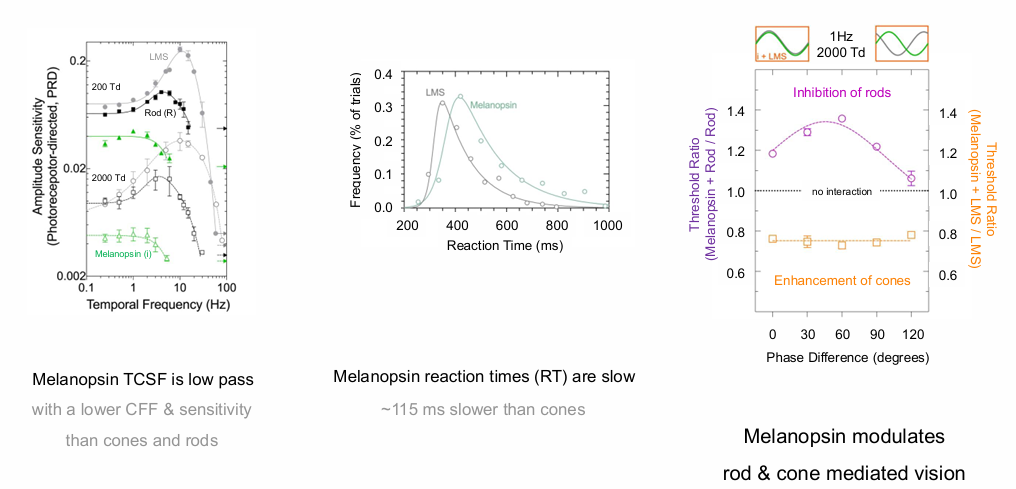

  • Melanopsin TCSF is low pass

  • Melanopsin reaction times (RT) are slow; ~115 ms slower than cones with a lower CFF & sensitivity than cones and rods.

  • Melanopsin modulates rod & cone mediated vision

Behavioural Responses to Light

Functional impacts of melanopsin activation on behavioural responses to light.

  • Melanopsin controls the coding efficiency of cone signals from retina to brain

    • In the retina, melanopsin alters the gain of cone signals (i.e., adaptation).

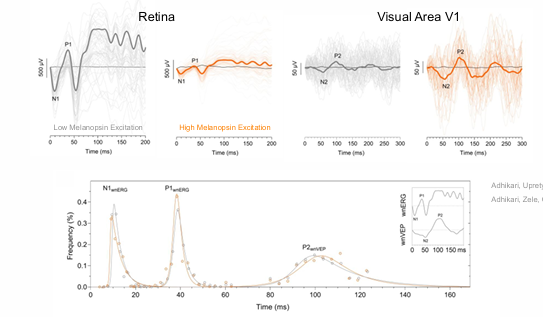

    • In the brain (V1), melanopsin amplifies cone signals to increase sensitivity without altering transmission latencies.

  • Photophobia is driven by melanopsin & cone inputs to retino-thalamocortical pathways

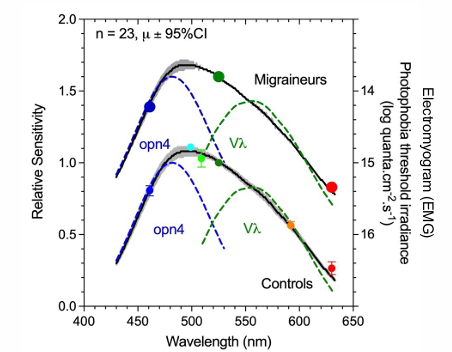

    • Migraineurs have supra-normal melanopsin responses (PIPR); Lower photophobia thresholds reflect hypersensitivity of ipRGC & cone luminance pathways.

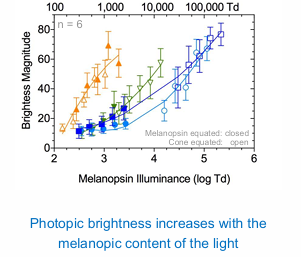

  • Brightness perception requires melanopsin & cone pathways

  • Melanopic content is an important consideration for artificial lighting design and energy efficiency in the built environment.

Melanopsin cells mediate both the visual and non-visual effects of light on behaviour and well-being.

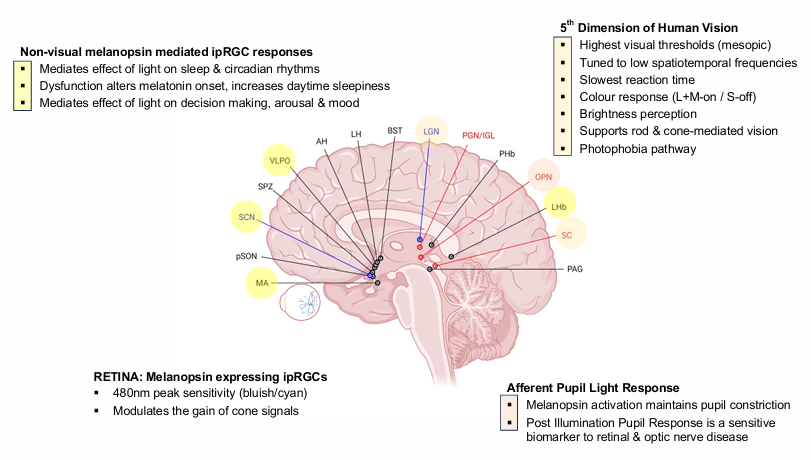

Summary of Melanopsin's Roles

RETINA: Melanopsin expressing ipRGCs

  • 480nm peak sensitivity (bluish/cyan).

  • Modulates the gain of cone signals

Afferent Pupil Light Response

  • Melanopsin activation maintains pupil constriction.

  • Post Illumination Pupil Response is a sensitive biomarker to retinal & optic nerve disease

5th Dimension of Human Vision

  • Highest visual thresholds (mesopic).

  • Tuned to low spatiotemporal frequencies

  • Slowest reaction time

  • Colour response (L+M-on / S-off)

  • Brightness perception

  • Supports rod & cone-mediated vision

  • Photophobia pathway

Non-visual melanopsin mediated ipRGC responses

  • Mediates effect of light on sleep & circadian rhythms.

  • Dysfunction alters melatonin onset, increases daytime sleepiness

  • Mediates effect of light on decision making, arousal & mood

Learning outcomes: Questions to ask yourself

  • How are melanopsin cells (ipRGCs) anatomically and physiologically different from rods and cones?

  • Describe how the pupil light response and silent-substitution vision methods can be applied to quantify melanopsin function?

  • What effect does melanopsin have on cone signals in the retina (e.g., ERG), through the pupil control pathway, and in the visual cortex?

Melanopsin is a pigment discovered in 2000, expressed in the human retina within a subset of ganglion cell bodies, dendrites, and axons, known as intrinsically photosensitive RGCs (ipRGCs). These cells, numbering less than 5000 per eye, form a photoreceptive net across the retina, mediating both extrinsic rod & cone photoreceptor signals.

Key roles in the visual system:

  1. Pupil Light Response: ipRGCs control the pupil light response via projections to the olivary pretectal nucleus (OPN), with melanopsin setting the pupil diameter during extended light exposure.

  2. 5th Dimension of Human Vision: Melanopsin creates a 5th dimension of human vision via projections to the Lateral Geniculate Nucleus (LGN), mediating conscious visual percepts and enhancing cone vision.

  3. Behavioural Responses to Light: Melanopsin controls the coding efficiency of cone signals from the retina to the brain, alters the gain of cone signals in the retina, and amplifies cone signals in the brain to increase sensitivity.

  4. Photophobia Pathway: Melanopsin, along with cone inputs, drives photophobia via retino-thalamocortical pathways.

  5. Non-visual responses: Mediates effects of light on sleep, circadian rhythms, decision making, arousal and mood.

summary of the anatomical and physiological differences between melanopsin-expressing cells (ipRGCs) and rods/cones, based on the provided notes:

Cell Count:

  • Rods: >100 million per eye (night vision).

  • Cones: 4-8 million per eye (day vision).

  • Melanopsin ipRGCs: <5000 per eye (<0.5% of all retinal ganglion cells).

Location and Coverage:

  • ipRGCs form a photoreceptive net across the retina.

  • No ipRGCs at the fovea.

Size:

  • ipRGCs are much larger than other ganglion cells.

Dendritic Field Diameter:

  • ipRGC dendritic field diameter increases with eccentricity (distance from the fovea).

Soma (cell body) Diameter:

  • ipRGC soma diameter ranges from ~20-40 𝜇m and doesn’t change significantly with eccentricity.

Physiological Response:

  • ipRGCs: Sustained intrinsic photoresponse post-light offset.
    -Rods & Cones: Transient responses to contrast change.

Receptive Field:

  • ipRGCs: L+M-on S-off receptive field (involved in colour constancy).

Temporal Response:

  • Melanopsin: Slow reaction times; ~115 ms slower than cones with a lower CFF & sensitivity than cones and rods.

Peak Sensitivity:

  • Melanopsin: 480nm peak sensitivity (bluish/cyan).

Visual Thresholds:

  • Melanopsin: Highest visual thresholds (mesopic).

Function:

  • Rods: night vision.

  • Cones: day vision.

  • ipRGCs: mediate the effects of light on circadian rhythms, pupil control, vision & mood.
