CSC520 Chapter 2 Summary: Operating-System Structures

Operating System Services

• Provide an environment for program execution by managing resources and offering services to users and programs.

• Functions helpful to the user:

  • User interface (UI): Allows users to interact with the OS. Includes:

    • Command Line Interface (CLI): Users interact by typing commands.

    • Graphical User Interface (GUI): Uses icons, buttons, and menus for interaction.

    • Batch interface: Executes commands from a script without user interaction.

  • Program execution: Loads and runs programs, allocating necessary resources such as memory and CPU time.

  • I/O operations: Manages input/output operations between the program and hardware devices.

  • File-system manipulation: Provides services for creating, deleting, searching, and managing files and directories.

  • Communications: Enables information exchange between processes or systems via shared memory or message passing. This includes networking capabilities.

  • Error detection: Detects hardware and software errors, taking appropriate actions to ensure system stability.

• Functions ensuring efficient system operation:

  • Resource allocation: Allocates system resources such as CPU time, memory, and I/O devices to different users or jobs to optimize system performance.

  • Accounting: Tracks the usage of system resources by users and applications for performance analysis and billing purposes.

  • Protection and security: Controls access to system resources, provides user authentication, and protects against unauthorized access and malware.

User Operating System Interface

• Allows users to interact with the OS, providing various methods for issuing commands and receiving feedback.

• Command-Line Interface (CLI):

  • Direct command entry: Users type commands that are directly interpreted by the OS.

  • Implemented in kernel or by system program (shells): Shells like Bash or PowerShell provide a command-line interface.

• Graphical User Interface (GUI):

  • Icons, buttons, menus: Visual elements for easier interaction.

  • Mouse, keyboard interaction: Input devices to control the GUI.

• Touchscreen Interfaces:

  • Gestures, virtual keyboard, voice commands: Modern interfaces for mobile devices and touch-enabled systems.

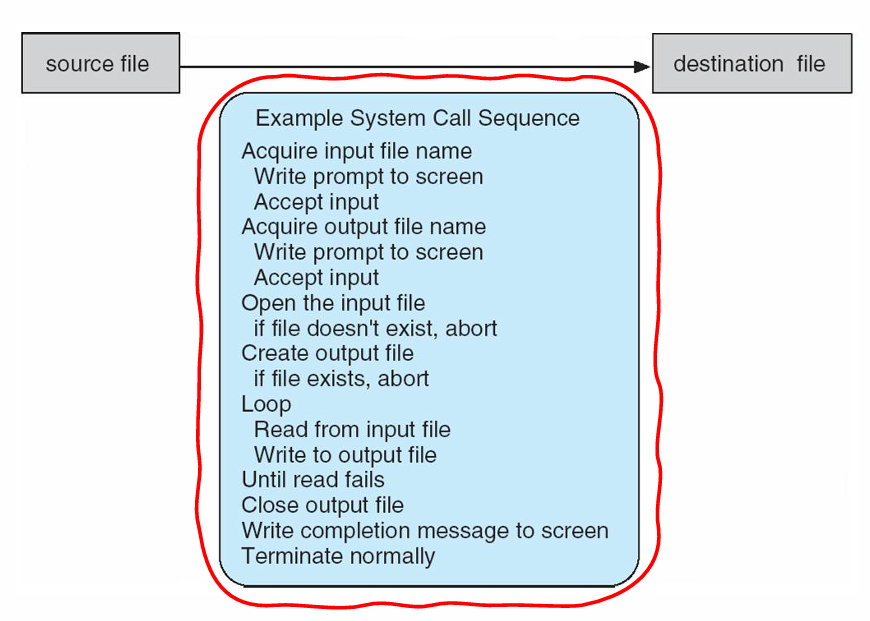

System Calls

• Programming interface to OS services, allowing user-level programs to request services from the OS kernel.

• written in a high-level language (C or C++)

• Accessed via Application Programming Interface (API): Standard libraries that provide access to system calls.

• Common APIs: Win32 API, POSIX API, Java API.

• System call implementation:

  • Each call has a number, table indexed: System calls are identified by unique numbers.

  • Invokes system call in OS kernel and returns status: Transfers control to the OS kernel to execute the requested service.

  • Programmer’s View: Only needs to follow the API

• System Call Parameter Passing:

  • Register passing: Parameters are passed in CPU registers.

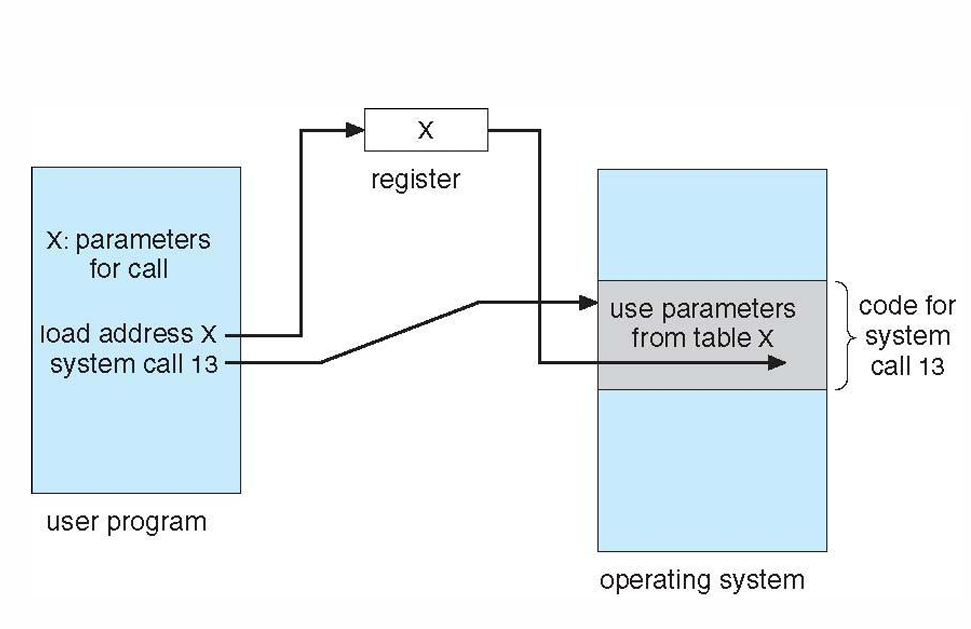

  • Block/Memory Table passing: Parameters are placed in a memory block, and the address of the block is passed to the system call.

  • Stack Passing: Parameters are pushed onto the stack before the system call.

Types of System Calls

• Process control: Creating, terminating processes, managing process attributes.

• File management: Creating, deleting files, reading, writing, and manipulating file attributes.

• Device management: Requesting, releasing, and controlling devices.

• Information maintenance: Getting and setting system time and date, querying system properties.

• Communications: Sending and receiving messages between processes or systems.

• Protection: Controlling access to resources, setting permissions, and managing security policies.

System Programs

• Provide a convenient environment for program development and execution, often acting as utilities to enhance OS functionality.

• Types: File manipulation, status information, file modification, programming language support, program loading/execution, communications, background services, application programs.

Operating System Design and Implementation

• Goals:

  • User goals: The OS should be convenient, easy to learn, reliable, safe, and fast.

  • System goals: The OS should be easy to design, implement, maintain, flexible, reliable, error-free, and efficient.

• Policy vs. Mechanism: Separate what will be done (policy) from how to do it (mechanism) to allow flexibility.

• Implementation: OS are typically implemented using a mix of languages (C, C++, assembly).

• Emulation: Running an OS on non-native hardware or within another OS environment.

Operating System Structure

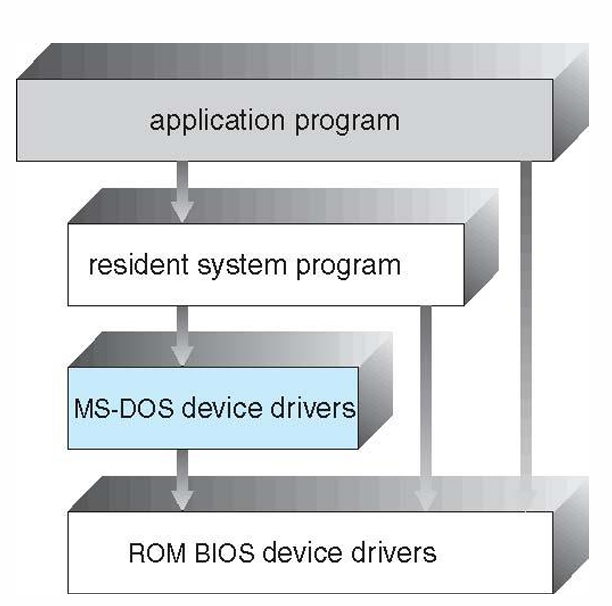

• Simple structure: MS-DOS (least space, not modular).

• Non-Simple structure: UNIX (two parts: systems programs, kernel).

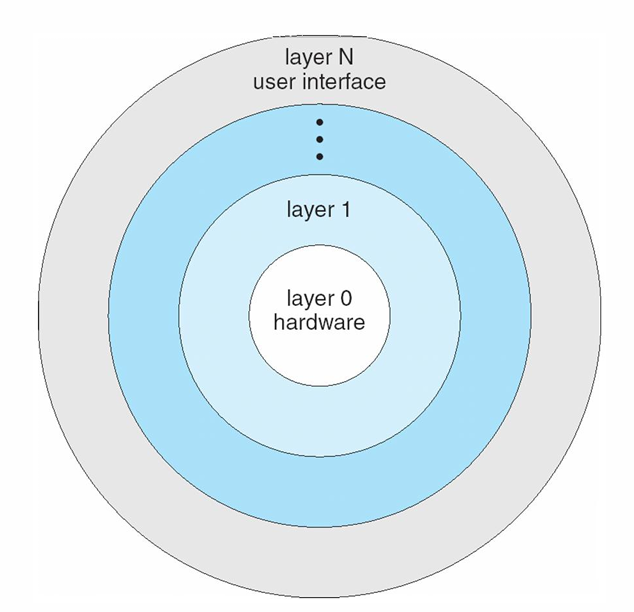

• Layered approach: Layers are built on top of lower layers, providing modularity.

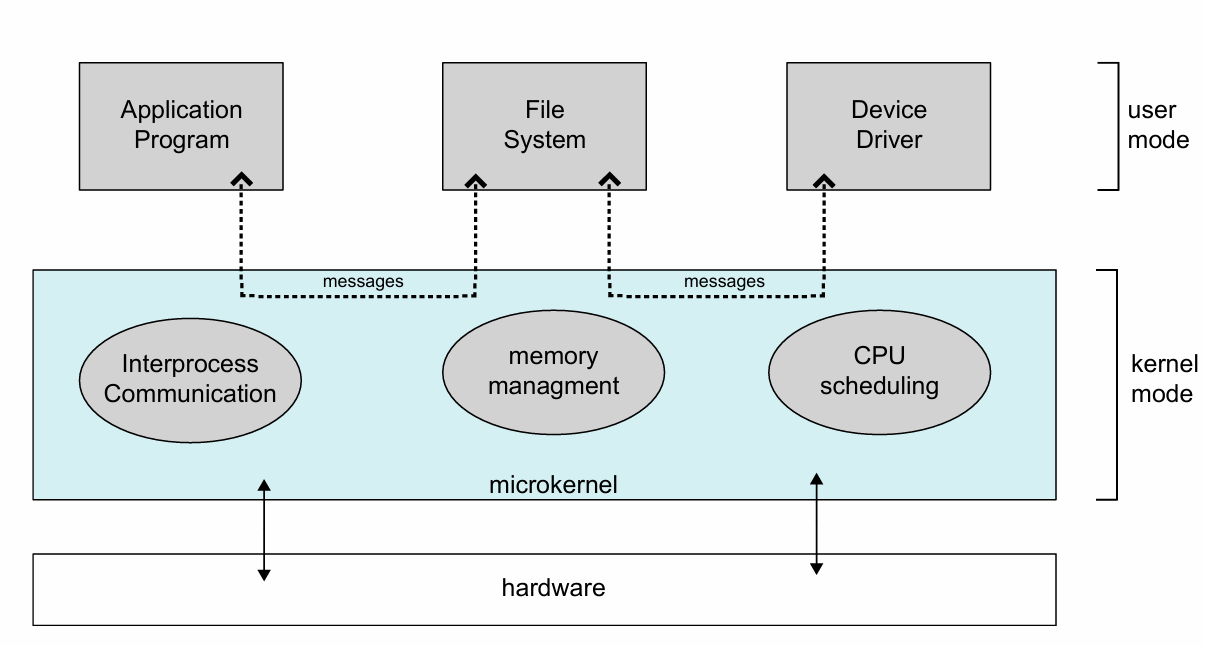

• Microkernel: Moves kernel components to user space (e.g., Mach).

  • Benefits: extensible, portable, reliable, secure.

  • Detriments: performance overhead due to increased communication between user and kernel space.

Operating-System Debugging

• Debugging: identifying and resolving errors (bugs) that affect system stability, performance, or security
