L22: NMR spectroscopy II

Two-dimensional NMR

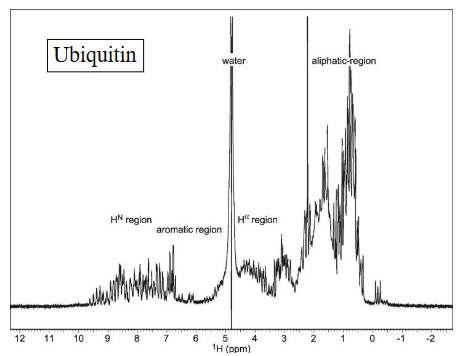

Protein 1D spectra are congested​

​​

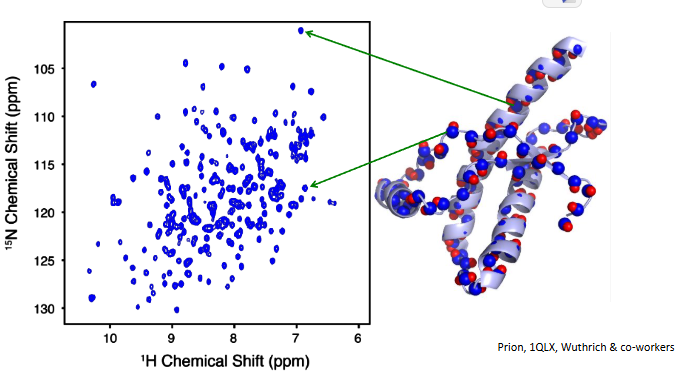

2D HSQC (Heteronuclear single quantum coherence) spectroscopy provides a fingerprint of a protein​

establish correlation​

two 1D experiments ≠ HSQC

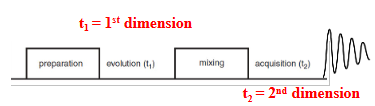

  1. Preparation (pulses)​

  2. Evolution (chemical shift, 1st dimension)​

  3. Mixing (exchange magnetization)​

  4. Acquisition of FID (chemical shift, 2nd dimension)​

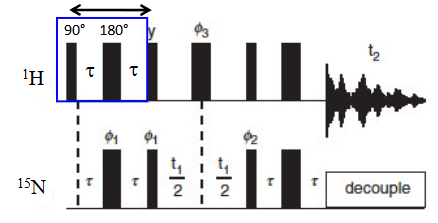

HSQC pulse sequence​

J-coupling is commonly used to create coherent states between nuclei for magnetization transfer.

  • time necessary for energy to transfer is related to J-coupling constant

Hahn echo​

90 → tau → 180 → tau → echo

Allows for magnetization transfer between nuclei without the occurrence of chemical shift evolution​

​can be used to enable “J-coupling evolution”​

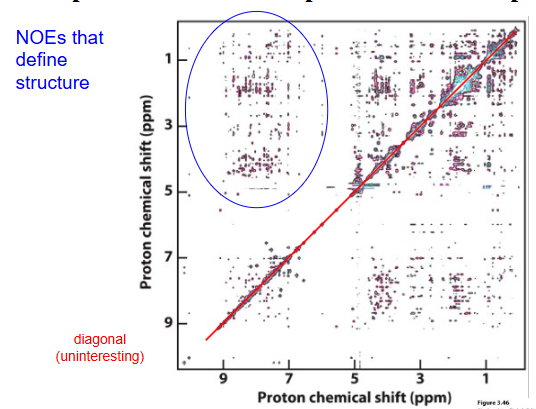

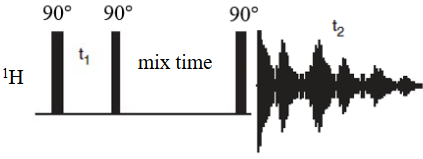

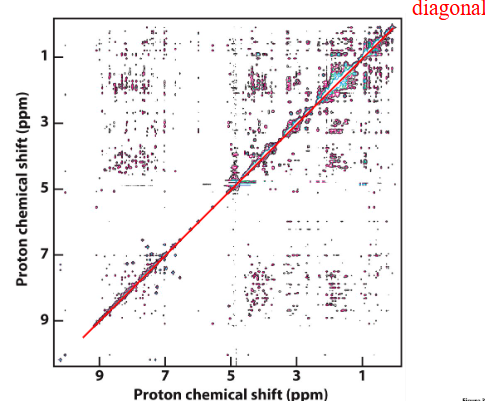

NOESY (Nuclear Overhauser Effect SpectroscopY​)

normally measured between protons​

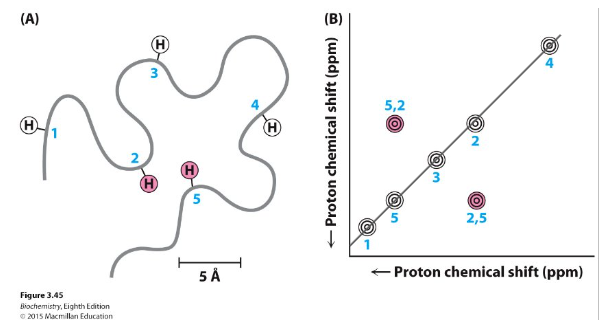

Exchange of magnetization CROSS RELAXATION if within ~5 Å (during “mix time”)​ - carries information from the other when they ‘talk’

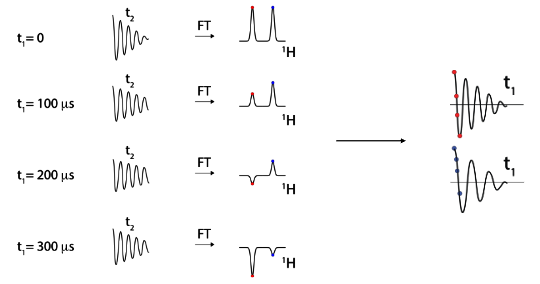

t1 = 0 first time, then increases

Schematic

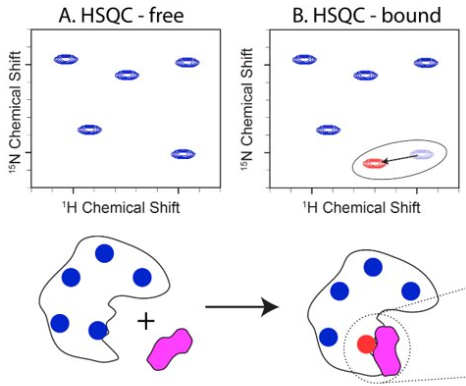

Chemical shift perturbation (CSP) approach​

Assumption: chemical shift changes are close to binding site​

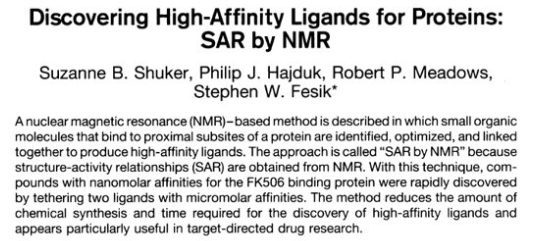

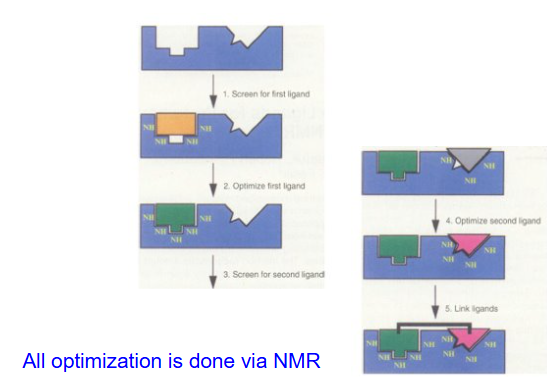

SAR by NMR

Unique approach to drug discovery that aims to find high affinity ligands using lower affinity fragments that would otherwise be overlooked in screening assays.

improve poor binders

Binding affinities change from ~1 mM to ~40 nM​ (factor of 25,000X​)

Structure determination approach​​

not first choice… but preferred with small and disordered targets

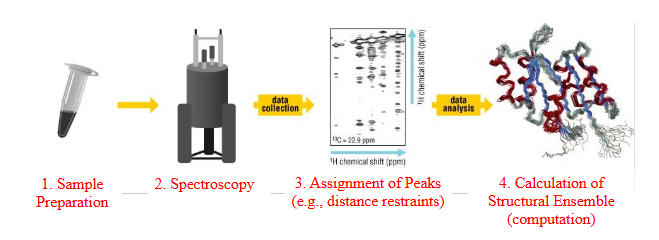

1. Sample Preparation (incorporation of NMR labels)​

2. Acquisition of NMR data​

3. Assignment of NMR spectra (NOESY, etc.)​

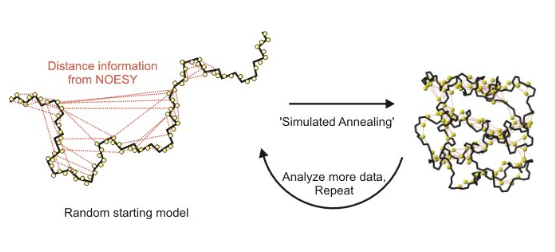

4. Calculation of structure with NMR restraints

metallurgy :)

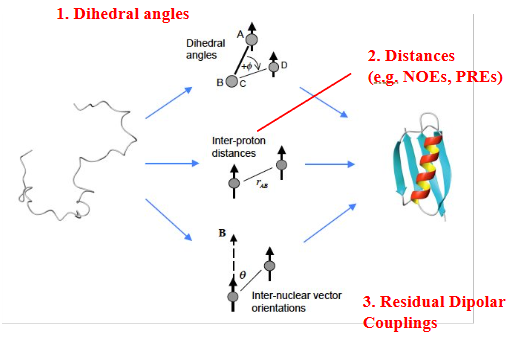

Restraints needed for NMR structure​

Dynamics by NMR​

Protein motion and NMR​

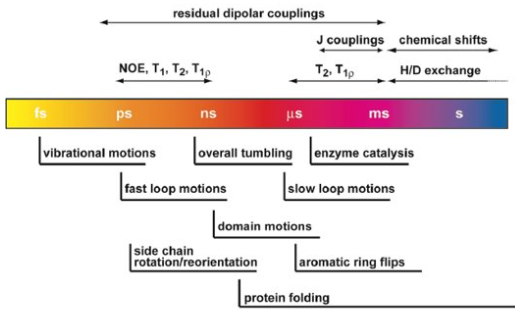

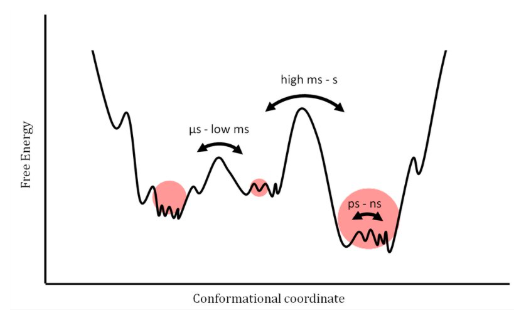

Timescales correspond to free energy barriers​

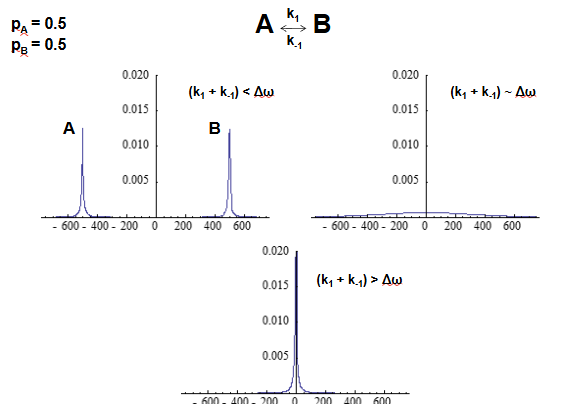

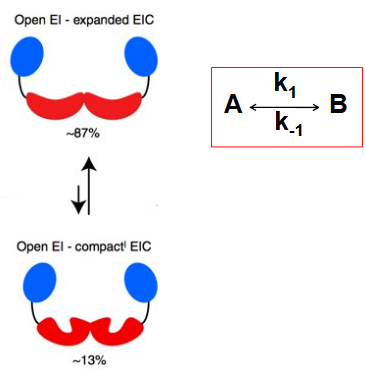

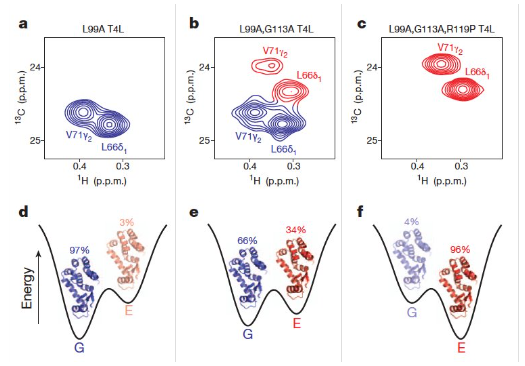

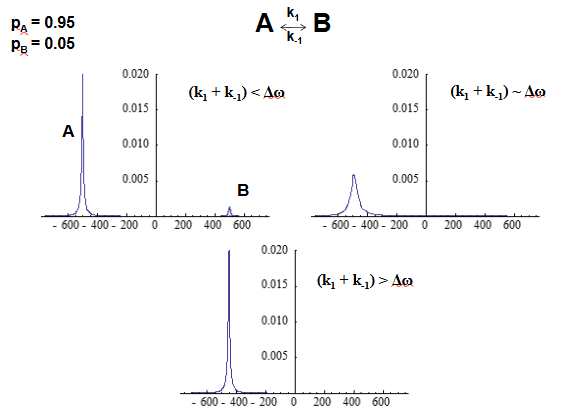

conformational exchange (slow - ms-s)

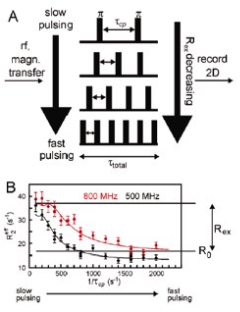

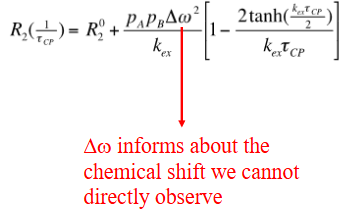

CPMG relaxation dispersion experiment​

chemical shifts are sensitive to secondary structures

spin relaxation (fast - ns)

  1. Relaxation drives spins back to their equilibrium distribution​

  1. Relaxation is a natural phenomenon driven by molecular motions. ​
    (i.e., relaxation is caused by random, fluctuating magnetic fields around the sites of nuclear spins - disorder of magnetization vectors)​

  1. Spin relaxation experiments can be used to study molecular dynamics/motions, which is one of the greatest strengths of NMR

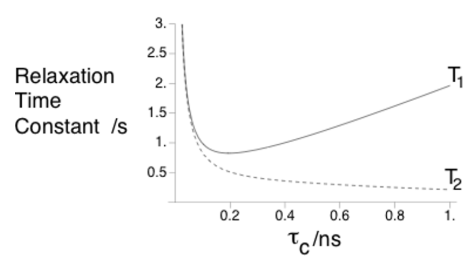

​Longitudinal relaxation - The return to the z axis is described by T1 (1/R1)

Transverse relaxation - Loss of x/y coherence is described by T2 (1/R2)​

​​

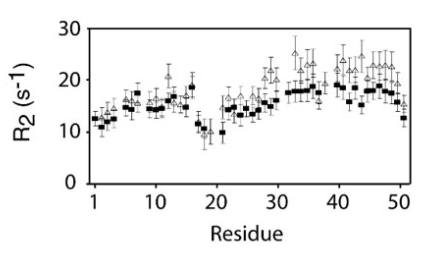

Plot T2 (1/R2) data as a function of residue​ Triangles: phosphorylated protein​ Squares: unphosphorylated protein​

R2 increases (decrease in T2) is indicative of longer local correlation time

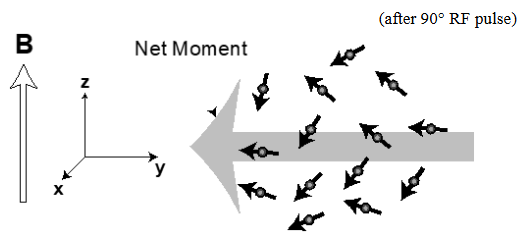

Transverse magnetization ​​

When the net magnetization is in the x/y plane

​Transverse magnetization decays due to microscopic differences of the magnetic fields surrounding each nuclear spin in the ensemble - loss of coherence

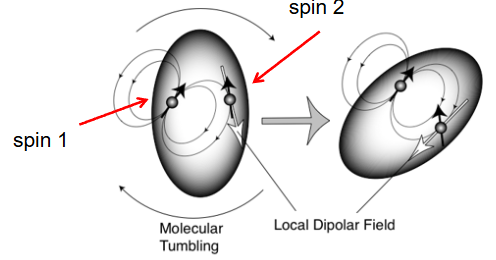

Dipolar field fluctuations and molecular tumbling​

Reorientation of molecules relative to B0 gives rise to time dependent local magnetic field fluctuations​

Correlation time: Stokes law for Brownian rotational diffusion

time it takes on average to rotate by pi radians​

  • r is the radius​

  • η is the solvent viscosity​

  • k is the Boltzmann constant​

  • T is the temperature​

TAKE HOME

Solution NMR can be carried out on all size proteins.​

False! Intrinsic limitation in relaxation coherence​
