Dysrhythmia & EKGs (Critical Care)

Dysrhythmia Fundamentals

• Abnormal cardiac rhythms = dysrhythmias.

• Prompt assessment of BOTH the rhythm and the patient’s clinical response is critical.

Cardiac Conduction Pathway

SA Node → AV Node → Bundle of His → R/L Bundle Branches → Purkinje Fibers

Autonomic Nervous System Effects

• Parasympathetic (Vagus Nerve): ↓ SA node automaticity, ↓ AV conduction, ↓ HR, ↓ contractility.

• Sympathetic: ↑ SA node automaticity, ↑ AV conduction, ↑ HR, ↑ contractility.

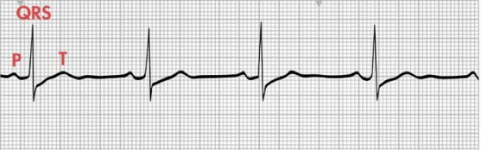

ECG Waveforms & Normal Intervals

• Depolarization: Triggers contraction of the heart.

• Repolarization: Cells return to resting polarized state

  Component	Description	Normal Range
  P Wave	Atrial depolarization (contraction)	0.06–0.12 sec
  PR Interval	SA → AV → His → Purkinje	0.12–0.20 sec
  QRS	Ventricular depolarization (contraction)	< 0.12 sec (Anything more may indicate a PVC)
  ST Segment	Early ventricular repolarization (isoelectric → net charge of zero from being at rest)	~0.12 sec
  T Wave	Ventricular repolarization	~0.16 sec
  QT Interval	Full depolarization + repolarization	0.34–0.43 sec

ECG Recording Basics

• 12-lead ECG = Gold standard

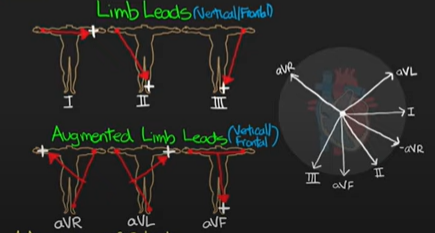

  • 6 frontal-plane leads (I, II, III, aVR, aVL, aVF) → measure different angles of the heart in the vertical/frontal plane.



  • 6 precordial leads (V1-V6) → goes around the heart and measures in the horizontal/transverse plane.



• Single or multiple-lead monitoring for continuous rhythm strips. Measures electrical signal from patient.

Lead Placement (bedside)

• 3-lead (MCL): RA, LA, LL with chest lead.

• 5/6-lead: RA, LA, RL, LL + V1 or V6 chest lead (exact precordial landmarks given) → most common in an acute care setting.



Telemetry Monitoring

• Centralized system (tech monitors multiple patients) OR bedside computerized alarms for dysrhythmia/ischemia/infarction.

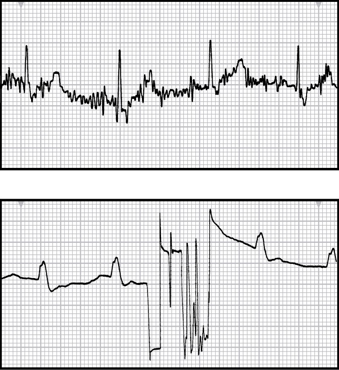

Artifact & Electrode Preparation

• Artifact distorts interpretation; verify cable connections and placement FIRST, replace dried electrodes, keep patient warm and still, HOB 30 degrees.

  • Anything that’s not the actual heart rhythm

  • poor prep ↑ artifact.

• Prep: Clip hair, clean skin (alcohol/gauze) and use skin prep, dry thoroughly.

• Monitoring: Leads must be changed.

  •

Rhythm Interpretation Steps

1. Regular or Irregular? (equal R-R distances = regular).

2. Atrial & Ventricular rate?

3. Are there any P waves? – What do they look like (morphology)? No P waves narrows down the rhythm.

4. Is there 1 P wave for every QRS complex (1:1 Ratio) or is there more?

5. Are the PR and QRS within normal limits? If not, this narrows down the rhythm.

6. ST segment isoelectric (having no net charge)?

   1. Elevated may indicate STEMI

Heart-Rate Calculation Tricks

• Count QRS in 1 min (full strip) – most accurate.

• Count R-R intervals in 6 seconds and multiply by 10.

• **Each small box within a big box is 0.04 seconds.

• **The large box is equal to 0.20 seconds.

• 30 big boxes = 6 seconds



SINUS NODE (SA) RHYTHMS

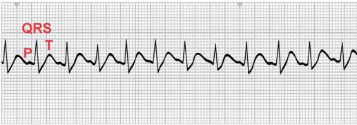

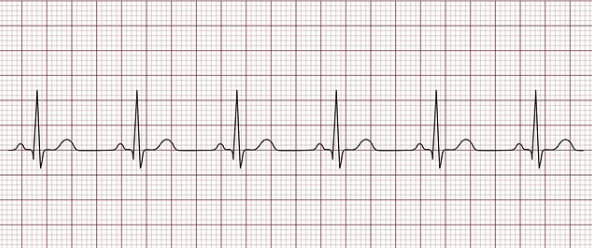

• Normal Sinus Rhythm (NSR): SA fires 60-100 bpm; normal conduction.



• Sinus Bradycardia: <60 bpm; normal conduction. Increased space between complexes.

  • Can be a normal rhythm in very healthy pts or athletes.

  • General Treatment: Stop causative drugs (ex. beta blockers) or reduce dose

  • Treatment (if symptomatic/unexpected):

    • Atropine (first-line)

    • Dopamine and epinephrine infusions in ICU (increases contractility, HR, and CO)

    • Pacing (if nothing else works)

• Symptomatic S/S: Hypotension, pale/cool skin, dizziness/syncope, confusion, tachypnea.

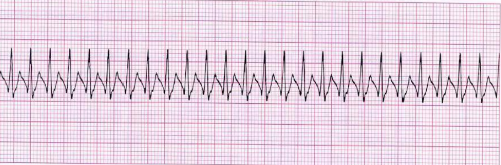

• Sinus Tachycardia: 100-180 bpm; normal conduction; often compensatory (ex. fever, pain, hypovolemia, etc). Closer R-R intervals.

  • Treatment → #1 Identify & treat underlying cause (ex. Potassium)

    • #2 Vagal maneuvers (stimulate the Vagus nerve to slow a fast HR / have patient “bear down” or blow into an empty syringe).

    • #3 Beta-blockers or CCBs

  • Long-standing tachycardia causes decreased CO due to poor perfusion (heart unable to fill completely).



ATRIAL-ORIGIN RHYTHMS

Premature Atrial Complexes (PACs)

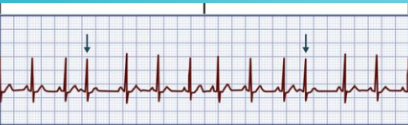

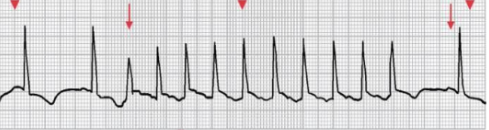

• Characteristics: Early heart beats. All waves present but altered. Often triggers PSVT.

• Causes: Emotional stress, fatigue, tobacco/alcohol/caffeine (stimulates sympathetic nervous system), cardiac diseases (HF, CAD).

• Treatment: Monitor until symptomatic, reduce stimulation, treat underlying conditions (ex. HF), B-blockers.



Supraventricular Tachycardia (SVT) - Gradual or Sudden

• Includes a-fib, a-flutter, PSVT, sinus tachycardia.

• Conduction abnormality; HR >150 bpm and narrow QRS complex tachycardia.

  • SVT Sustained: Dangerous because HR is too fast and can’t fill with enough blood to perfuse the rest of the body. Requires intervention. Same treatment as PSVT. Regular rhythm.

    • Prolonged: Less blood in = less blood out.

      • Leads to decreased CO → hypotension, dyspnea, angina, palpitations, HF.

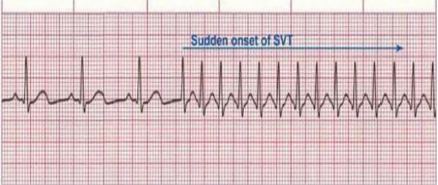

Paroxysmal Supraventricular Tachycardia (PSVT) - Sudden

• Characteristics: Ectopic focus above Bundle of His; usually sudden onset/offset (paroxysmal).

  • String of repeated premature beats often triggered by PAC.

  • HR can be 151-220 bpm (narrow QRS).



• Causes:

  • In a Normal Heart:

    • Emotional stress

    • fatigue

    • tobacco/alcohol/caffeine/Adderall (stimulants)

  • Digoxin toxicity, CAD, cor-pulmonale (right-side HF).

    • Digoxin toxicity slows the AV node conduction, increases contractility, and increases irritability of cardiac cells.

• Prolonged PSVT (HR >180 bpm):

  • Palpitations or complaints of a “racing heart”

  • Hypotension

  • Dyspnea

  • Angina

• Treatment Hierarchy:
  • #1 Vagal maneuvers “bear down” (Valsalva/breathing into syringe, coughing) → first-line.
  • #2 IV adenosine (drug of choice if vagal fails).
  • #3 β-blockers or CCBs (diltiazem).
  • #4 Synchronized cardioversion if unstable (last option).

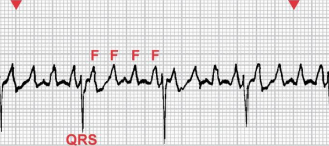

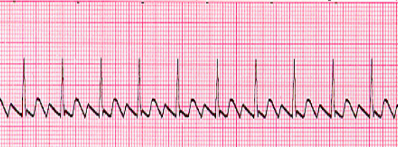

Atrial Flutter “Sawtooth”

• Characteristics: Single atrial focus → saw-tooth F waves. Single ectopic focus in atria. NO P WAVES.

  • HR 250-350 bpm and ventricular rates may vary.

    • Ex. 4 F waves for every 1 QRS complex (4:1 ratio).

• Causes:

  • CAD/HF

  • HTN (uncontrolled)

  • mitral valve disorders

  • PE (right-sided strain on heart, “cor pulmonale”)

  • COPD

  • hyperthyroidism

  • cardiomyopathy

  • Drugs: Digoxin and epi (long-term use of epi).

• Risks: ↓ CO from rapid beat and loss of atrial kick (pushes the rest of the blood into the ventricle).

  • Stroke from atrial thrombus (blood isn’t fully expelled from atria)

  • HF

  • Angina

• Treatment: Goal is to slow the ventricular rate

  • Drugs:

    • B-blockers → Slows HR.

    • IV CCBs & Amiodarone → Converts to sinus rhythm (Antidysrhythmias).

    • Anticoagulants

      • Common Complication: Blood clots (atria not fully contracting → blood pools in atria).

      • Warfarin (Coumadin) → prevent clot formation.

    • Synchronized cardioversion if unstable

      • Dronedarone (Multaq) given beforehand.

  • Procedures (last option):

    • Radio-frequency ablation (curative for chronic a-flutter)

      • Looks for ectopic beat by entering through femoral artery to see where in atria the tissue is firing from → cauterize tissue.

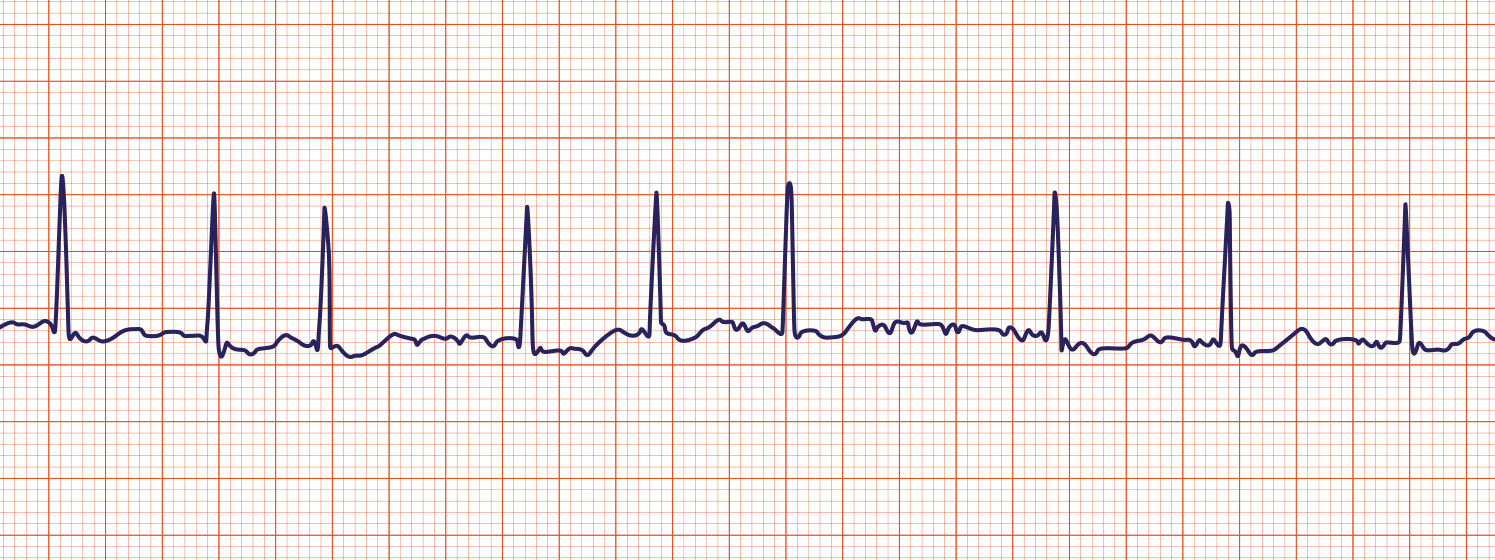

Atrial Fibrillation - “Irregularly Irregular” or “chaotic twitching”

• Characteristics: Chaotic atrial activity; NO P WAVES.

  • Atrial: 400-600 bpm (too fast to be counted)

  • Ventricular rate varies:

    • Slow (<60 bpm)

    • Controlled ventricular: 60-100 bpm

    • Rapid >100 bpm (A-fib with RVR)

• Most common dysrhythmia; Prevalence ↑ with age or post-op.

• Clinical Manifestations: Hypotension, palpitations, dyspnea, angina.



• Causes:

  • Mainly underlying heart disease: Rheumatic HD, CAD, cardiomyopathy, HF, pericarditis,

  • Acutely: Alcohol (especially withdrawing), caffeine, post-cardiac surgery, electrolyte disturbances, thyrotoxicosis (hyperthyroidism).

• Consequences: ↓CO (loss of atrial kick) + risk of embolic stroke

• Treatment: Goal is to decrease ventricular rate and prevent embolic stroke

  • Drugs:

    • Anticoagulants (#1 to prevent stroke) → Warfarin

    • B-blockers & IV CCBs (#1 to slow HR)

    • Antidysrhythmias (#1 for rhythm control) → Amiodarone

    • Aspirin if low risk for embolic stroke

  • Procedures:

    • Synchronized Cardioversion

      • If pt has A-Fib >48 hours → start anticoagulation (Warfarin/Coumadin) minimum 3-4 weeks before cardioversion and 4-6 weeks after.

    • Radio-frequency ablation

    • Maze procedure (curative)

      • Procedure stops a-fib by interrupting ectopic signals with creation of scar tissues via incision in atria.

ATRIOVENTRICULAR (AV) BLOCKS

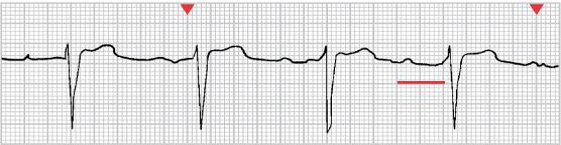

First-Degree

• Consistent PR >0.20\,\text{s}; usually benign/asymptomatic.

  • Ex. Pt can have NSR and may present with a first-degree AV block without symptoms.

• Occurs with: CAD, rheumatic heart disease, vagal stimulation, inferior MI.

  • Drugs: Digoxin (with and without toxicity), B-blockers, CCBs.

• Treatments: Check medications FIRST and monitor for worsening symptoms.

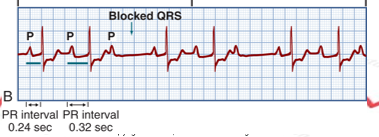

Second-Degree Type I (Wenckebach) → Usually Asymptomatic

• “Longer… longer… longer… DROP! This is when you have a Wenckebach”

• Gradual lengthening of the PR interval (time between P wave and QRS) until a P wave is not followed by a QRS (dropped beat) → usually in AV node or His-Purkinje system.

• Occurs With: Drugs (B-clockers or digoxin), CAD, myocarditis, and electrolyte imbalances such as hyperkalemia.

• Result of inferior MI or myocardial ischemia (transient and well-tolerated).

  • Acute MI patients → may be warning sign of complete heart block.

• Symptomatic → atropine or temporary pacemaker

• Asymptomatic → observe (TCP on standby).

  • Bradycardia is likely to become symptomatic when hypotension, HF, or shock is already present.

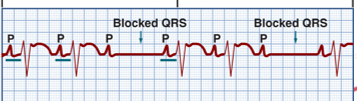

Second-Degree Type II (Mobitz II) → “Lethal Rhythm”

• P waves are randomly dropped, but the PR interval stays the same.

  • Often progresses to complete heart block (3rd degree).

• Occurs With: Anterior MI, CAD, and drug toxicity

• Results in ↓CO with hypotension and myocardial ischemia

• Treatment: Permanent pacemaker

Third-Degree (Complete) AV Block → “Lethal Rhythm”

• No atrial impulses reach ventricles (AV dissociation); Atria and ventricles beat independently.

  • Ventricular escape 20-40 bpm (slow) → depends on site of block.

• P waves and QRS complexes are present with QRS frequently missing beats (PR intervals are inconsistent).

• Occurs With: Severe heart disease (CAD, MI, cardiomyopathy, myocarditis, scleroderma), and digoxin/b-blockers/CCBs.

• Results in ↓CO with ischemia, HF, shock, and syncope from severe bradycardia or asystole.

• Treatment: Immediate transvenous pacing (TCP) + permanent pacemaker.

  • Drugs: Dopamine and epi drips for BP and HR support; atropine ineffective.

VENTRICULAR RHYTHMS

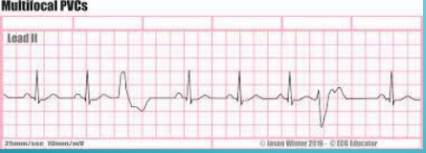

Premature Ventricular Contractions (PVCs)

• Abnormal early occurrence of a wide and distorted QRS (>0.12\,\text{s}); ectopic focus of the ventricles. Contains P wave, QRS, and T wave.

  • Unifocal (arising from or occurring in a single direction or location) or multifocal (arising in different directions like up and down).

• Causes: Emotional stress, stimulants, digoxin, hypoxia, electrolyte imbalances (hyperkalemia), disease states (MI, MVP, HF, fever).

• Usually benign in healthy hearts; in diseased hearts may ↓CO, trigger angina/HF.

• Don’t count PVCs → watch on monitor and feel a pulse that correlates with the heart rhythm.

• Treatment: Treat cause (O₂, replete K⁺/Mg²⁺)

  • Drugs: β-blocker, amiodarone, lidocaine.

Ventricular Tachycardia (VT) → !!!!!Lethal Rhythm!!!!!!!

• ≥3 consecutive PVCs with HR >100 bpm, can be as high as 300 bpm.



• Comes in multiple forms:

  • Monomorphic VT: All beats look the same (shockable).

  • Polymorphic VT (e.g., torsades de pointes): Beats look different; rhythm varies.

  • Nonsustained VT: Brief episodes of VT that last less than 30 seconds.

  • Sustained VT: When the ventricular tachycardia lasts longer than 30 seconds and causes severe decrease in CO. Can be life—threatening.

• Life-threatening – may deteriorate to VF from decreased CO.

• Causes: MI, CAD, cardiomyopathy, electrolyte issues (K or Mg), drug toxicity (digoxin), CNS disorders, long QT.

• Treatment (based on pulse):

  • Monomorphic VT with Pulse:

    • Stable→ IV amiodarone/lidocaine

    • Unstable → IV amiodarone/lidocaine followed by synchronized cardioversion.

  • Pulseless Monomorphic VT (life-threatening)

    • (Cardiac Arrest) → CPR + rapid defibrillation (unsynchronized shock)

    • Epinephrine if shock fails.

  • Polymorphic VT w/ prolonged QT (torsades) → NOT SHOCKABLE

    • IV magnesium

    • Isoproterenol (speed up heart)

    • Lidocaine

    • Stop QT-prolonging meds ASAP (ex. antipsychotics)

      • Cardioversion considered if rhythm not converted.

• **May reoccur in patients if prophylactic treatment isnt initiated

Ventricular Fibrillation (VF) - !!Lethal Rhythm!!

• Multiple ventricular foci firing → chaotic quivering; no CO → START CPR IMMEDIATELY.

  • Patient is unresponsive, pulseless, apneic – death without immediate action.

• Types of V-Fib:

  • Fine

  • Coarse

• Causes: Acute MI, CAD, reperfusion, trauma (ex. car accident), pacing/cath lab, electric shock, hyperkalemia, acidosis.

• Treatment:

  • CPR + rapid defibrillation

  • Drug therapy.

LETHAL RHYTHMS

• Ventricular Fibrillation (fine/coarse) – shockable.

• Ventricular Tachycardia (monomorphic) – shockable.

• Torsades de Pointes (polymorphic VT) - NOT shockable.

• Second-degree AV block Type II - NOT shockable.

• Third-degree AV block - NOT shockable.

• Asystole / Pulseless Electrical Activity - NOT shockable.

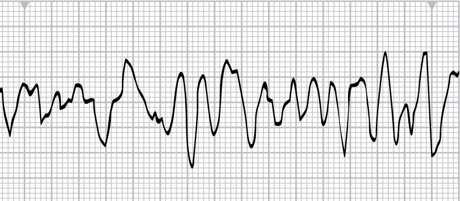

Torsades de Pointes (polymorphic VT) → “Arctic Monkeys” (Not Shockable)

• Polymorphic VT twisting around baseline; long QT predisposition.

• Risks: TCA overdose, hypomagnesemia, hypokalemia, congenital long QT, cardiac disease.

• S/S: palpitations, light-headedness, syncope → arrest.

• Therapy: correct electrolytes (Mg²⁺), antiarrhythmics, pacemaker, ICD.

Pulseless Electrical Activity (PEA)

• Electrical rhythm present, no pulse (no mechanical activity).

• Must search for cause – “Hs & Ts”:

  • Hypovolemia (loss of blood/low blood volume→ must replace blood lost)

  • Hypoxia (consider intubation)

  • Hydrogen ions (acidosis)

  • Hypo/hyperkalemia (flat/peaked T waves→ if hyperkalemia, give calcium gluconate)

  • Hypothermia (give warm fluids or bear hugger)

  • Toxins,

  • Tamponade,

  • Tension pneumothorax,

  • Thrombus (MI/PE).

• Treatment: CPR + epinephrine, intubation, correct underlying cause.

Asystole “Flat-line” → NOT SHOCKABLE

• Total absence of ventricular electrical activity; no CO; poor prognosis.

• Causes: End-stage HF, severe conduction disease, advanced CAD.

• Treatment: CPR, ACLS (epi, intubation, TCP). Defibrillation not indicated.

Synchronized Cardioversion vs. Defibrillation

• Defibrillation: Depolarizes entire myocardium allowing SA node reset.

Pacemakers

• Provide electrical stimuli when intrinsic path fails.

• Components: programmable generator + pacing leads.

  • Ex. Can be programmed for 70 bpm and if heart doesn’t meet requirement then it’ll shock.

• Pacer spike will be seen on EKG.

Temporary Pacing

• Transvenous (bridge to permanent), Epicardial (during open-heart), Transcutaneous (emergency; painful – give analgesia/sedation if possible).

Permanent / Cardiac Resynchronization Therapy (CRT)

• Goal to re-pace the heart

• Biventricular pacing for HF to re-sync ventricles; may combine with ICD.

• Complications: infection, hematoma, pneumothorax, lead displacement/perforation (ex. Heavy lifting).

  • If vegetation occurs around leads then it’ll be shut off temporarily until vegetation resolved.

Post-Procedure Care & Teaching

• Monitor site; OOB once stable; limit arm/shoulder on pacer side.

• Patient education:
  • Attend follow-up checks.
  • Incision care; report redness, swelling.
  • Arm restrictions (no lifting above shoulder for specified time).
  • Avoid direct blows nor contact spots; high-output generators (ex. No working with certain heavy machinery because it can interfere); strong magnets (unless MRI-safe), anti-theft devices
  • Microwaves OK; airport security – show ID card.
  • Carry Medic-Alert & ID card; learn to take pulse daily.

Implantable Cardioverter-Defibrillator (ICD)

• Lead via subclavian → endocardium; generator subcutaneously.

• Detects and shocks lethal rhythms, delivers ≤25 J.

• Indications: survived SCD, sustained VT, syncope with inducible VT/VF, high-risk patients.

• Functions: defibrillation + over-drive pacing for VT + back-up pacing for bradycardia.

• Same peri-op care as pacemaker.

• Psychosocial: body image, fear of shocks; encourage support group.

• Teaching parallels pacemaker plus: what to do if ICD fires (sit/lie, call EMS if >1 shock), caregivers learn CPR.

Adult Cardiac Arrest (VF/pVT vs PEA/asystole)

• Shockable (VF/pulseless VT):

  1. Shock

  2. CPR 2 min + Epinephrine q3–5 min

  3. Re-shock + CPR → Amiodarone or Lidocaine

  Non-Shockable (PEA/Asystole):

  • CPR + Epinephrine ASAP

  • Identify & treat Hs & Ts


Ethical & Practical Implications

• Rapid recognition of lethal rhythms saves lives; nurses must master equipment setup, artifact reduction, and algorithms.

• Anticoagulation decisions in AF involve risk-benefit, shared decision making.

• Device therapy (pacemaker/ICD) impacts lifestyle & psychological well-being – holistic education & support needed.
