a) Energy transfers

a) interchange between kinetic and potential energy during simple harmonic motion

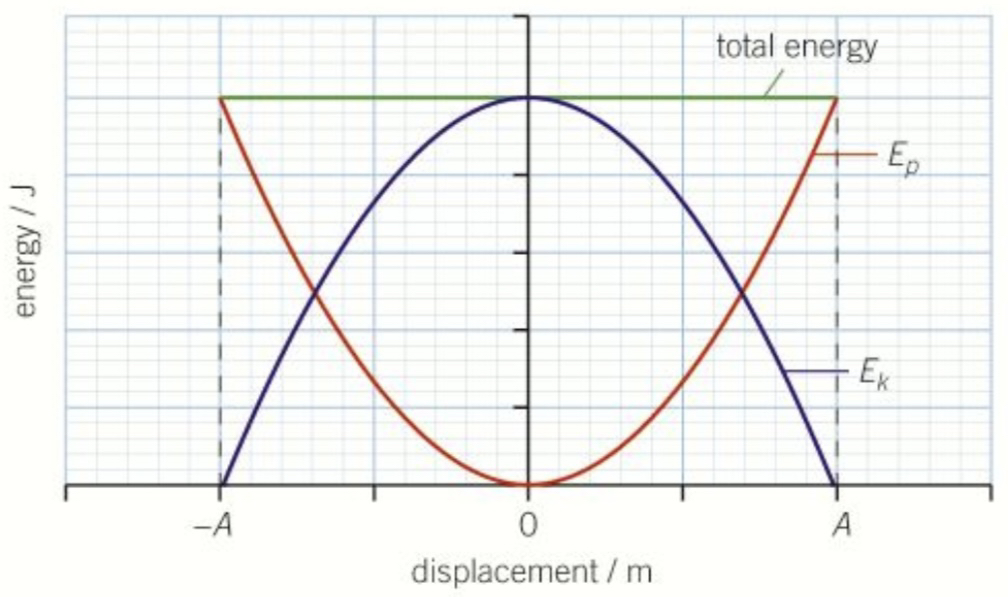

bi) energy-displacement graphs for a simple harmonic oscillator


for an object in simple harmonic motion

  • at the amplitude

    • maximum potential energy

    • no kinetic energy

  • towards the equilibrium position

    • decreasing potential energy

    • increasing kinetic energy

  • at the equilibrium position

    • no potential energy

    • maximum kinetic energy

  • towards the amplitude

    • increasing potential energy

    • decreasing kinetic energy


total energy → sum of kinetic + potential energy → constant


for half an oscillation


for a pendulum

  • potential energy = gravitational

for a spring

  • oscillating vertically

    • potential energy = gravitational and elastic

  • oscillating horizontally

    • potential energy = elastic
