SQL Notes

Fundamentals

• SQL

  • The standard language for storing, manipulating, and retrieving data in databases.

  • SQL lets you access and manipulate databases

• RDBMS

  • Stands for Relational Database Management System.

  • RDBMS is the basis for SQL and for all modern database systems such as:

    • MS SQL Server

    • IBM DB2

    • Oracle

    • MySQL

    • Microsoft Access

• Select Example:

  •

• Are SQL Keywords Case-sensitive?

  • No!

• SELECT

  • Extracts Data From Database

  • Syntax:

    •

      column1 and column2 are the field names of the table from the table_name

• SELECT DISTINCT

  • Used to return only distinct values

  • Inside a table, a column often contains many duplicate values, and sometimes you only want to list the different (distinct) values.

  • Syntax:

    •

  • COUNT DISTINCT

    • By using the DISTINCT keyword in a function called COUNT, we can return the number of different countries.

    • Syntax:

      • SELECT COUNT(DISTINCT column_name) FROM table_name;

      • or

      • SELECT Count(*) AS ALIAS
        FROM (SELECT DISTINCT column1 FROM table_name);

• SELECT TOP

  • Used to specify the number of records to return.

  • Useful on large tables with thousands of records. Returning a large number of records can impact performance.

  • Example:

    •

  • Syntax Types:

    • SQL Server / MS Access Syntax:



    • MySQL Syntax:



    • Oracle 12 Syntax:






  • TOP PERCENT:

    • The following SQL statement selects the first 50% of the records from the "Customers" table (for SQL Server/MS Access):



• SELECT INTO

  • The SELECT INTO statement copies data from one table into a new table.

  • The new table will be created with the column-names and types as defined in the old table. You can create new column names using the AS clause.

  • Syntax:

    Copy all columns into a new table:



    Copy only some columns into a new table:



  • Examples:

    The following SQL statement creates a backup copy of Customers:



    The following SQL statement uses the IN clause to copy the table into a new table in another database:



    The following SQL statement copies only a few columns into a new table:



    The following SQL statement copies only the German customers into a new table:



    The following SQL statement copies data from more than one table into a new table:



• INSERT INTO SELECT

  • The INSERT INTO SELECT statement copies data from one table and inserts it into another table.

  • The INSERT INTO SELECT statement requires that the data types in source and target tables match.

  • The existing records in the target table are unaffected.

  • Syntax:



  • Examples:

    Copy "Suppliers" into "Customers" (the columns that are not filled with data, will contain NULL):



    Copy "Suppliers" into "Customers" (fill all columns):



    Copy only the German suppliers into "Customers":

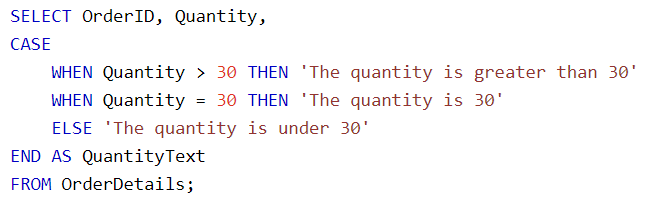

• CASE

  • The CASE expression goes through conditions and returns a value when the first condition is met (like an if-then-else statement).

  • So, once a condition is true, it will stop reading and return the result.

  • If no conditions are true, it returns the value in the ELSE clause.

    • If there is no ELSE part and no conditions are true, it returns NULL.

  • Syntax:



  • Examples:



    The following SQL will order the customers by City. However, if City is NULL, then order by Country:



• NULL

  Suppose that the "UnitsOnOrder" column is optional, and may contain NULL values.

  If any of the "UnitsOnOrder" values are NULL, the result will be NULL.



  • IFNULL()

    • The MySQL IFNULL() function lets you return an alternative value if an expression is NULL:



  • ISNULL()

    • The SQL Server ISNULL() function lets you return an alternative value when an expression is NULL:



    • The MS Access IsNull() function returns TRUE (-1) if the expression is a null value, otherwise FALSE (0):



  • COALESCE()



  • NVL()

    • The Oracle NVL() function achieves the same result:



  • Example:

    •

• FETCH FIRST

  • Example:

    •

• DELETE

  • Deletes data from a database

  • Syntax:

    • The WHERE clause specifies which record(s) should be deleted. If you omit the WHERE clause, all records in the table will be deleted!



  • Example:

    •

• INSERT INTO

  • Inserts new data into a database

  • You can use two different syntaxes:

    1. Specify both the column names and the values to be inserted:



    2. If you are adding values for all the columns of the table, you do not need to specify the column names in the SQL query. However, make sure the values are in the same order as the columns in the table. Here, the INSERT INTO syntax would be as follows:



  • Example:

    •

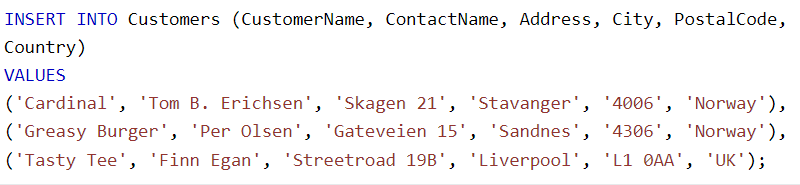

    • Multiple rows



    • Specific columns

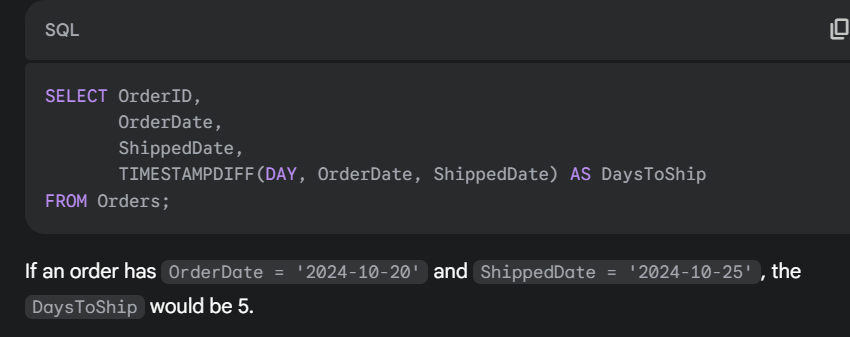

• TIMESTAMPDIFF()

  • function calculates the difference between two dates or times.

  • Example:

    •

• CREATE DATABASE

  • Creates a new database

• ALTER DATABASE

  • Modifies a database

• CREATE TABLE

  • Creates a new table

• ALTER TABLE

  • Modifies a table

• DROP TABLE

  • Deletes a table

  • Example:

    •

• CREATE INDEX

  • Creates an index (search key)

  • Example:

    •

• DROP INDEX

  • Deletes an index

  • Example:

    •

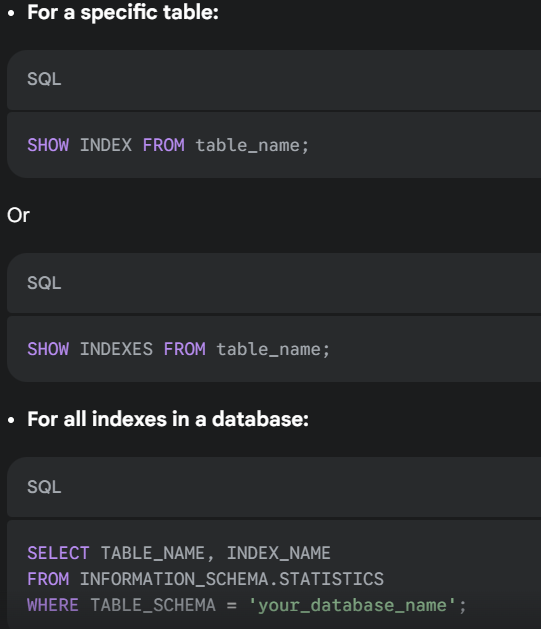

• Search all INDEXES

  •

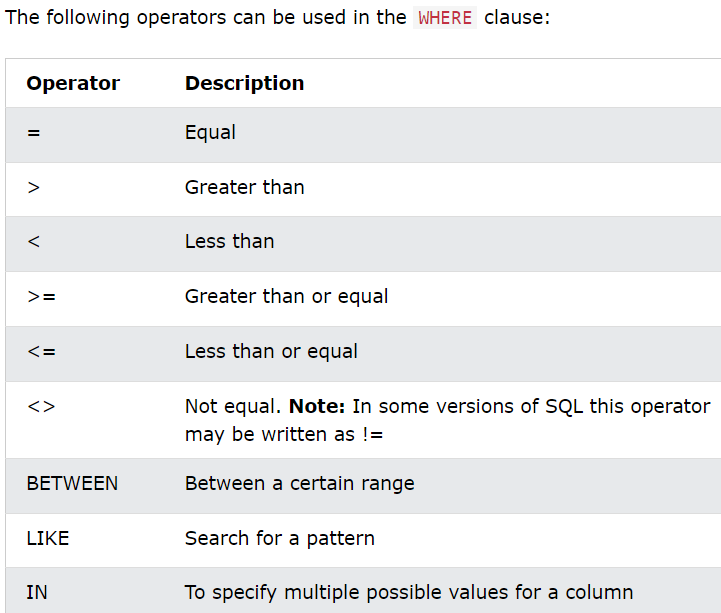

• WHERE Clause

  • Used to filter records.

  • It is used to extract only those records that fulfill a specified condition.

  • Example:

    •

  • Syntax:

    •

• ORDER BY

  • Used to sort the result-set in ascending or descending order.

  • Syntax:

    •

  • DESC:

    • The ORDER BY keyword sorts the records in ascending order by default. To sort the records in descending order, use the DESC keyword.

  • For several columns:

    • Example:

      • The following SQL statement selects all customers from the "Customers" table, sorted by the "Country" and the "CustomerName" columns. This means that it orders by Country, but if some rows have the same Country, it orders them by CustomerName:

      •

• GROUP BY

  • The GROUP BY statement groups rows that have the same values into summary rows, like "find the number of customers in each country.”

  • The GROUP BY statement is often used with aggregate functions (COUNT(), MAX(), MIN(), SUM(), AVG()) to group the result set by one or more columns.

  • Syntax:



  • Example:



• HAVING

  • The HAVING clause was added to SQL because the WHERE keyword cannot be used with aggregate functions.

  • Syntax:



  • Example:

    The following SQL statement lists the number of customers in each country. Only include countries with more than 5 customers:



    The following SQL statement lists the number of customers in each country, sorted from high to low (Only include countries with more than five customers):

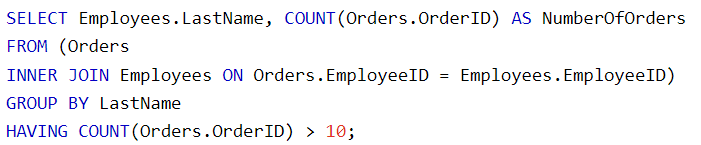

    The following SQL statement lists the employees who have registered more than ten orders:

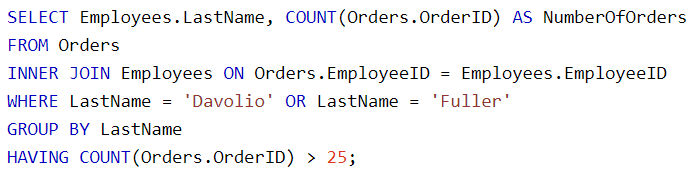

    The following SQL statement lists if the employees "Davolio" or "Fuller" have registered more than 25 orders:

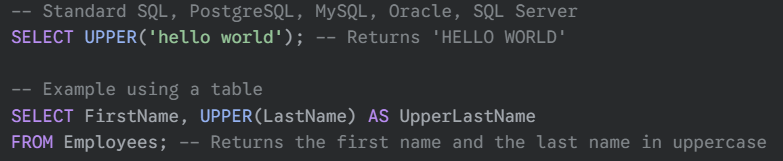

• UPPER()

  • function in SQL converts all the letters of a string to uppercase.

  • Example:

    •

• EXISTS

  • The EXISTS operator is used to test for the existence of any record in a subquery.

  • The EXISTS operator returns TRUE if the subquery returns one or more records.

  • Syntax:



  • Example:

    The following SQL statement returns TRUE and lists the suppliers with a product price of less than 20:



    The following SQL statement returns TRUE and lists the suppliers with a product price equal to 22:



Operators

• AND

  • The AND operator is used to filter records based on more than one condition, like if you want to return all customers from Spain that start with the letter 'G':

    •

  • Syntax:

    •

• OR

  • The OR operator displays a record if any of the conditions are TRUE.

  • The OR operator is used to filter records based on more than one condition, like if you want to return all customers from Germany but also those from Spain:

    •

  • Syntax:

    •

• NOT

  • The NOT operator is used in combination with other operators to give the opposite result, also called the negative result.

  • In the select statement below, we want to return all customers that are NOT from Spain:



  • Syntax:

    •

  • You can also combine:

    • NOT LIKE

    • NOT BETWEEN

      • Example:



    • NOT IN

    • NOT >

    • NOT <

• LIKE

  • The LIKE operator is used in a WHERE clause to search for a specified pattern in a column.

  • There are two wildcards often used in conjunction with the LIKE operator:

    •  The percent sign % represents zero, one, or multiple characters

    •  The underscore sign _ represents one, single character

  • Example:



  • Syntax:

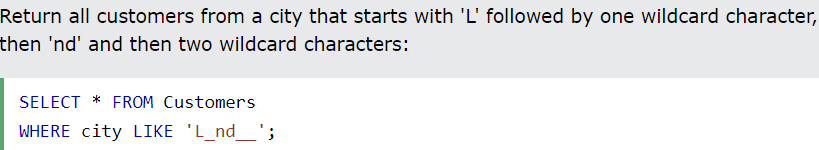

  • The _ Wildcard:

    • Represents a single character.

    • It can be any character or number, but each _ represents one, and only one, character.

    • Example:



  • The % Wildcard

    • The % wildcard represents any number of characters, even zero characters.

    • Example:

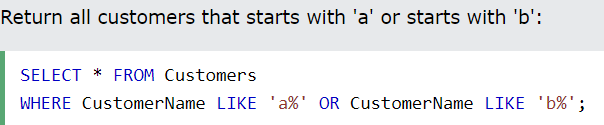

  • Combining Wildcards

    • Example:



• IN

  • The IN operator allows you to specify multiple values in a WHERE clause.

  • The IN operator is a shorthand for multiple OR conditions.

  • Example:

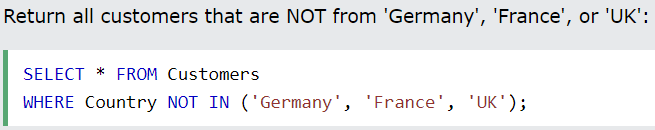

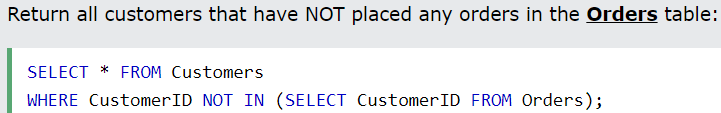

• NOT IN

  • By using the NOT keyword in front of the IN operator, you return all records that are NOT any of the values in the list.

  • Example:



• BETWEEN

  • The BETWEEN operator selects values within a given range. The values can be numbers, text, or dates.

  • The BETWEEN operator is inclusive: begin and end values are included.

  • Example:



  • BETWEEN with IN

    • Example:

      The following SQL statement selects all products with a price between 10 and 20. In addition, the CategoryID must be either 1, 2 or 3:



• ANY

  • Returns a boolean value as a result

  • Returns TRUE if ANY of the subquery values meet the condition

  • ANY means that the condition will be true if the operation is true for any of the values in the range.

  • Syntax:



  • The operator must be a standard comparison operator (=, <>, !=, >, >=, <, or <=).

  • Example:

    The following SQL statement lists the ProductName if it finds ANY records in the OrderDetails table has Quantity equal to 10 (this will return TRUE because the Quantity column has some values of 10):



    The following SQL statement lists the ProductName if it finds ANY records in the OrderDetails table has Quantity larger than 99 (this will return TRUE because the Quantity column has some values larger than 99):



    The following SQL statement lists the ProductName if it finds ANY records in the OrderDetails table has Quantity larger than 1000 (this will return FALSE because the Quantity column has no values larger than 1000):



• ALL

  • returns a boolean value as a result

  • returns TRUE if ALL of the subquery values meet the condition

  • is used with SELECT, WHERE and HAVING statements

  • ALL means that the condition will be true only if the operation is true for all values in the range.

  • The operator must be a standard comparison operator (=, <>, !=, >, >=, <, or <=).

  • Syntax:



  • Examples:



    The following SQL statement lists the ProductName if ALL the records in the OrderDetails table has Quantity equal to 10. This will of course return FALSE because the Quantity column has many different values (not only the value of 10):



Date Data Types

How do we test for NULL values?

• It is not possible to test for NULL values with comparison operators, such as =, <, or <>.

• We will have to use the IS NULL and IS NOT NULL operators instead.

• IS NULL

  • Used to test for empty values (NULL values).

    • Syntax:

      •

• IS NOT NULL

  • Used to test for non-empty values (NOT NULL values).

    • Syntax:

      •

Aggregate Functions

• An aggregate function is a function that performs a calculation on a set of values and returns a single value.

• The most commonly used SQL aggregate functions are:

  • MIN() - returns the smallest value within the selected column

    • Example



  • MAX() - returns the largest value within the selected column

    • Example:



  • COUNT() - returns the number of rows in a set

    • Example:



      Here we use the COUNT() function and the GROUP BY clause, to return the number of records for each category in the Products table:

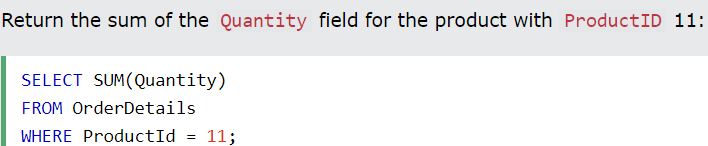

  • SUM() - returns the total sum of a numerical column

    • Example:



  • AVG() - returns the average value of a numerical column

    • Example:



    • Higher than Average:



    • AVG() with GROUP BY:



• Aggregate functions ignore null values (except for COUNT()).

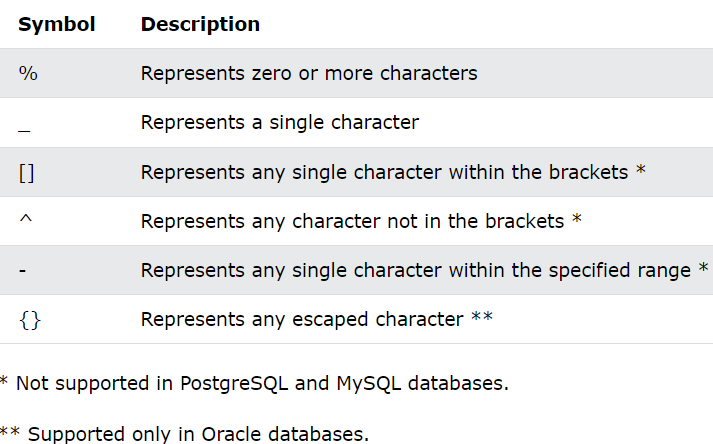

Wildcard Characters

• Using the [] Wildcard

  • The [] wildcard returns a result if any of the characters inside gets a match.

  • Example:



• Using the - Wildcard

  • The - wildcard allows you to specify a range of characters inside the [] wildcard.

  • Example:

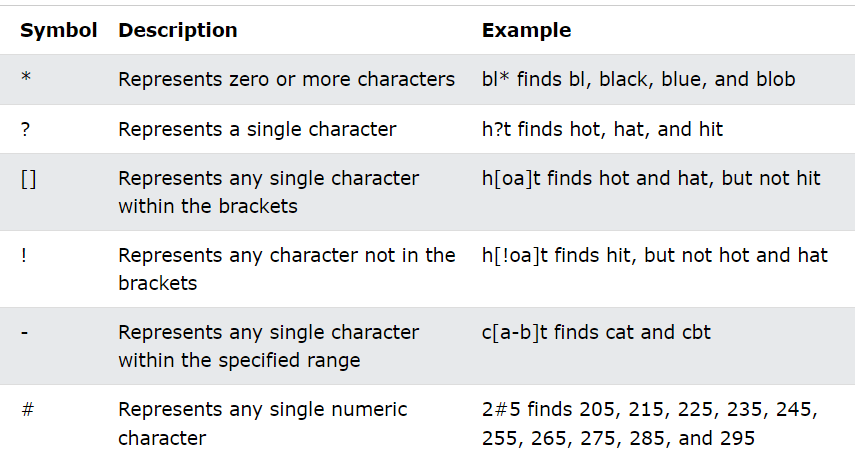

• Microsoft Access Wildcards



Aliases

• SQL aliases are used to give a table or a column in a table a temporary name.

• Aliases are often used to make column names more readable.

• An alias only exists for the duration of that query.

• An alias is created with the AS keyword. (This is optional)

• Example:

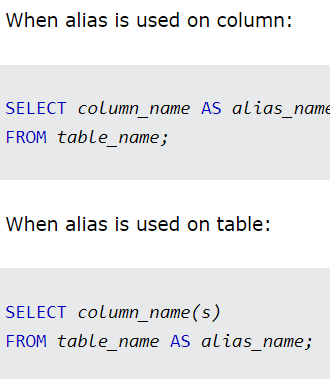

• Syntax:

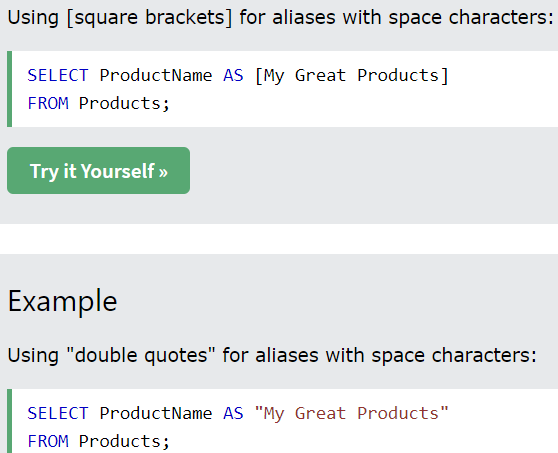

• Using Aliases With a Space Character

  • If you want your alias to contain one or more spaces, like "My Great Products,” surround your alias with square brackets or double quotes.



• Using Alias for a Table

  • Example:



• Aliases can be useful when:

  • There are more than one table involved in a query

  • Functions are used in the query

  • Column names are big or not very readable

  • Two or more columns are combined together

Concatenate Columns

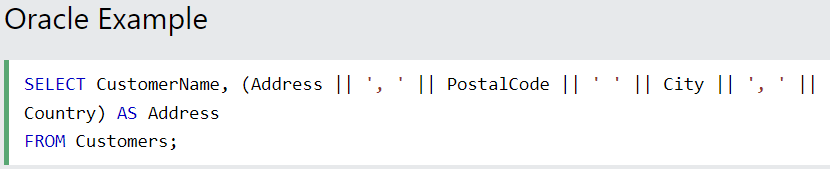

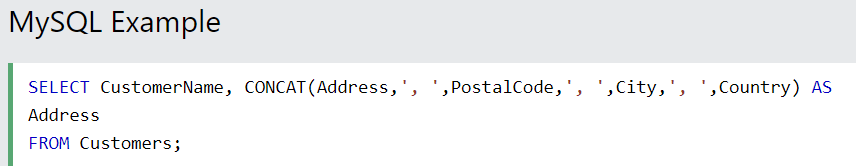

• The following SQL statement creates an alias named "Address" that combines four columns (Address, PostalCode, City, and Country):

• Example:

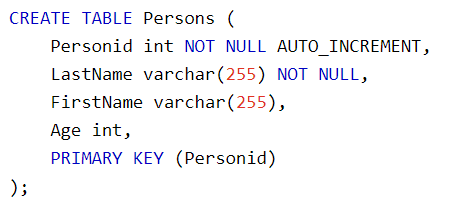

CREATE TABLE Statement

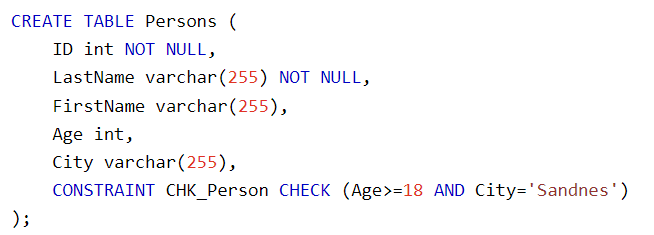

• The CREATE TABLE statement is used to create a new table in a database.

• Syntax:



• Example:



  The following SQL creates a new table called "TestTable" (which is a copy of the "Customers" table):



TRUNCATE TABLE

• The TRUNCATE TABLE statement is used to delete the data inside a table, but not the table itself.

• Syntax:



ALTER TABLE

• The ALTER TABLE statement is used to add, delete, or modify columns in an existing table.

• The ALTER TABLE statement is also used to add and drop various constraints on an existing table.

• ADD Column

  • Syntax:



  • Example:



• DROP Column

  • Syntax:



  • Example:



• RENAME Column

  • Syntax:



• ALTER/MODIFY DATATYPE

  • Syntax:



  • Example:



JOINS

• A JOIN clause is used to combine rows from two or more tables, based on a related column between them.

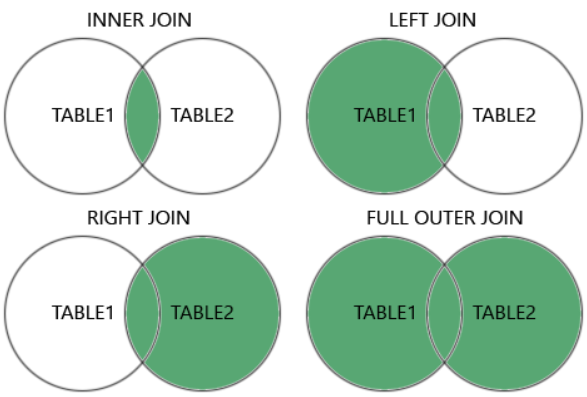

• The different types of JOINS:

  • (INNER) JOIN: Returns records that have matching values in both tables

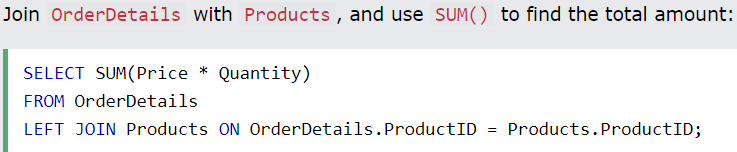

  • LEFT (OUTER) JOIN: Returns all records from the left table, and the matched records from the right table

  • RIGHT (OUTER) JOIN: Returns all records from the right table, and the matched records from the left table

  • FULL (OUTER) JOIN: Returns all records when there is a match in either left or right table



• Example:

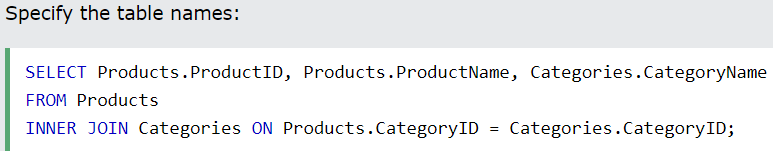

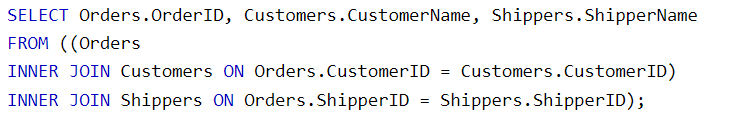

• INNER JOIN

  • Example:



  • The INNER JOIN keyword returns only rows with a match in both tables. This means that if you have a product with no CategoryID or with a CategoryID that is not present in the Categories table, that record would not be returned in the result.

  • JOIN and INNER JOIN will return the same result.

  • INNER is the default join type for JOIN, so when you write JOIN the parser actually writes INNER JOIN.

• LEFT JOIN

  • The LEFT JOIN keyword returns all records from the left table (table1) and the matching records from the right table (table2). The result is 0 records from the right side if there is no match.

  • The LEFT JOIN keyword returns all records from the left table (Customers), even if there are no matches in the right table (Orders).

  • Syntax:



  • Example:



• RIGHT JOIN

  • The RIGHT JOIN keyword returns all records from the right table (table2) and the matching records from the left table (table1). The result is 0 records from the left side if there is no match.

  • In some databases, the RIGHT JOIN is called the RIGHT OUTER JOIN.

  • Syntax:



  • Example:



• FULL OUTER JOIN

  • The FULL OUTER JOIN keyword returns all records when there is a match in left (table1) or right (table2) table records.

  • FULL OUTER JOIN and FULL JOIN are the same.

  • FULL OUTER JOIN can potentially return very large result sets!

  • The FULL OUTER JOIN keyword returns all matching records from both tables whether the other table matches or not. So, if there are rows in "Customers" that do not have matches in "Orders", or if there are rows in "Orders" that do not have matches in "Customers", those rows will be listed as well.

  • Syntax:



  • Example:



• Self JOIN

  • A self-join is a regular join, but the table is joined with itself.

  • T1 and T2 are different table aliases for the same table.

  • Syntax:



  • Example:

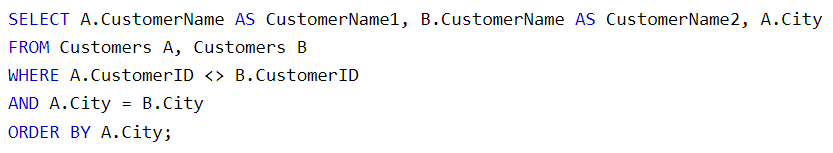

    The following SQL statement matches customers that are from the same city:



• UNION

  • The UNION operator is used to combine the result set of two or more SELECT statements.

    • Every SELECT statement within UNION must have the same number of columns.

    • The columns must also have similar data types.

    • The columns in every SELECT statement must also be in the same order.

  • Syntax:



  • Example:

    The following SQL statement returns the cities (only distinct values) from both the "Customers" and the "Suppliers" table:



• UNION ALL

  • By default, the UNION operator selects only distinct values. To allow duplicate values, use UNION ALL:

  • Syntax:



  • Example:

    The following SQL statement returns the cities (duplicate values also) from both the "Customers" and the "Suppliers" table:



• UNION with WHERE

  • Example:

    The following SQL statement returns the German cities (only distinct values) from both the "Customers" and the "Suppliers" table:



• UNION ALL with WHERE

  • Example:

    The following SQL statement returns the German cities (duplicate values also) from both the "Customers" and the "Suppliers" table:



Create Constraints

• Constraints can be specified when the table is created with the CREATE TABLE statement, or after the table is created with the ALTER TABLE statement.

• Syntax:



• SQL constraints are used to specify rules for the data in a table.

• Constraints are used to limit the type of data that can go into a table. This ensures the accuracy and reliability of the data in the table. If there is any violation between the constraint and the data action, the action is aborted.

• Constraints can be column level or table level. Column level constraints apply to a column, and table level constraints apply to the whole table.

• The following constraints are commonly used in SQL:

  • NOT NULL - Ensures that a column cannot have a NULL value

    • Examples:

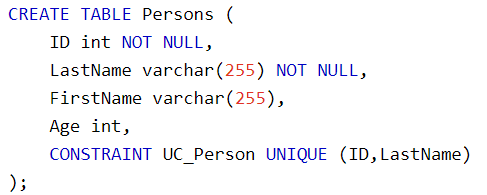

  • UNIQUE - Ensures that all values in a column are different

    • Examples:



  • PRIMARY KEY - A combination of a NOT NULL and UNIQUE. Uniquely identifies each row in a table

    • Examples:

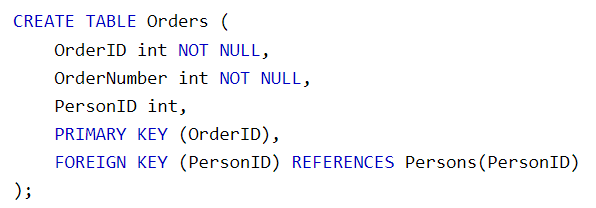

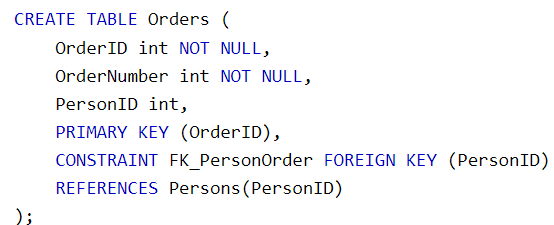

  • FOREIGN KEY - Prevents actions that would destroy links between tables

    • Examples:



  • CHECK - Ensures that the values in a column satisfies a specific condition

    • Examples:



  • DEFAULT - Sets a default value for a column if no value is specified

    • Examples:



  • CREATE INDEX - Used to create and retrieve data from the database very quickly

    • Updating a table with indexes takes more time than updating a table without (because the indexes also need an update). So, only create indexes on columns that will be frequently searched against.

    • Syntax:



    • Examples:



AUTO INCREMENT Field

• Auto-increment allows a unique number to be generated automatically when a new record is inserted into a table.

• Often this is the primary key field that we would like to be created automatically every time a new record is inserted.

• Syntax’s:

  • MySQL uses the AUTO_INCREMENT keyword to perform an auto-increment feature. By default, the starting value for AUTO_INCREMENT is 1, and it will increment by 1 for each new record.



  • The MS SQL Server uses the IDENTITY keyword to perform an auto-increment feature. To specify that the "Personid" column should start at value 10 and increment by 5, change it to IDENTITY(10,5).



  • The MS Access uses the AUTOINCREMENT keyword to perform an auto-increment feature. To specify that the "Personid" column should start at value 10 and increment by 5, change the autoincrement to AUTOINCREMENT(10,5).



  • For Oracle, the code below creates a sequence object called seq_person, that starts with 1 and will increment by 1. It will also cache up to 10 values for performance. The cache option specifies how many sequence values will be stored in memory for faster access.



Backup Database

• The BACKUP DATABASE statement is used in SQL Server to create a full back up of an existing SQL database.

• Syntax:



• WITH DIFFERENTIAL Statement

  • A differential back up only backs up the parts of the database that have changed since the last full database backup.

  • A differential back up reduces the back up time (since only the changes are backed up).

  • Syntax:



  • Example:



• Example:



Stored Procedures

• A stored procedure is a prepared SQL code that you can save, so the code can be reused over and over again.

• Syntax:



• Example:



• Example with One Parameter:

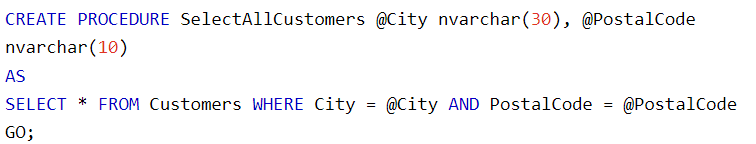

• Example with Multiple Parameters:

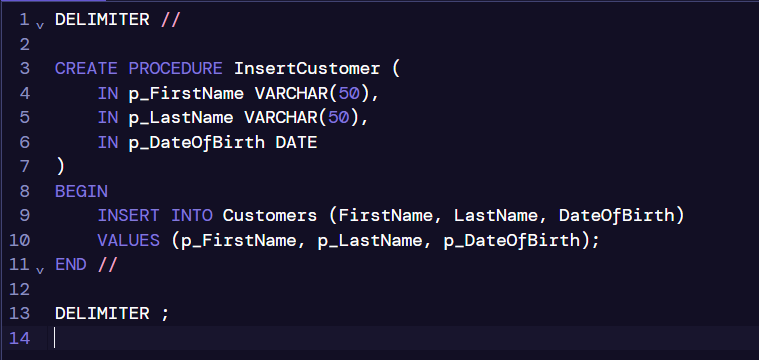

• Example to insert values into a table (MySQL construct):
