Symmetric Cryptography

  • Both encryption and decryption operations use the same key

  • Secret-key systems have been around for many hundreds of years

Types

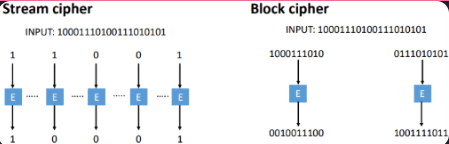

Stream Ciphers

A method that encrypts data one bit or byte at a time by combining it with a pseudorandom keystream, typically using the XOR operation

  • Require sender and receiver synchronicity

Method

  • Take as input a (short) key

    • Key is often combined with an initialisation vector (IV)

  • Key is converted into a continuous keystream

  • Working with one bit at a time, the plaintext is mixed with the keystream

Advantages

  • No error propagation

  • On-the-fly-encryption - good choice for real-time services

  • Fast and easy to implement, especially in hardware

How it Works

  • Keystream Generation - a small secret key and Initialisation Vector (IV) feed a PseudoRandom Number Generator (PRNG) to produce a long, seemingly random keystream

  • Encryption - each bit/byte of the plaintext is XORed with the corresponding bit/byte of the keystream to produce ciphertext

  • Decryption - the same keystream is XORed with the ciphertext to recover the plaintext

Examples

A5/1

  • Used in GSM (Global System for Mobile Communications)

  • No longer considered secure

  • Is used to provide over-the-air communication privacy in the GSM cellular telephone standard

  • Works by generating a 114-bit keystream for each conversation frame using three Linear Feedback Shift Registers (LFSRs)—lengths 19, 22, and 23 bits— which is then XORed with the plaintext data

RC4

  • Used in SSL/TLS

  • Owned by RSA, designed by Ron Rivest in 1987

  • Became public in 1994

  • Simple and effective design

  • Variable key size (typical 40 to 256 bits)

  • Widely used (web SSL/TLS, wireless WEP)
    Simple workflow:

  • The user inputs a plaintext and a secret key

  • The encryption engine then generates the keystream by using algorithms -KSA and PRGA

  • The keystream is now XOR with the plaintext, which is done byte by byte to produce the encrypted text

Block Ciphers

A method to transform fixed-length blocks of data (e.g., 128 bits) into ciphertext using a secret key

Method

  • Take as input a key and a block of plaintext and outputs a block of ciphertext

  • A good block cipher should be designed to provide confusion and diffusion

    • Confusion hides the relationship between the plaintext and ciphertext

    • Diffusion spreads the statistics of the plaintext through the ciphertext

  • Usually obtain protection from chosen plaintext attacks if the block cipher behaves like a pseudorandom permutation

  • Block length should be chosen to ensure a balance of efficiency and security

Examples

  • Data Encryption Standard (DES)/Triple DES (3DES)

    • Widely used through the 1980s and 1990s

    • 3DES is still in use, but not recommended for new applications

  • International Data Encryption Algorithm (IDEA)

  • Camellia

Advanced Encryption Standard (AES)

  • Standardised by National Institute of Standards and Technology (NIST)

  • Widely adopted and supported

Modes of Operation

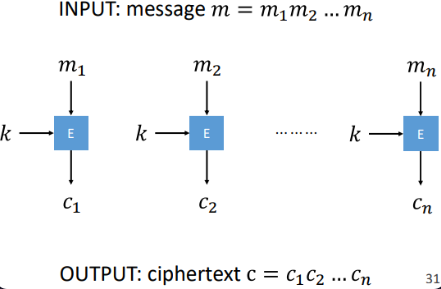

Electronic Code Books (ECB)

  • It is the simplest, most basic block cipher mode of operation where each plaintext block is encrypted independently using the same key, resulting in identical ciphertext blocks for identical plaintext

Counter Block Chaining (CBC)

  • A mode by XORing each plaintext block with the previous ciphertext block before encryption, breaking up patterns

  • It requires an initialisation vector (IV) for the first block to ensure uniqueness

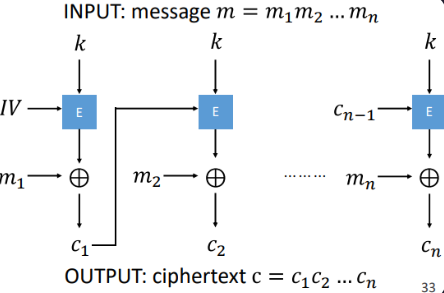

Cipher Feedback (CFB)

  • It works by encrypting the previous ciphertext block (or IV for the first block) using the block cipher algorithm, and XORing the result with the current plaintext to produce the ciphertext

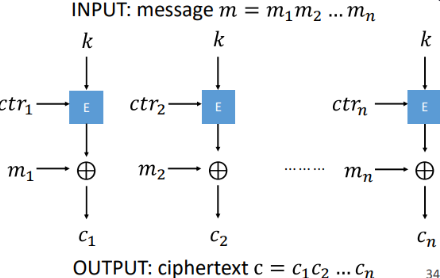

Counter (CTR)

  • It works by encrypting successive values of a counter to generate a keystream, which is then XORed with plaintext to produce ciphertext

Padding

  • Many block ciphers require the message to be a multiple of the block size

  • Data that does not fit the exact block size must be padded, which can add overhead

  • Padding extends a plaintext message to a multiple of the block size

  • Examples:

    • Bit padding

    • Zero padding
