ER diagram

1. Introduction to ER Model

• The Entity-Relationship Model (ER Model) is a high-level conceptual data model.

• It helps in designing database structures visually before implementation.

• It represents entities (objects), attributes (properties), and relationships.

• Used in database design to ensure data integrity, consistency, and efficiency.

• Converts into relational tables during database implementation.

Why is the ER Model Important?

• Helps design relational databases in a structured way.

• Identifies entities, relationships, attributes in the system.

• Removes redundancy, avoiding data duplication.

• Ensures normalization for an efficient database.

• Helps in understanding complex data relationships.

Steps in Database Design

Requirement Analysis – Understand what data needs to be stored.

ER Model Creation – Draw ER diagrams to represent entities & relationships.

Relational Model – Convert ER diagram into tables.

Schema Refinement (Normalization) – Remove data redundancy.

Physical Database Design – Implement the database using SQL.

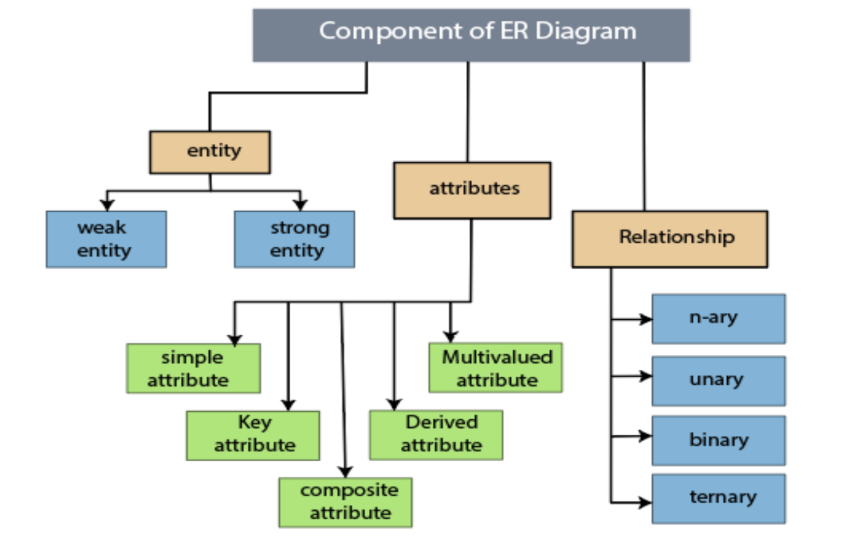

3. Components of ER Model

3.1 Entity

• An object in the system that holds data.

• Represented as a rectangle in ER diagrams.

• Example:

  • STUDENT (students in a university).

  • EMPLOYEE (workers in a company).

3.2 Entity Set

• A collection of similar entities.

• Example:

  • All students in a university form the STUDENT entity set.

  • All employees in a company form the EMPLOYEE entity set.

4. Attributes in ER Model

Attributes represent properties of an entity and are drawn as ovals (ellipses) in ER diagrams.

Example – EMPLOYEE Table

EMPLOYEE
 ├── employee_id (Key Attribute - Primary Key)
 ├── employee_name (Composite Attribute: {first_name, last_name})
 ├── DOB (Simple Attribute)
 ├── employee_age (Derived Attribute from DOB)
 ├── phone_number (Multi-valued Attribute - multiple numbers possible)
 ├── salary (Simple Attribute)
 ├── email (Multi-valued Attribute - multiple emails possible)
 ├── address (Composite Attribute: {street, city, state, country})

1. Simple Attribute

Definition:

• These cannot be divided further.

• Store a single value for each entity.

Example:

• salary: A single fixed number.

• gender: Cannot be broken further (Male/Female/Other).

• DOB: A single Date of Birth value.

2. Key Attribute (Primary Key)

Definition:

• Uniquely identifies an entity.

• Represented with an underlined oval in ER diagrams.

Example:

• employee_id: Unique for each employee.

CREATE TABLE Employee (
    employee_id INT PRIMARY KEY,  -- Key Attribute
    employee_name VARCHAR(100),
    salary DECIMAL(10,2)
);

3. Composite Attribute

Definition:

• An attribute made up of multiple sub-attributes.

• Each sub-attribute is meaningful on its own.

Example:

• employee_name = {first_name, last_name}

• address = {street, city, state, country}

CREATE TABLE Employee (
    employee_id INT PRIMARY KEY,
    first_name VARCHAR(50),
    last_name VARCHAR(50),
    street VARCHAR(100),
    city VARCHAR(50),
    state VARCHAR(50),
    country VARCHAR(50)
);

4. Derived Attribute

Definition:

• Computed from another attribute.

• Not stored in the table, calculated when needed.

Example:

• employee_age is derived from DOB.

SELECT YEAR(CURDATE()) - YEAR(DOB) AS employee_age FROM Employee;

🔸 Why not store employee_age?

• Age changes every year, so storing it would cause redundancy.

5. Multi-Valued Attribute

Definition:

• Can have multiple values for a single entity.

• Stored in a separate table.

Example:

• phone_number: An employee can have multiple phone numbers.

• email: An employee can have multiple email IDs.

🔸 ER Diagram Representation:

• Multi-valued attributes are drawn with double ovals.

CREATE TABLE Employee_Phone (
    employee_id INT,
    phone_number VARCHAR(20),
    PRIMARY KEY (employee_id, phone_number),
    FOREIGN KEY (employee_id) REFERENCES Employee(employee_id)
);

Final Summary
