Machine Code With CARDIAC

Programming the Cardiac: Understanding Operations

To program the Cardiac, we first need to understand its capabilities, specifically the set of operations it can perform, known as instructions. The Cardiac has a documentation listing ten instructions, which include essential arithmetic functions. However, for this tutorial, many of these instructions will not be utilized, as they are geared towards operations like addition, subtraction, multiplication, and division. Instead, we will be focusing on a simplified subset of instructions, including the SFT (shift instruction) and others that are relevant to our example.

Problem Definition

For this example, we aim to create a program that takes in two numbers from a user and prints out their sum. At first glance, none of the ten instructions directly perform this action. Thus, we need to break down the problem into manageable steps, ultimately writing out an algorithm in the form of a step-by-step guide.

Algorithm Breakdown

  • Step 1: Initialize two memory locations, referred to as temp and sum, starting with sum set to 0.

  • Step 2: Use the INP instruction (instruction 0), which reads a number from the user and inputs it into the temp variable.

  • Step 3: Add the number stored in temp to the sum variable.

  • Step 4: Repeat steps 2 and 3 to allow the user to input a second number, adding this to sum.

  • Step 5: Output the final value of sum.

  • Step 6: End the program.

This detailed approach is crucial in programming as a computer only comprehends low-level instructions, requiring clarity in every step.

Converting the Algorithm into Assembly Language Code

Next, we will convert our algorithm into assembly language code, which closely resembles what the Cardiac machine understands. Assembly language serves as a simplified human-readable representation of machine-level code, creating a one-to-one correspondence with the underlying binary instructions.

Variable Initialization

  • Each variable is allocated memory. For instance, the variable for sum is initialized with a value of 0. This designation aids in clarity as we write out our instructions.

Instruction Steps

  1. First instruction (input): Load the temp variable with a user-provided number using the INP instruction.

  2. Second instruction (add): Load sum into the accumulator, then add temp. Store this result back into sum using the STO instruction.

  3. Repeat the process for the second input.

  4. Output the result: Utilize the OUT instruction to print the contents of sum.

  5. End the program: Implement the HRS instruction to halt the machine.

Memory Organization and Instruction Coding

Upon establishing the necessary instructions, we need to assign memory locations to both data items and instructions. The memory consists of three-digit codes representing operations, including the opcode which identifies the specific instruction. For example:

  • The INP instruction is encoded as 000, followed by the memory address of temp (location 4), resulting in 004.

  • The CLA instruction has an opcode of 001, pointing at sum at location 5, thus receiving 105.

Following this pattern, we encode all instructions based on their corresponding opcodes and memory locations, finally easing the translation to machine language which the Cardiac can execute.

Running the Program on the Cardiac Simulator

To execute our program, we utilize the Cardiac Simulator, which features an organized memory space and a central processing unit (CPU). The simulator allows loading our coded memory at specified locations and provides means for input via simulated punch cards.

Execution Steps:

  1. Prepare input values (for example, 15 and 27) and load them into a deck (punch card stack).

  2. Set the program counter to indicate where the program should start executing (in our case, location 10).

  3. Clock each instruction sequentially using the step button, allowing tracking of changes to the accumulator and memory locations.

  4. After examining operations step-by-step, we can run the entire program at full speed and observe the final output.

Conclusion

This exercise walks through converting an algorithm into assembly language, translating it to machine language, and executing it on the Cardiac Simulator. It is a foundational step for students to enhance their understanding of low-level programming and the functionality of computer architecture. For upcoming lab exercises, students are encouraged to engage with the documentation available and familiarize themseves with other instructions to prepare for hands-on programming tasks.

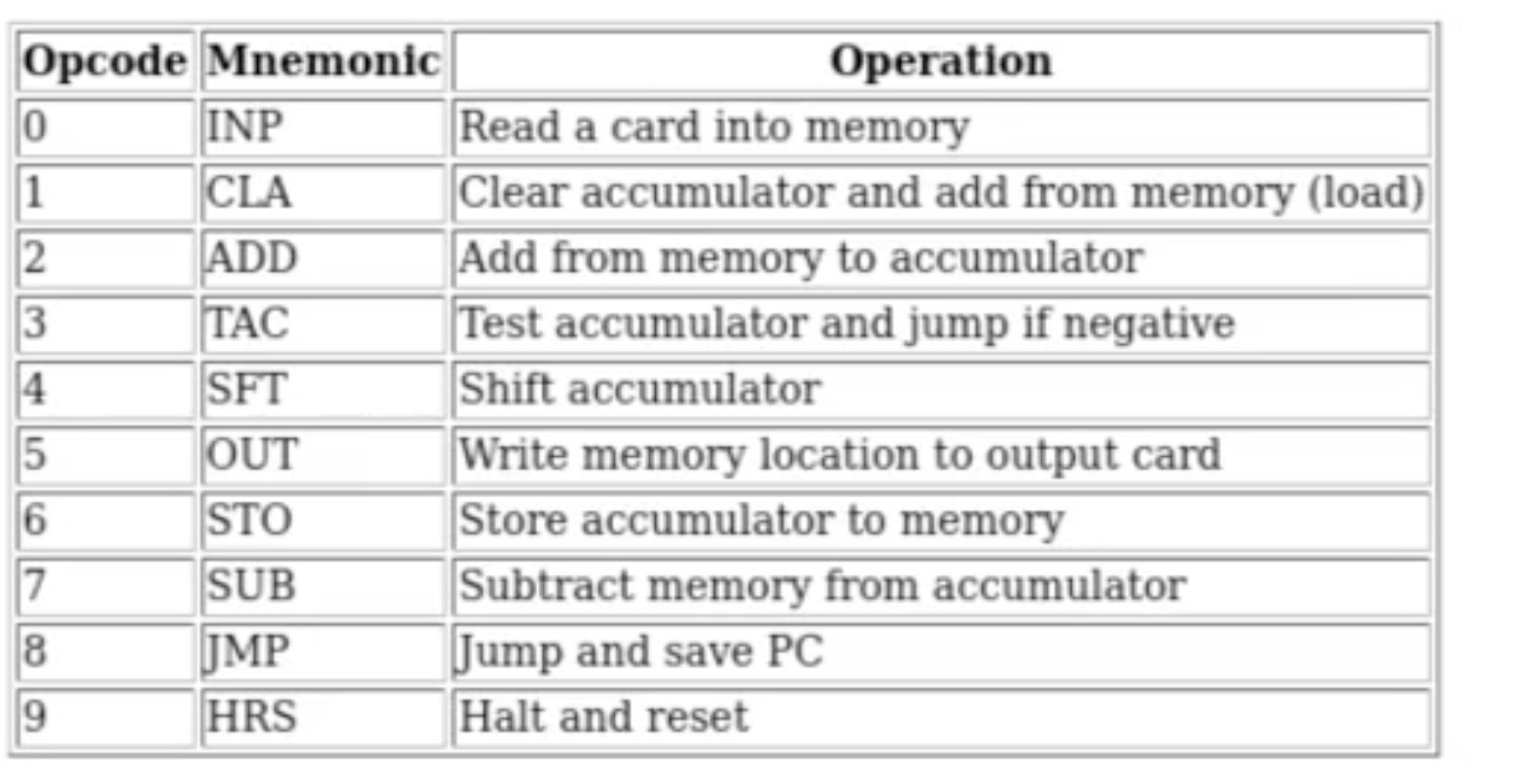

CARDIAC INSTRUCTION SHEET

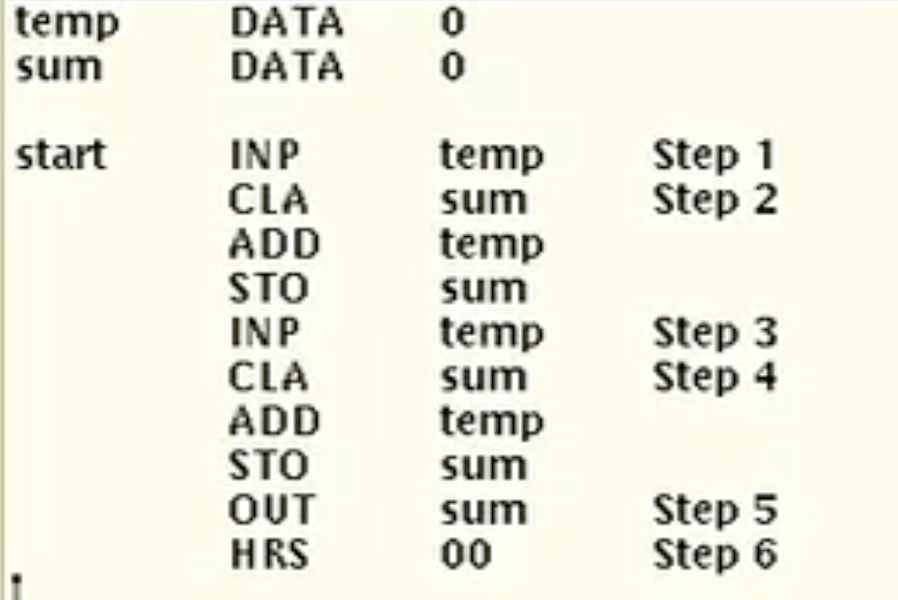

ASSEMBLY LANGUAGE FOR CARDIAC ADDITION OF TWO NUMBERS PROGRAM

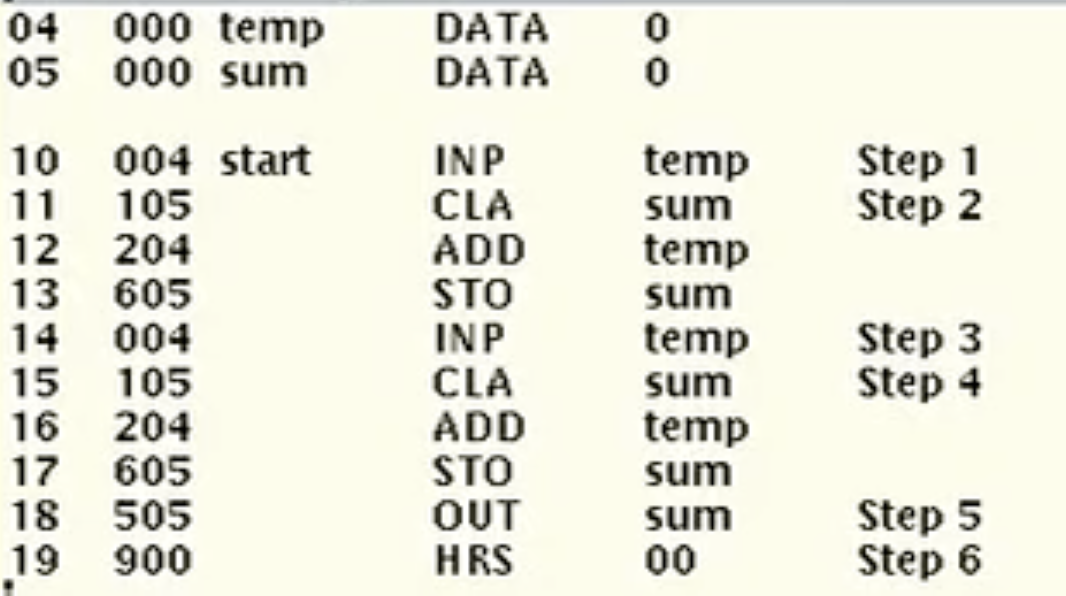

MACHINE CODE FOR PROGRAM

Starting at memory locations 4 and 5, that’s where we will store the variables temp and sum.

  • Location 4: temp - This variable will hold the first number to be added.

  • Location 5: sum - This variable will store the result of the addition.

Program starts at memory location 10 and each step will increment the instruction pointer to execute the next instruction sequentially.

First step is function INP

  • This function will read a number from the user and store it in the temp variable located at memory address 4. OP Code 0 and memory location 4 makes the code 004

Second Step is function CLA to the sum

  • This function clears the accumulator and loads the value from the specified memory location, which in this case is also memory address 5. The OP Code for CLA is 1, so the complete instruction for this step is 105.

Third step is function ADD to the sum

  • This function adds the value stored in the specified memory location to the accumulator. Here, we will add the value from memory address 4 or temp. The OP Code for ADD is 2, thus the complete instruction for this step is 204.

Fourth Step is STO function

  • Stores the the result into the sum variable into the memory location designated for the sum, which is at address 5. The OP Code for STO is 6, making the complete instruction for this step 605.
