B2 PAG

Osmosis practical

/

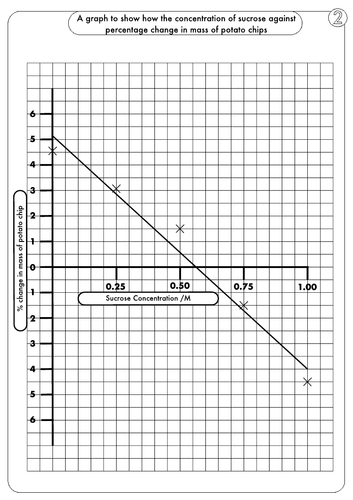

Graph

  • above the x-axis = gaining mass

  • cross x-axis = equilibrium(before plasmolysis occurs)

  • below x-axis = losing mass


exam tip: split graph in half when describing trends




Procedure

equipment: tile, cork borer, potato, scalpel

requirements: no skin/holes on potatoes + equal length for equal surface area, blotting to remove excess water.

  • mass itself isn’t calculated, but percentage change.

  • percentage change = difference / initial value


ALWAYS INCLUDE NUMBERS.



Other variables that the student should have controlled in this experiment:

  • temp

  • potato type

  • potato age

  • drying amount



EXAM QUESTIONS

2 marks

2 marks = 2 details about 1 component.


2 marks

when in doubt:


list adaptations and their purposes

  • what do the adaptations allow the veins to do?


e.g

large lumen = larger volume

valves= prevent backflow as there isn’t a driving force


2 marks

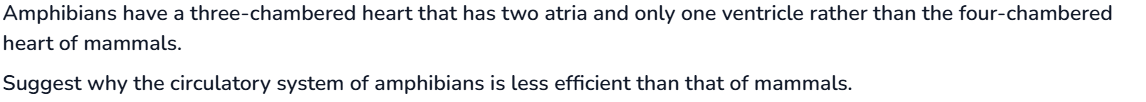

3 chambers = (de)oxygenated blood mixed together

  • less oxygen reaches tissues


4 marks



2 marks


6 marks

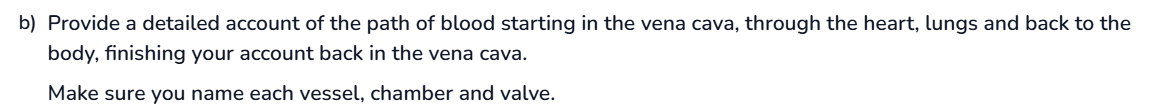

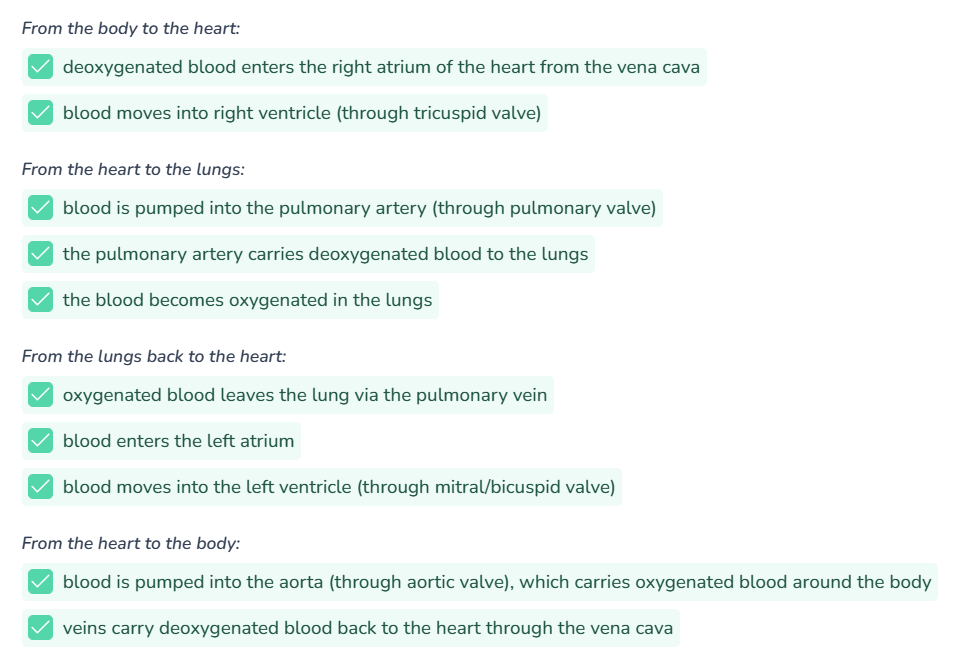

order: body, vena cava, right atrium, tricuspid, right ventricle, semilunar, pulmonary artery, lungs

lungs, pulmonary vein, left atrium, bicuspid, left ventricle, semilunar, aorta
