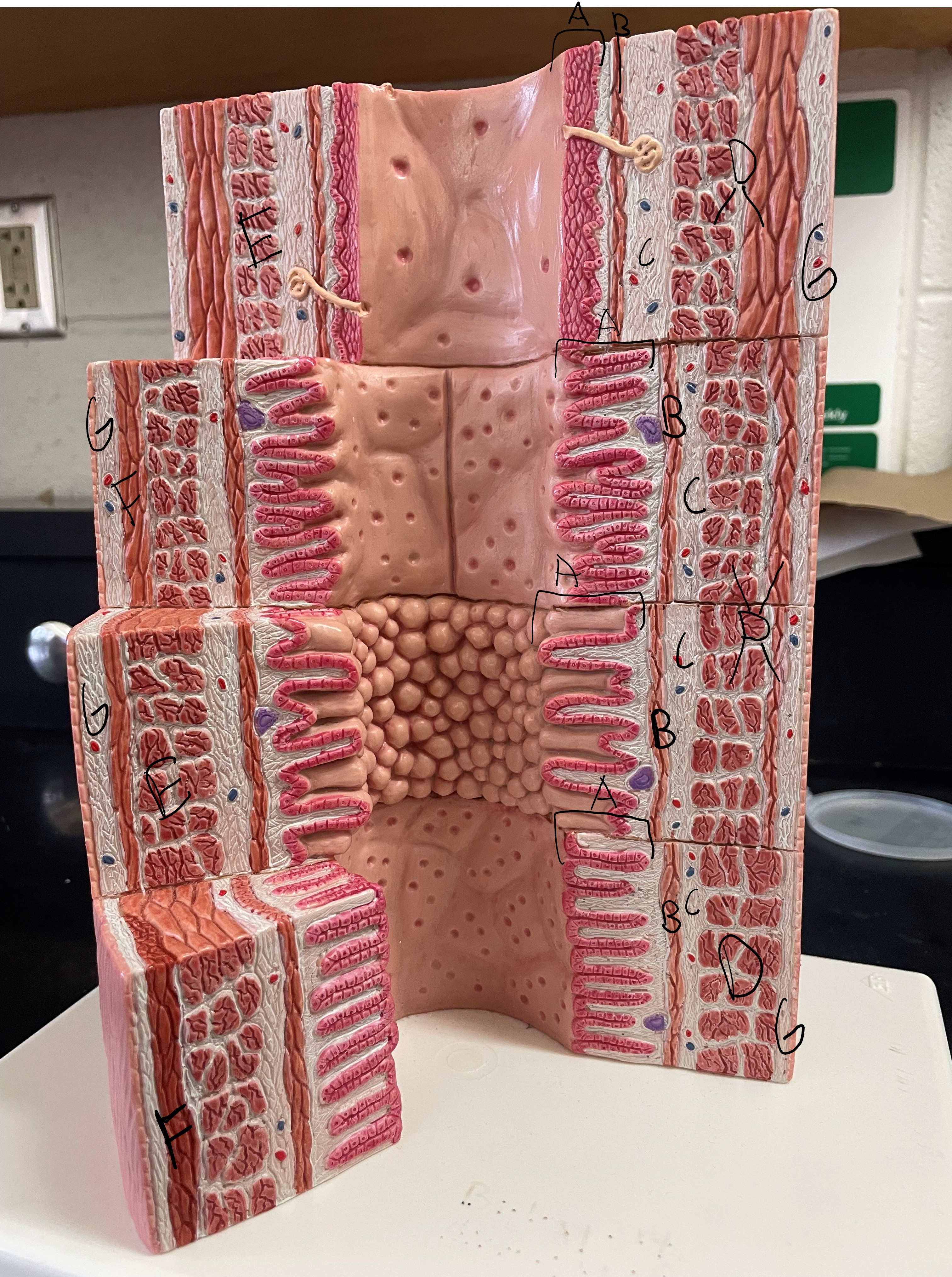

Alimentary Canal
entire distance of the digestive canal, from the mouth to the anus
Mucosa
A
Muscularis mucosae
B
Submucosa
C
Muscularis externa
D, general
Inner circular smooth muscle
E
Outer longitudinal smooth muscle
F
Serosa
G

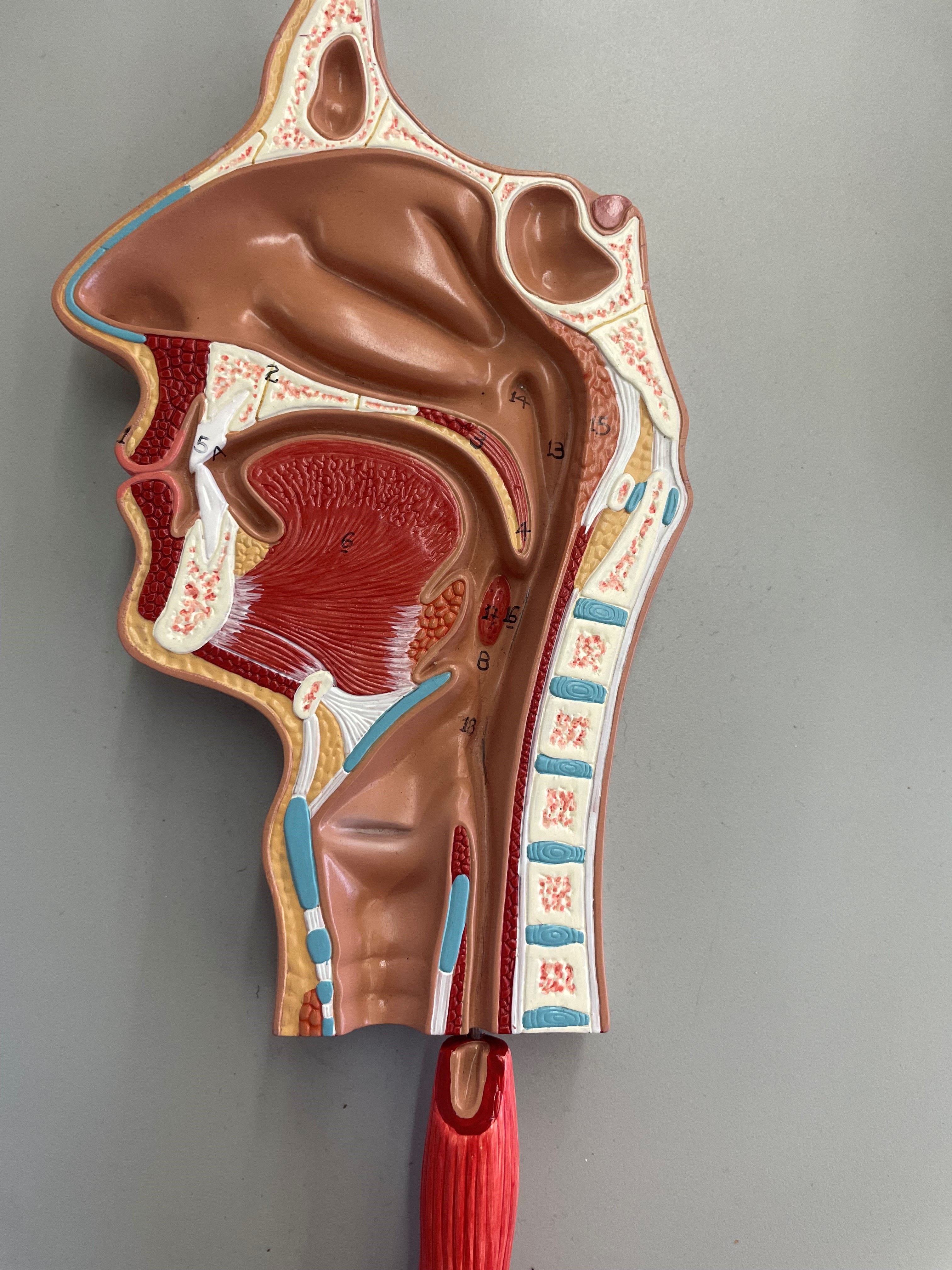

Oral cavity
general space, A
Upper and lower lip
1, top and bottom
Hard palate
2
Soft palate
3
Uvula
4
Tongue
6
Gingiva
area being pointed to

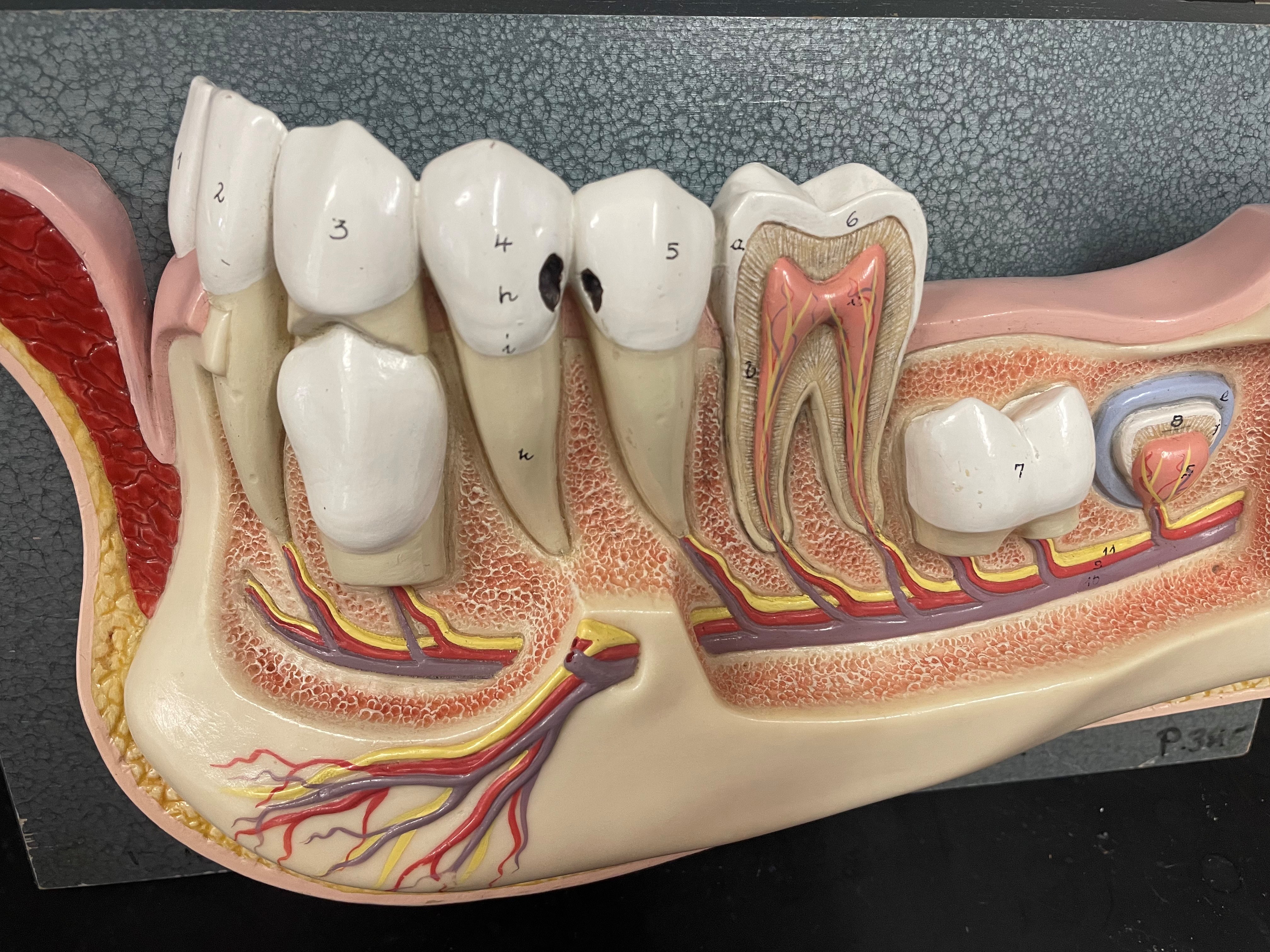

Teeth
5
Incisor
1 and 2
Canine
3
Premolar
4 and 5
Molar
6, 7, and 8
Crown
h
Neck
i
Root
k
Apical foramen
A, small opening at the tip of the root through which blood vessels and nerves enter the tooth
Cement
B
Dentin
C
Enamel
D
Pulp cavity
E
Root canal
F

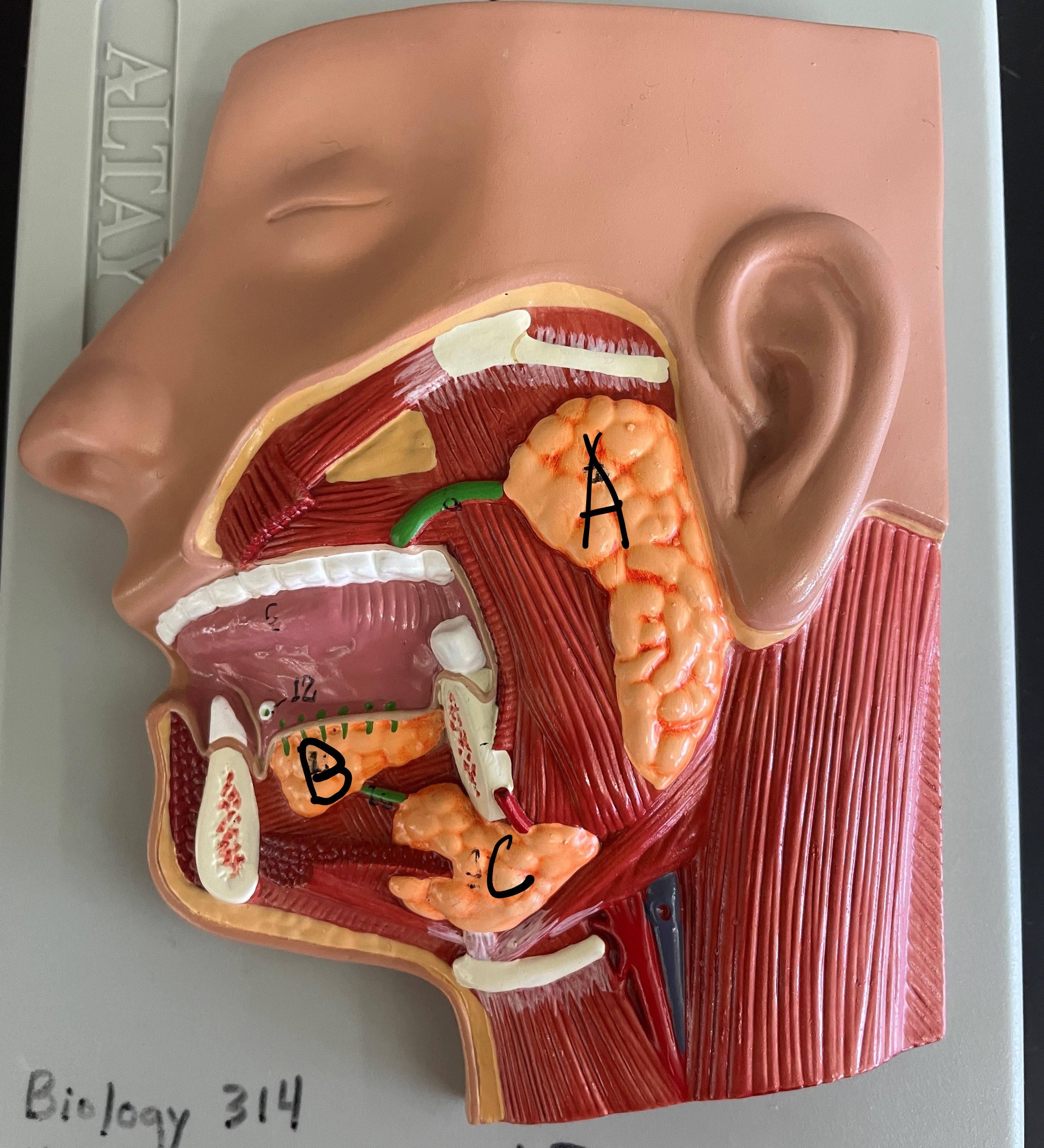

Parotid salivary gland
A
Sublingual salivary gland
B
Submandibular salivary gland
C
Esophagus
structure
Gastroesophageal junction
junction
Simple columnar epithelium
cell type, stomach

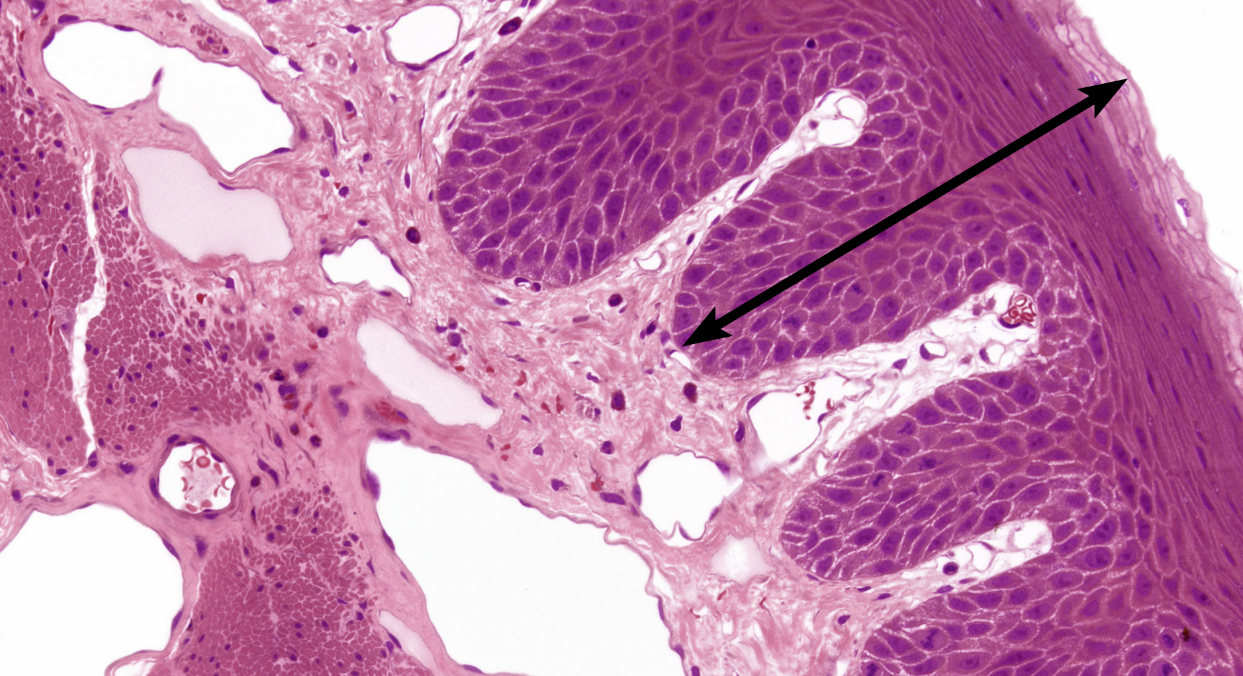

Stratified squamous epithelium
cell type, esophagus

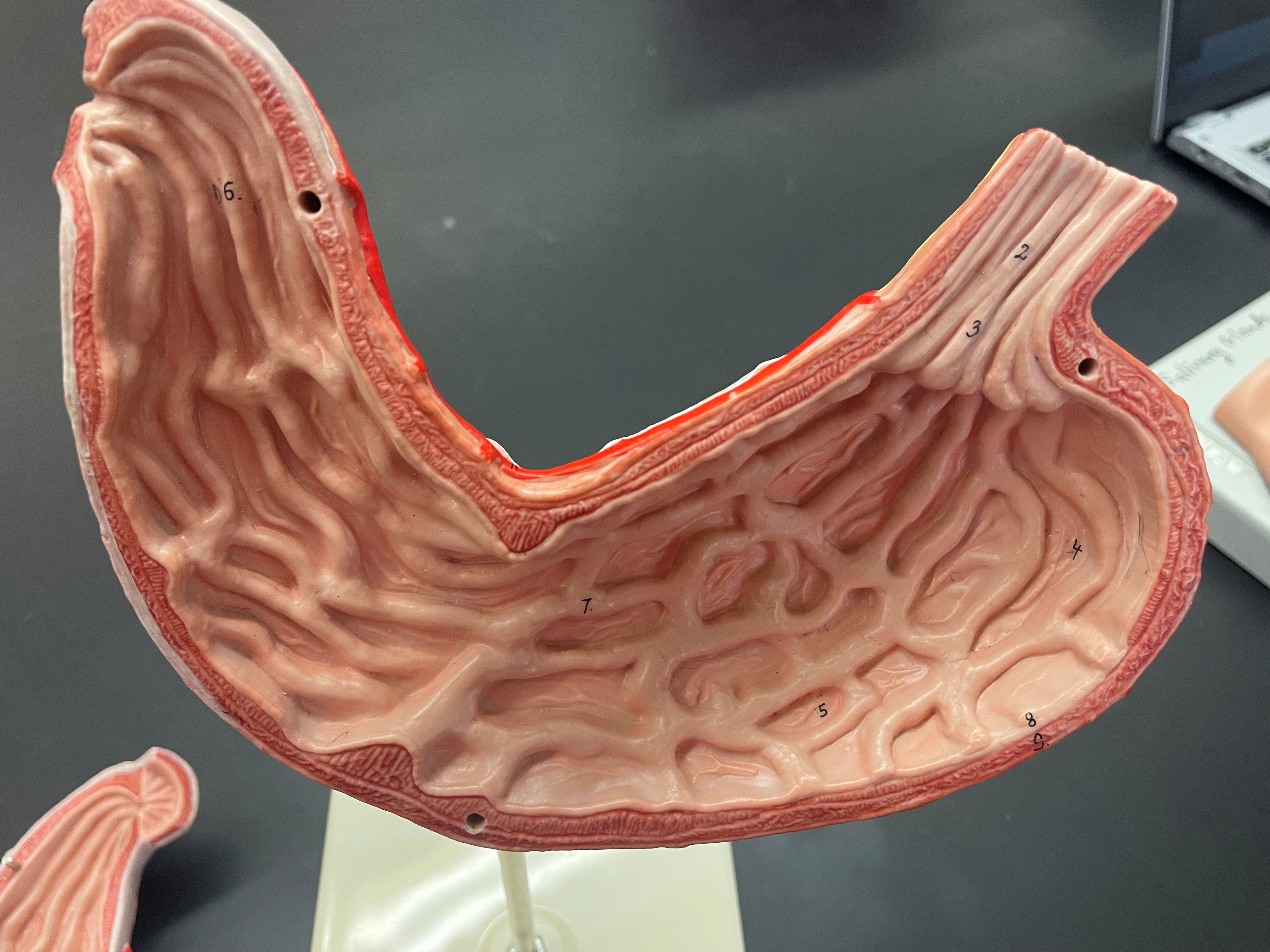

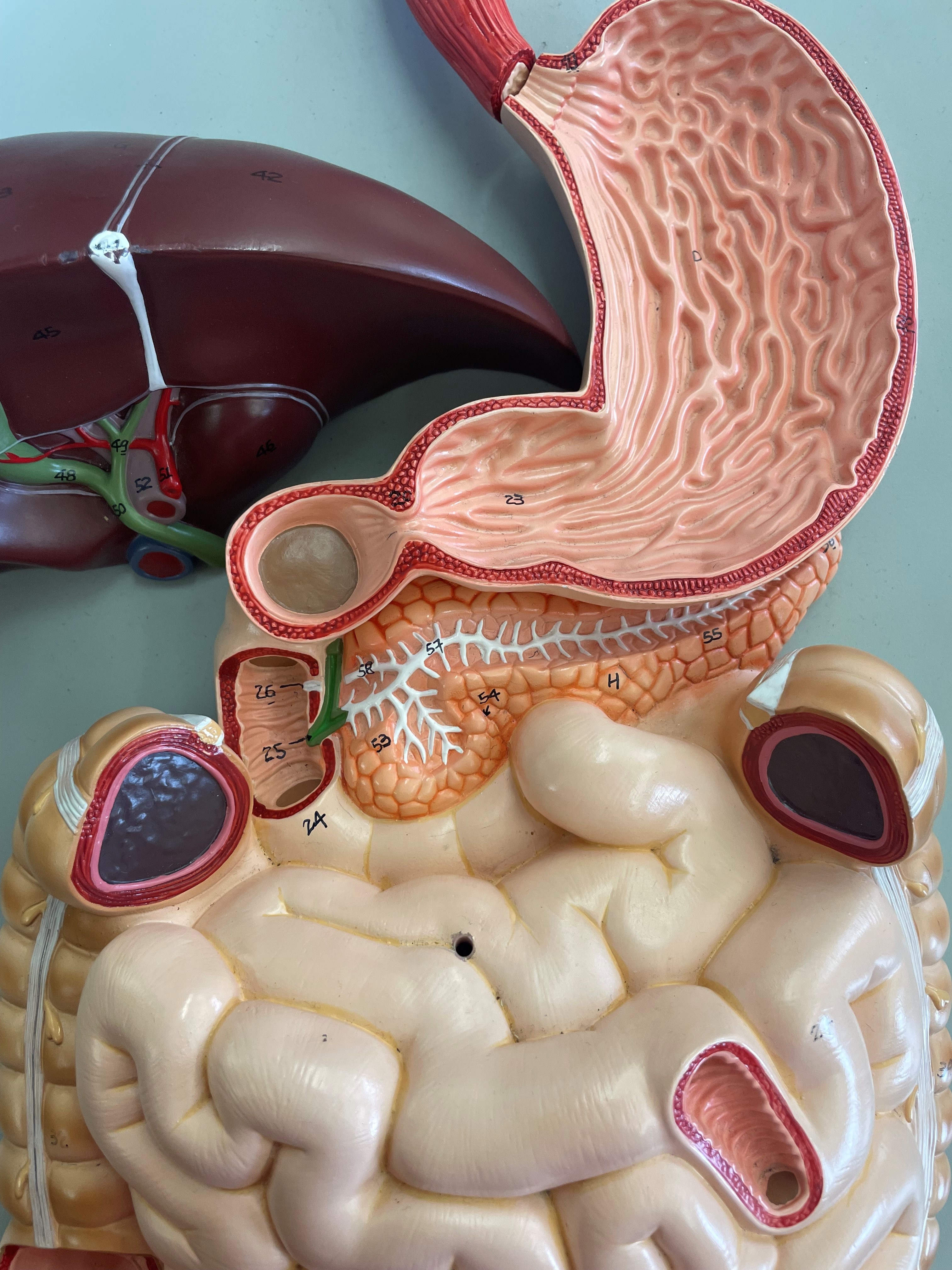

stomach
histology
Cardial
3, region
Fundic
4, region
Body
5, region
Pyloric
6, region

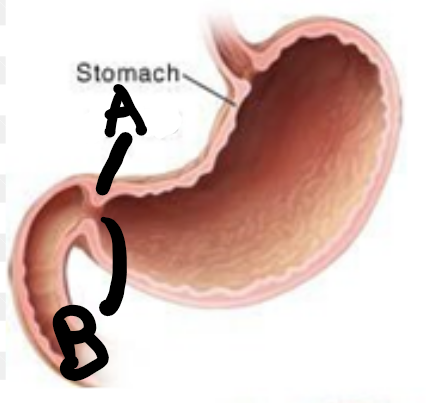

Pyloric sphincter
muscular ring that regulates the flow of food from the stomach to the small intestine, A
Pylorus
the hole that is closed and opened by the pyloric sphincter, B
Muscularis externa
layer, 9

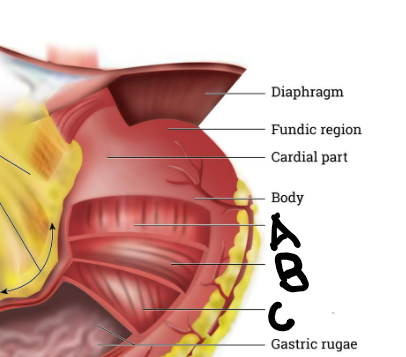

Longitudinal smooth muscle
most external layer of muscle fibers runs parallel to the long axis of the stomach and shortens the stomach when it contracts, A
Circular smooth muscle
middle layer of muscle fibers encircles the stomach and constricts it when it contracts, which helps to break down food and move it through the digestive system, B
Oblique smooth muscle
deep layer of muscle fibers is unique to the stomach and is arranged at an angle to the other two layers. It allows the stomach to contract in a twisting and squeezing motion, which further breaks down food, C
Gastric rugae
7
Gastric pit
histology, holds many gastric glands
Gastric gland
region, identifies at sides of the pits but also occurs within lamina propria
Parietal cell
secretes hydrochloric acid (break down food and activates pepsinogen to pepsin), dark purple nucleus and a pink cytoplasm
Chief cell
smaller cell with a dark purple nucleus and a light purple cytoplasm in the lower regions of the gastric glands, secrete pepsinogen which is converted to pepsin (breaks down proteins into smaller peptides)
Enteroendocrine cell
in the deepest part of the gastric glands, secretes gastrin (stimulates the secretion of gastric acid and the motility of the stomach), a dark purple nucleus and a clear cytoplasm

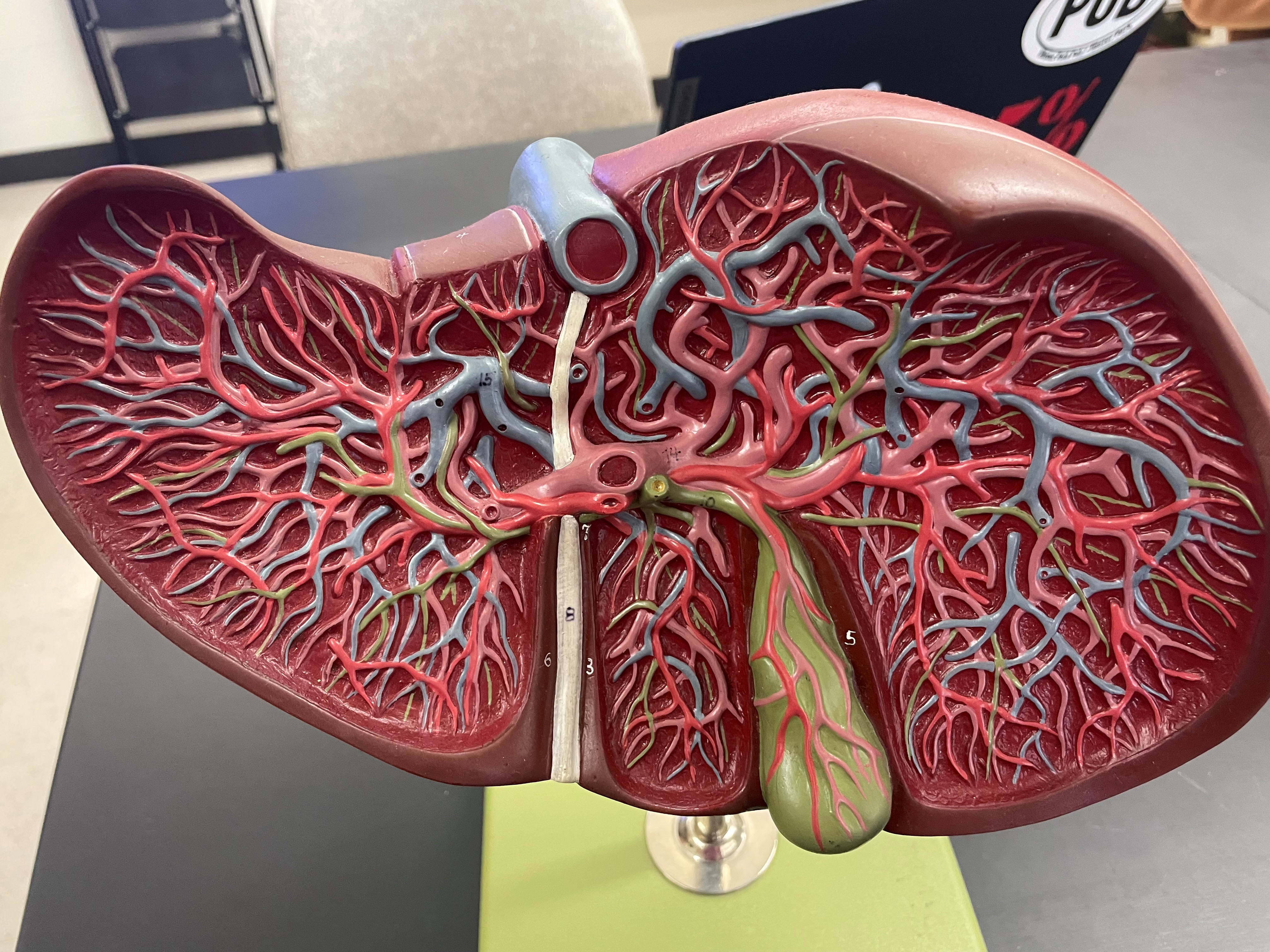

Liver
An accessory organ of digestion

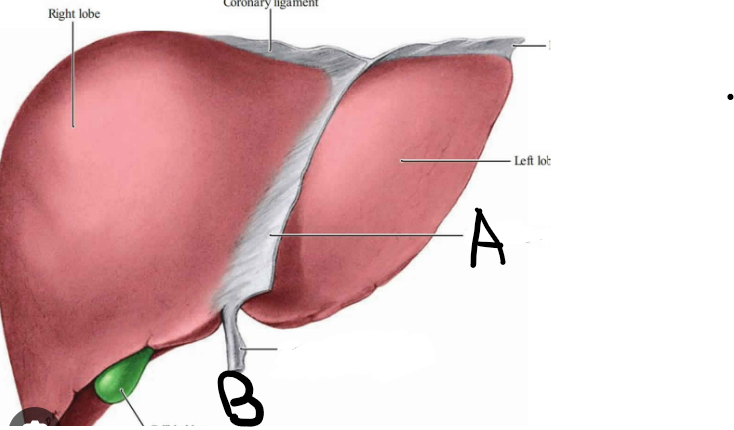

Falciform ligament
A
Round ligament
B
Common hepatic duct
49
Bile duct
50

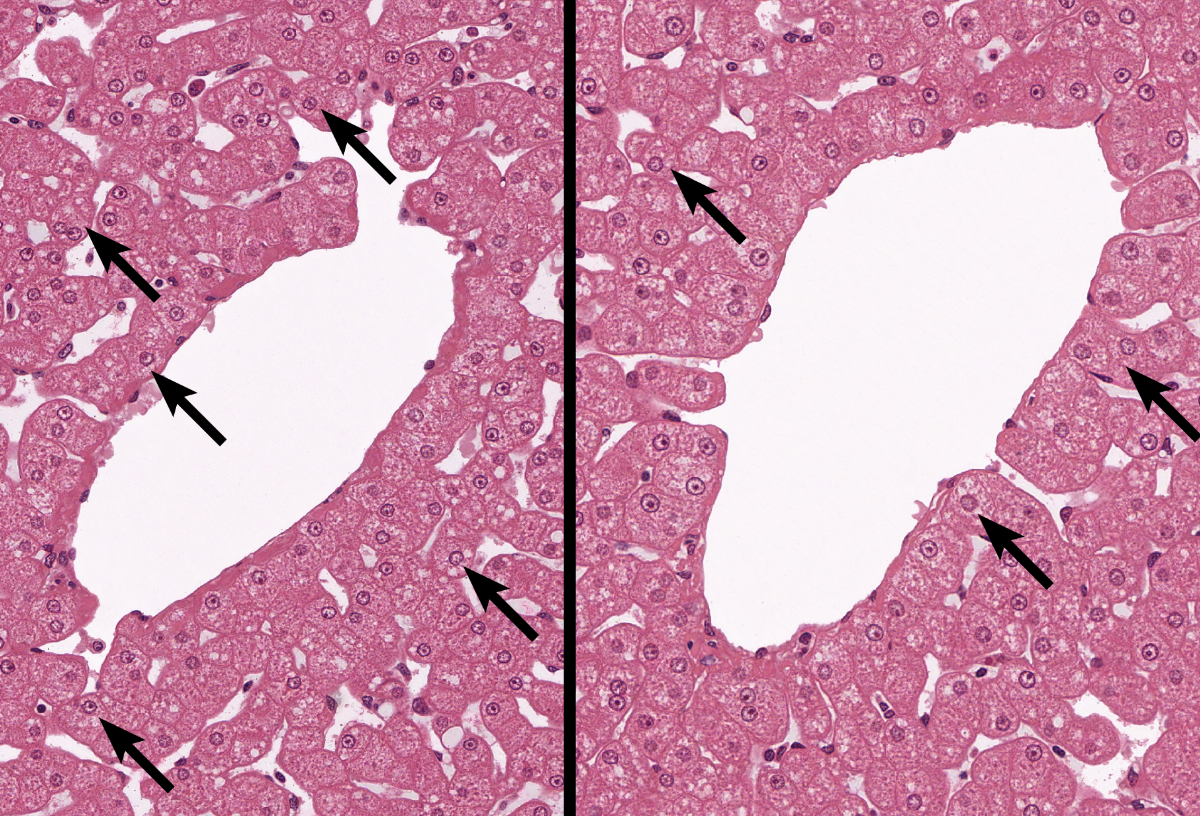

Lobule
Central vein
Hepatic sinusoid
Hepatocyte
Stellate macrophage

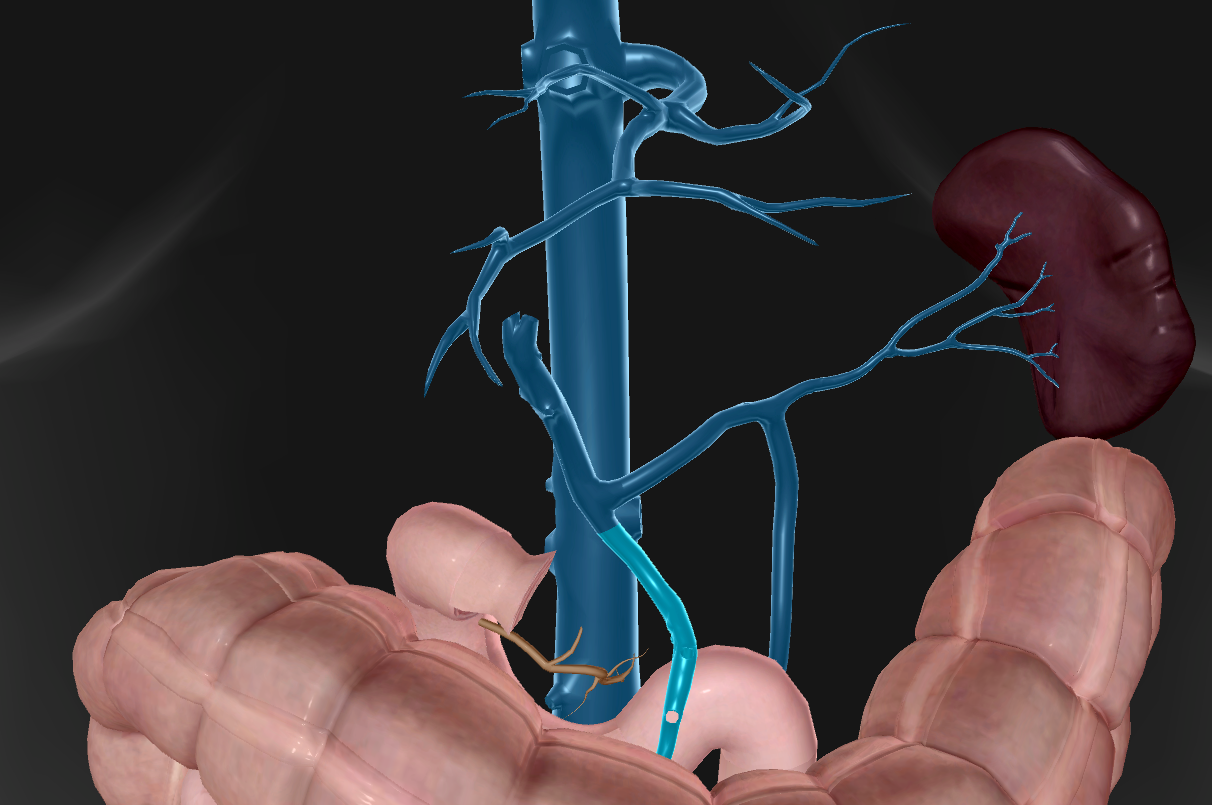

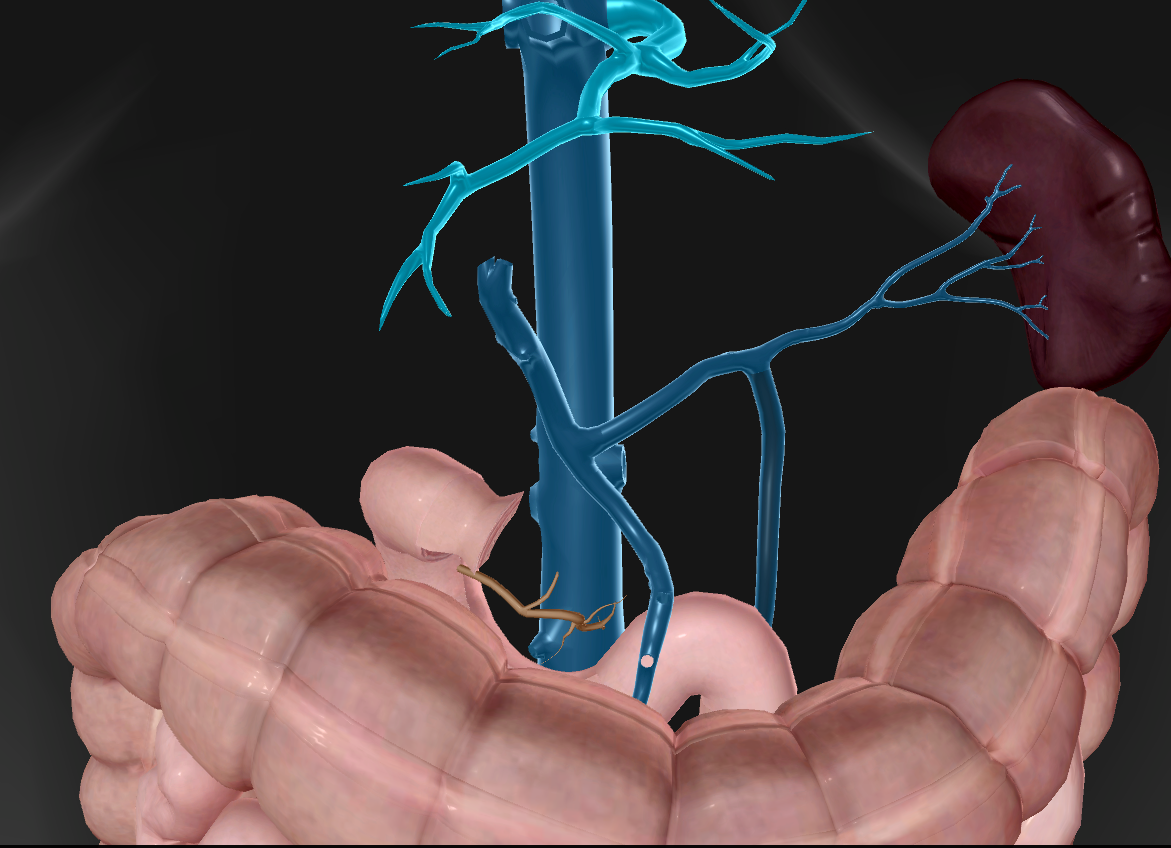

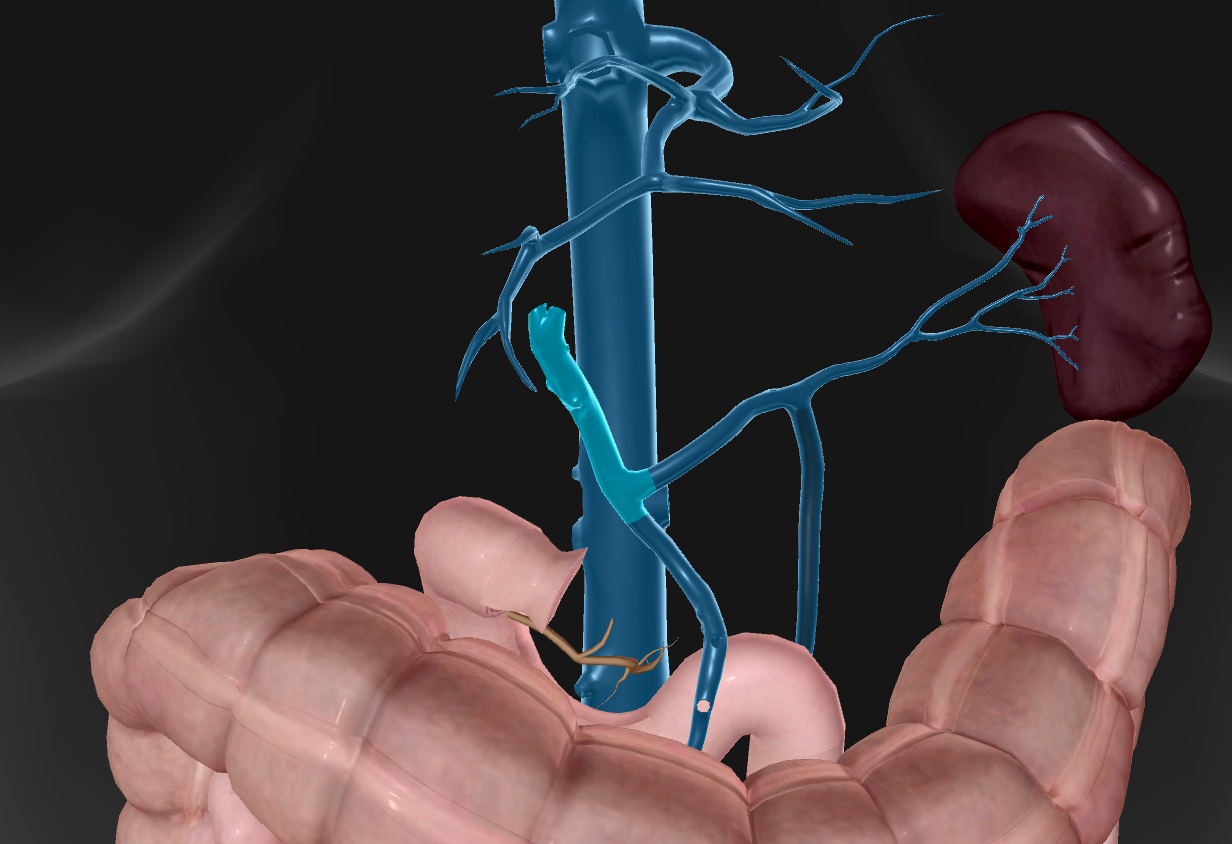

Hepatic portal vein
14
Hepatic portal vein

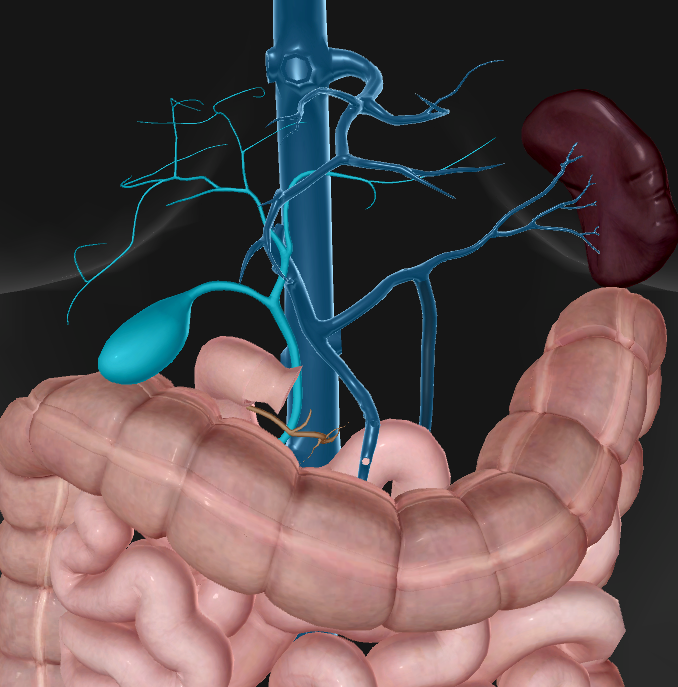

Hepatic vein
15
Hepatic vein

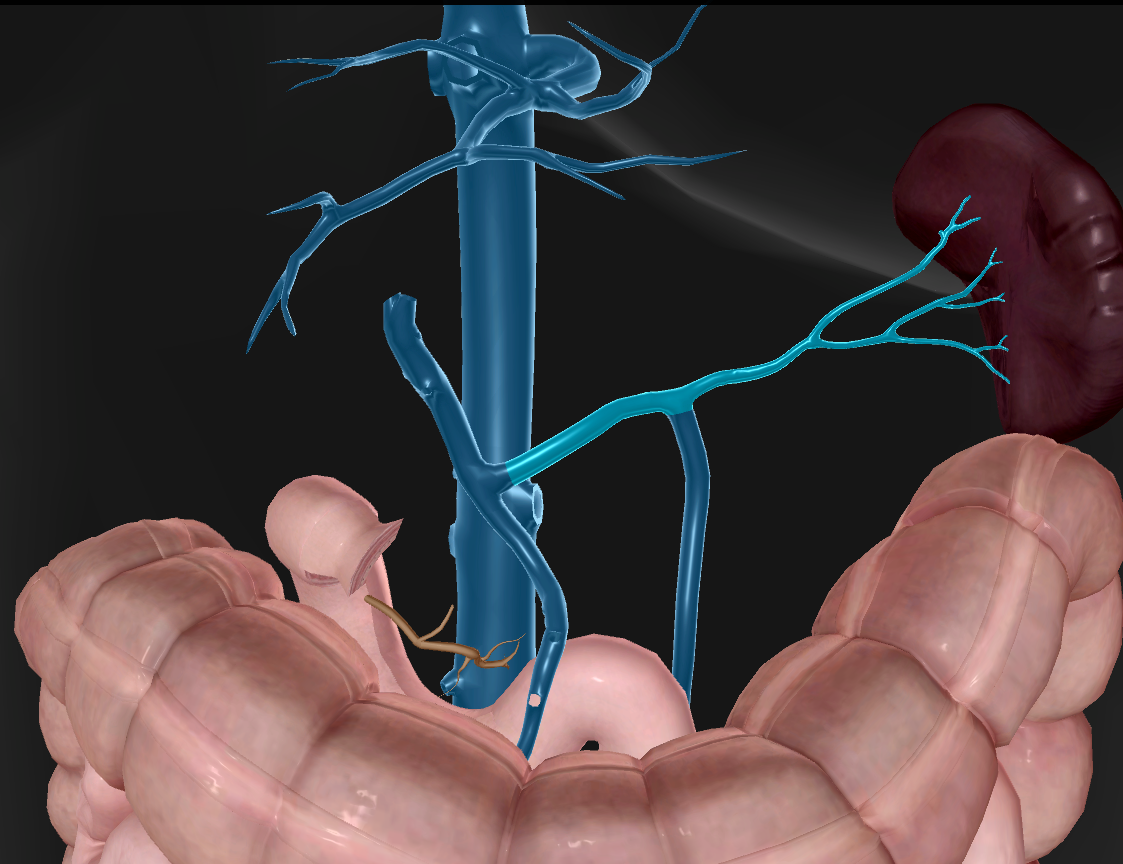

Splenic vein
Superior mesenteric vein
Inferior mesenteric vein
Gallbladder
An accessory organ of digestion
Cystic duct
48
Pancreas
An accessory organ of digestion, H
Pancreatic duct
57
Accessory pancreatic duct
58
Pancreatic acinar cell
cell type

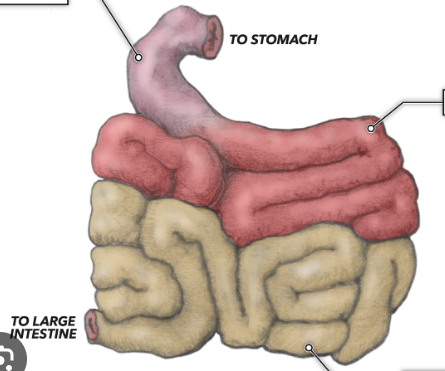

Small intestine
Duodenum
purple
Jejunum
red
Ileum
green
Ileocecal valve
30
Villus
Intestinal crypt
Lacteal
functions for fat absorption
Simple columnar epithelium
cell type
Absorptive cell
Goblet cell

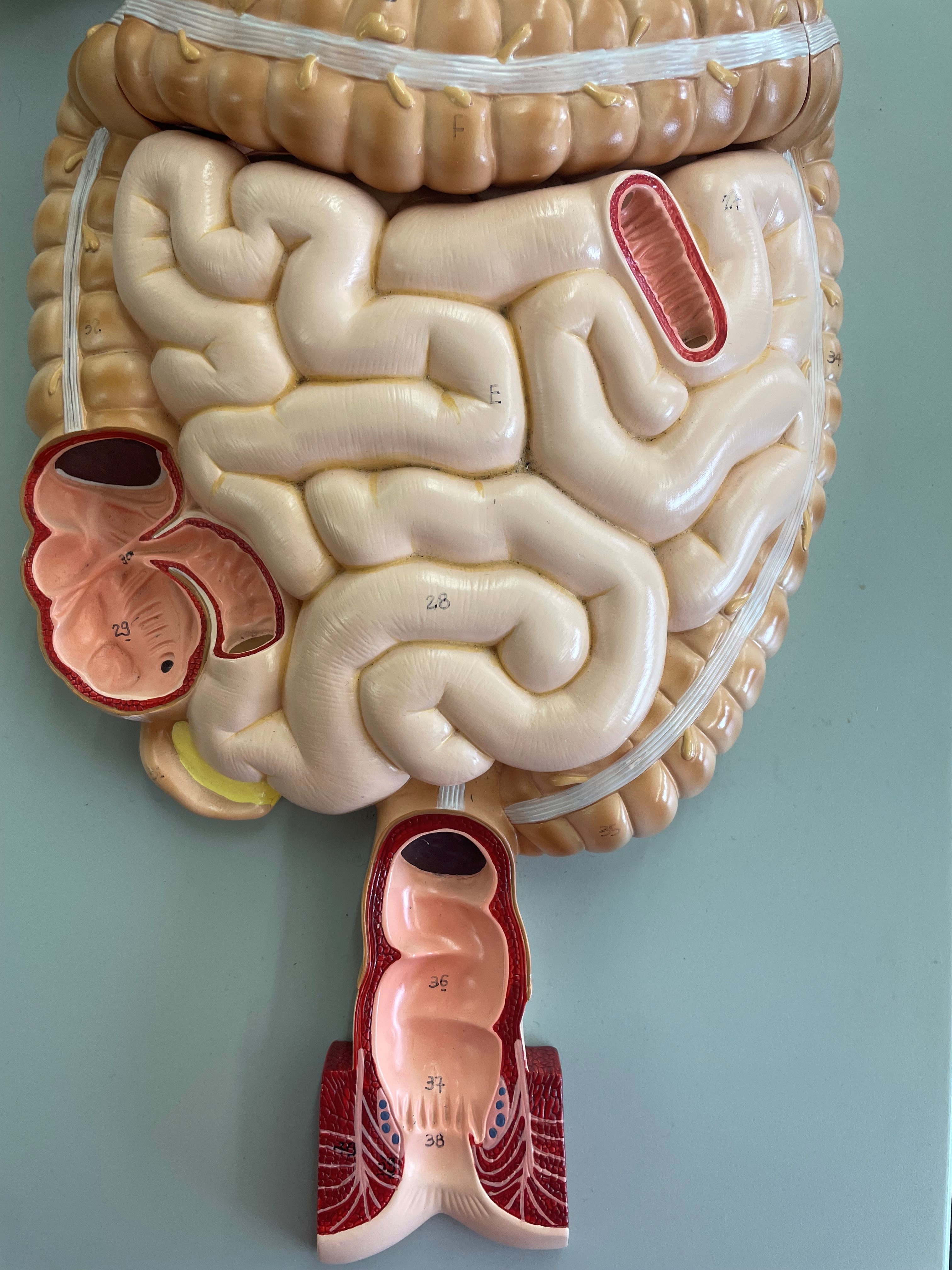

Large intestine

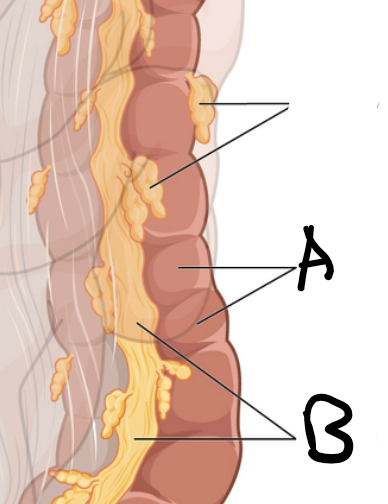

Haustrum
A
Tenia coli
B
Simple columnar epithelium
cell type
Goblet cell

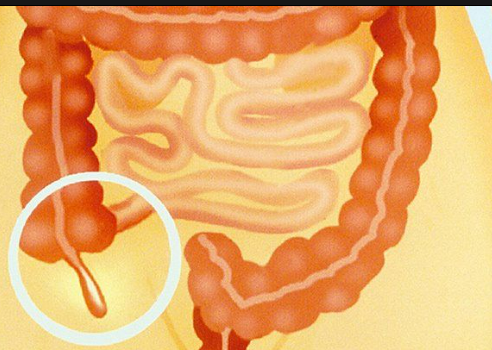

Appendix
Cecum
29
Ascending colon
32, left side, hard to see

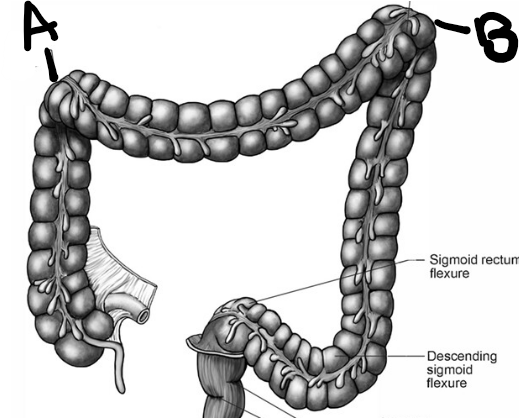

right colic flexure
A
Transverse colon
F
Left colic flexure
B
Descending colon
34
Sigmoid colon
35
