ABD EXAM 4 pictures diagrams

ERCP

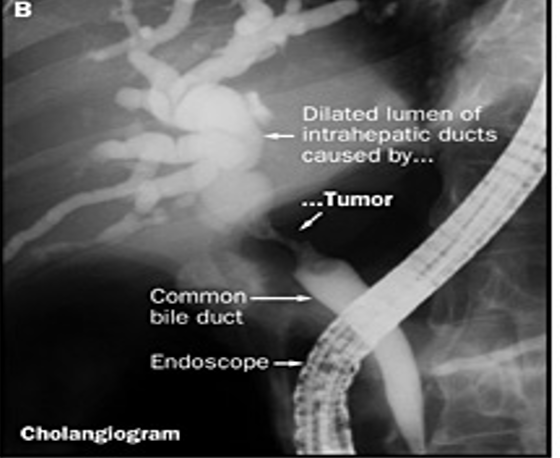

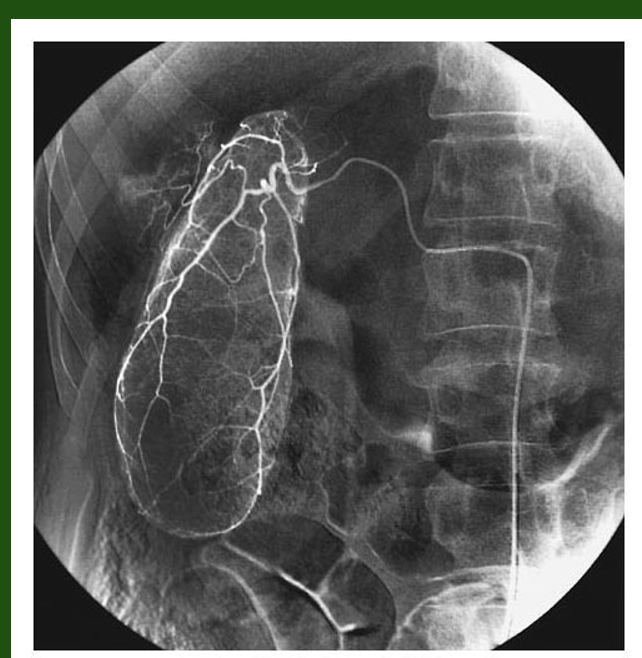

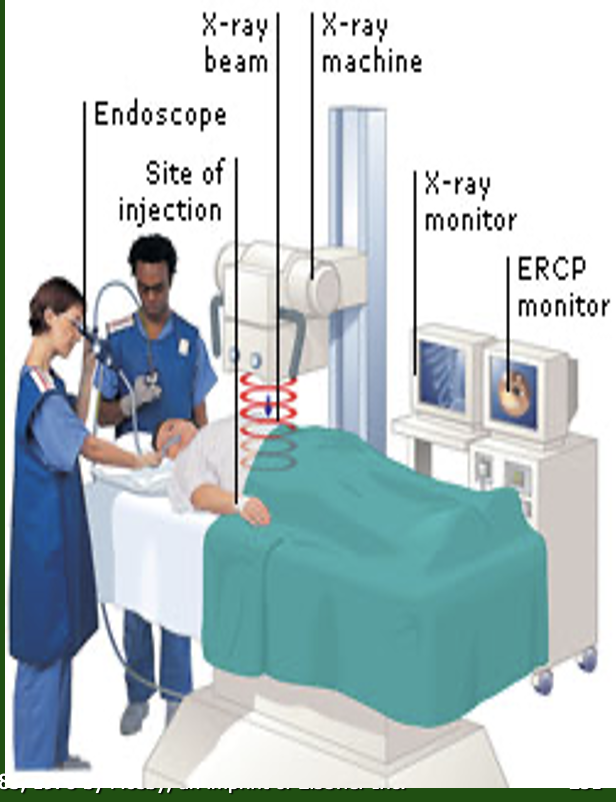

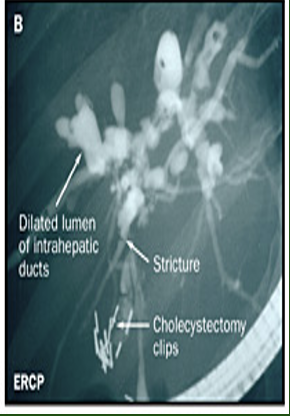

ERCP Endoscopic Retrograde Choliangiopancreatography

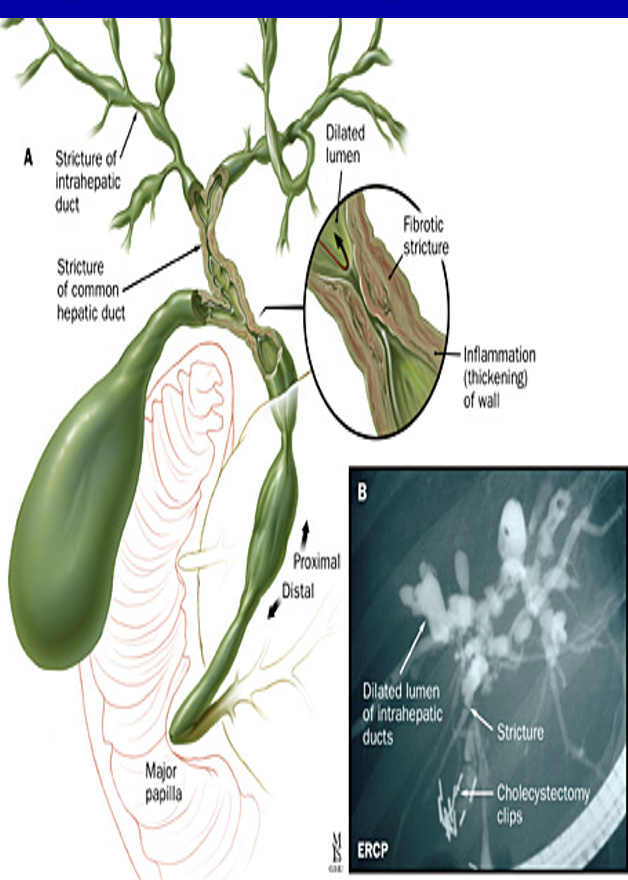

Primary Sclerosing Cholangitis

Primary Sclerosing Cholangitis

Metastases to the Biliary Tree

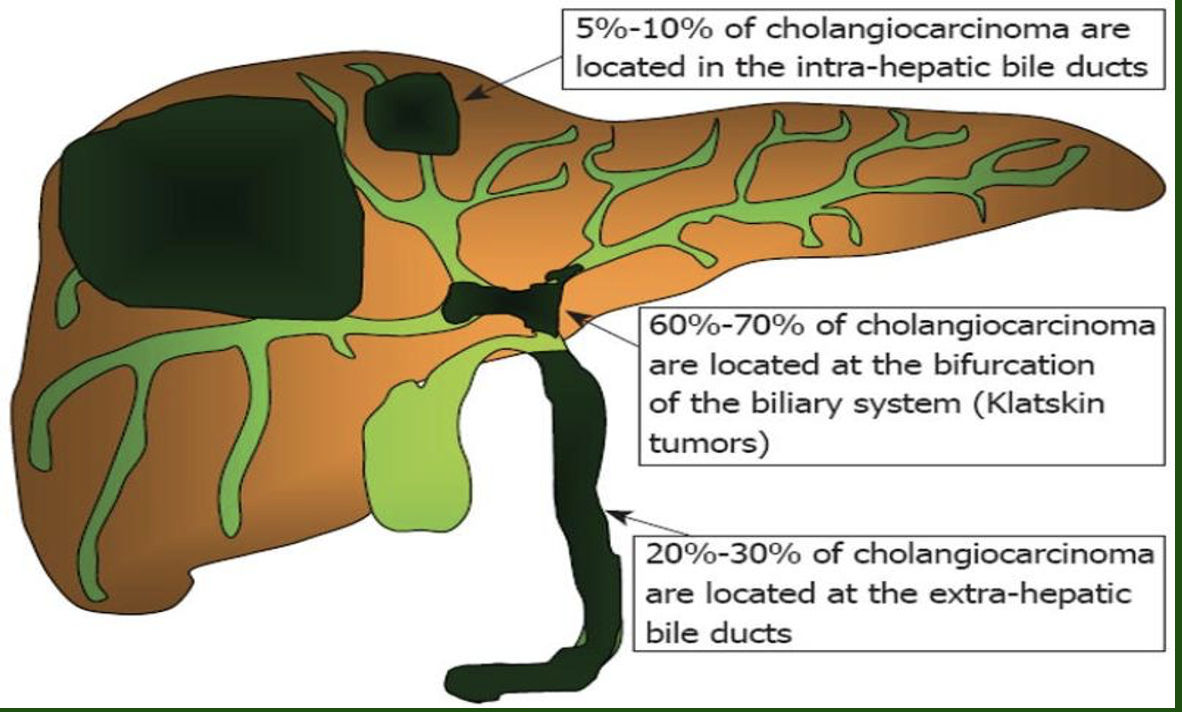

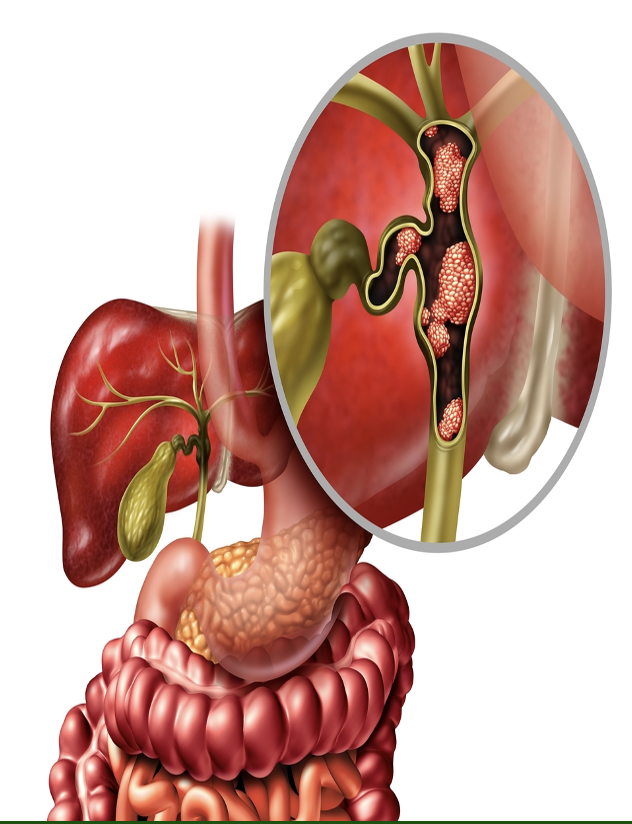

Cholangiocarcinoma

Distal Cholangiocarcinoma

Klatskin’s Tumor

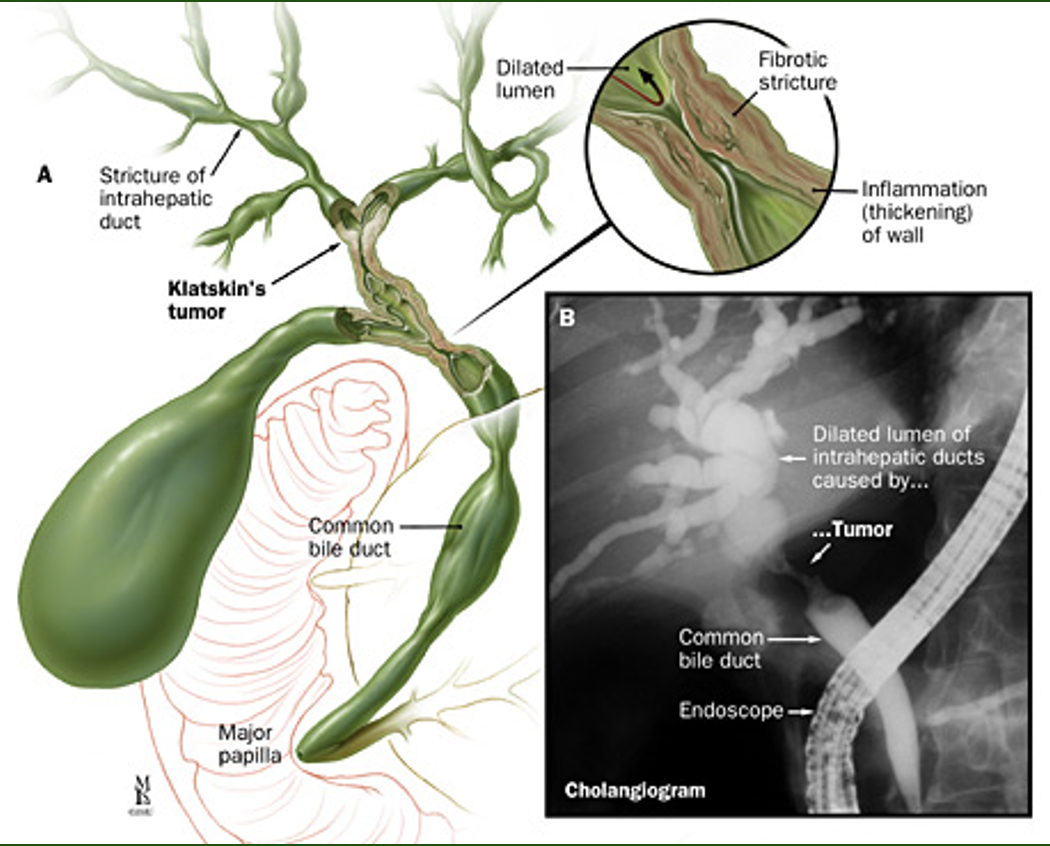

Klatskin’s Tumor

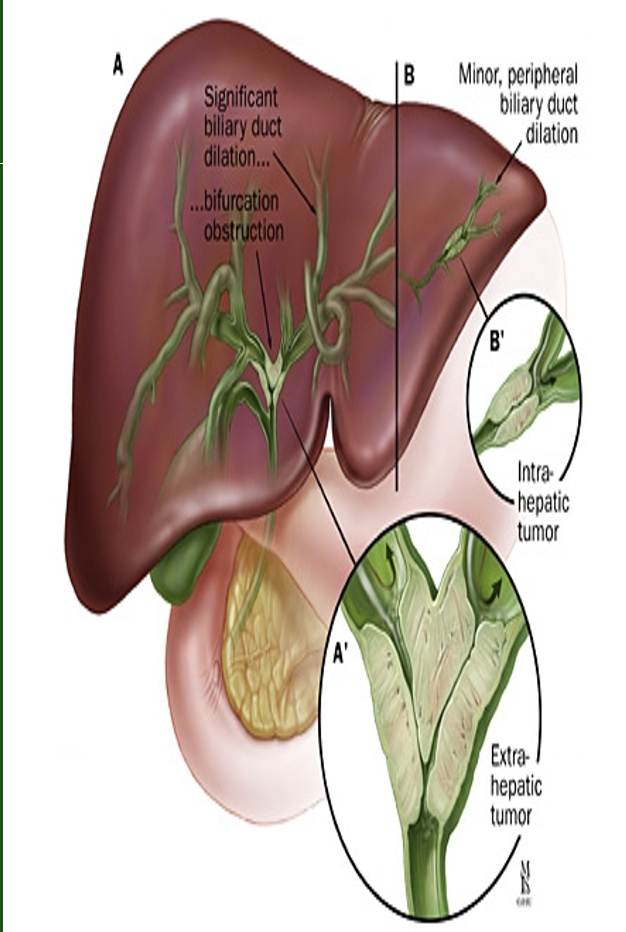

Hilar Cholangiocarcinoma

Hilar Cholangiocarcinoma

Intrahepatic Cholangiocarcinoma

Intrahepatic Cholangiocarcinoma

Cholangiocarcinoma

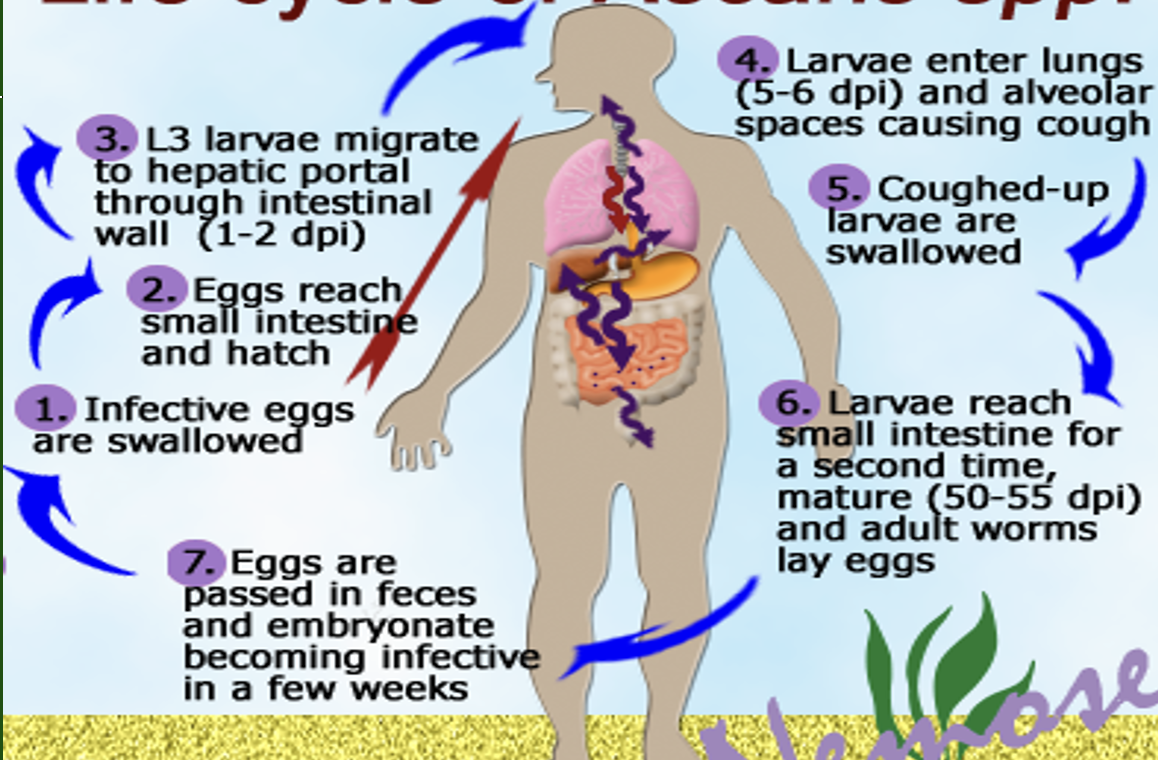

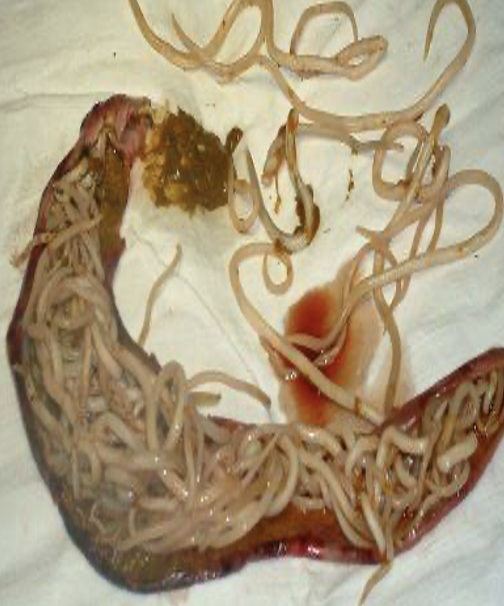

Ascaris

Ascaris

Ascaris

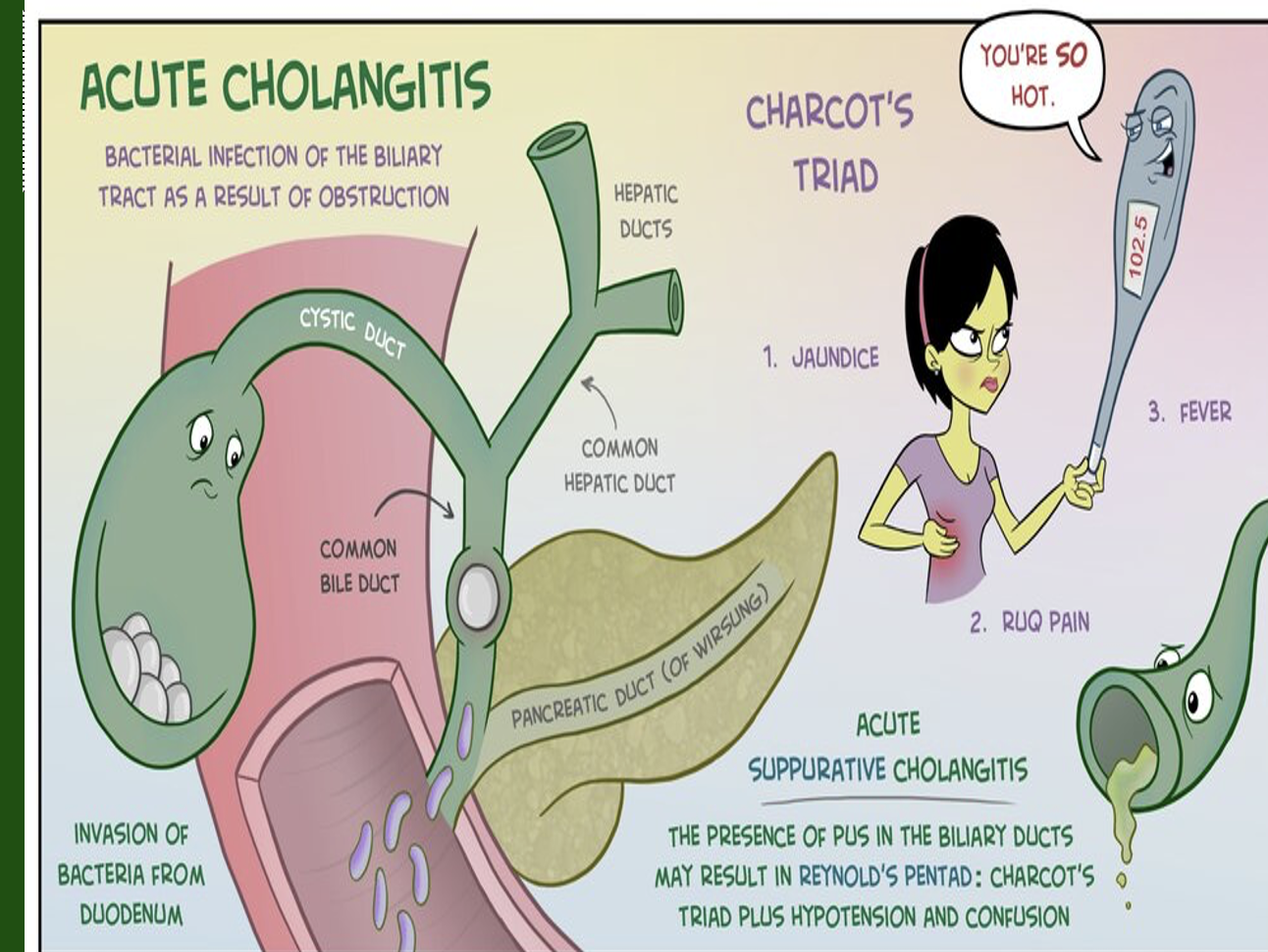

Cholangitis

Cholangitis

Cholangitis

Cholangitis

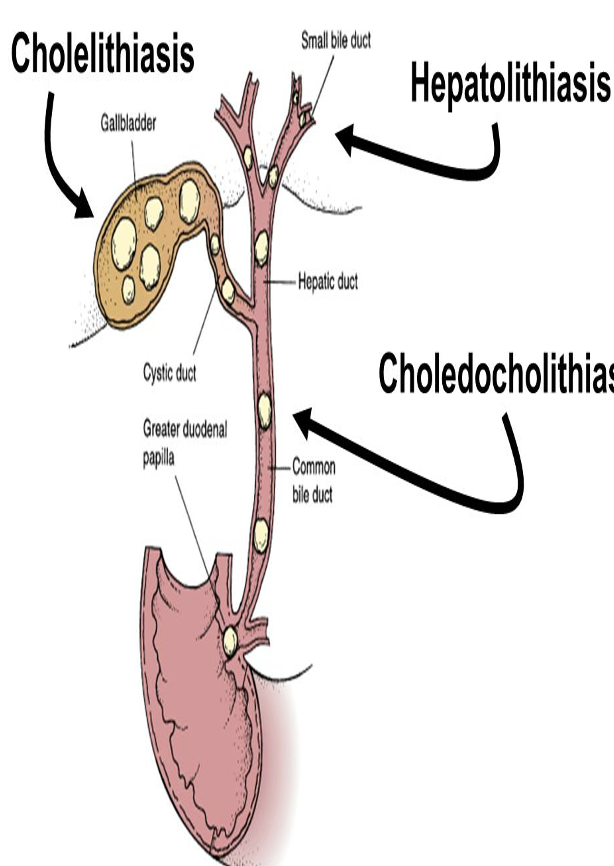

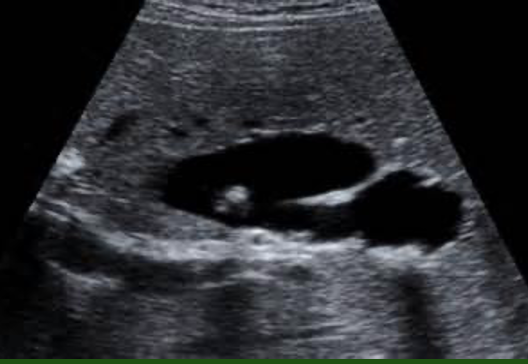

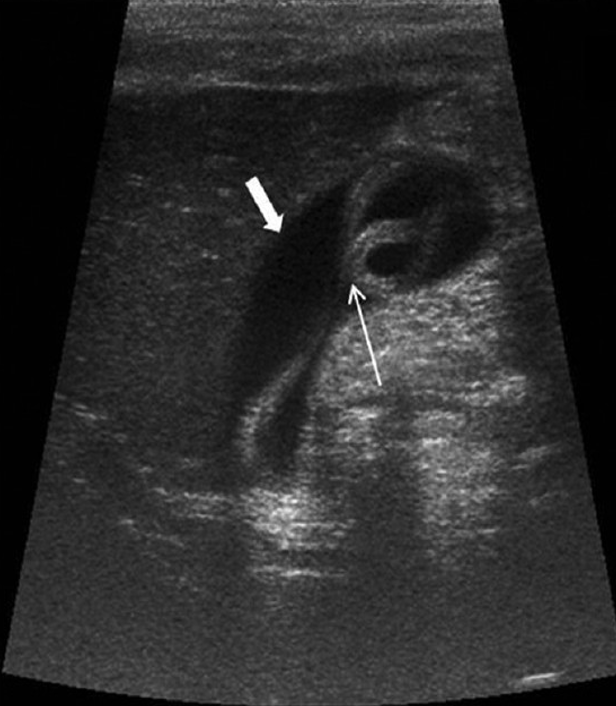

Choledocholithiasis

Choledocholithiasis

Choledocholithiasis

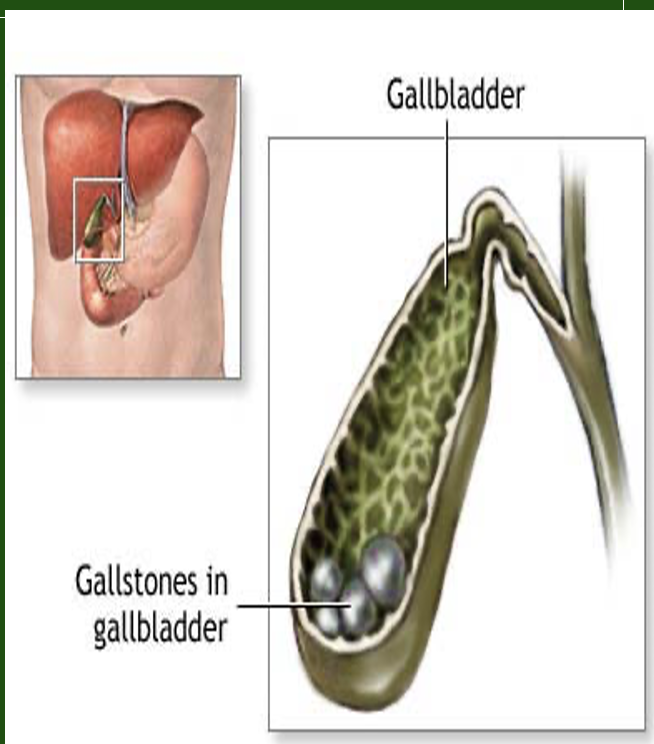

Gall Stones

Gall Stones

other causes for obstruction

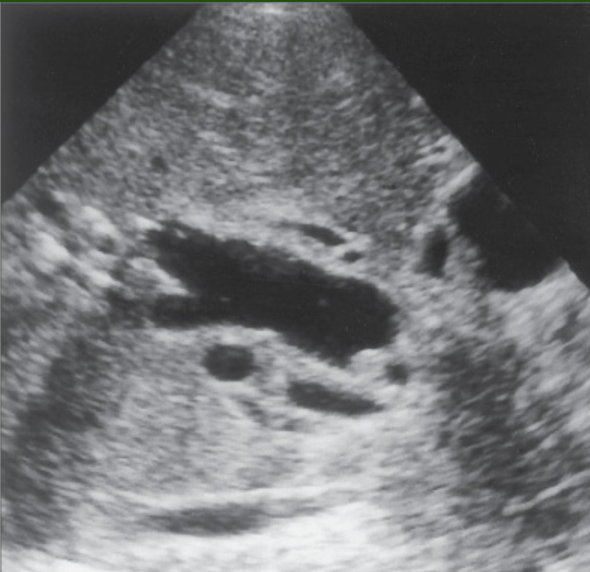

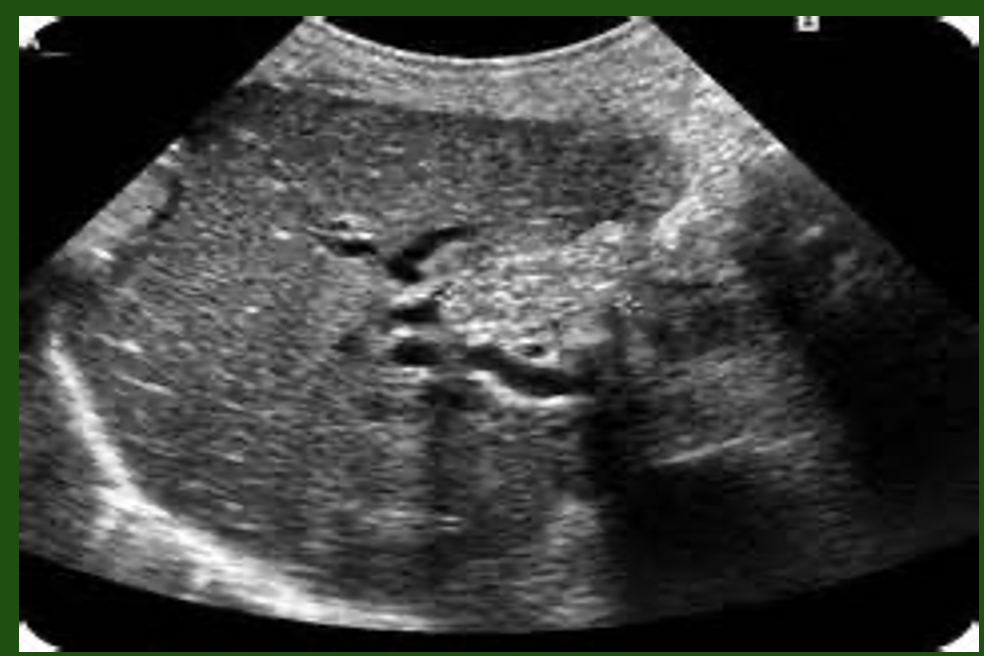

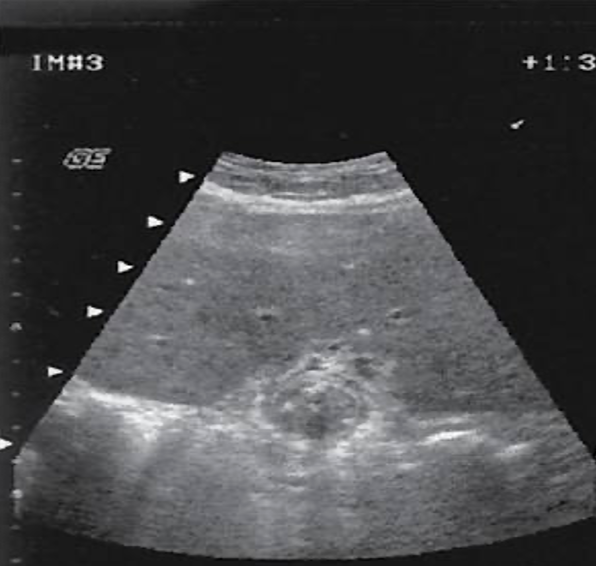

Dilated intrahepatic ducts secondary to a mass in the area of the porta hepatis.

other causes for obstruction

Dilated intrahepatic ducts secondary to a mass in the area of the porta hepatis.

Courvoisier sign

other causes for obstruction

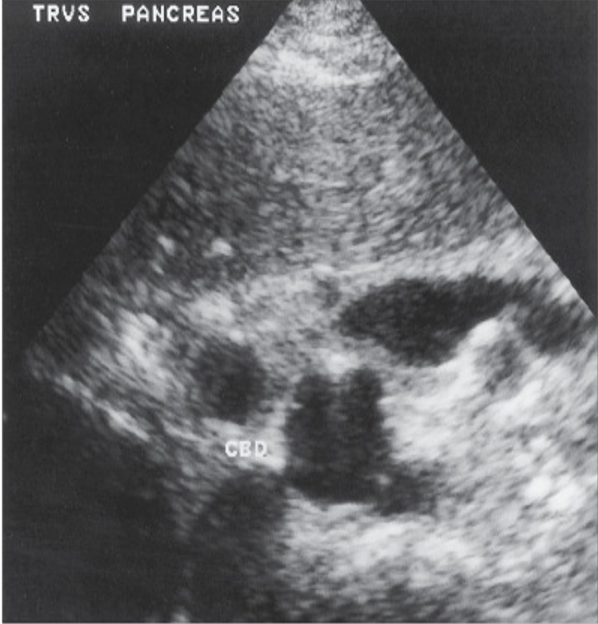

Carcinoma of the head of the pancreas with obstruction of the common bile duct (CBD) is demonstrated.

other causes for obstruction

Carcinoma of the head of the pancreas with obstruction of the common bile duct (CBD) is demonstrated.

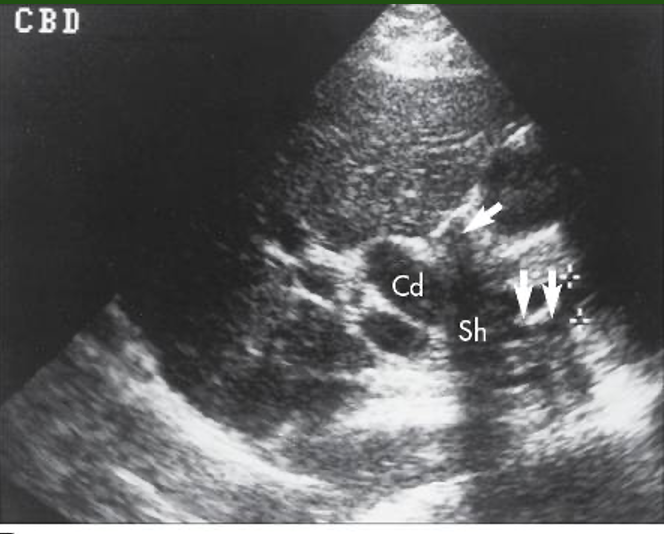

Other Causes of Obstruction

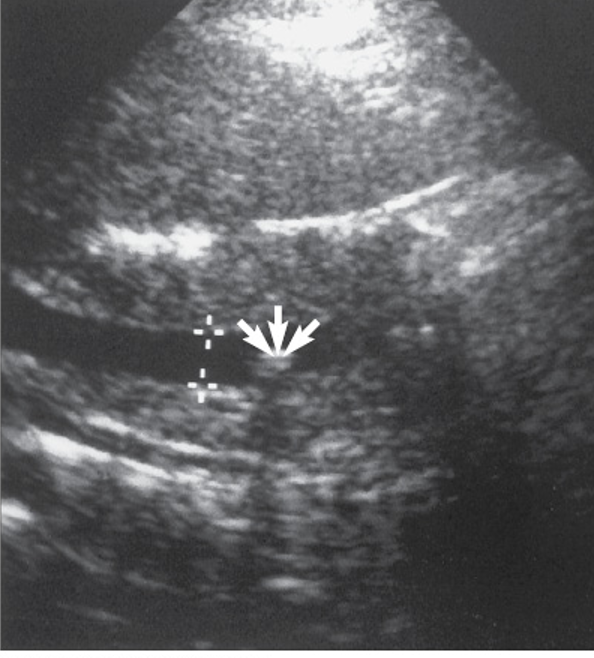

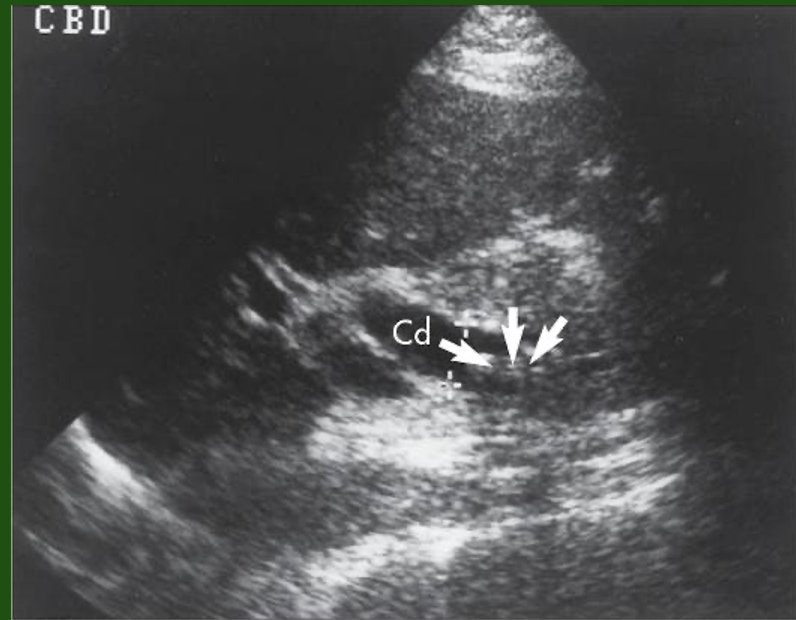

Stones within the common duct are seen if the duct is dilated. The small echogenic focus (arrows) is well seen within the duct in this transverse view.

Other Causes of Obstruction

Stones within the common duct are seen if the duct is dilated. The small echogenic focus (arrows) is well seen within the duct in this transverse view.

Other Causes of Obstruction

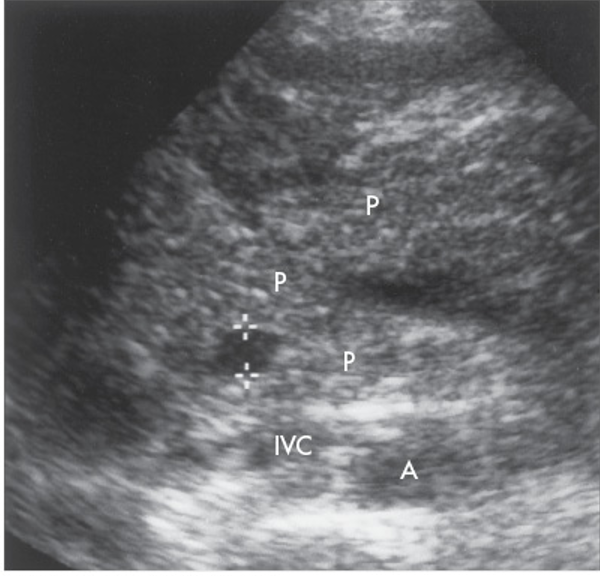

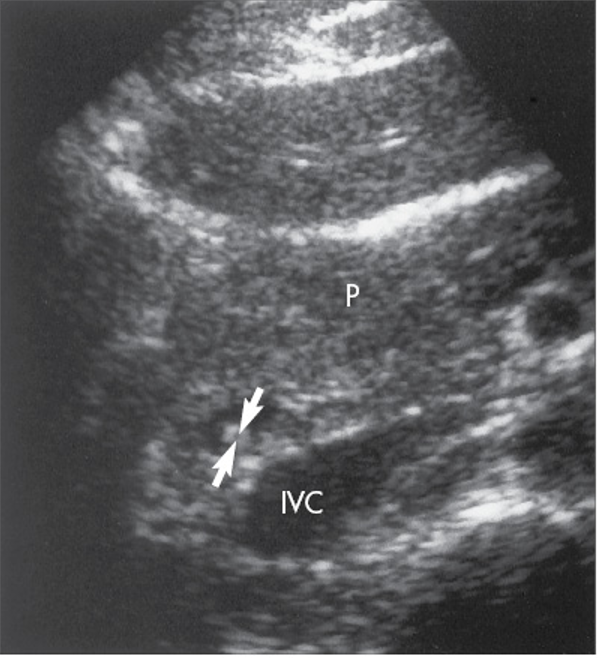

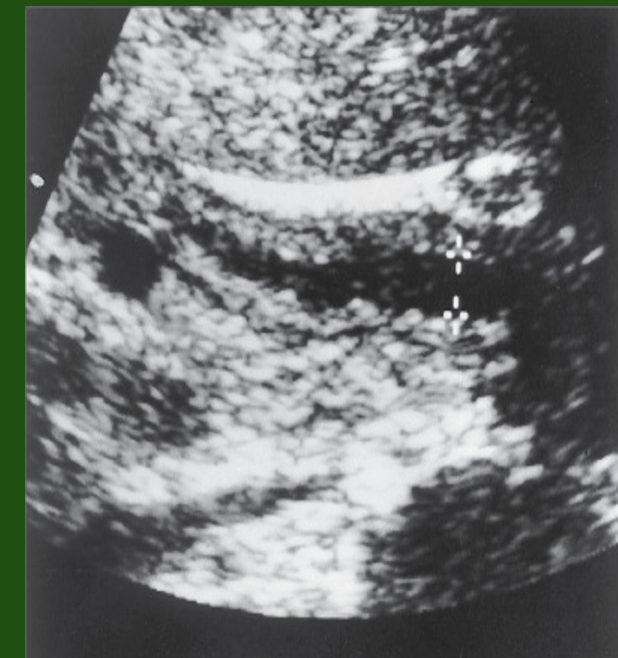

Inflammation of the pancreas may cause the common duct to dilate. This patient has acute pancreatitis (P) and dilation of the common duct (crossbars).
A, Aorta; IVC, inferior vena cava.

Other Causes of Obstruction

Inflammation of the pancreas may cause the common duct to dilate. This patient has acute pancreatitis (P) and dilation of the common duct (crossbars).
A, Aorta; IVC, inferior vena cava.

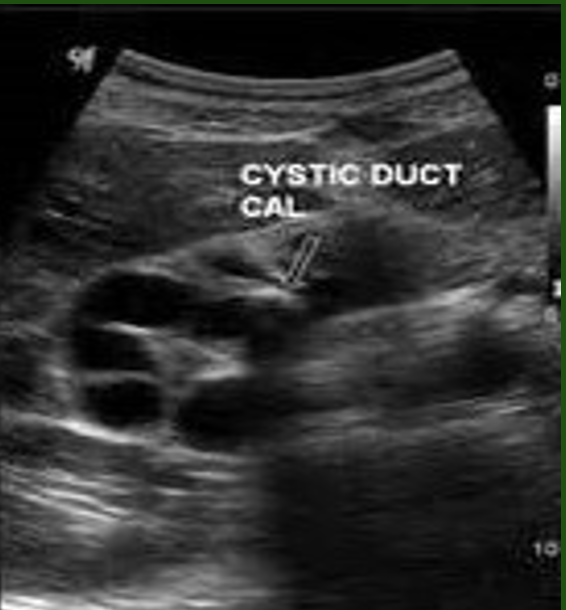

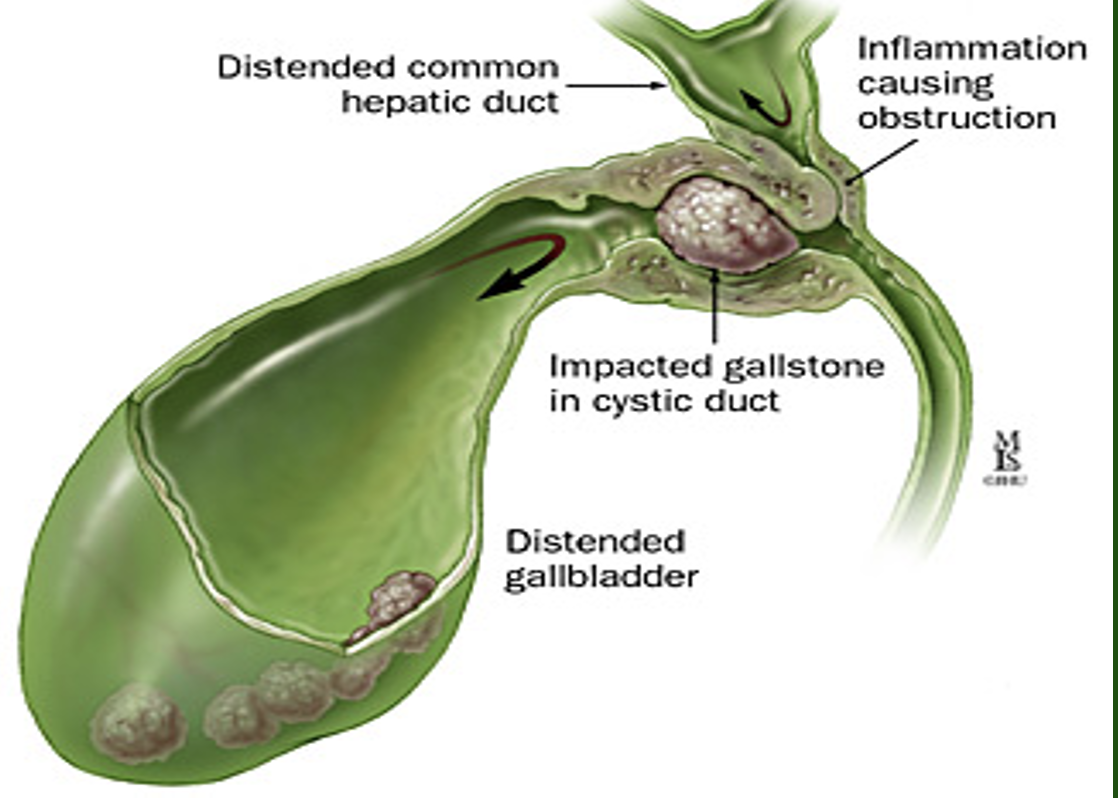

Mirizzi Syndrome

Mirizzi Syndrome

Mirizzi Syndrome

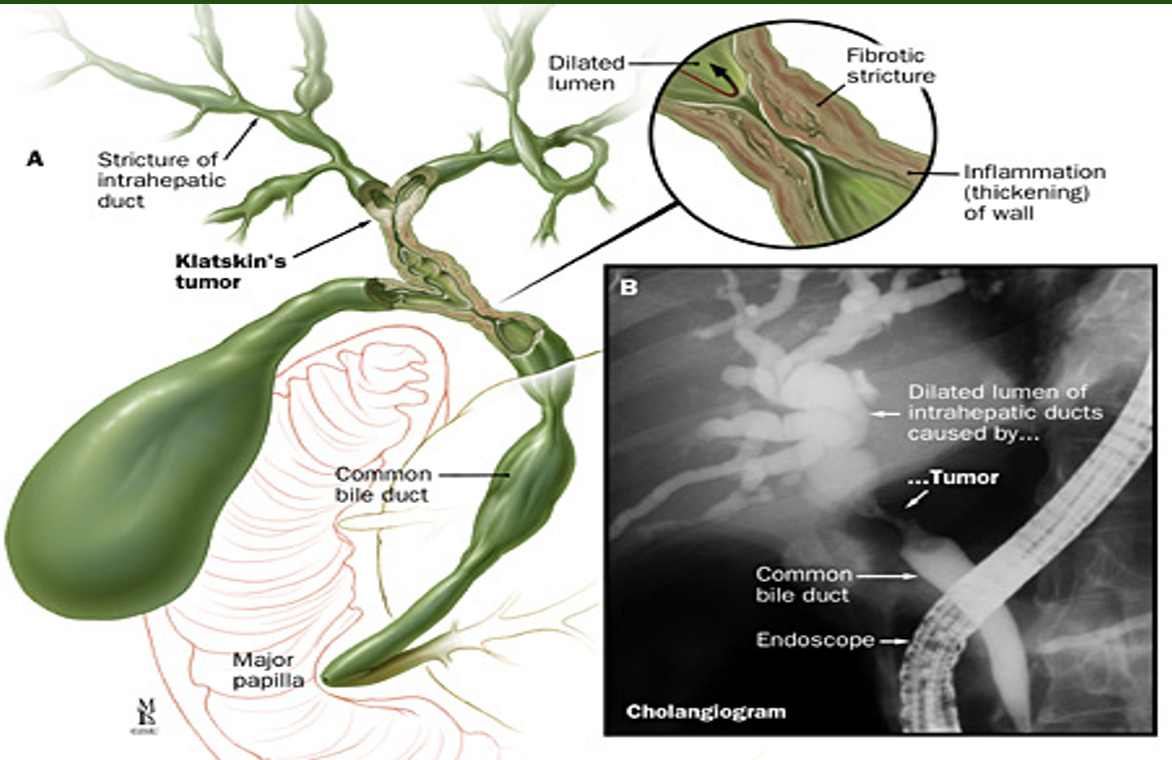

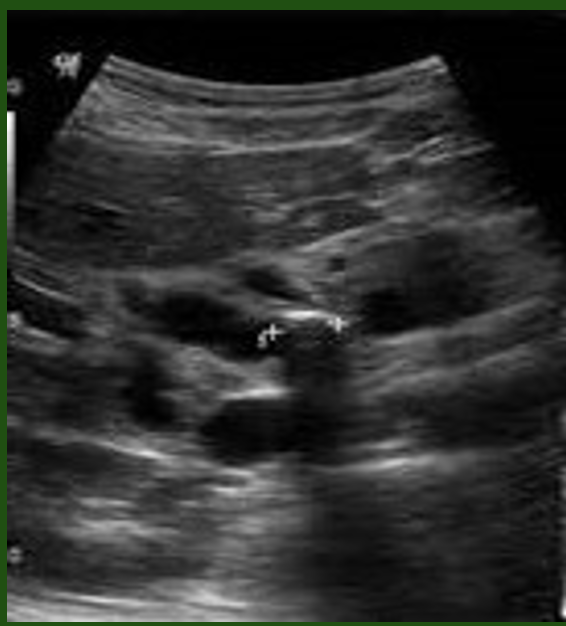

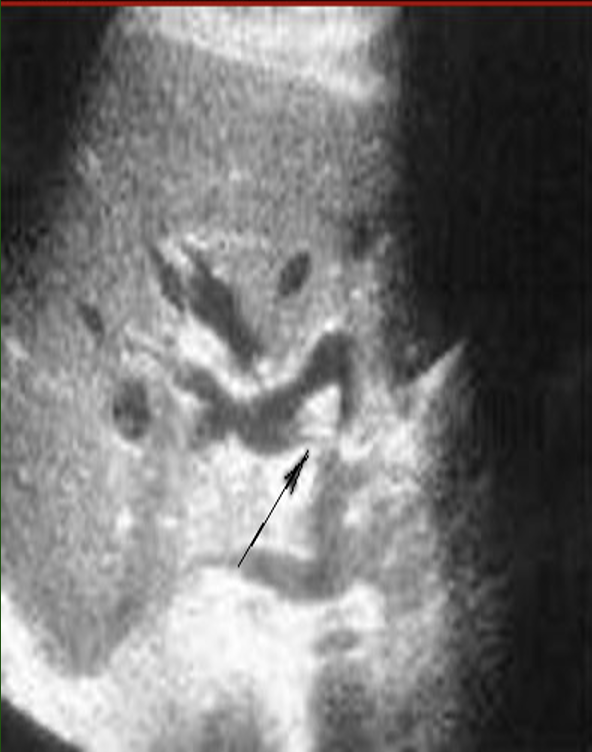

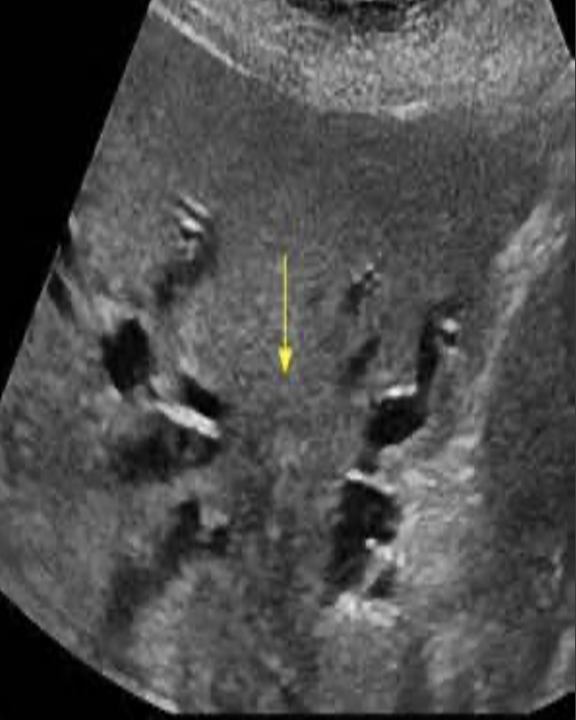

Klatskin tumor

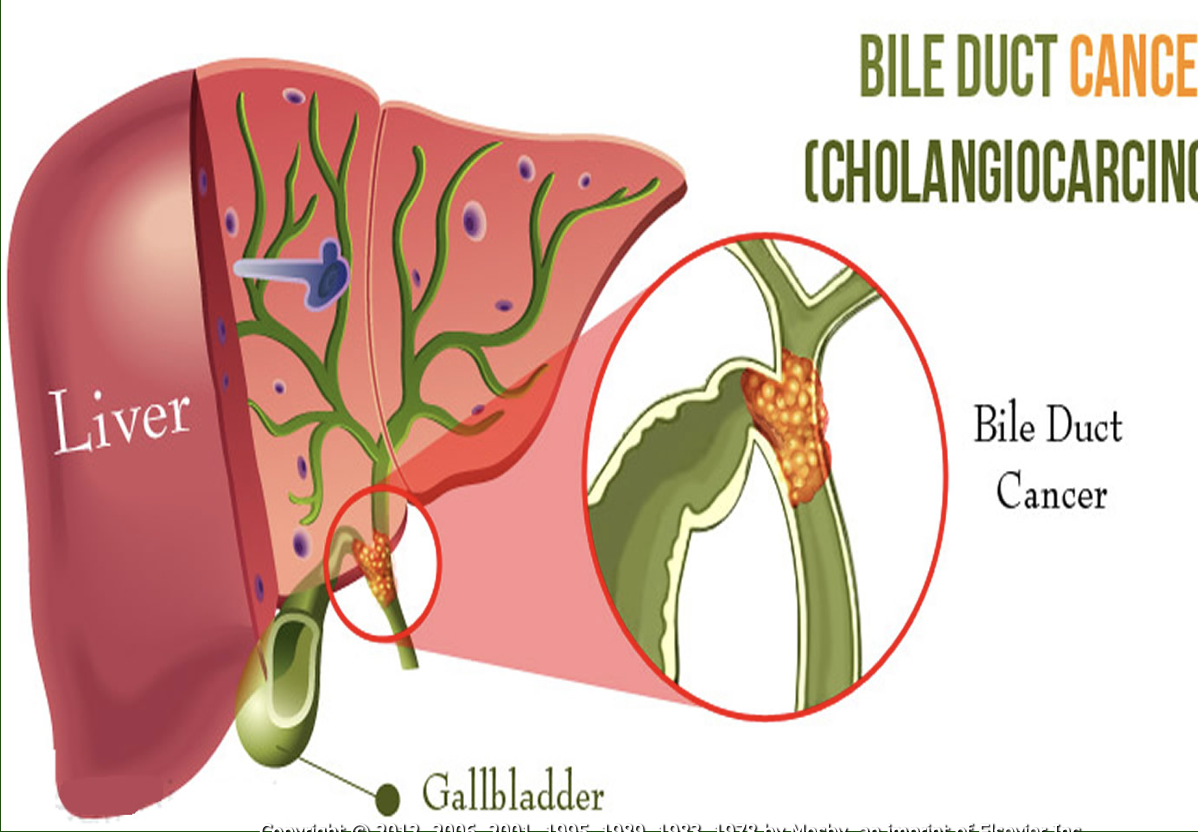

Cholangiocarcinoma

Cholangiocarcinoma

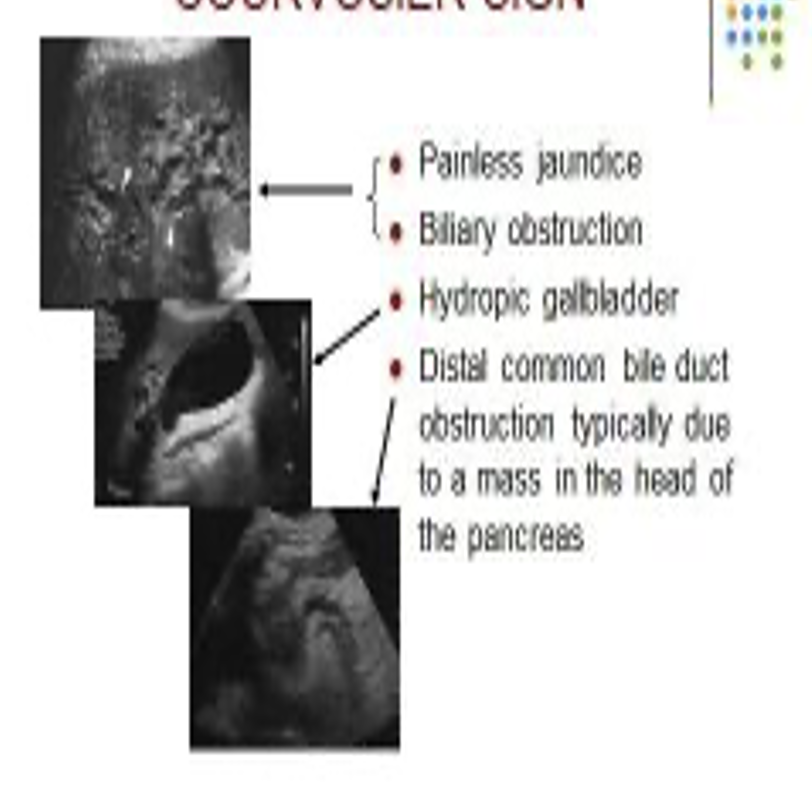

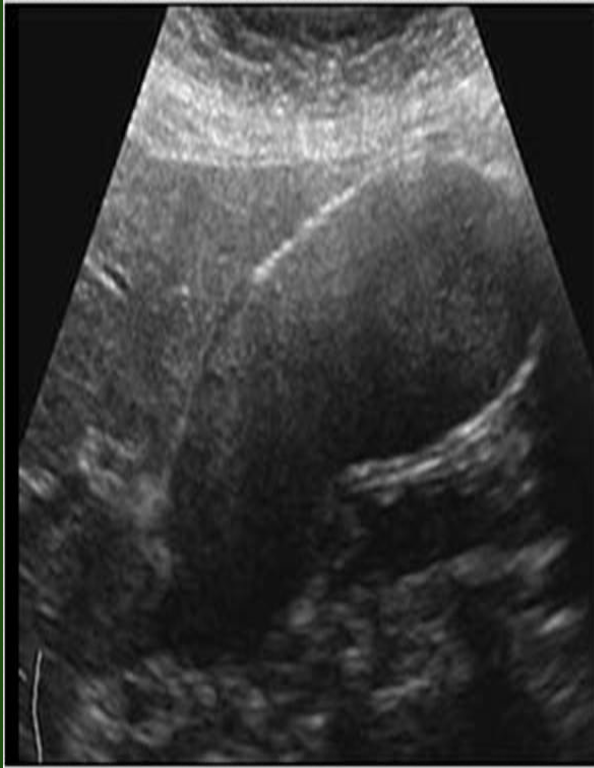

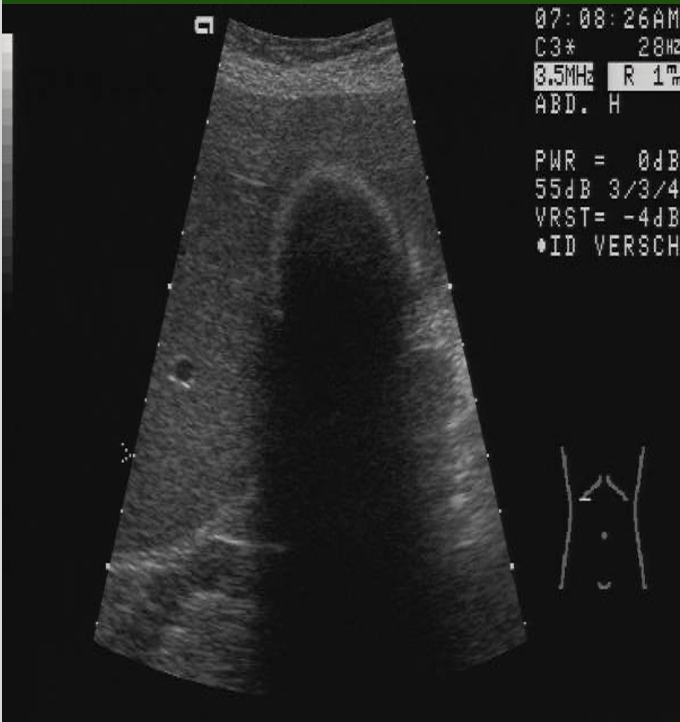

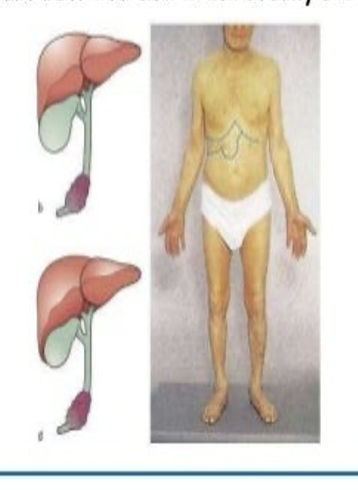

Courvoisier sign

Courvoisier sign

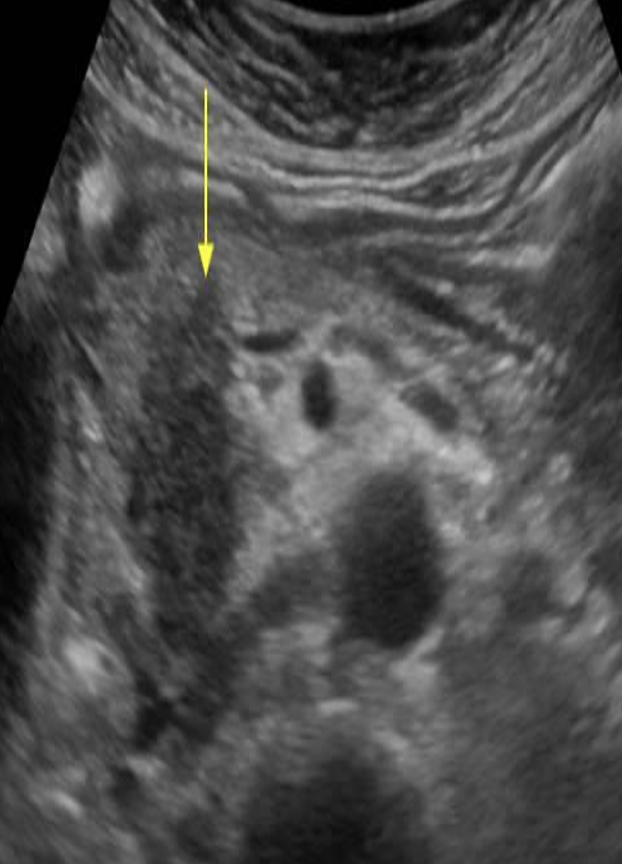

pancreatic carcinoma

pancreatic carcinoma

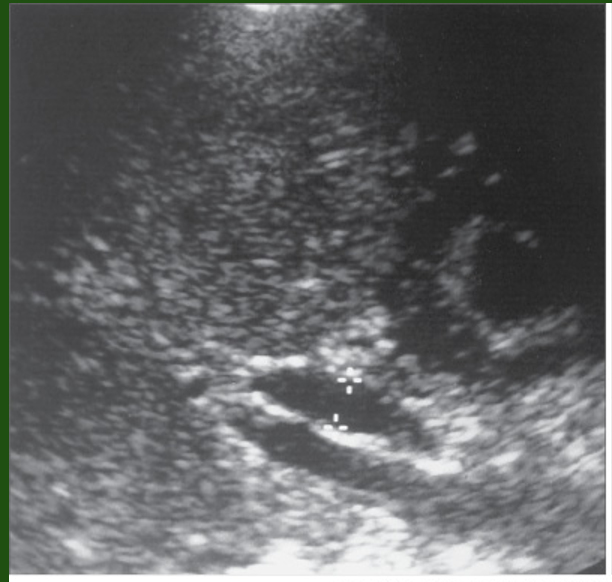

Extrahepatic Biliary Obstruction

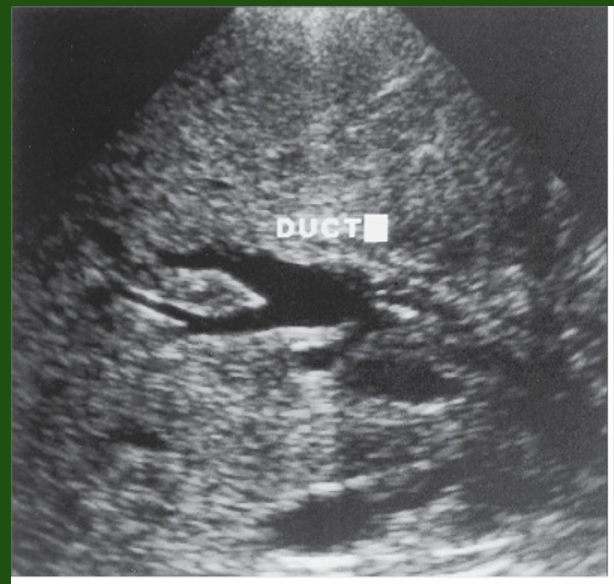

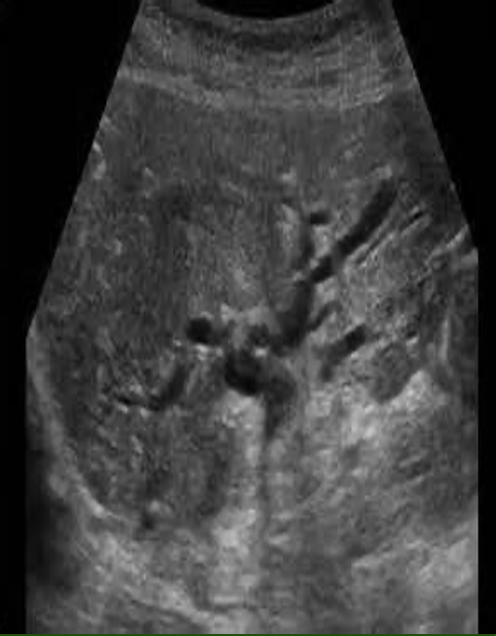

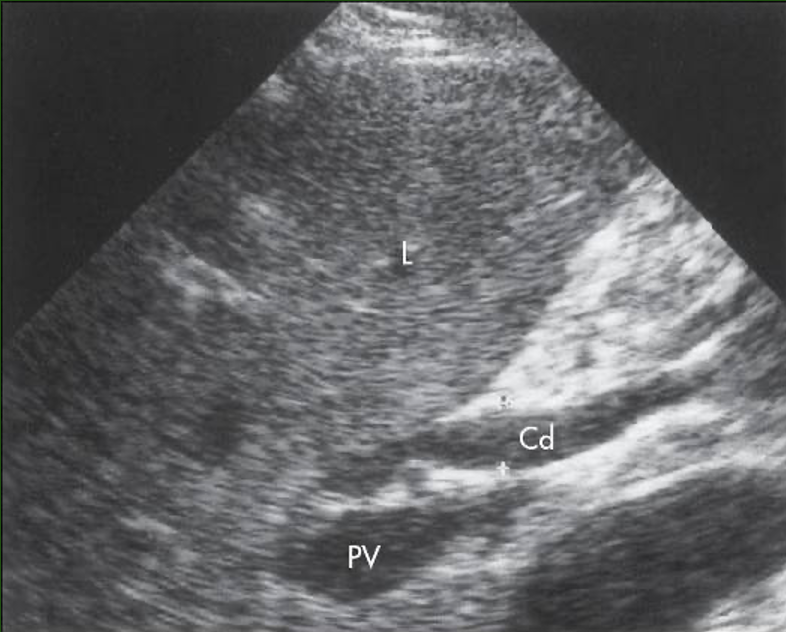

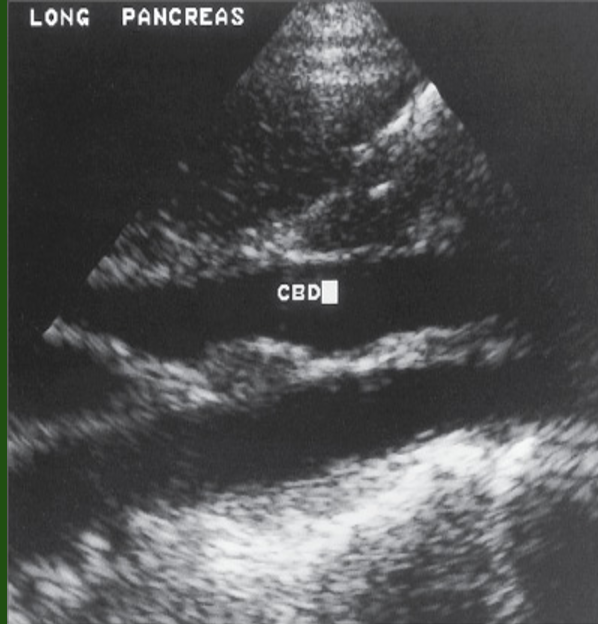

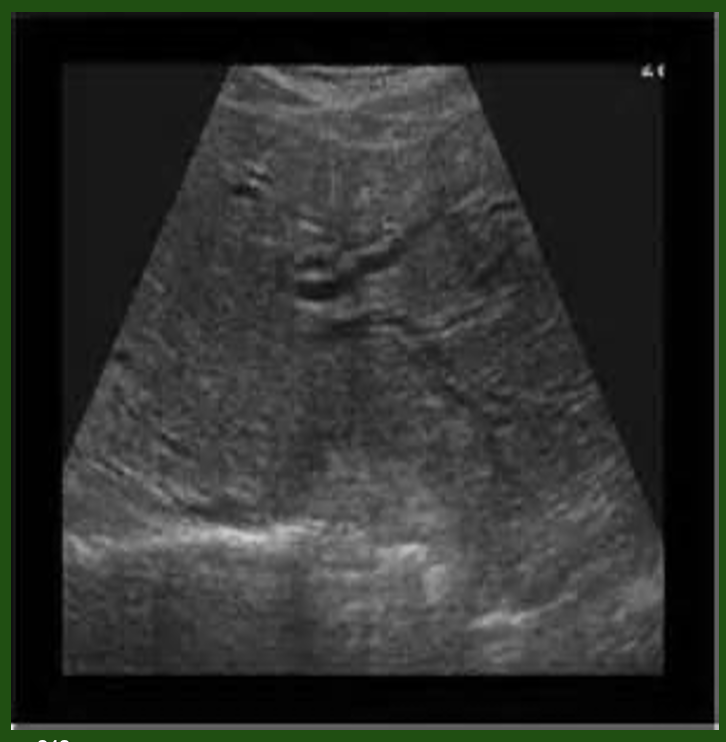

Dilated Ducts

Dilated Ducts

Dilated Ducts

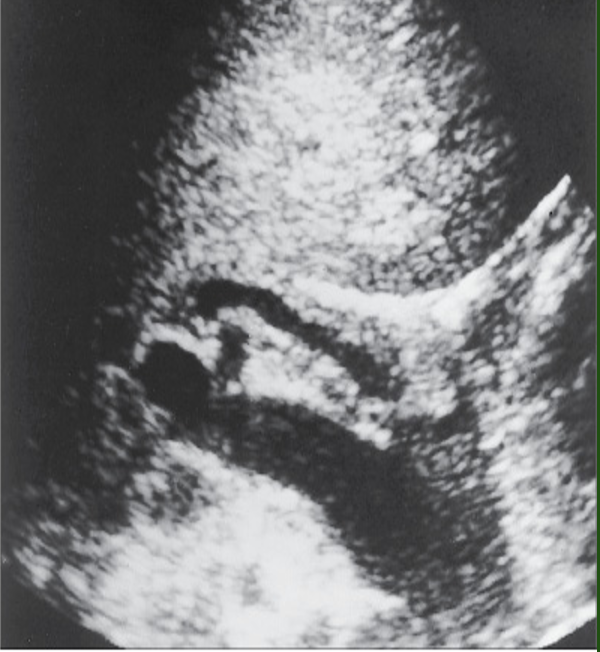

Biliary Obstruction

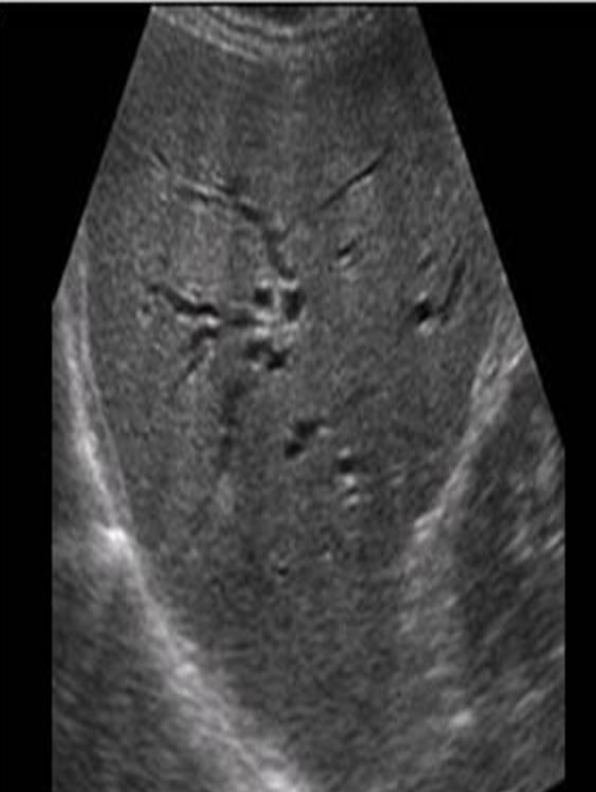

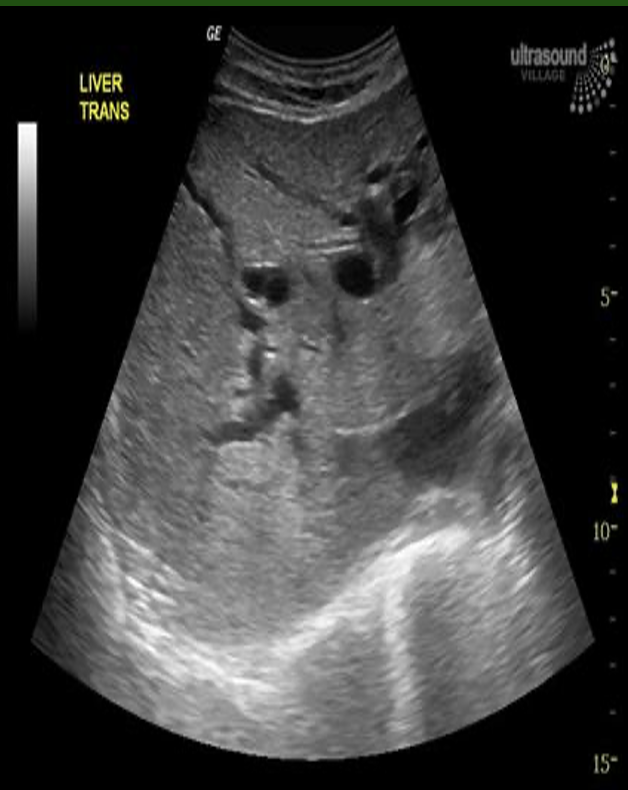

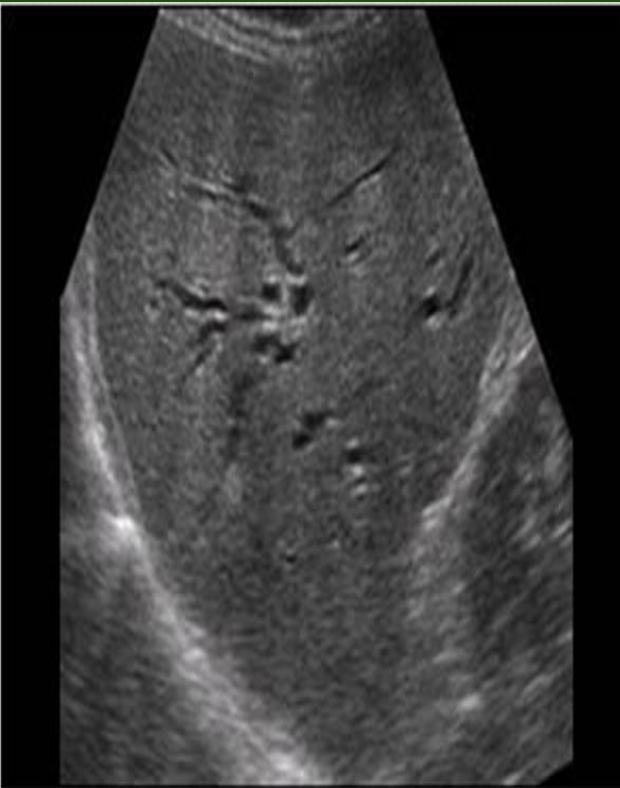

“too many tubes” or “shotgun” sign when intrahepatic ducts are dilated.

Dilated Biliary Ducts

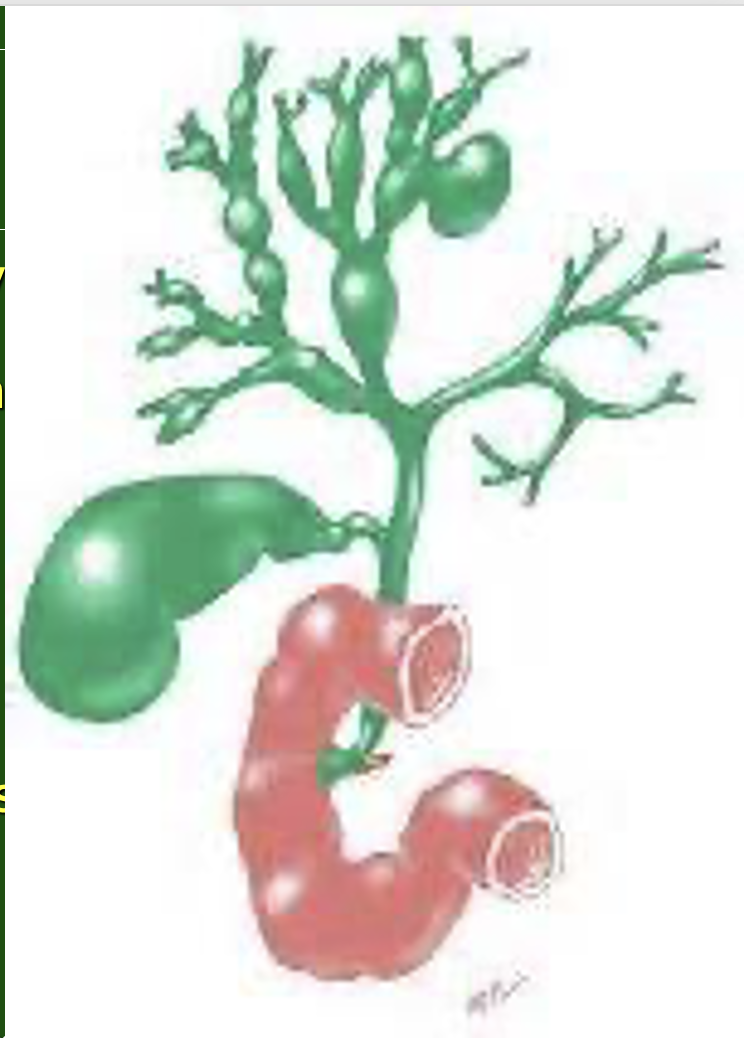

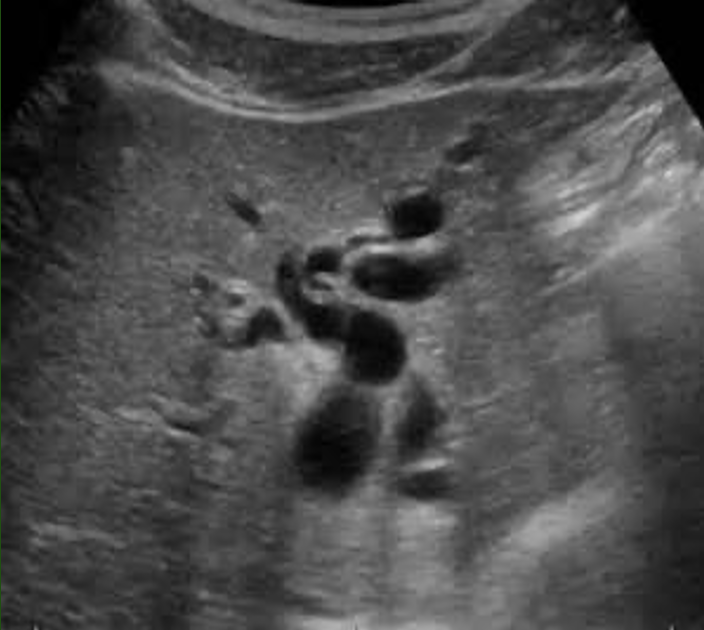

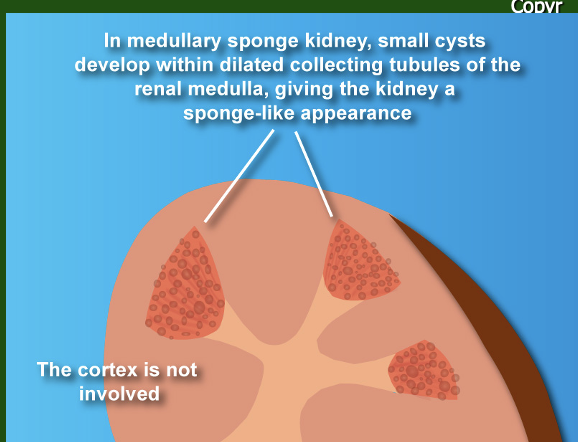

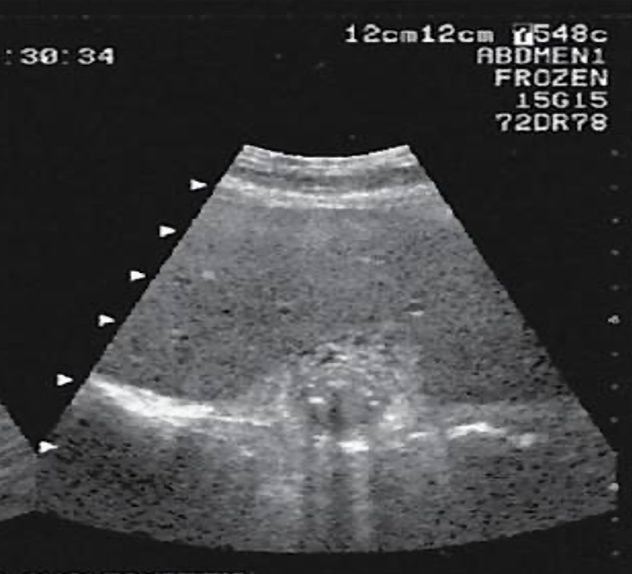

Caroli’s Disease

Caroli’s Disease

Caroli’s Disease

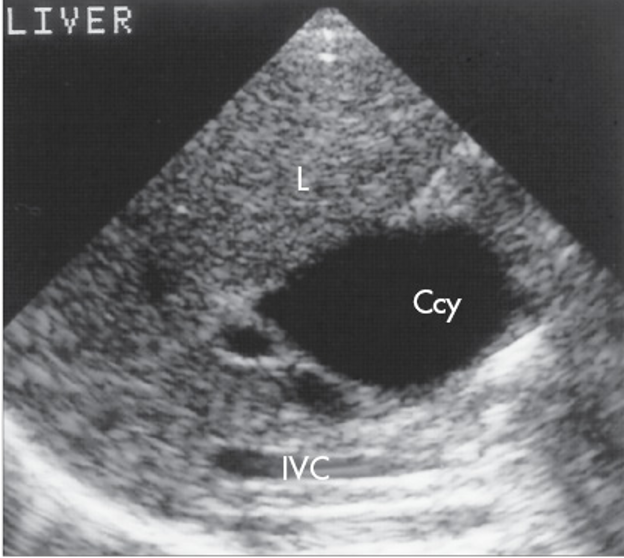

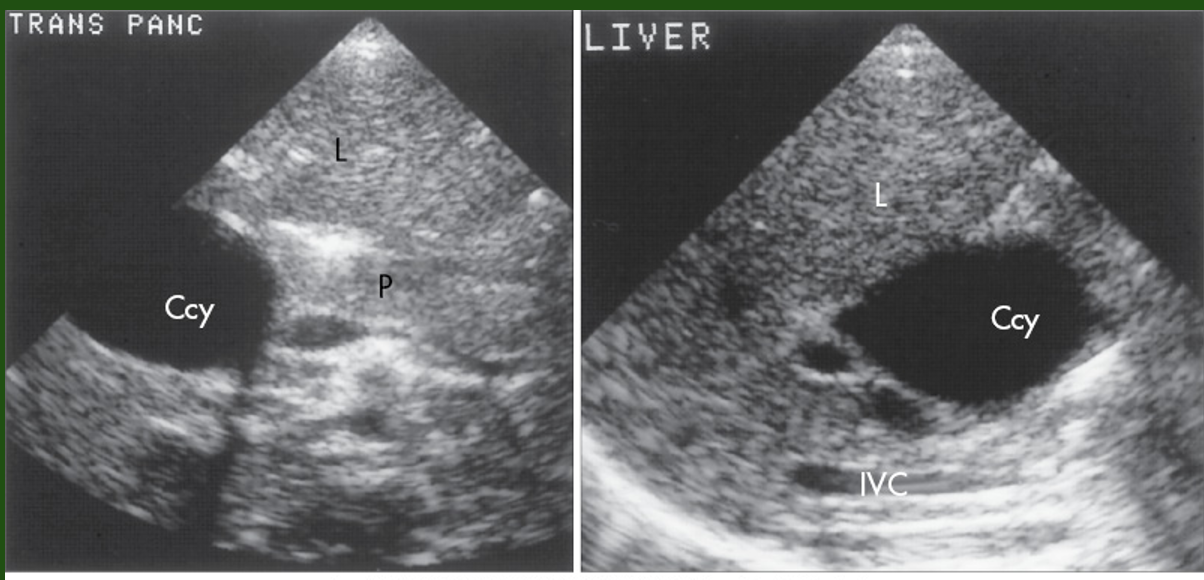

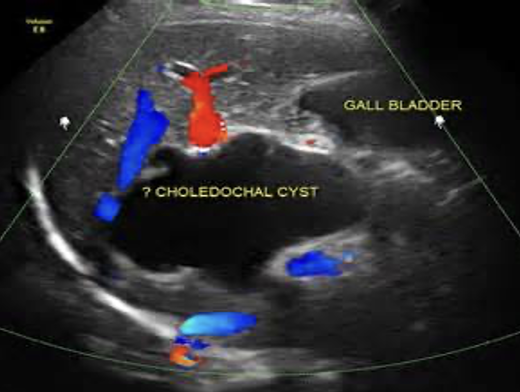

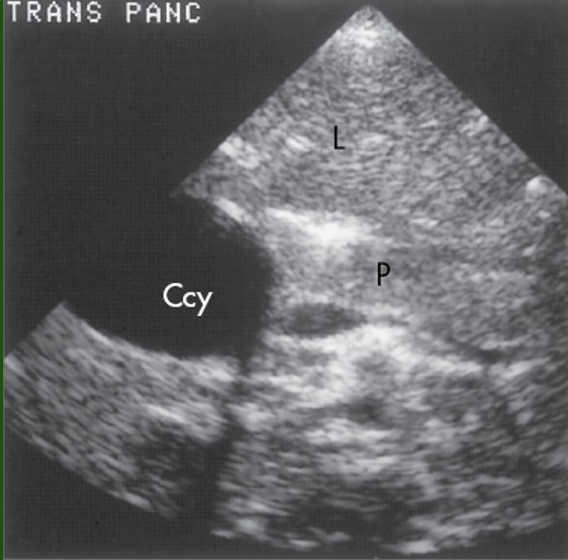

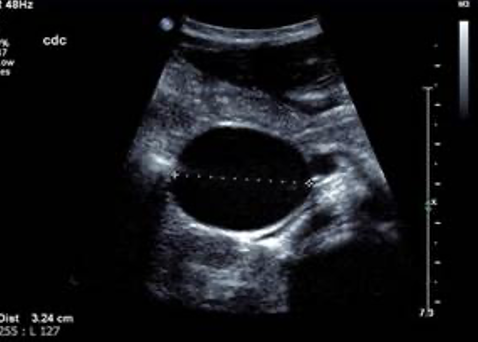

Choledochal Cysts

Choledochal Cysts

Choledochal Cysts

Choledochal Cysts

Choledochal Cysts

Choledochal Cysts

Choledochal Cysts

Choledochal Cysts

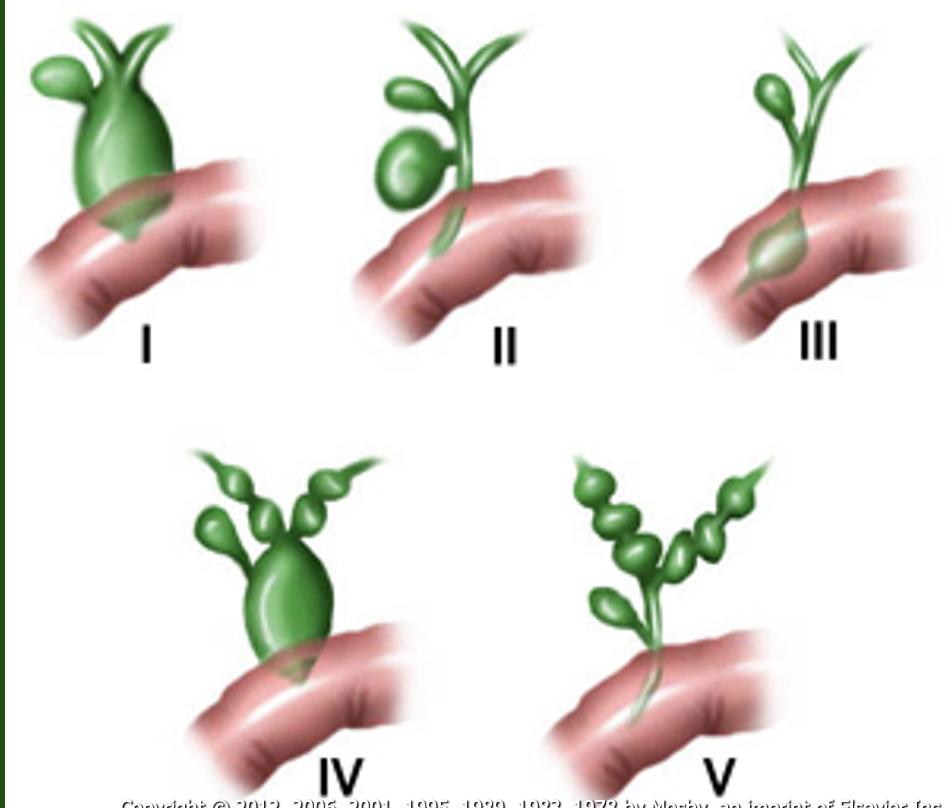

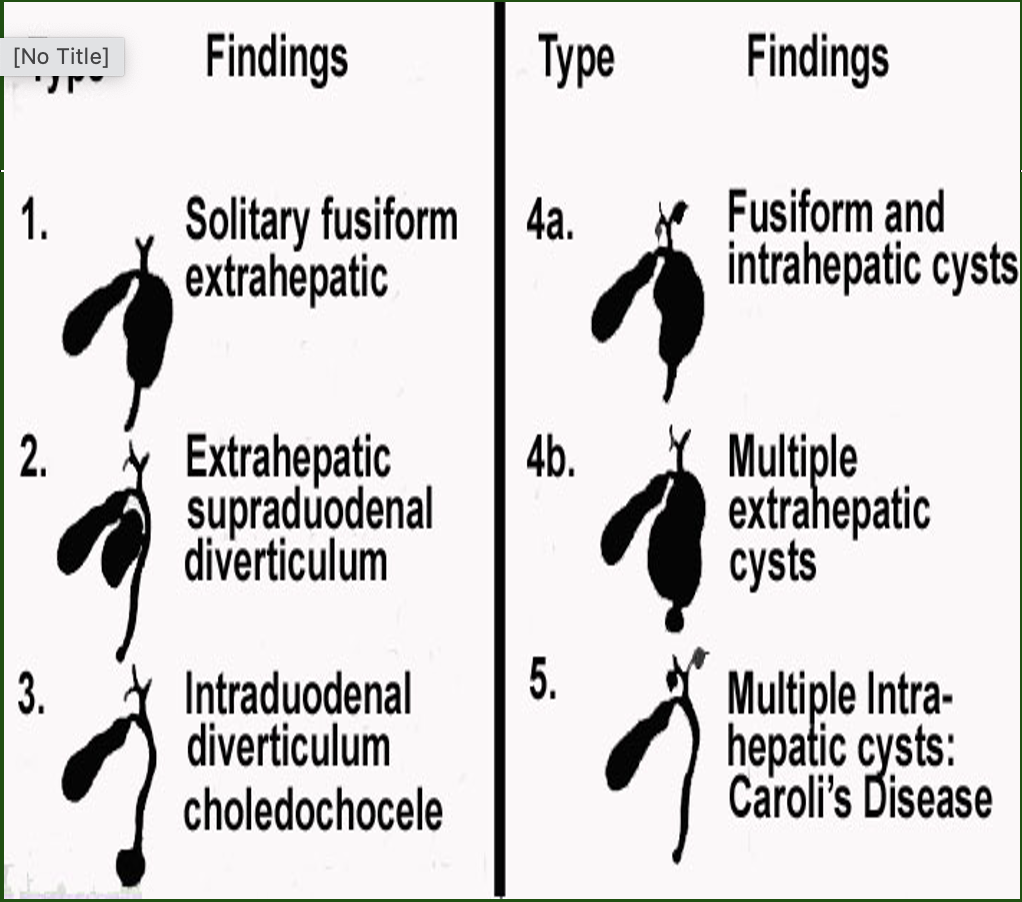

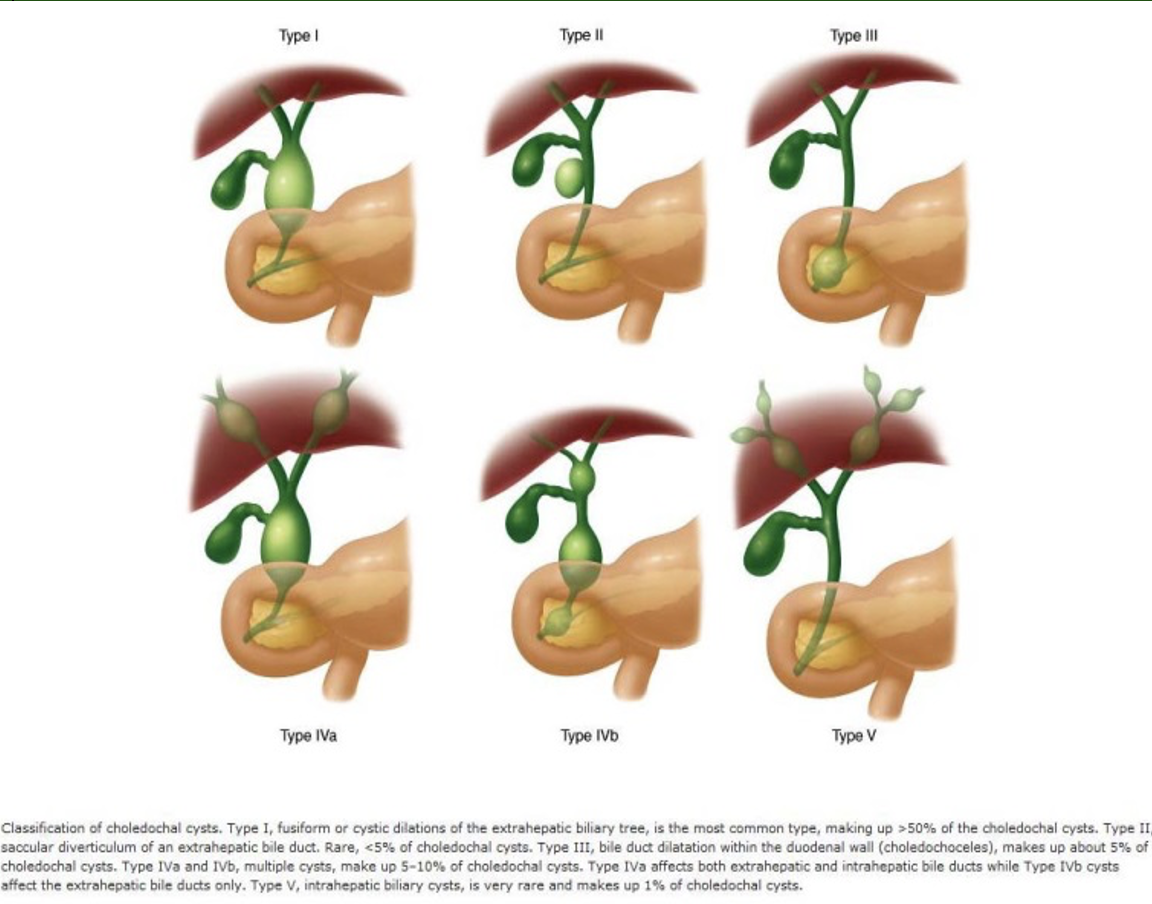

Choledochal Cysts: Classification

Choledochal Cysts: Classification

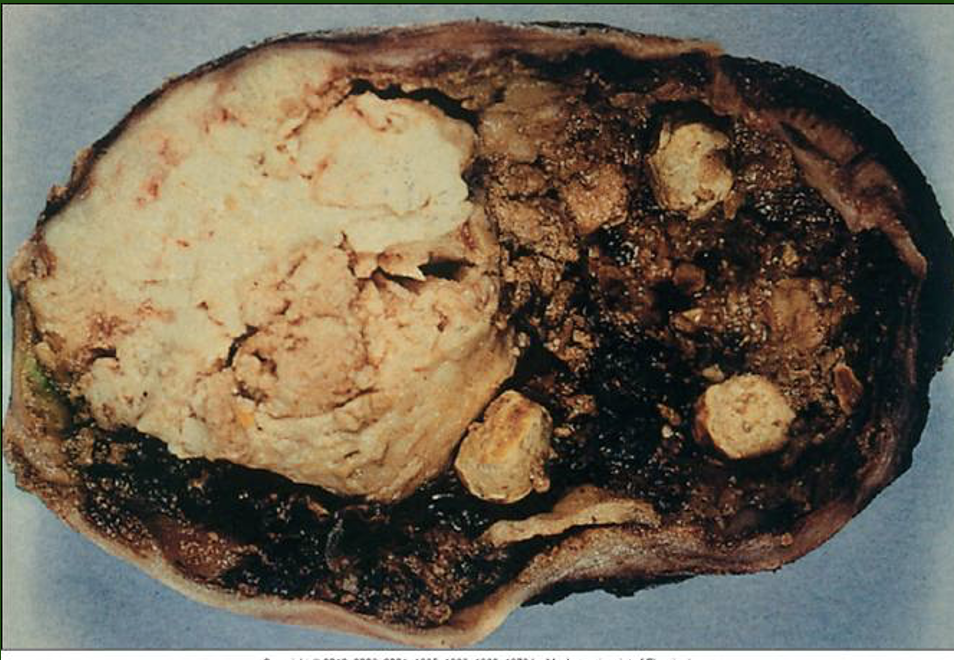

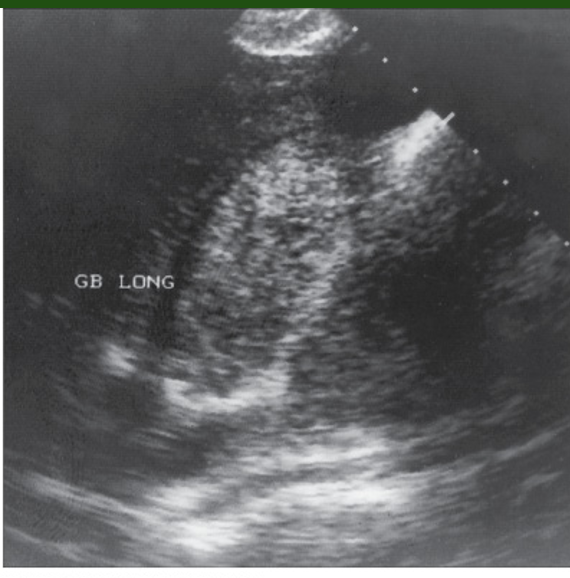

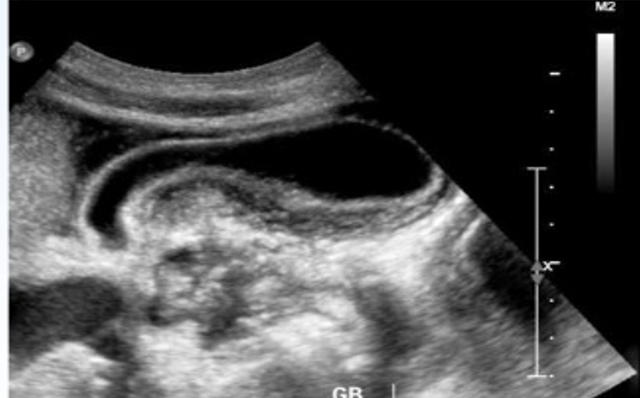

Gallbladder Carcinoma

Gallbladder Carcinoma

Gallbladder Carcinoma

Gallbladder Carcinoma

Gallbladder Carcinoma

Neoplasms

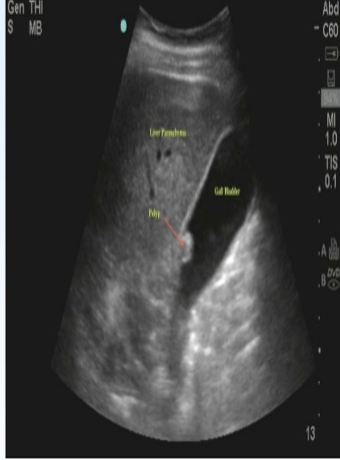

Benign : Adenoma

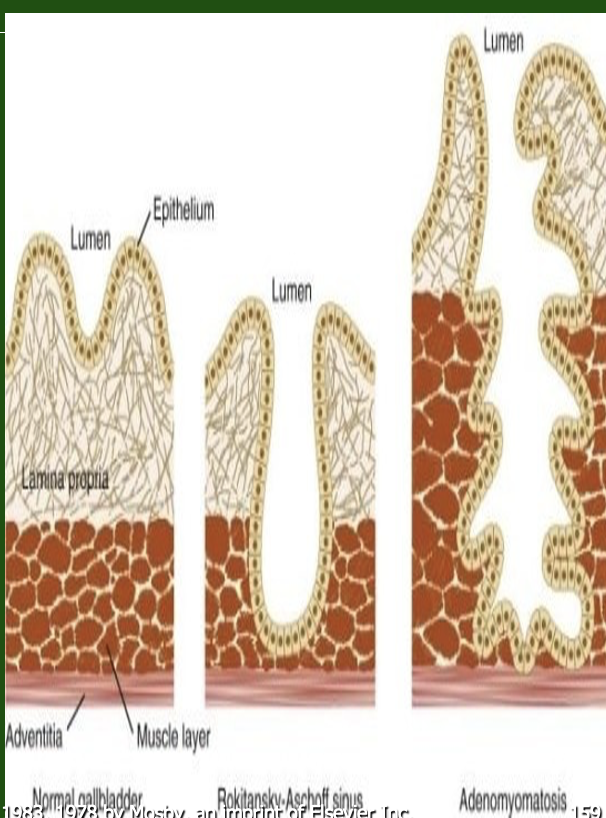

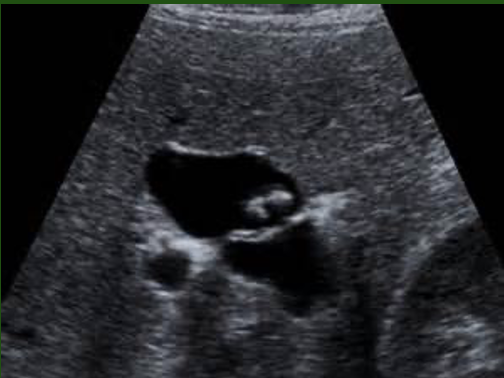

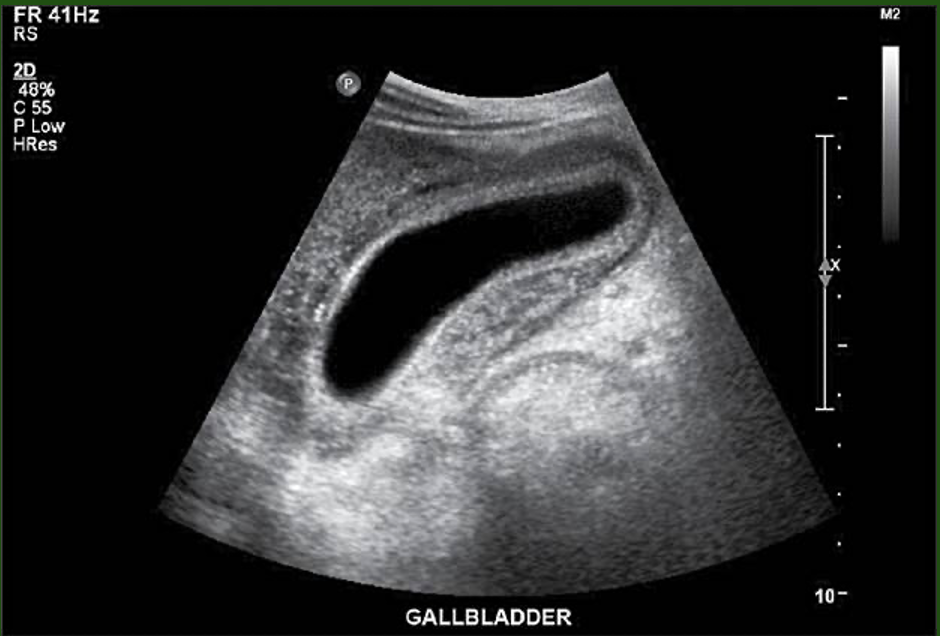

Adenomyomatosis

Adenomyomatosis

Adenomyomatosis

Adenomyomatosis

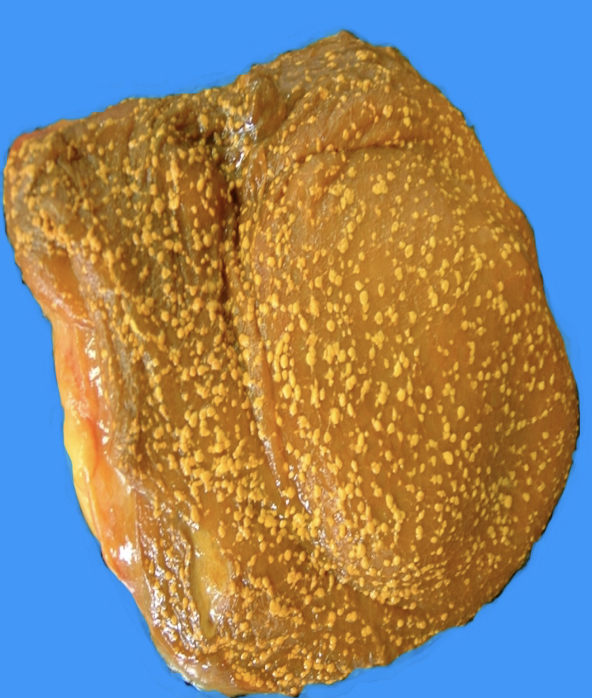

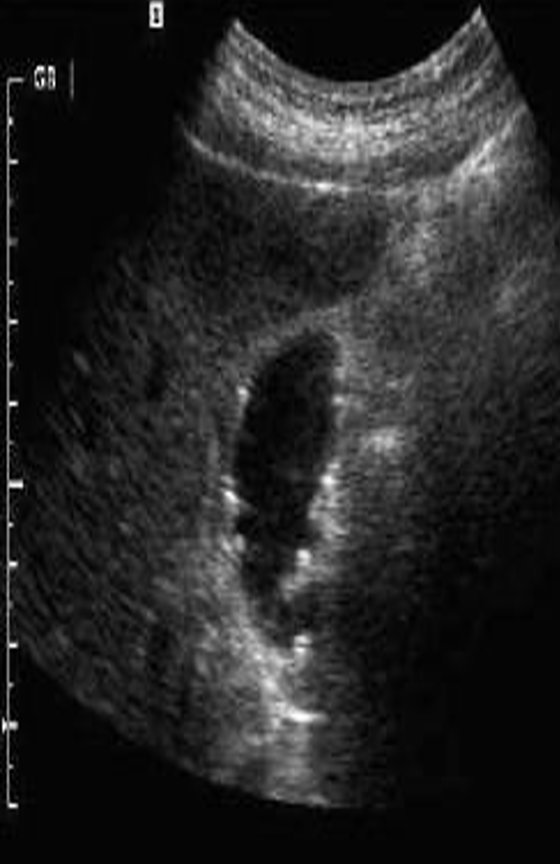

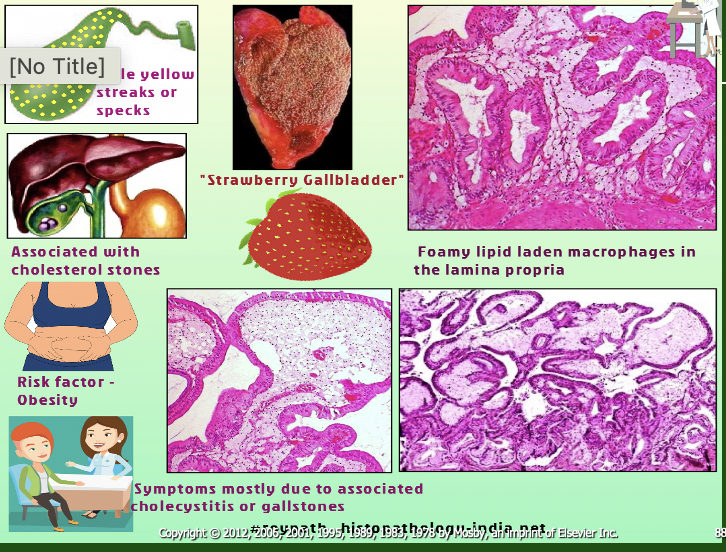

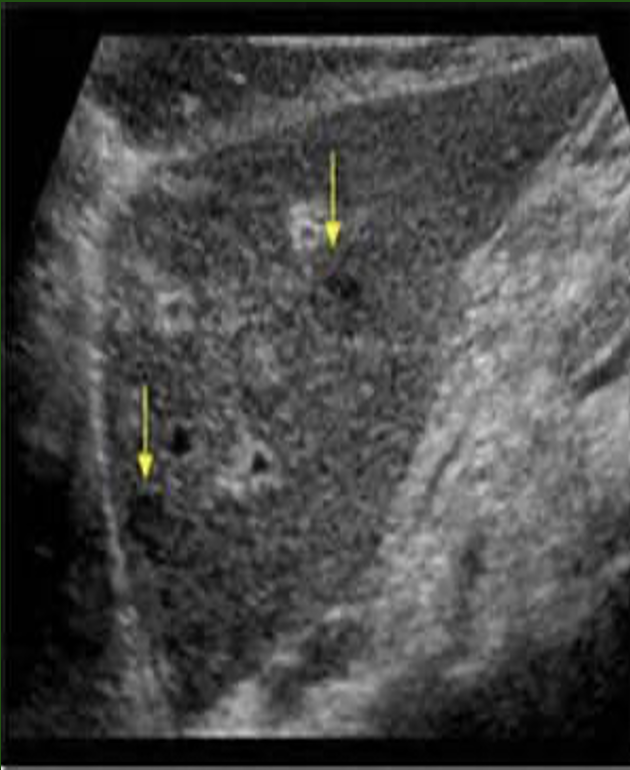

Cholesterolosis

Cholesterolosis

Cholesterol Polyps.

Cholesterol Polyps.

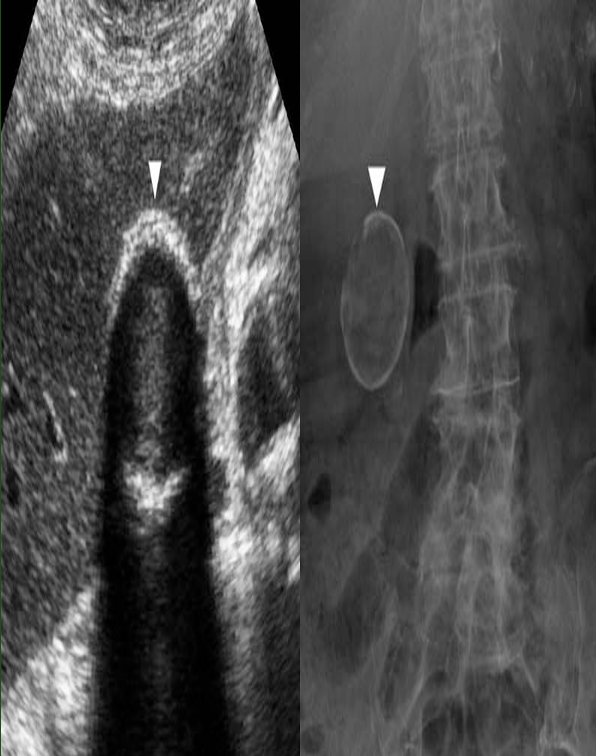

Porcelain Gallbladder

Porcelain Gallbladder

Porcelain Gallbladder

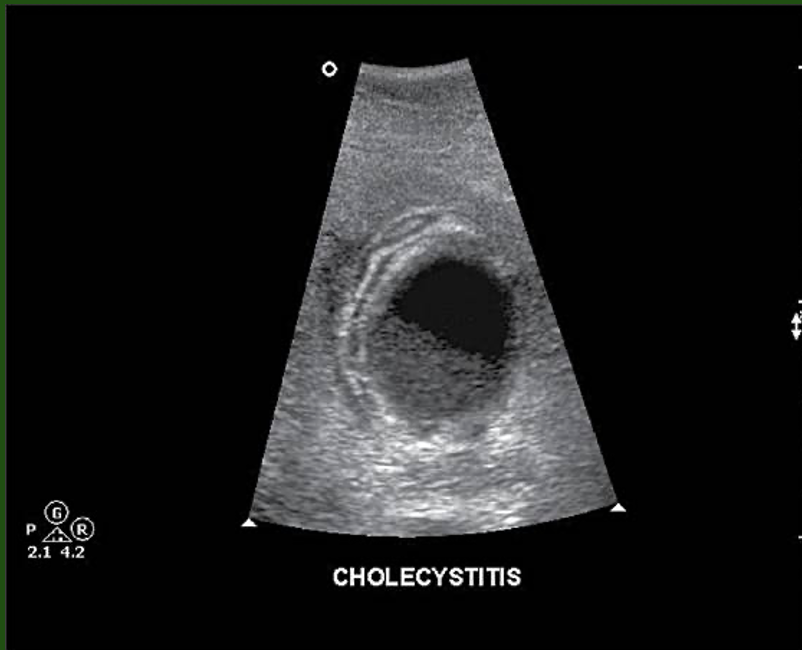

Chronic Cholecystitis

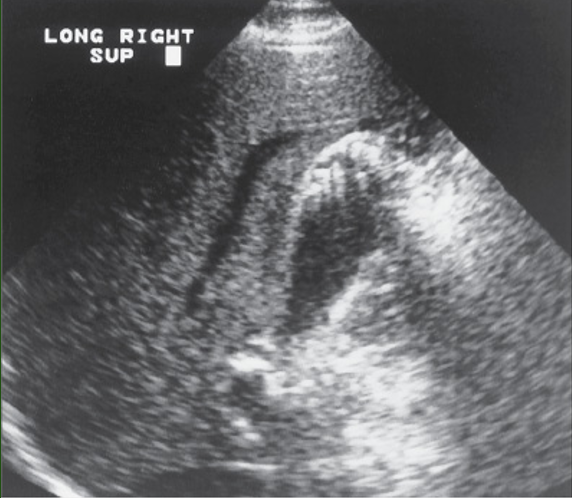

Acalculous Cholecystitis

Acalculous Cholecystitis

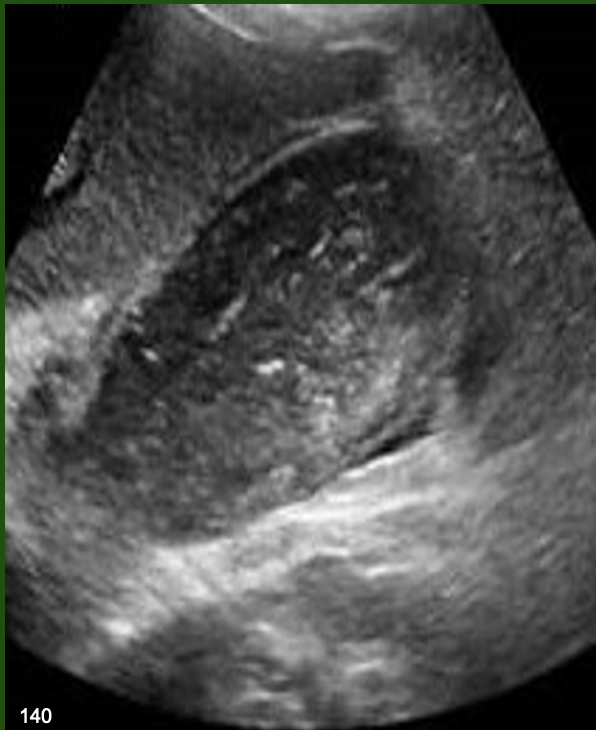

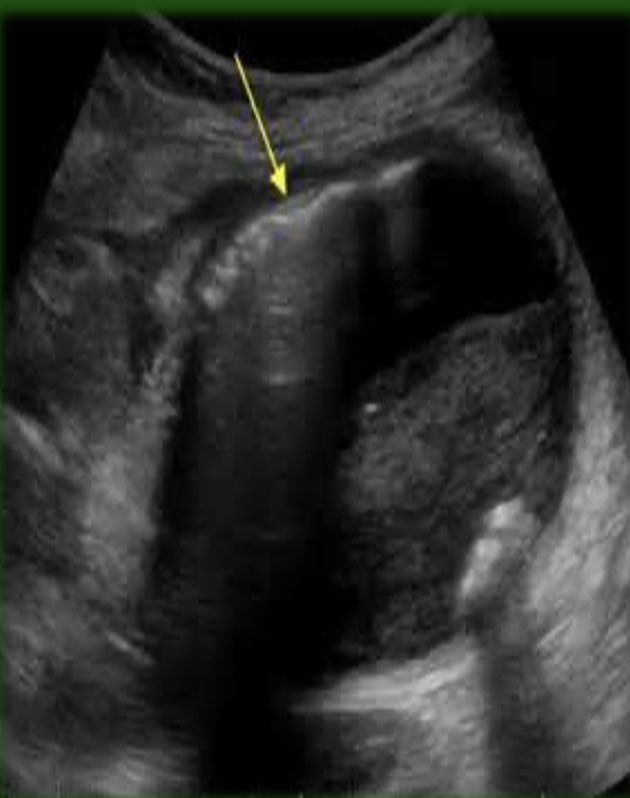

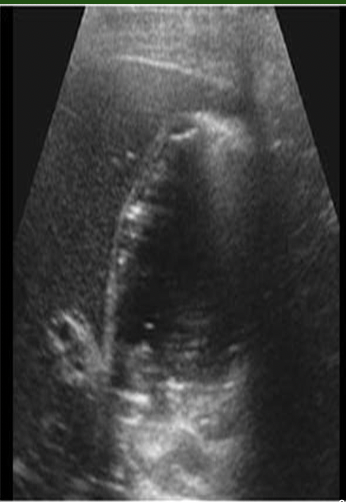

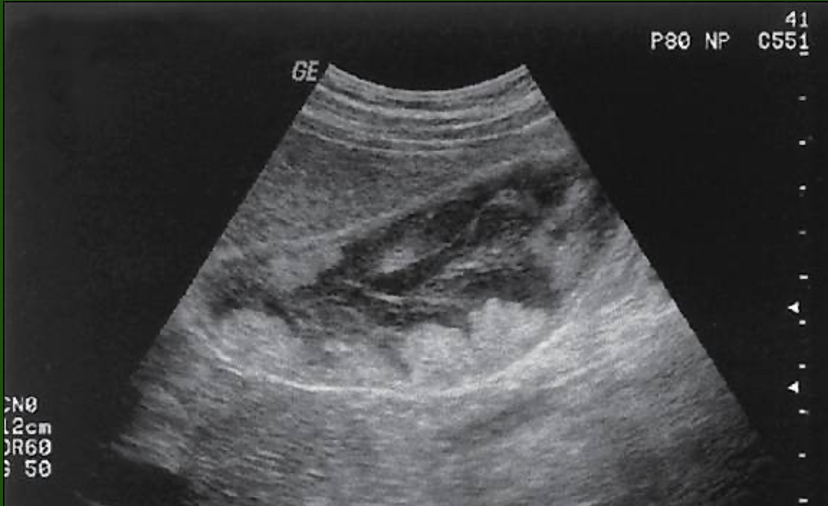

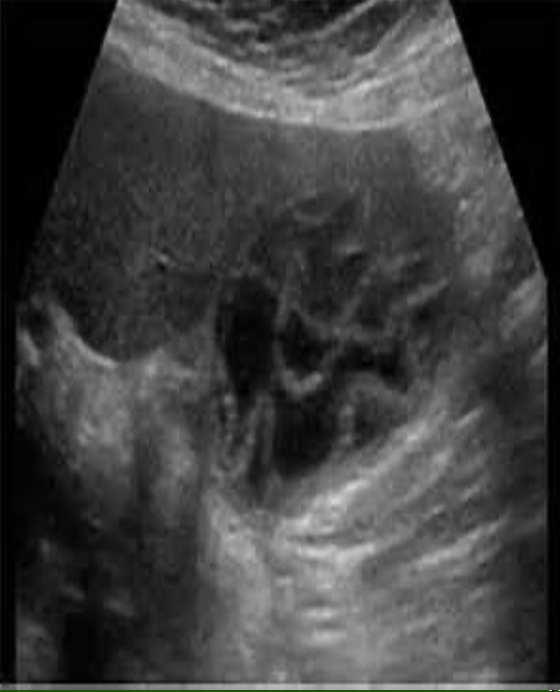

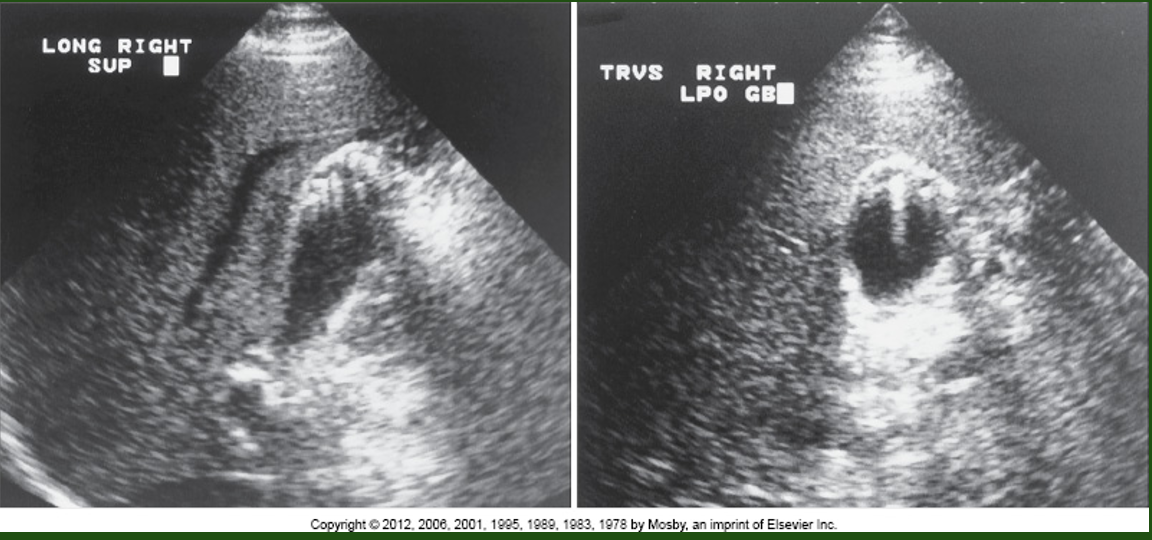

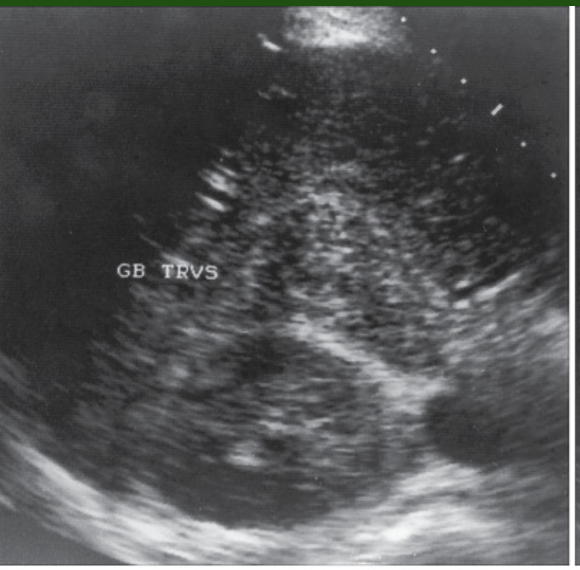

Gangrenous Cholecystitis

Gangrenous Cholecystitis

Gangrenous Cholecystitis

Gangrenous Cholecystitis

Gangrenous Cholecystitis

Gangrenous Cholecystitis

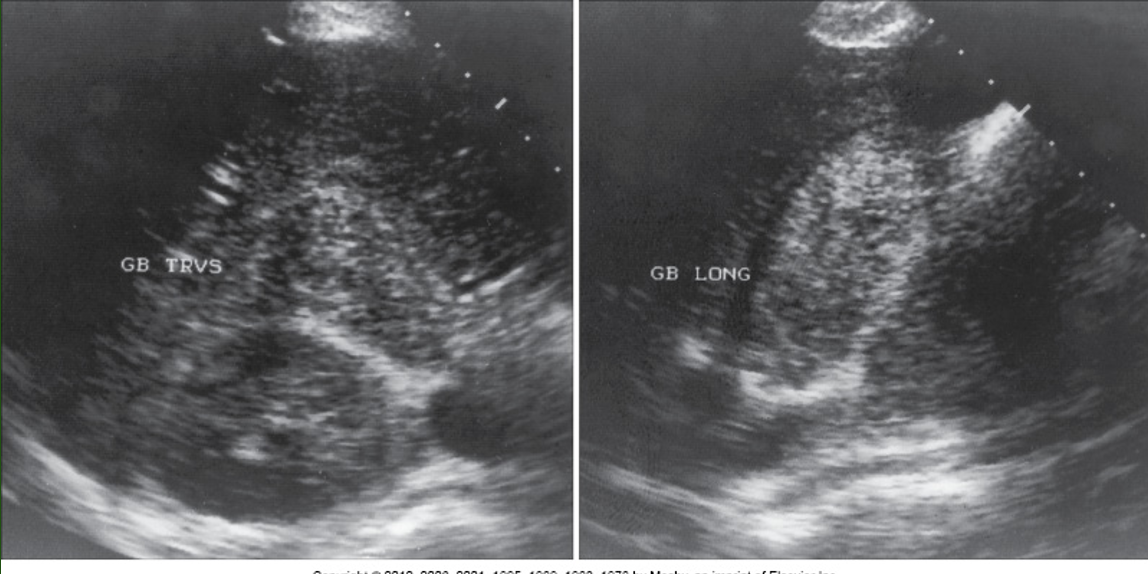

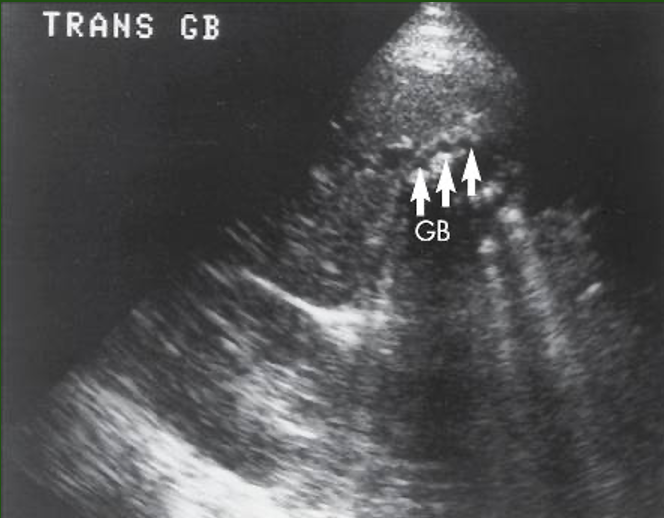

Emphysematous Cholecystitis

Emphysematous Cholecystitis

Emphysematous Cholecystitis

sagittal

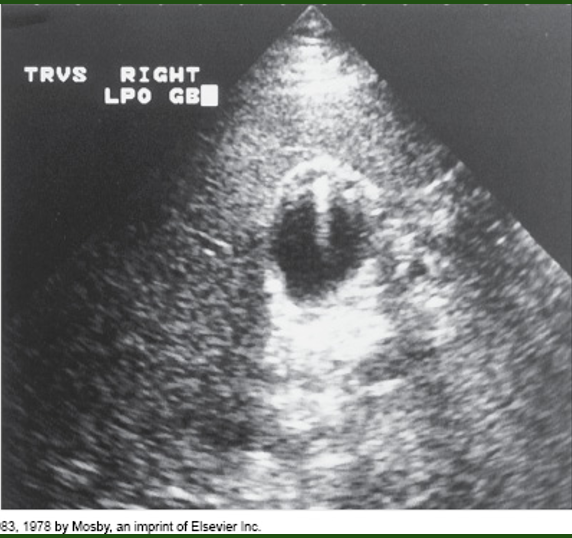

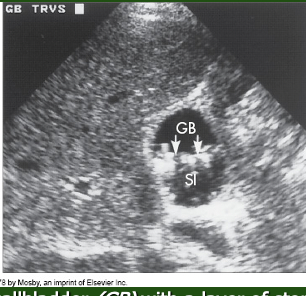

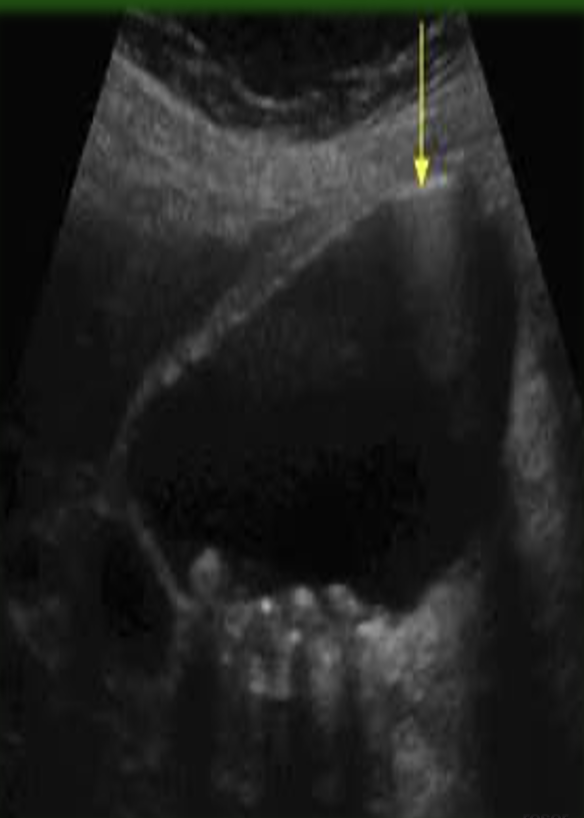

Cholelithiasis: Floating Stones

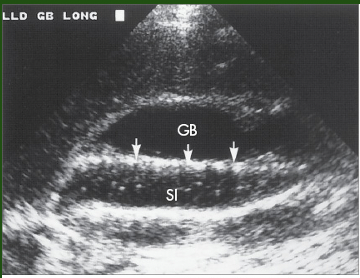

the gallbladder (GB) with a layer of stone “floating” (arrow) along the thick bile layer of sludge (Sl).

trans

Cholelithiasis: Floating Stones

the gallbladder (GB) with a layer of stone “floating” (arrow) along the thick bile layer of sludge (Sl).

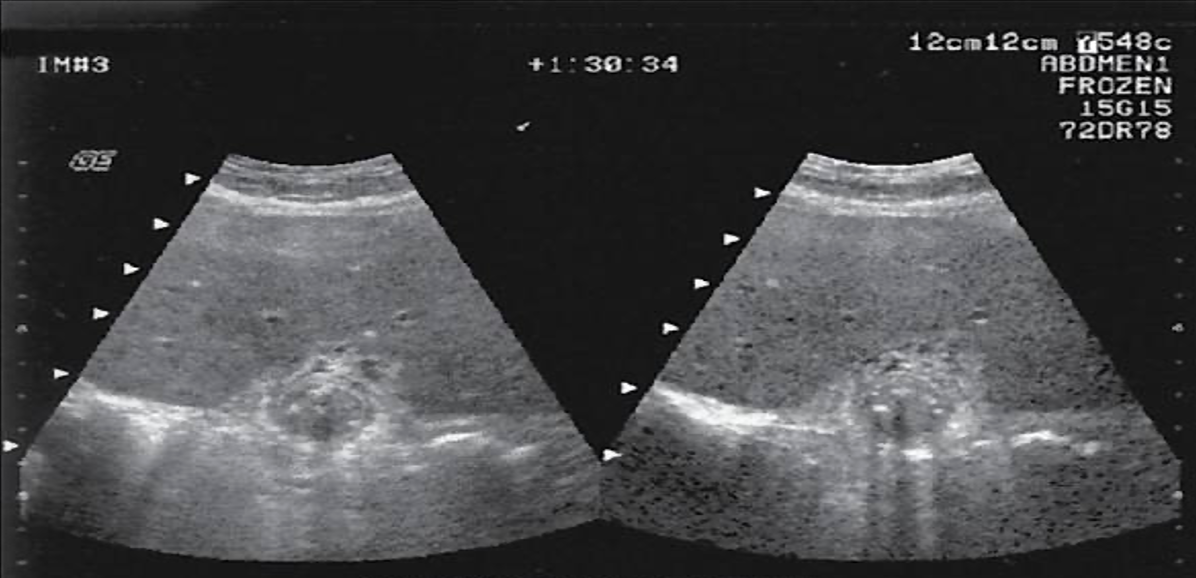

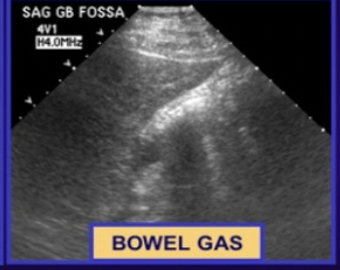

WES

WES

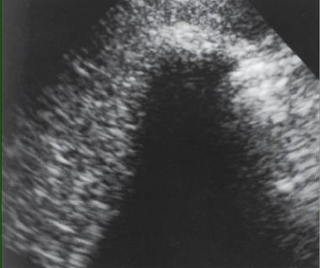

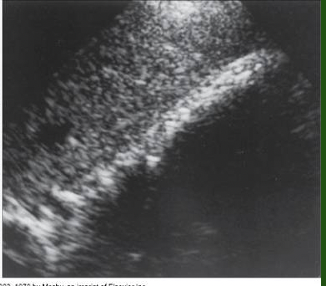

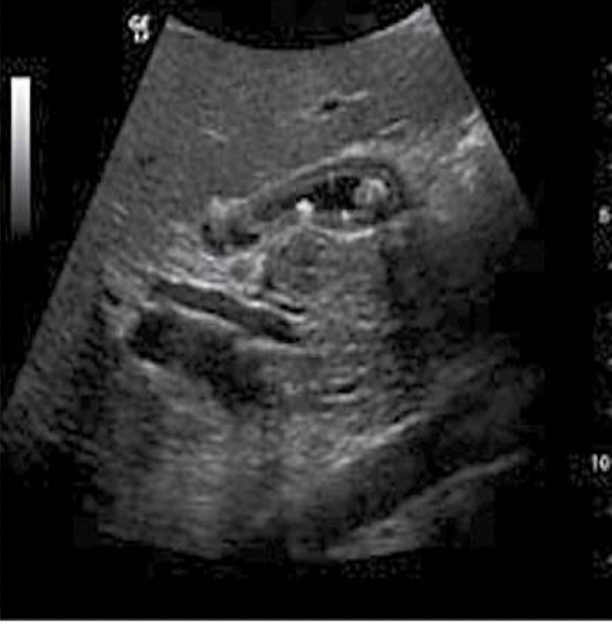

Cholelithiasis:

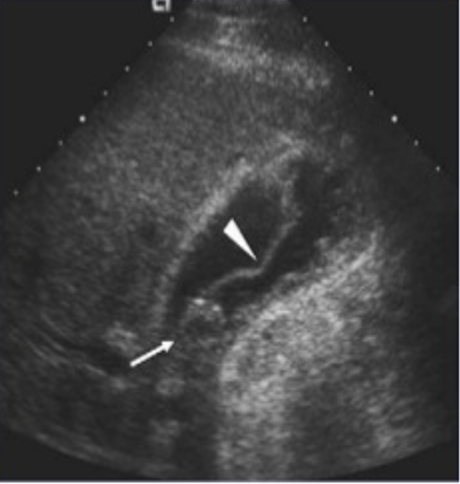

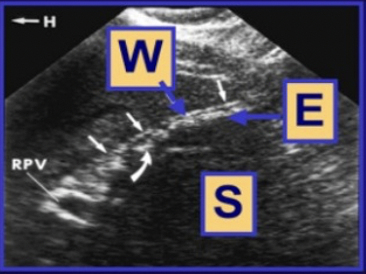

“Wall Echo Shadow” Sign

Cholelithiasis:
“Wall Echo Shadow” Sign

cholesterolosis of the gallbladder
