Practicum 3 Models [ID & Innervations Only]

Piriformis

ID the structure of the teal arrow.

Piriformis

ID the structure of the yellow arrow.

Gluteus medius

ID the structure of the orange arrow.

Rectus abdominis

ID the structure that is being pointed at by the red arrow.

Tendinous inscription of rectus abdominis

ID the structure that is being pointed at by the blue arrow.

Anterior rectus sheath

ID the structure that is being pointed at by the purple arrow.

External oblique

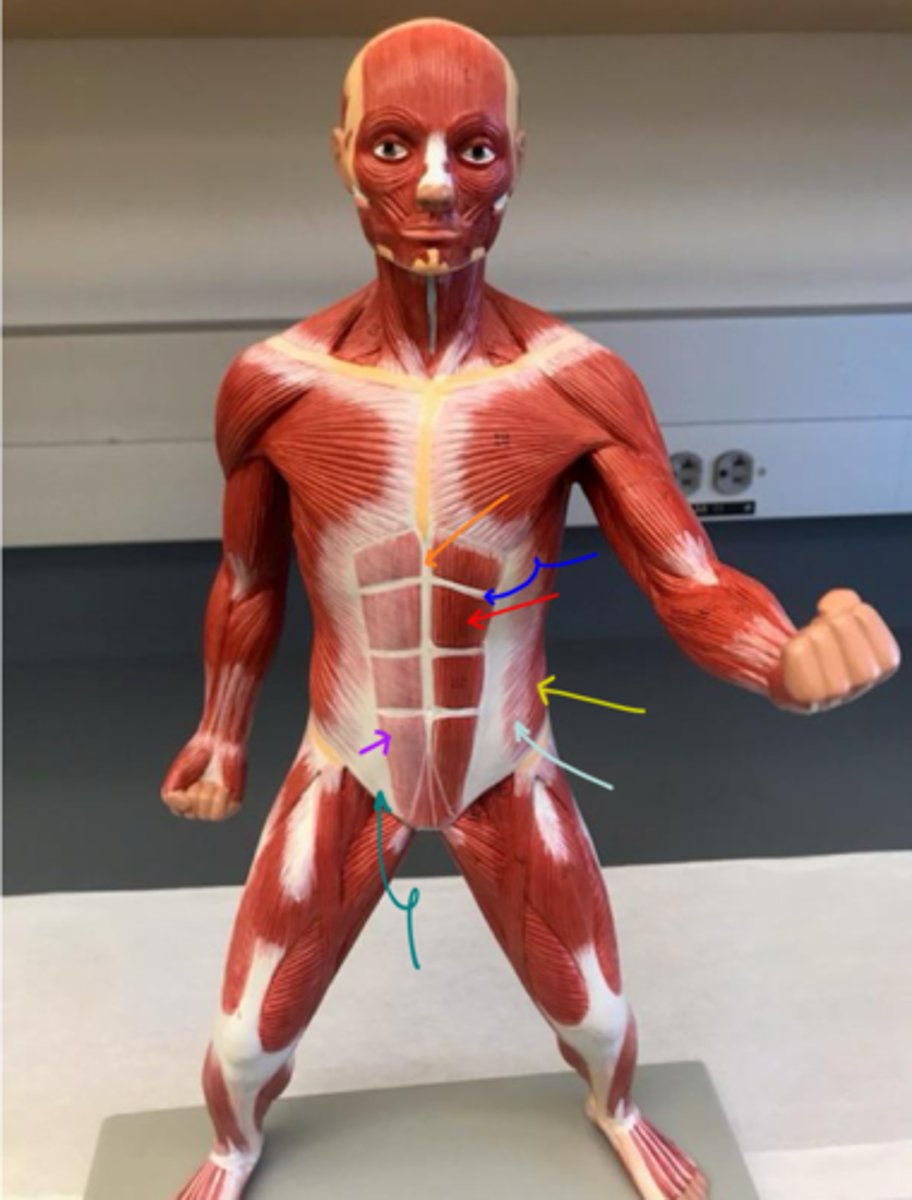

ID the structure that is being pointed by the yellow arrow.

Inguinal ligament

ID the structure that is being pointed at by the dark teal arrow.

Linea alba

ID the structure that is being pointed at by the orange arrow.

Trapezius

ID the structure of the neon green arrow.

Superior fibers of trapezius

ID the structure of the light purple region.

Middle fibers of trapezius

ID the structure of the neon pink region.

Inferior fibers of trapezius

ID the structure of the dark green region.

Accessory CN XI

What is the dark green region innervated by?

Latissimus dorsi

ID the structure of the teal arrow.

Lateral collateral ligament

ID the structure of the white arrow.

Medial collateral ligament

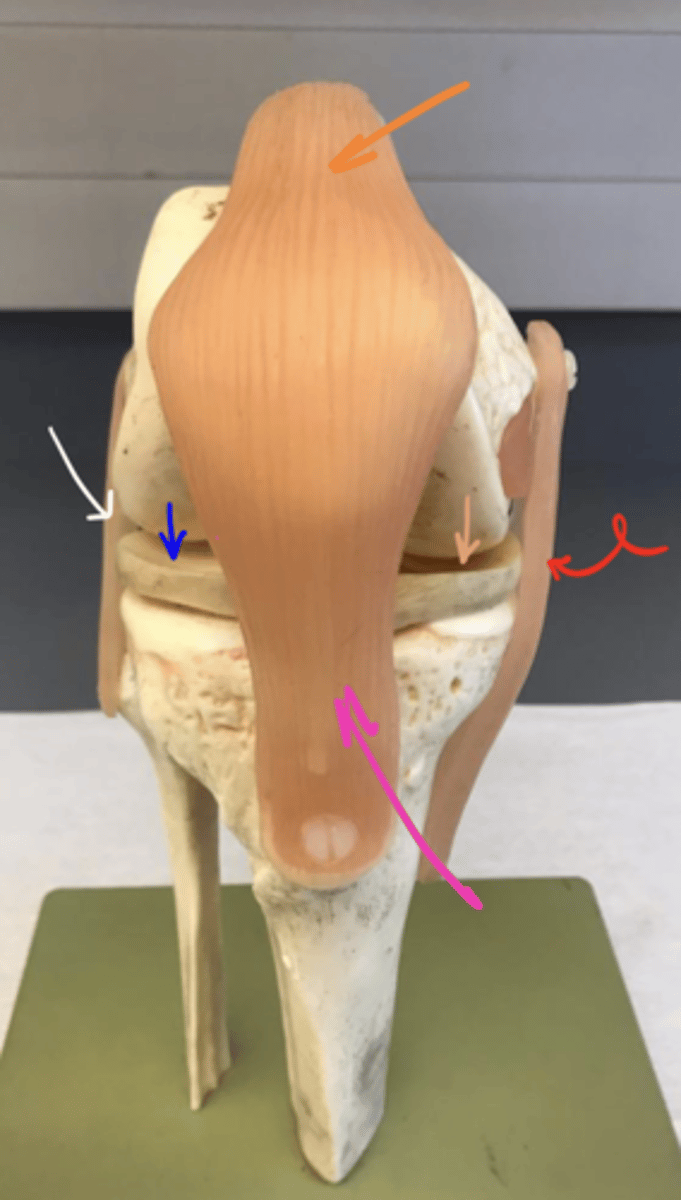

ID the structure of the red arrow.

Lateral meniscus

ID the structure of the blue arrow.

Medial meniscus

ID the structure of the light pink arrow.

Patellar ligament

ID the structure of the hot pink arrow.

Quadriceps tendon

ID the structure of the orange arrow.

Anterior cruciate ligament

ID the structure of the purple arrow.

Posterior cruciate ligament

ID the structure of the neon green arrow.

Semispinalis capitis

ID the structure of the red arrow.

Rhomboid minor

ID the structure of the orange arrow.

Splenius capitis

ID the structure of the yellow arrow.

Levator scapulae

ID the structure of the neon green arrow.

Rhomboid major

ID the structure of the dark green arrow.

Trapezius

ID the general structure of the magenta arrow.

Latissimus dorsi

ID the structure of the mint green arrow.

Tendinous intersection of rectus abdominis

ID the structure of the orange arrow.

Aponeurosis of external oblique

ID the specific structure of the neon green arrow.

Aponeurosis of internal oblique

ID the specific structure of the light blue arrow.

Aponeurosis of transverse abdominis

ID the structure of the dark blue arrow.

Posterior rectus sheath

ID the structure of the purple arrow.

Rectus femoris; femoral nerve

ID the structure of the red arrow and its innervation.

Vastus lateralis; femoral nerve

ID the structure of the yellow arrow and its innervation.

Vastus intermedius; femoral nerve

ID the structure of the neon green arrow and its innervation.

Quadriceps tendon

ID the structure of the dark green arrow.

Iliotibial tract

ID the structure of the light blue arrows.

Tensor fasciae latae

ID the structure of the aqua blue arrow.

Sartorius; femoral nerve

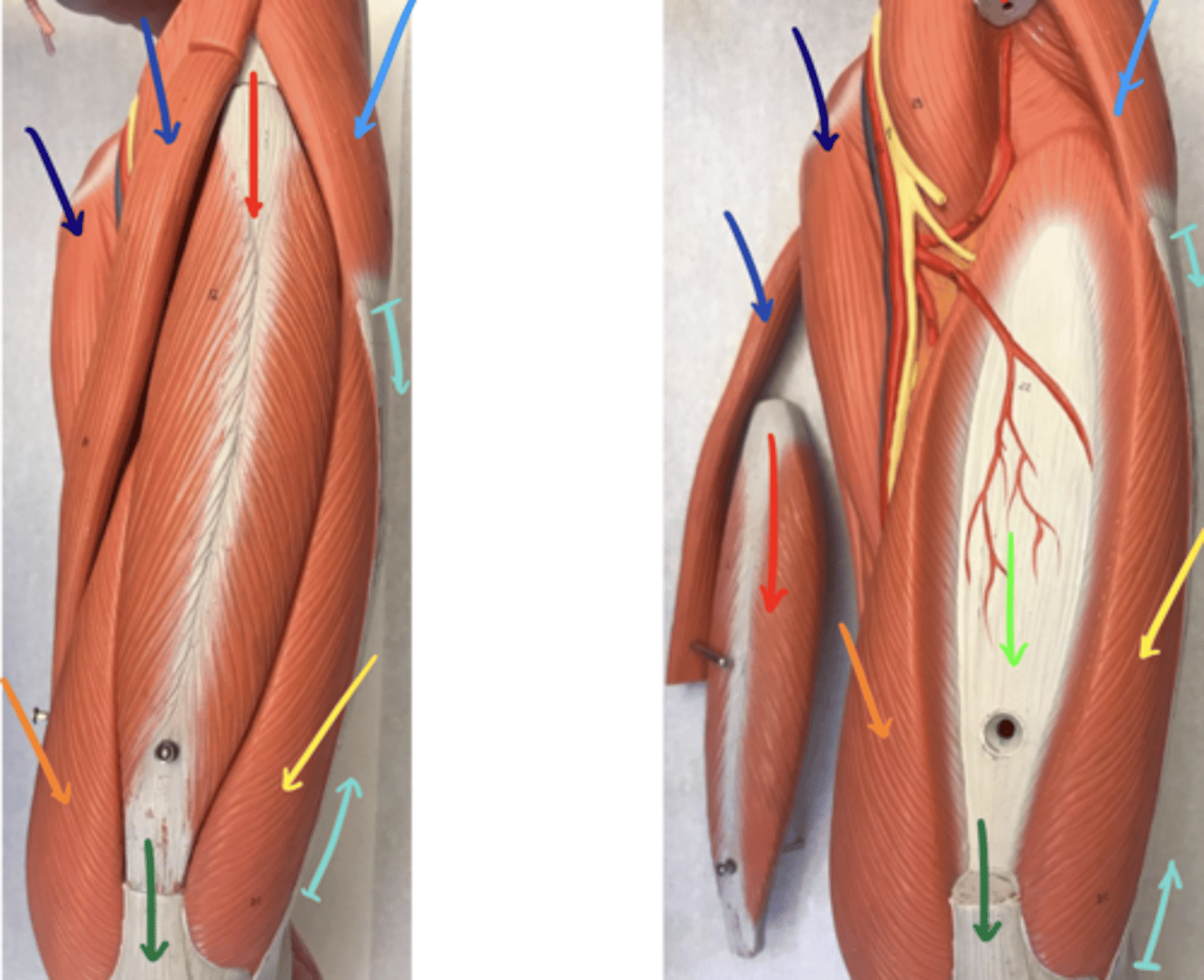

ID the structure of the dark blue arrow and its innervation.

Adductor longus; obturator nerve

ID the structure of the dark indigo arrow and its innervation/.

Gracilis; obturator nerve

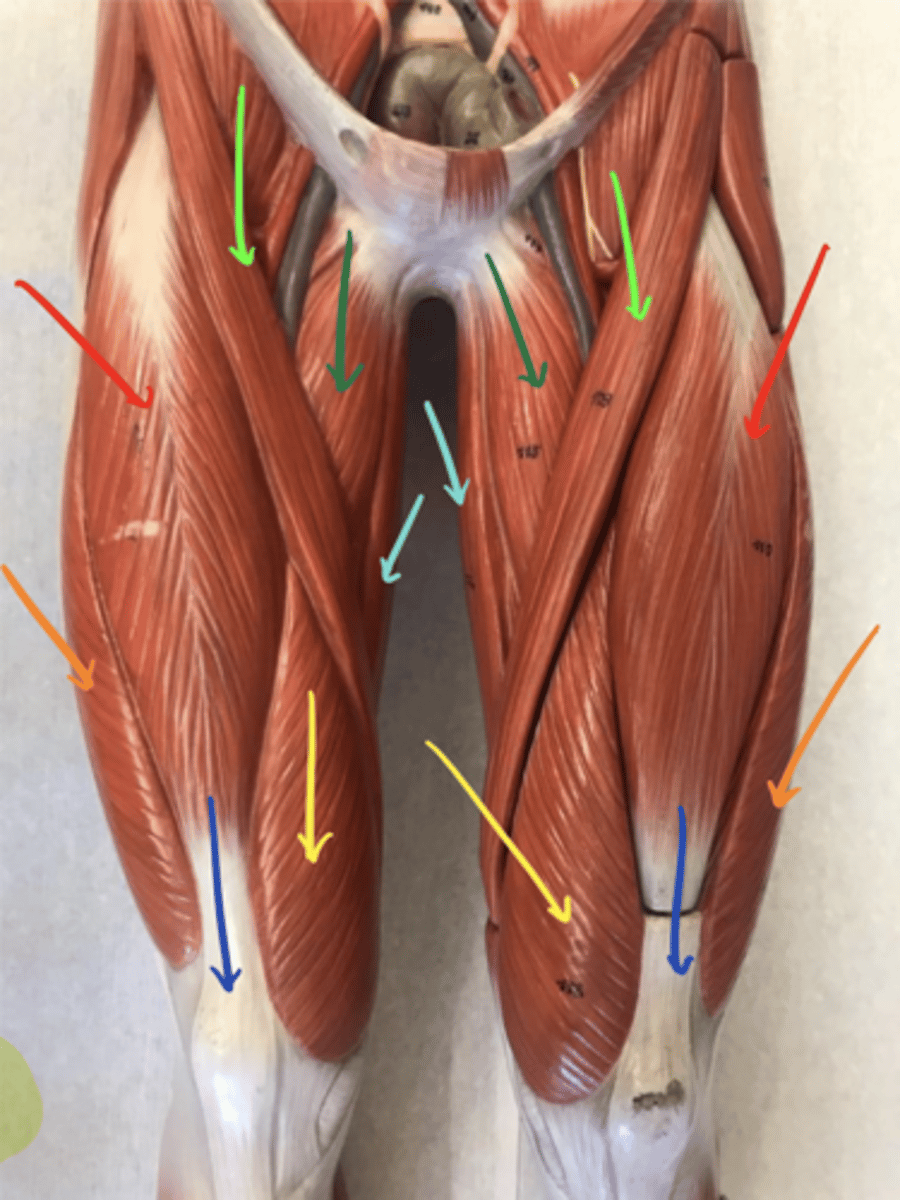

ID the structure of the light blue arrow and its innervation.

Iliotibial tract

ID the specific structure of the orange arrow.

Sartorius; femoral nerve; flexion of thigh, lateral rotation of thigh, flexion of leg, abduction of thigh

ID the structure of the dark green arrow and its innervation.

Vastus medialis; femoral nerve

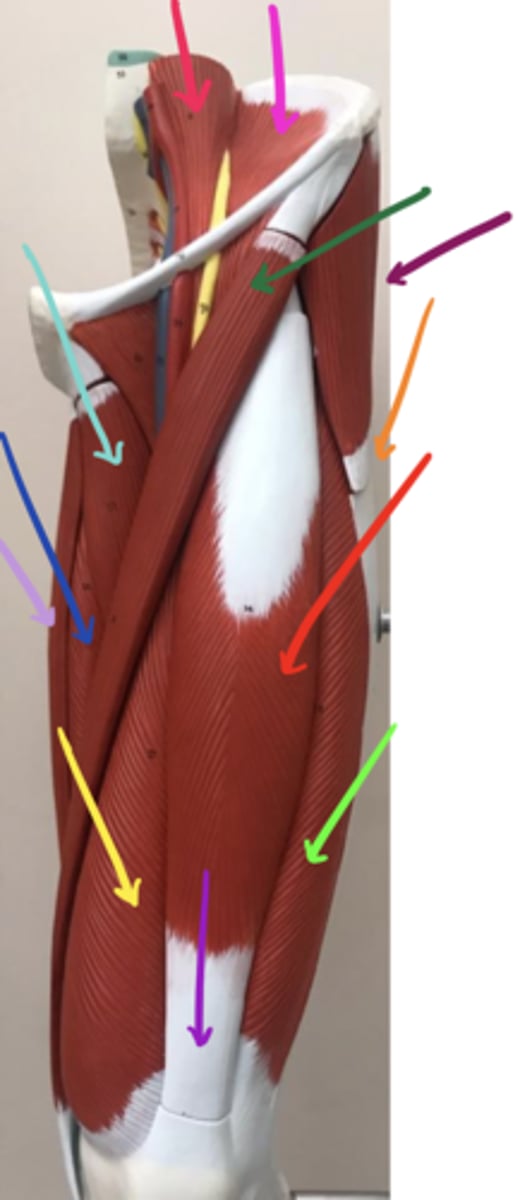

ID the structure of the yellow arrow and its innervation.

Adductor longus; obturator nerve

ID the structure of the light blue arrow and its innervation.

Tensor fasciae latae

ID the structure of the dark purple arrow.

Adductor magnus; obturator nerve, sciatic nerve

ID the structure of the dark blue arrow and its innervation.

Quadriceps tendon

ID the structure of the purple arrow.

Iliacus

ID the structure of the neon purple arrow.

Gracilis; obturator nerve

ID the structure of the lilac arrow and its innervation.

Psoas major

ID the structure of the neon pink arrow.

** difficult to see - look at the arrow pointing at the superior muscles ;)

Gluteus maximus

ID the structure of the red arrow.

Tensor fasciae latae; abduction of thigh, medial rotation of thigh

ID the structure of the yellow arrow and its action(s).

Iliotibial tract

ID the structure of the neon green arrow.

Biceps femoris (short and long head); tibial nerve, common fibular nerve; flexion of leg, lateral rotation of leg, extension of thigh

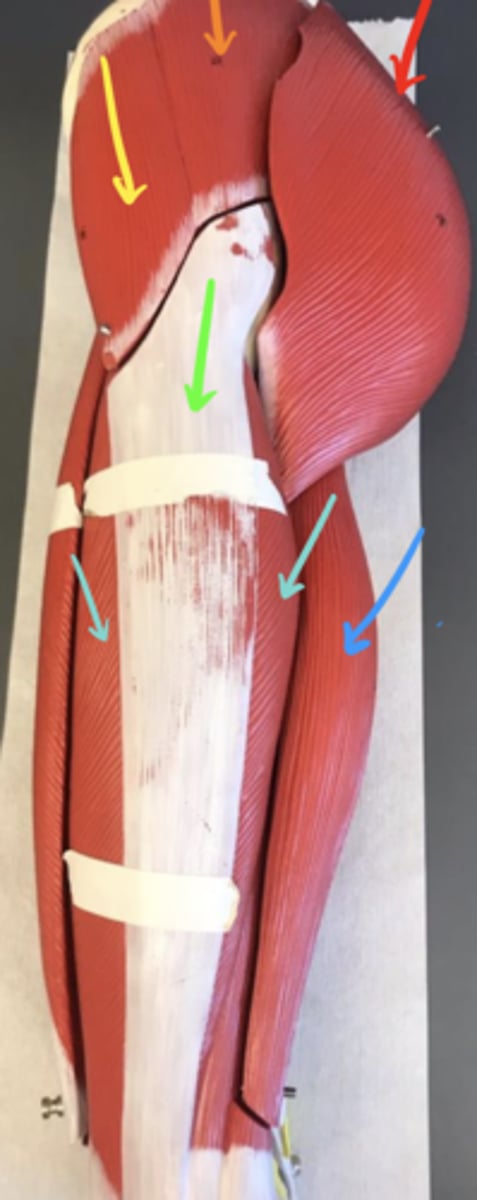

ID the structure of the blue arrow, its innervation and action(s).

Adductor magnus; obturator nerve, sciatic nerve

ID the structure of the red arrow that is more medial to the body and its innervation.

Vastus intermedius; femoral nerve

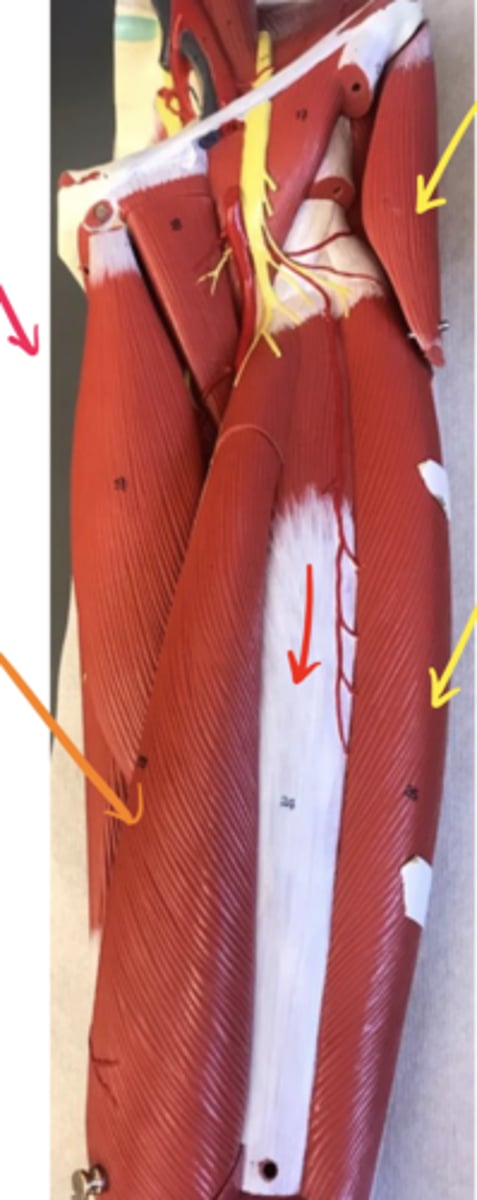

ID the structure of the red arrow (the one directly on the surface of the model) and its innervation.

Vastus lateralis; femoral nerve

ID the structure of the yellow arrows and its innervation.

Gluteus maximus

ID the structure of the red arrow.

Biceps femoris (short and long head); tibial nerve, common fibular nerve

ID the structure of the orange arrow and its innervation.

Semintendinosus

ID the structure of the yellow arrow.

Gluteus maximus

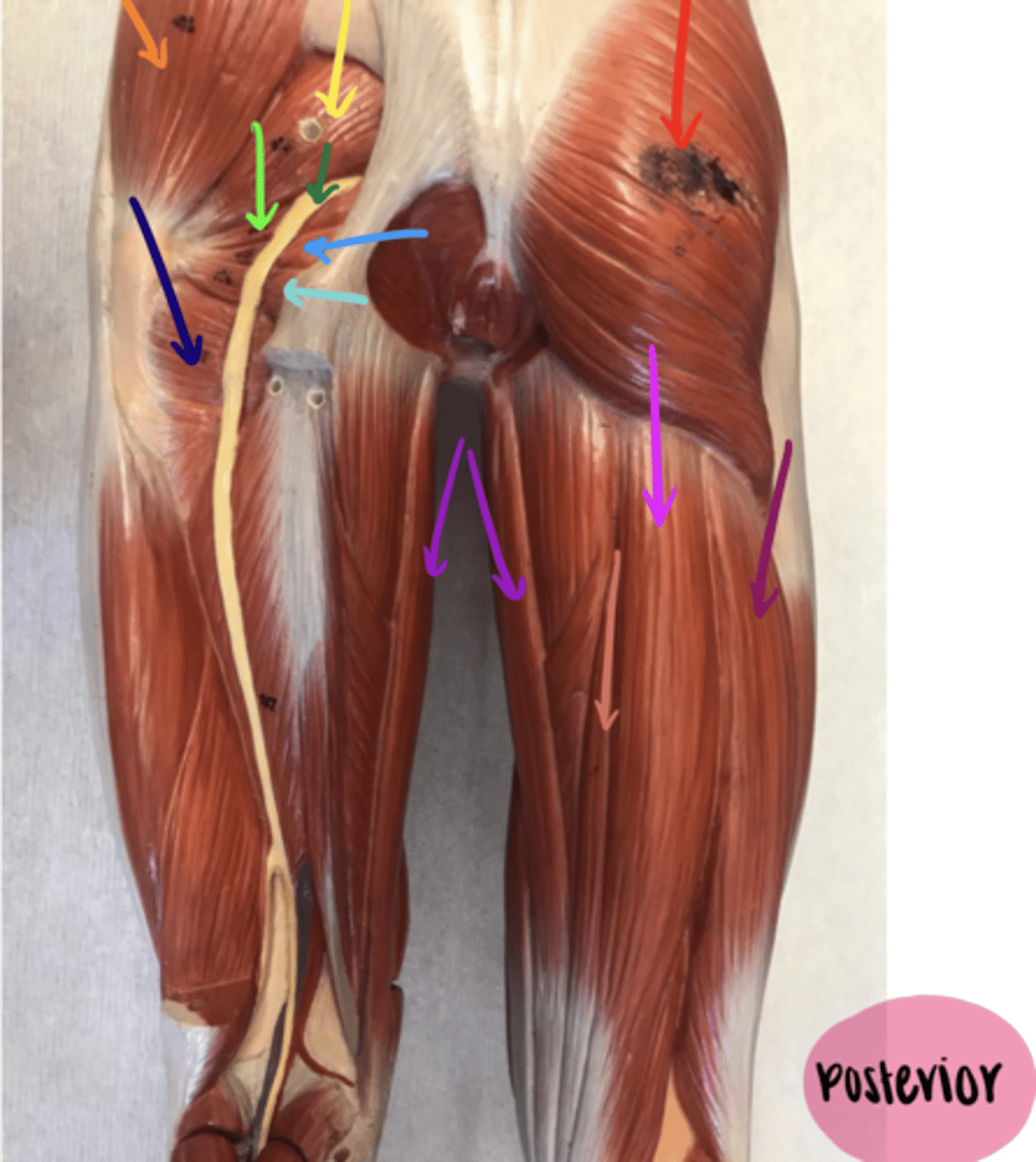

ID the structure of the red arrow.

Gluteus minimus

ID the structure of the orange arrow.

Superior gemellus; lateral rotation of thigh

ID the structure of the neon green arrow and its action(s).

Sciatic nerve

ID the structure of the dark green arrow.

Obturator internus

ID the structure of the blue arrow.

Inferior gemellus

ID the structure of the light blue arrow.

Quadratus femoris

ID the structure of the dark indigo arrow.

Gracilis; obturator nerve

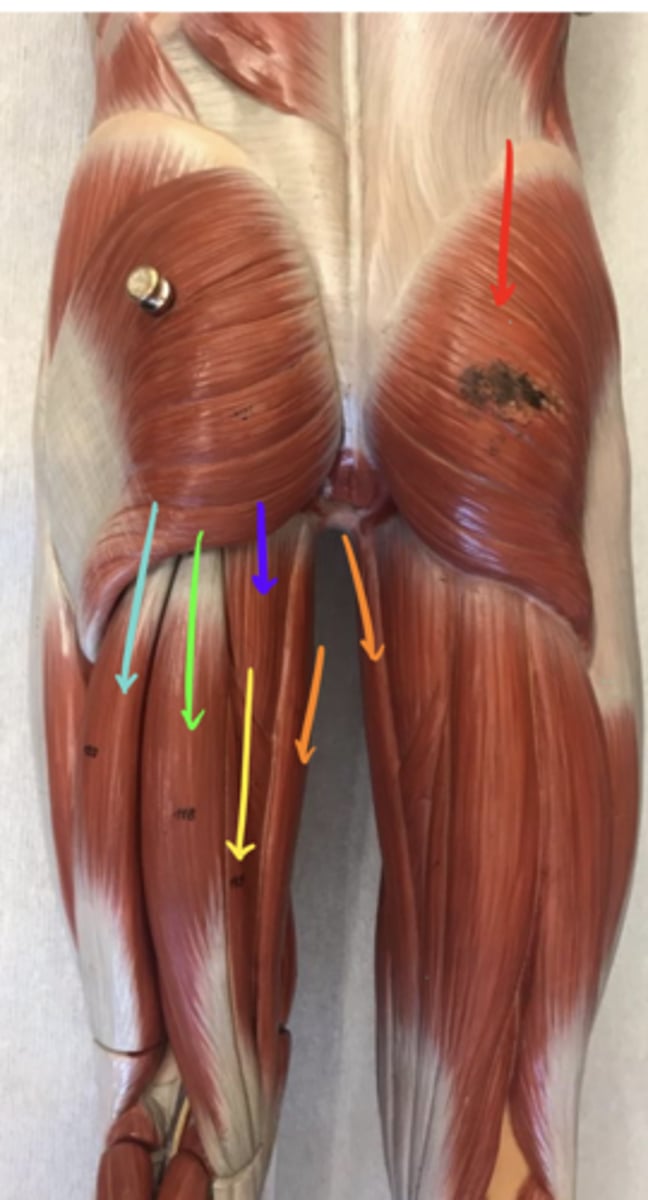

ID the structure of the purple arrow and its innervation.

Semitendinosus; tibial nerve

ID the structure of the light purple arrow and its innervation.

Biceps femoris (short and long head); tibial nerve, common fibular nerve

ID the structure of the dark purple arrow and its innervation.

Semimembranosus; tibial nerve

ID the structure of the pink arrow and its innervation.

Gluteus maximus

ID the structure of the red arrow.

Gracilis; obturator nerve

ID the structure of the orange arrow and its innervation.

Semimembranosus; tibial nerve

ID the structure of the yellow arrow and its innervation.

Semitendinosus; tibial nerve

ID the structure of the neon green arrow and its innervation.

Long head of biceps femoris; tibial nerve, common fibular nerve

ID the structure of the light blue arrow and its innervation.

Adductor magnus; obturator nerve, sciatic nerve

ID the structure of the purple arrow and its innervation.

Gluteus maximus

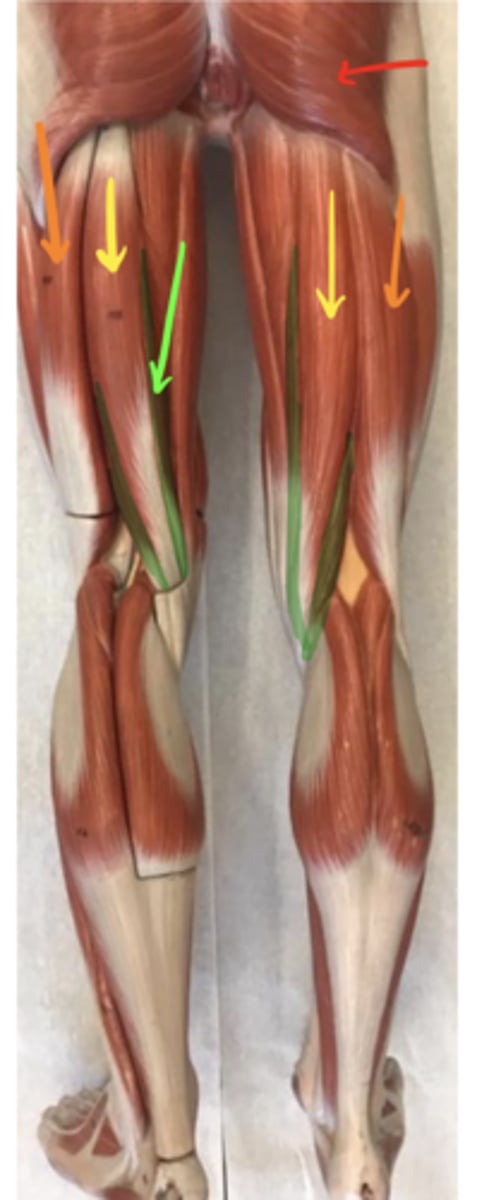

ID the structure of the red arrow.

Long head of biceps femoris; tibial nerve, common fibular nerve

ID the structure of the orange arrow and its innervation.

Semitendinosus; tibial nerve

ID the structure of the yellow arrow and its innervation.

Semimembranosus; tibial nerve

ID the structure of the neon green arrow and its innervation.

Gluteus minimus

ID the structure of the dark green arrow.

Superior gemellus; lateral rotation of thigh

ID the structure of the gray arrow and its action(s).

Obturator internus; lateral rotation of thigh

ID the structure of the blue arrow and its action(s).

Inferior gemellus; lateral rotation of thigh

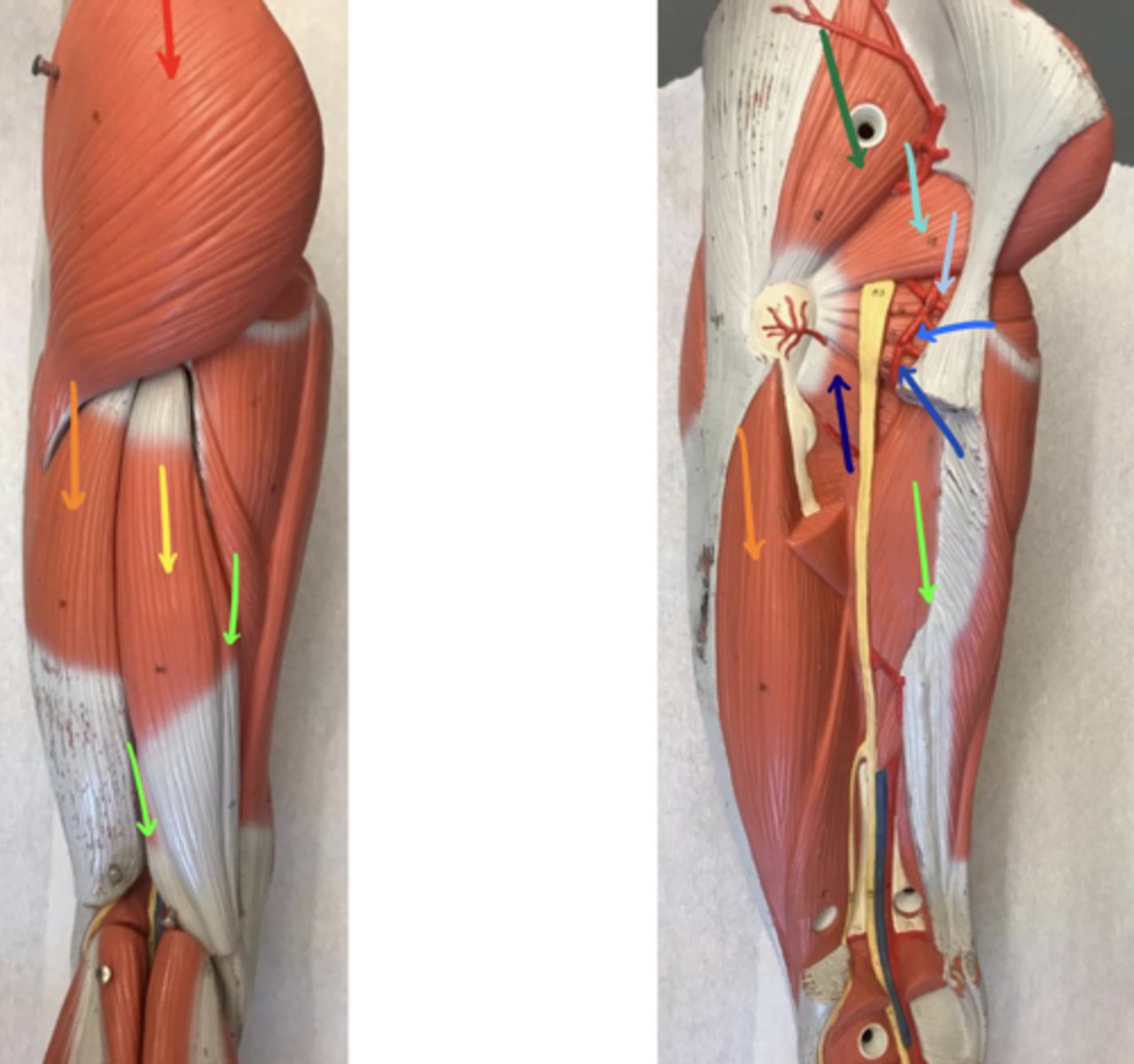

ID the structure of the dark blue arrow and its action(s).

Quadratus femoris; lateral rotation of thigh

ID the structure of the dark indigo arrow and its action(s).

Gluteus medius; abduction of thigh, medial rotation of thigh

ID the structure of the red arrow and its action(s).

Gluteus maximus; extension of thigh, lateral rotation of thigh, abduction of thigh

ID the structure of the orange arrow and its action(s).

Long head of biceps femoris; tibial nerve, common fibular nerve; flexion of leg, lateral rotation of leg, extension of thigh

ID the structure of the yellow arrow, its innervation and its action(s)

Semitendinosus; tibial nerve; extension of thigh, flexion of leg, medial rotation of leg

ID the structure of the neon green arrow, its innervation and its action(s).

Semimembranosus; tibial nerve; extension of thigh; flexion of leg; medial rotation of leg

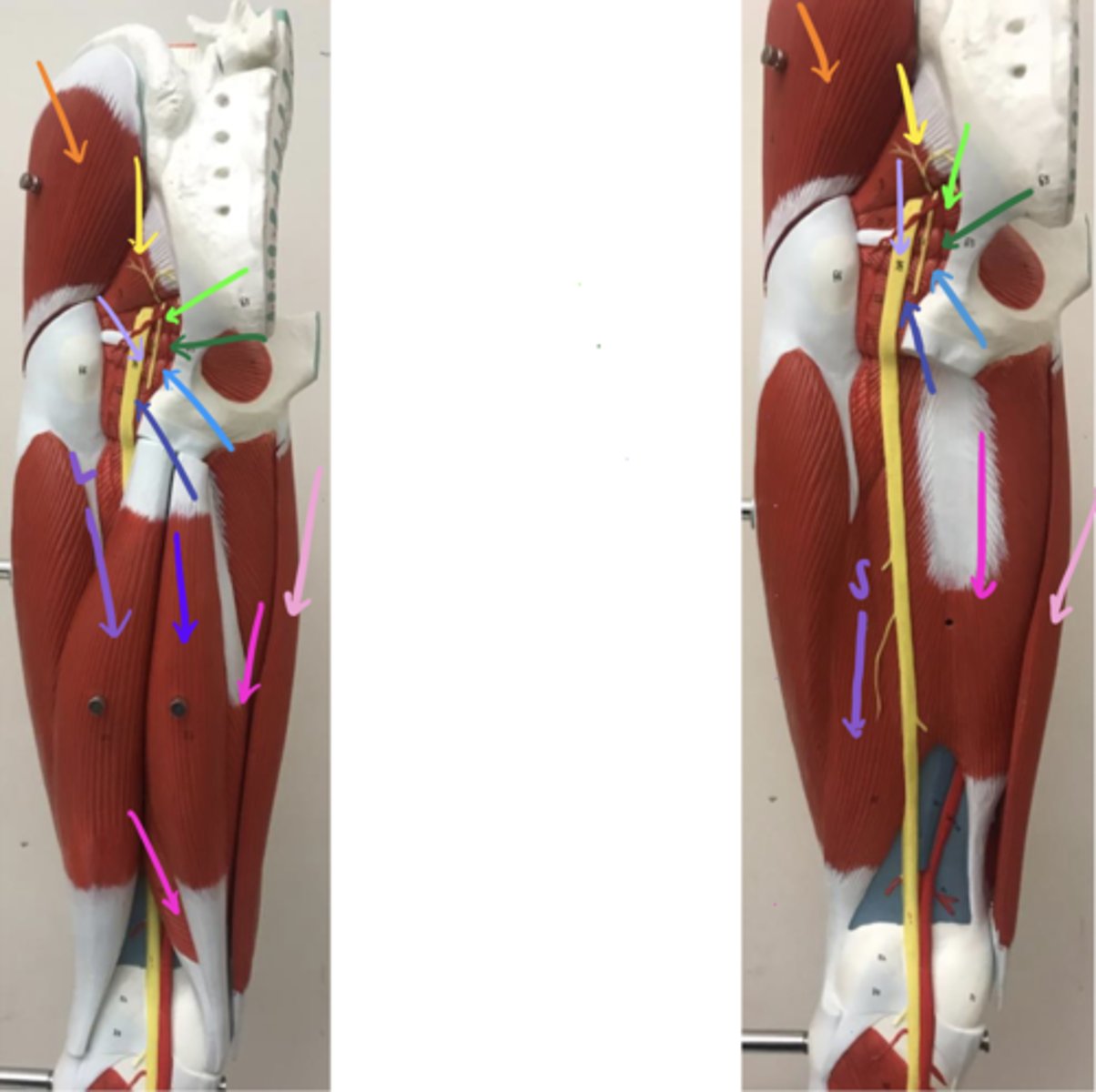

ID the structure of the dark green arrow, its innervation and its action(s).

Gracilis; obturator nerve; adduction of thigh, flexion of thigh, flexion of leg

ID the structure of the blue arrow, its innervation and its action(s).

Gluteus minimus; abduction of thigh, medial rotation of thigh

ID the structure of the orange arrow and its action(s).

Piriformis; lateral rotation of thigh

ID the structure of the yellow arrow and its action(s).

Superior gemellus; lateral rotation of thigh

ID the structure of the neon green arrow and its action(s).

Obturator internus; lateral rotation of thigh

ID the structure of the dark green arrow and its action(s).
