sound and waves Term 1 Half Term 1
Study Analytics
Name | Mastery | Learn | Test | Matching | Spaced |
|---|
No study sessions yet.
22 Terms
1
New cards

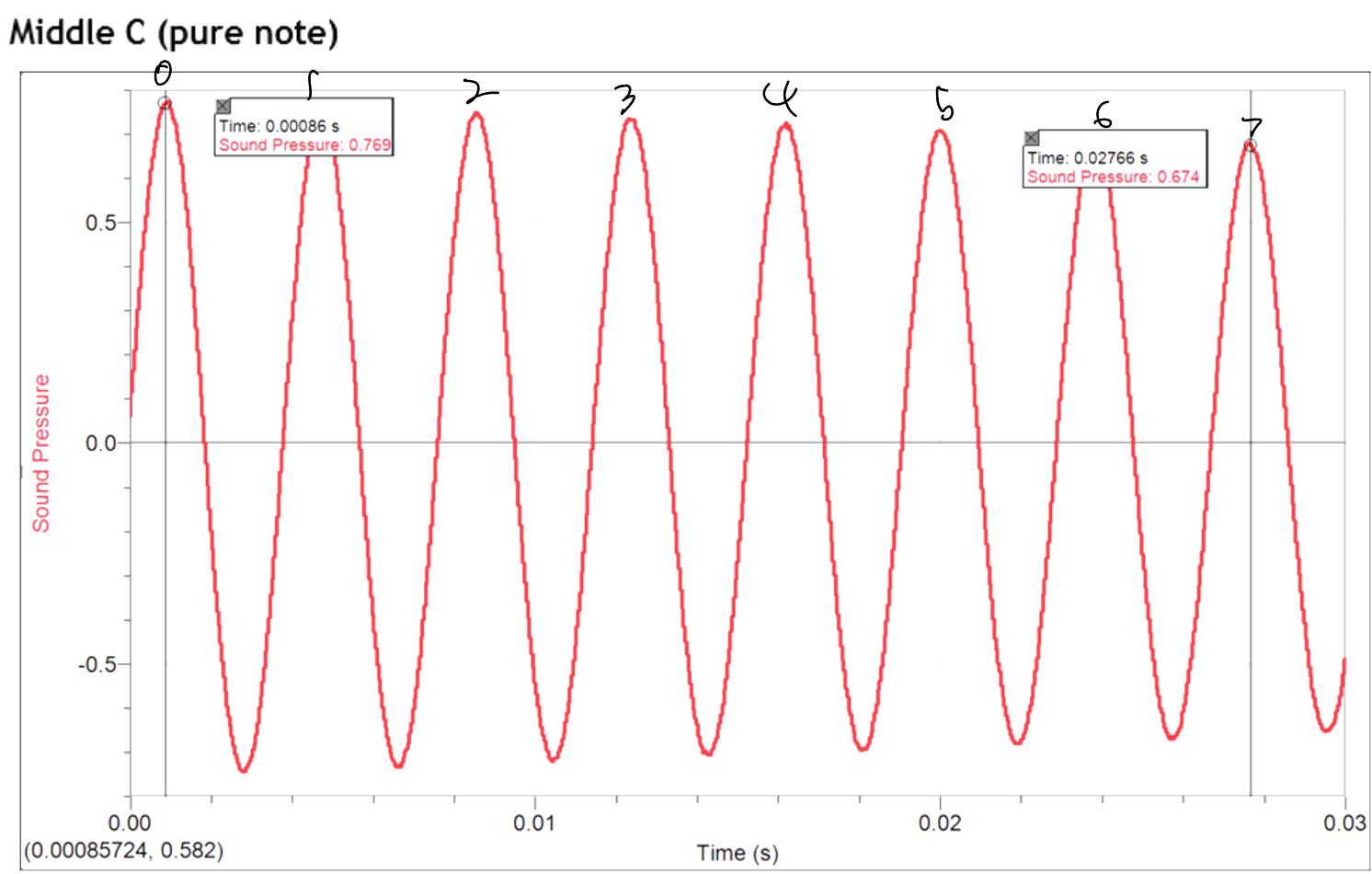

Wave Diagram, figure out the frequency
Time between first and last wave:
0.02766s-0.00086s=
0.0268s
Waves:
7
Wave period(P):
0.0268/7=
0.0038s
Frequency:
1/P
1/0.0038=
263Hz
2
New cards
Work out the peak to peak voltage
3
New cards

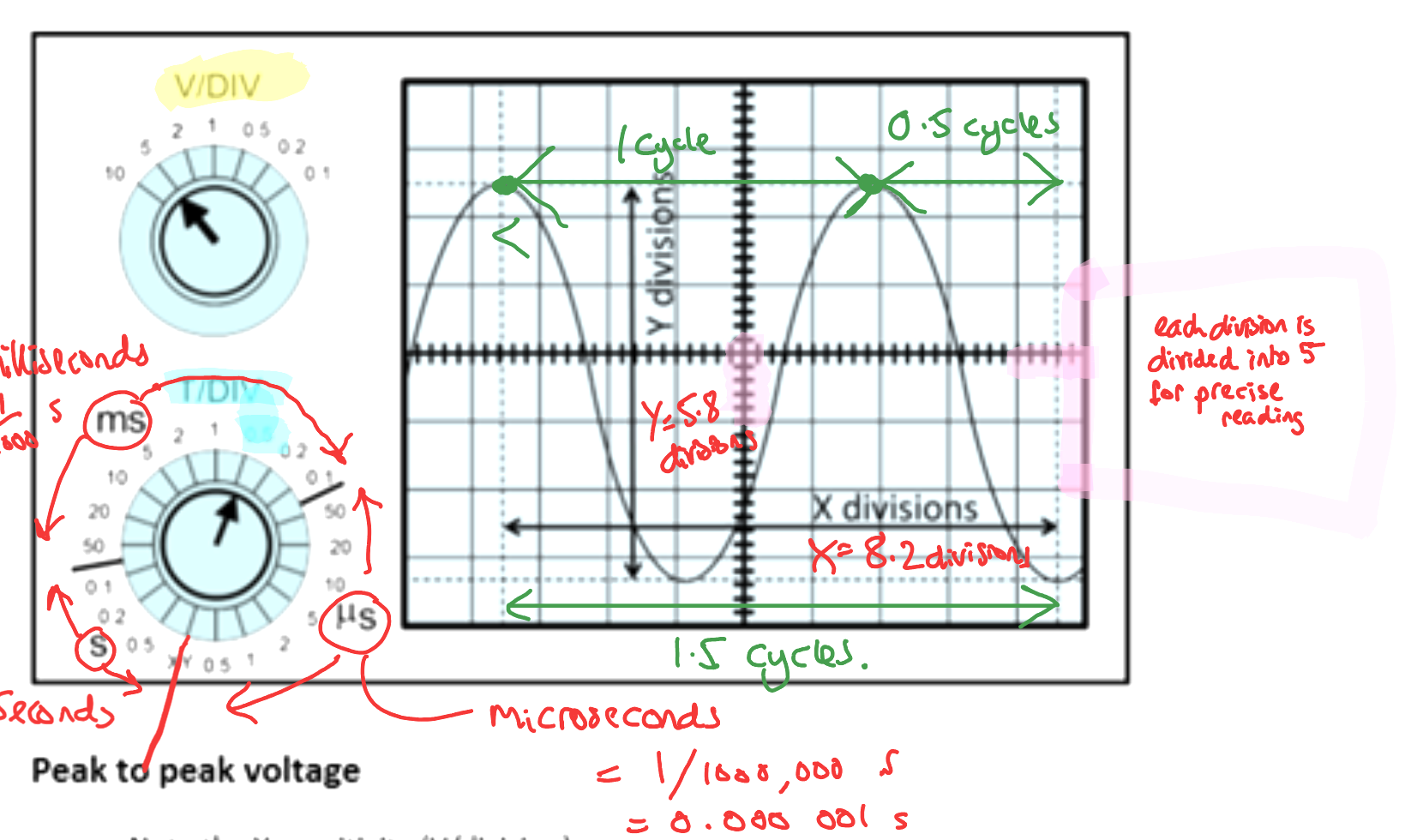

Work out the frequency
4
New cards
What wave type is this
Transverse wave
5
New cards
What wave type is this
Longitudinal wave
6
New cards
What wave type is this
Transverse wave
7
New cards

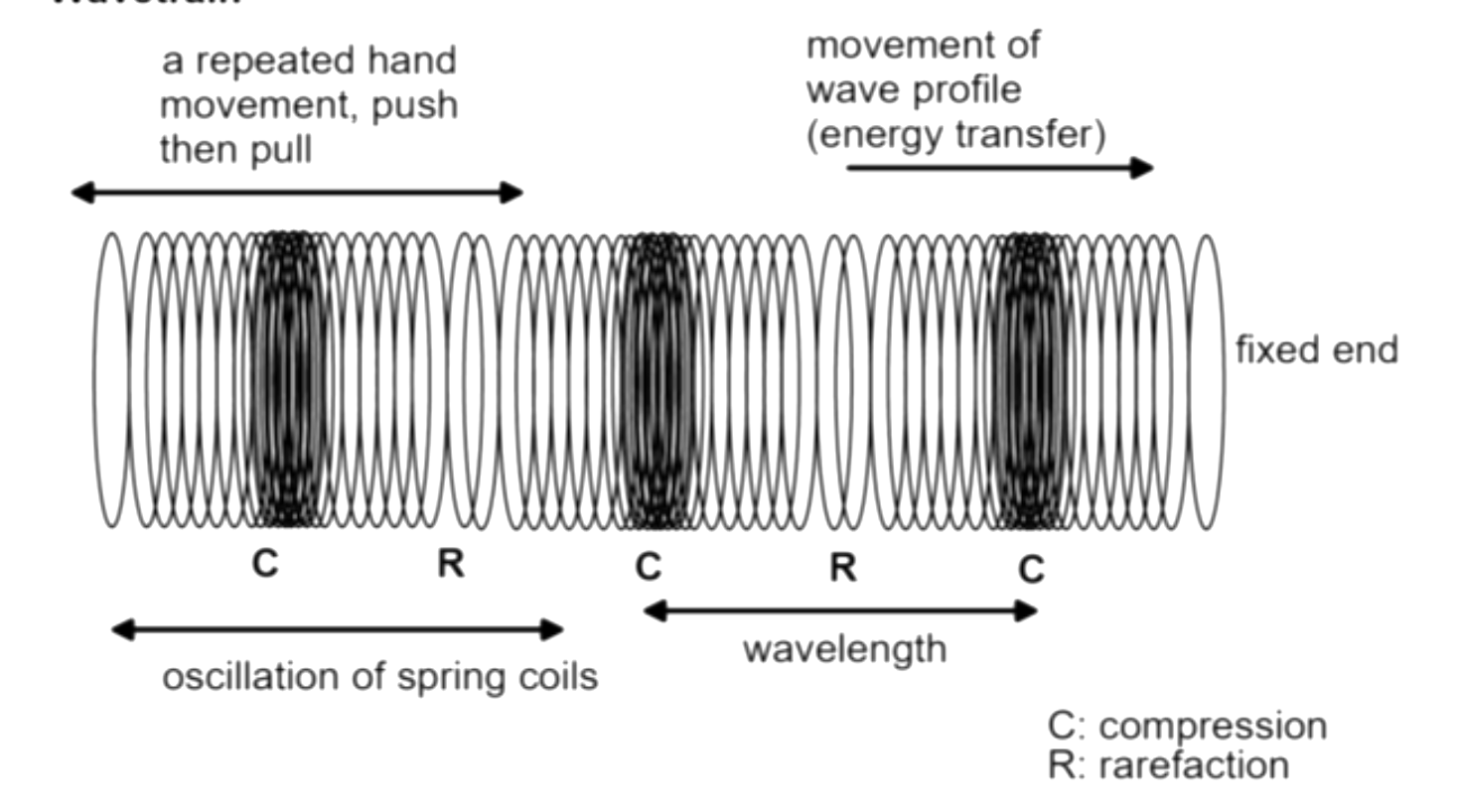

What wave type is this
longitudinal wave
8
New cards
What is frequency
Frequency is number of waves passing per second
The unit is Hz
9
New cards
speed formula is
Speed= frequency x wavelength
s= f x λ
10
New cards

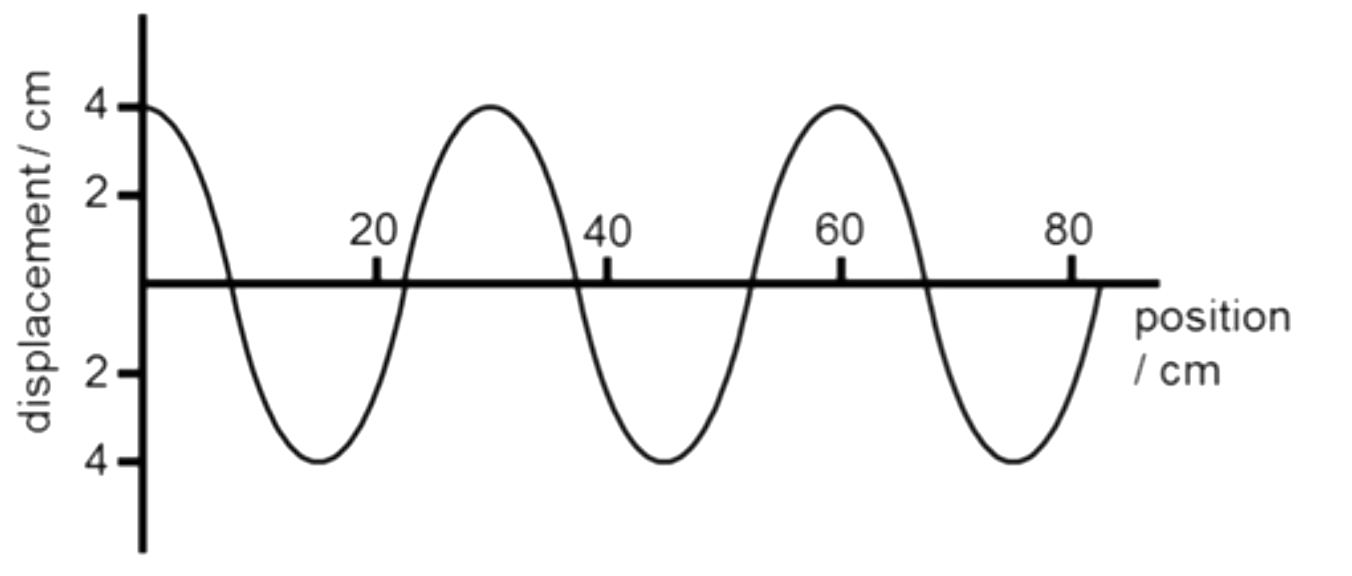

What is the amplitude
4cm
11
New cards
What is the wavelength
30cm
12
New cards
Frequency is 2Hz figure out the speed of the wave
13
New cards

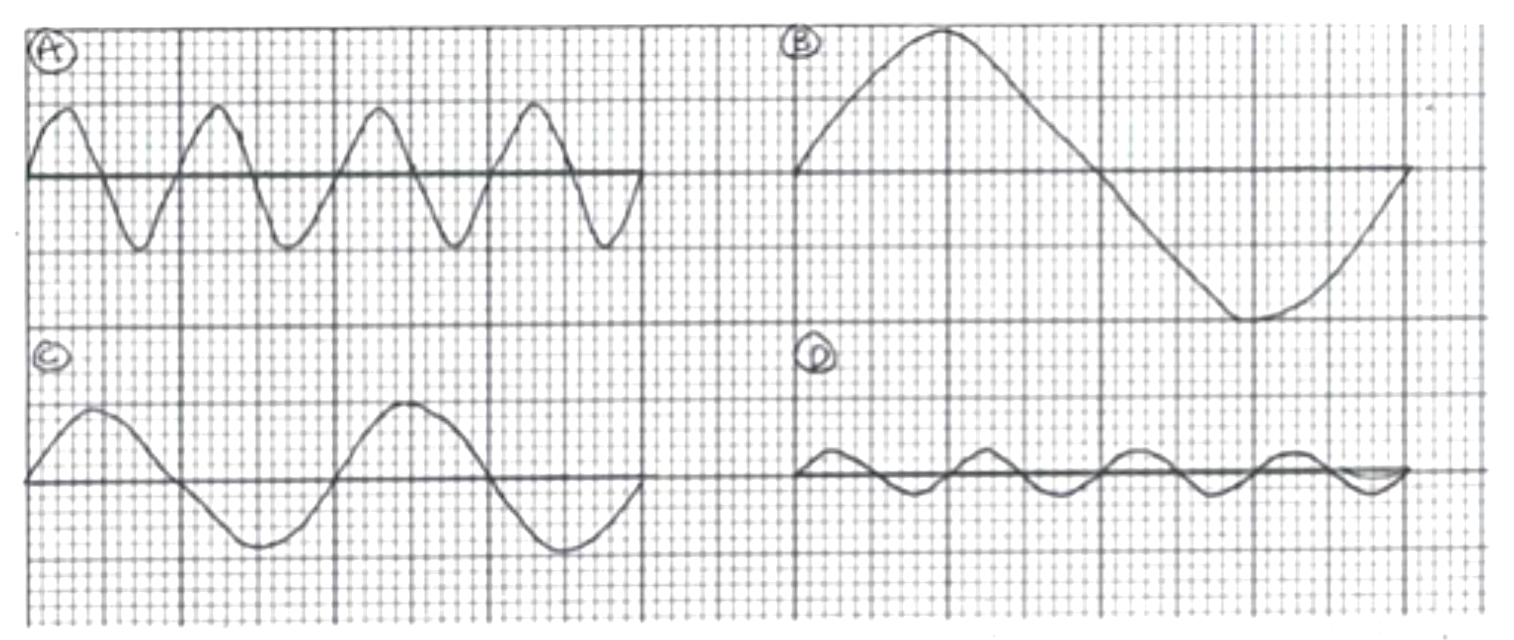

Which is the lowest pitched note?
B
14
New cards
How does the time period of A compare to C?
It is shorter (÷2)
15
New cards
How does the time period of C compare to D?
It is longer (×2)
16
New cards
Which is the loudest note?
B
17
New cards
How does the frequency of D compare to B?
It is higher (×4)
18
New cards
How does the time period of D compare to C?
Shorter (÷2)
19
New cards
How does the frequency of C compare to A?
Lower (×2)
20
New cards
How does the time period of B compare to D?
Much longer x4
21
New cards
Which is the highest pitched note?
A / D
22
New cards
Which is the quietest note?
D
