VSEPR Theory

Linear bond angle:

180°

Trigonal bond angle:

120°

Tetrahedral bond angle:

109.5°

Trigonal bipyramidal bond angles (equatorial and axial):

Equatorial-Equatorial: 120°

Axial-Equatorial: 90°

Axial-Axial: 180°

Octahedral bond angle:

90°

Bent bond angle:

<120° (atom-atom)

Trigonal pyramidal bond angle:

<109.5° (atom-atom)

Seesaw/Sawhorse bond angles (equatorial and axial):

Equatorial-Equatorial: <120° (atom-atom)

Axial-Equatorial: <90° (atom-atom)

Axial-Axial: <180° (atom-atom)

T-shaped bond angles (equatorial and axial):

Equatorial-Equatorial: <120° (atom-electron group)

Axial-Equatorial: <90° (atom-atom)

Axial-Axial: <180° (atom-atom)

Square pyramidal bond angle:

<90° (atom-atom)

Square planar bond angle:

90° (atom-atom)

Name of VSEPR shape with 2 bonds:

Linear

Name of VSEPR shape with 3 bonds:

Trigonal Planar

Name of VSEPR shape with 4 bonds:

Tetrahedral

Name of VSEPR shape with 5 bonds:

Trigonal Bipyramidal

Name of VSEPR shape with 6 bonds:

Octahedral

Valence Bond Theory's orbital hybridization associated with the Linear VSEPR shape:

Valence Bond Theory's orbital hybridization associated with the Trigonal Planar VSEPR shape:

Valence Bond Theory's orbital hybridization associated with the Tetrahedral VSEPR shape:

Valence Bond Theory's orbital hybridization associated with the Trigonal Bipyramidal VSEPR shape:

Valence Bond Theory's orbital hybridization associated with the Octahedral VSEPR shape:

Name of VSEPR shape with 2 bonds and 1 lone pair:

Bent

Name of VSEPR shape with 3 bonds and 1 lone pair:

Trigonal Pyramidal

Name of VSEPR shape with 2 bonds and 2 lone pairs:

Bent

Name of VSEPR shape with 4 bonds and 1 lone pair:

Seesaw/Sawhorse

Name of VSEPR shape with 3 bonds and 2 lone pairs:

T-Shaped

Name of VSEPR shape with 2 bonds and 3 lone pairs:

Linear

Name of VSEPR shape with 5 bonds and 1 lone pair:

Square Pyramidal

Name of VSEPR shape with 4 bonds and 2 lone pairs:

Square Planar

Name of VSEPR shape with 3 bonds and 3 lone pairs:

T-Shaped

Name of VSEPR shape with 2 bonds and 4 lone pairs:

Linear

Diagram of VSEPR shape with 2 bonds and 0 lone pairs:

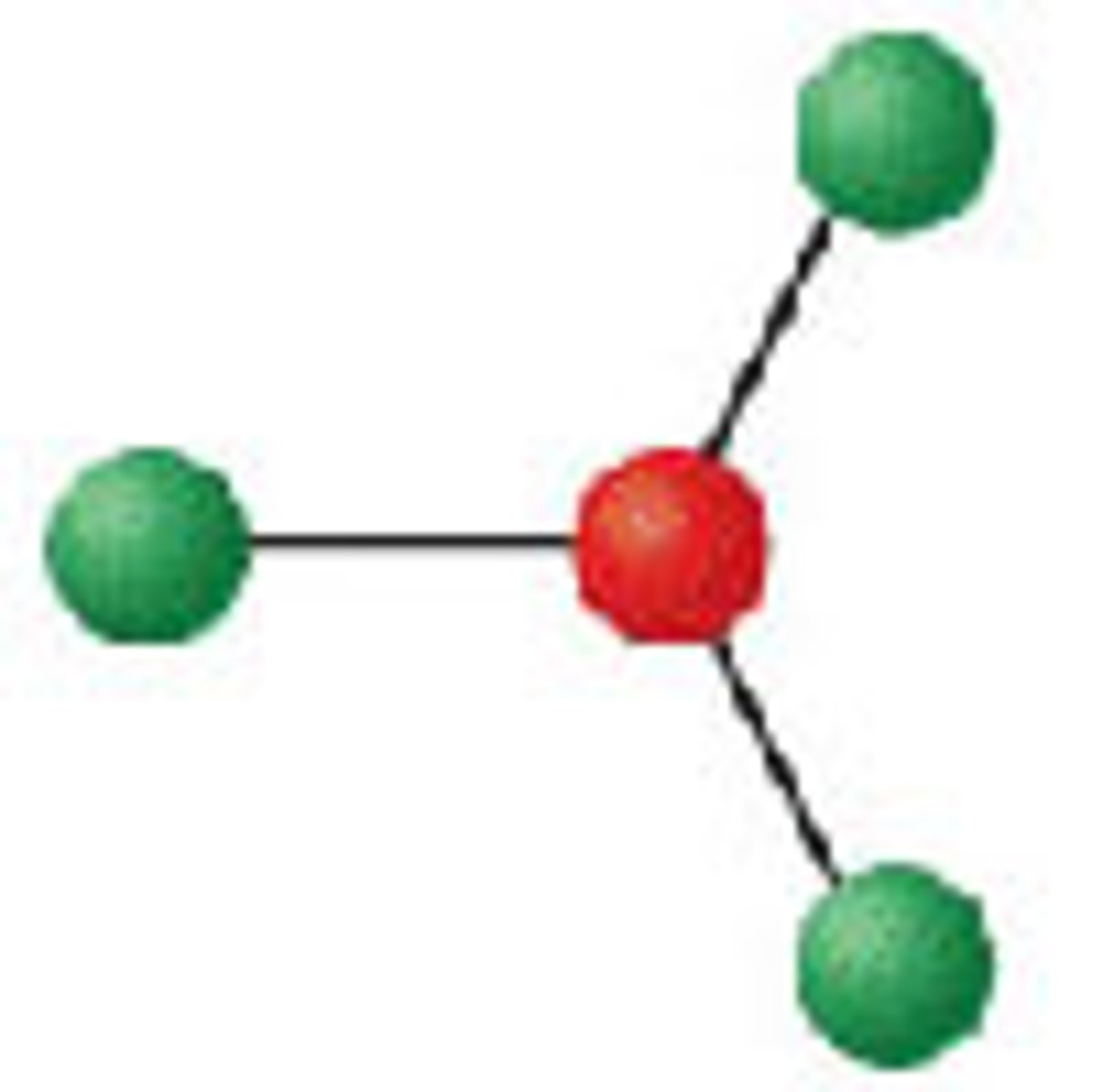

Diagram of VSEPR shape with 3 bonds and 0 lone pairs:

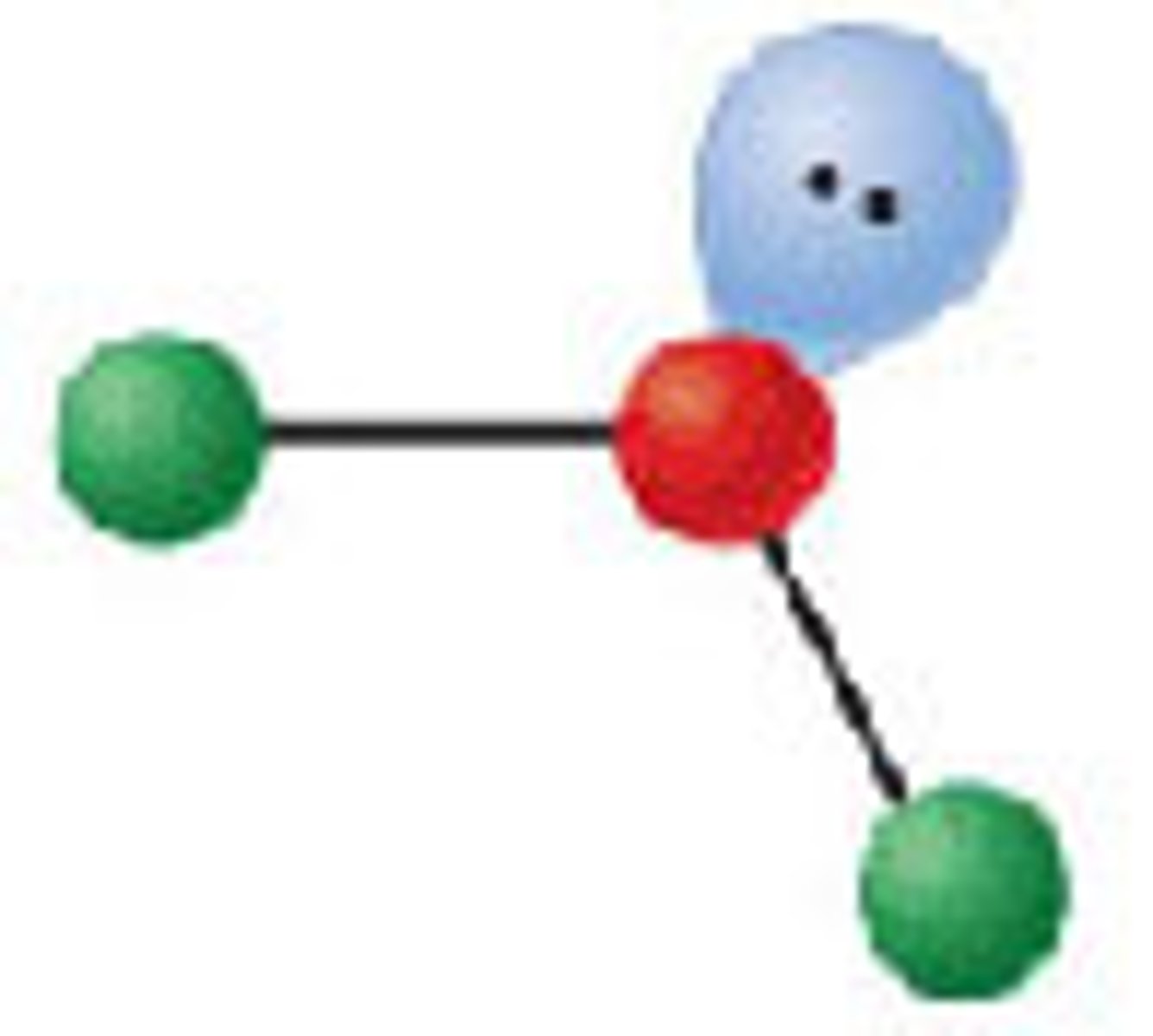

Diagram of VSEPR shape with 2 bonds and 1 lone pair:

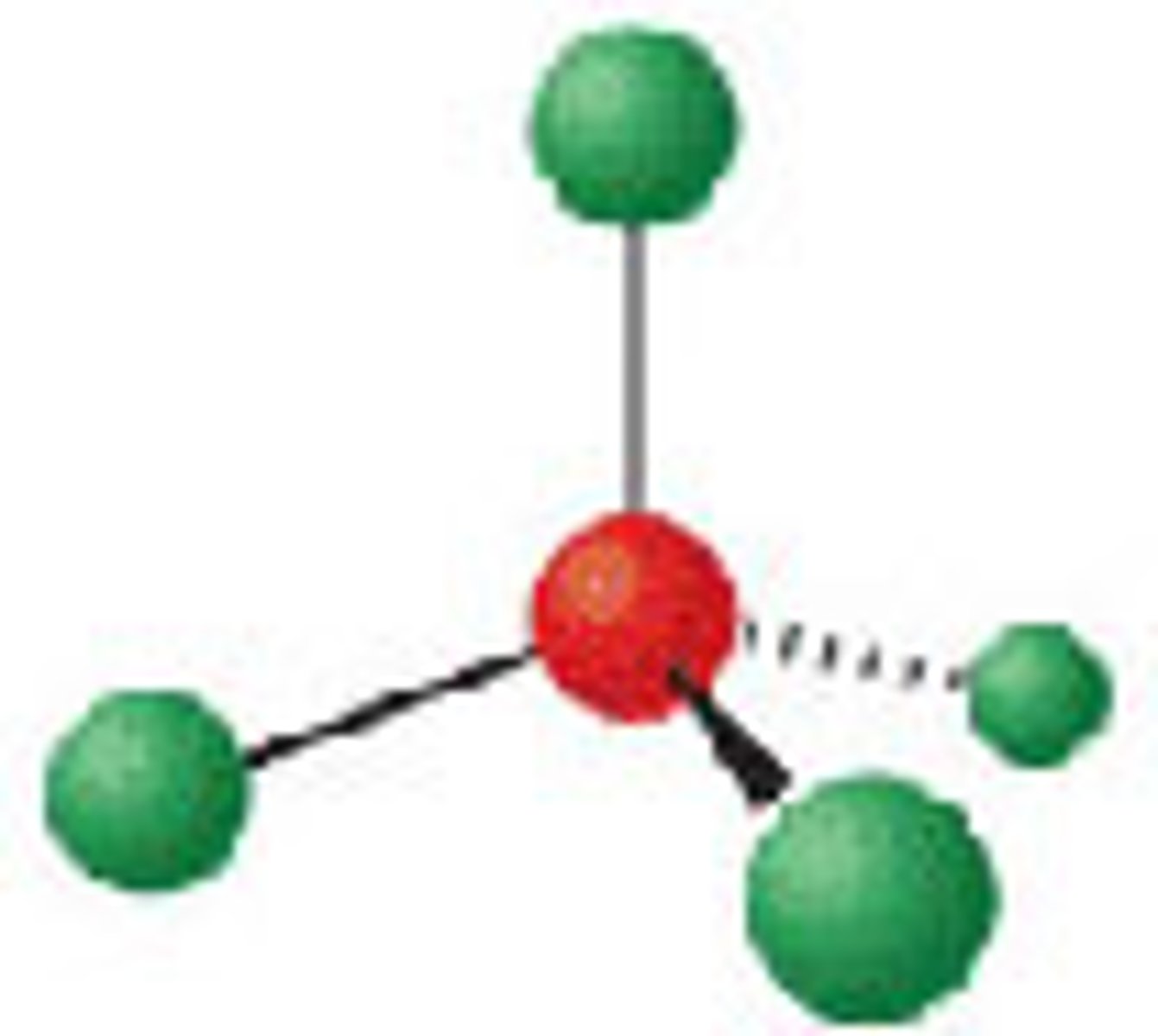

Diagram of VSEPR shape with 4 bonds and 0 lone pairs:

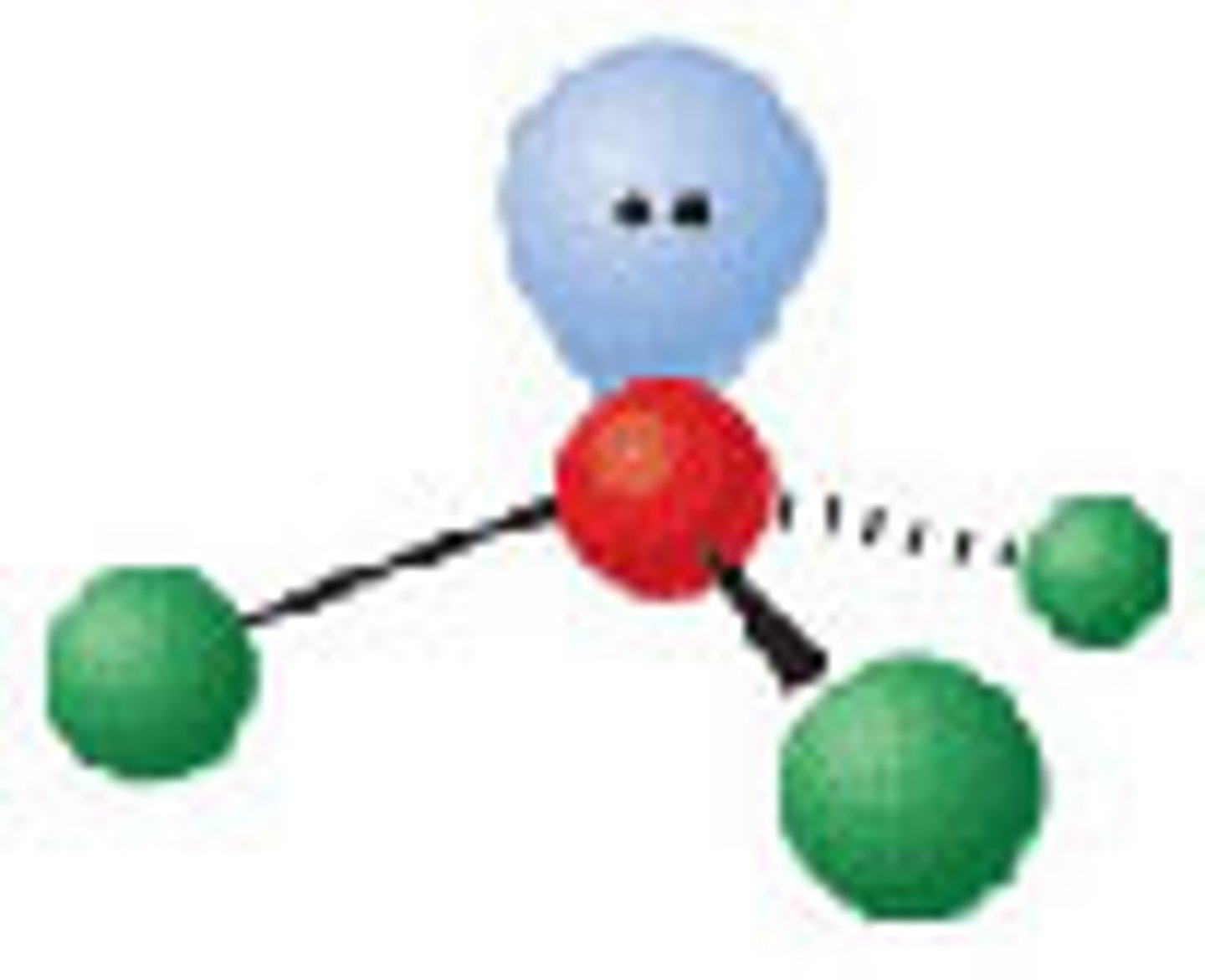

Diagram of VSEPR shape with 3 bonds and 1 lone pair:

Diagram of VSEPR shape with 2 bonds and 2 lone pairs:

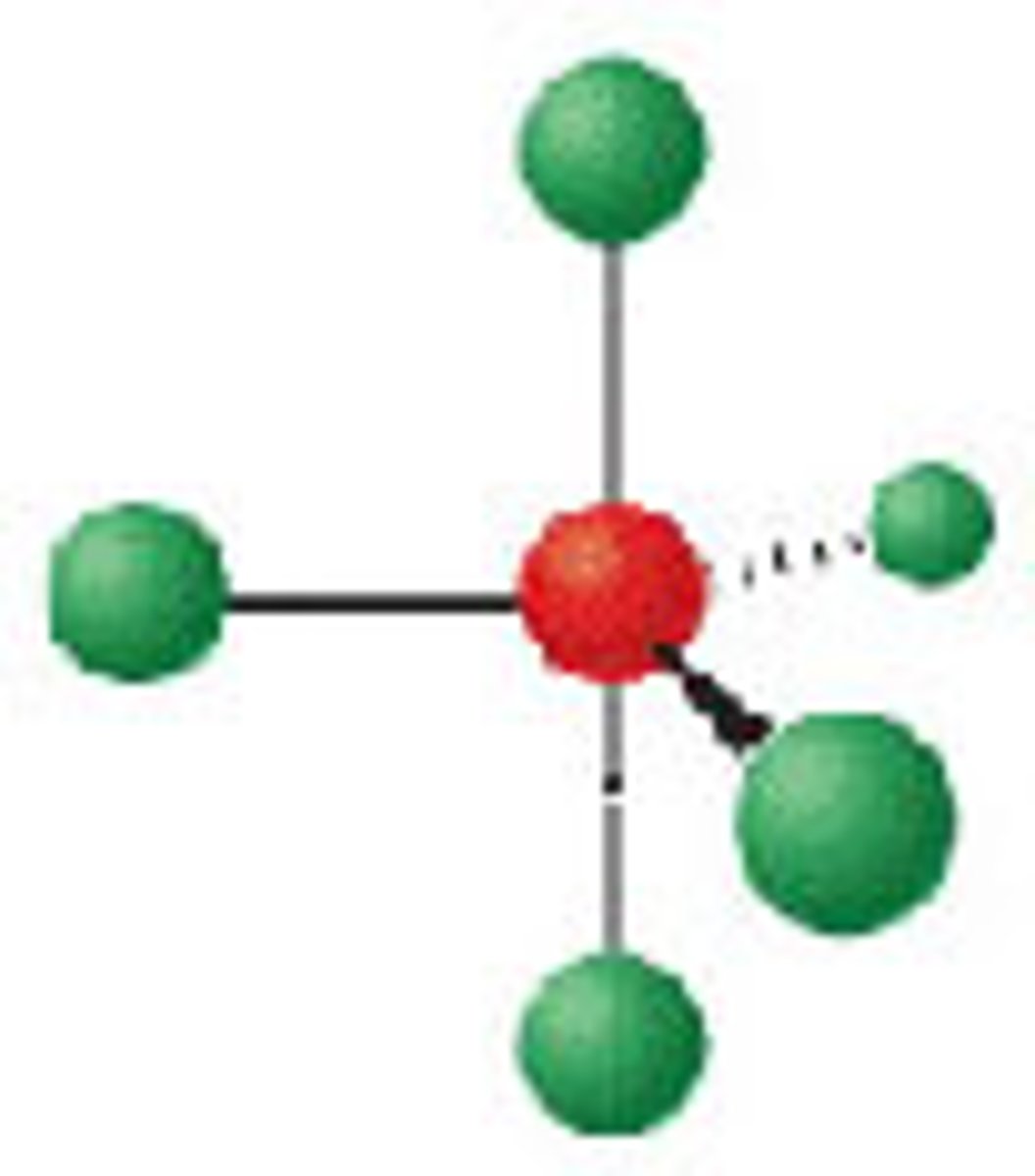

Diagram of VSEPR shape with 5 bonds and 0 lone pairs:

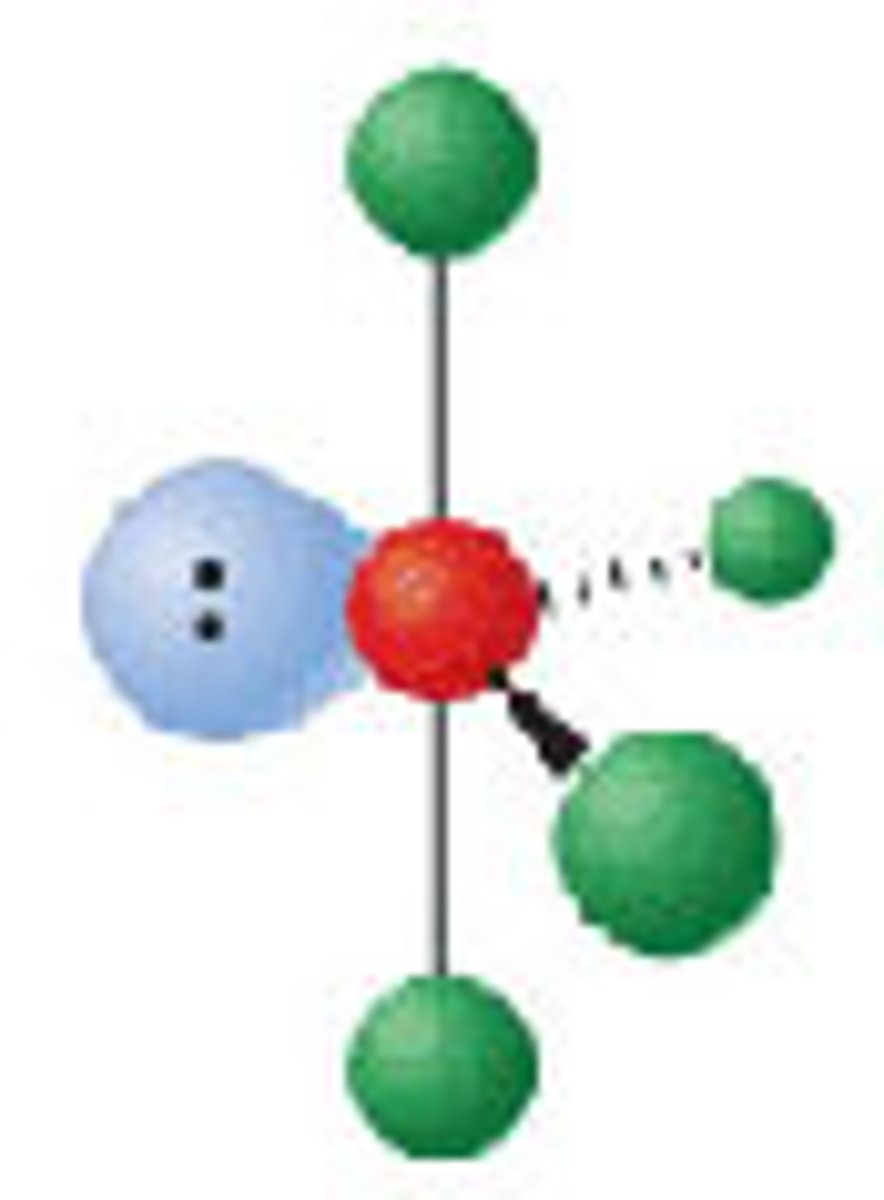

Diagram of VSEPR shape with 4 bonds and 1 lone pair:

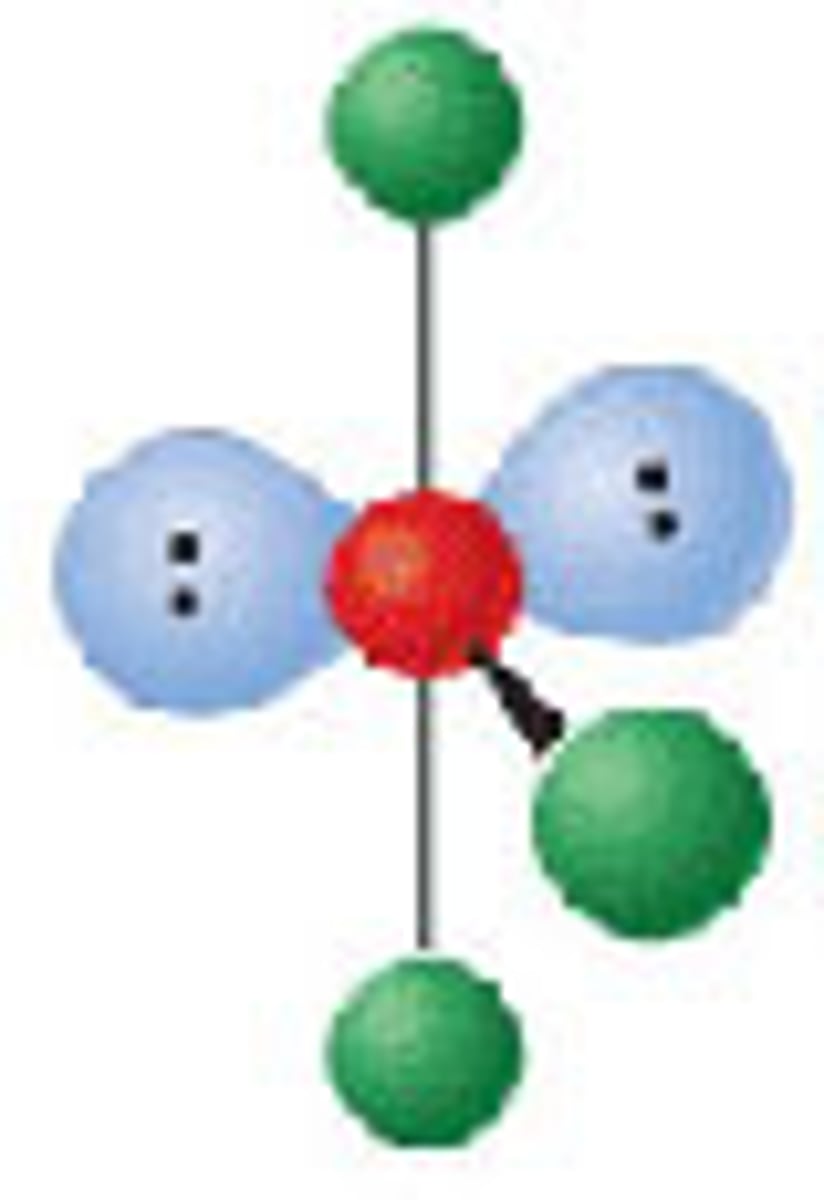

Diagram of VSEPR shape with 3 bonds and 2 lone pairs:

Diagram of VSEPR shape with 2 bonds and 3 lone pairs:

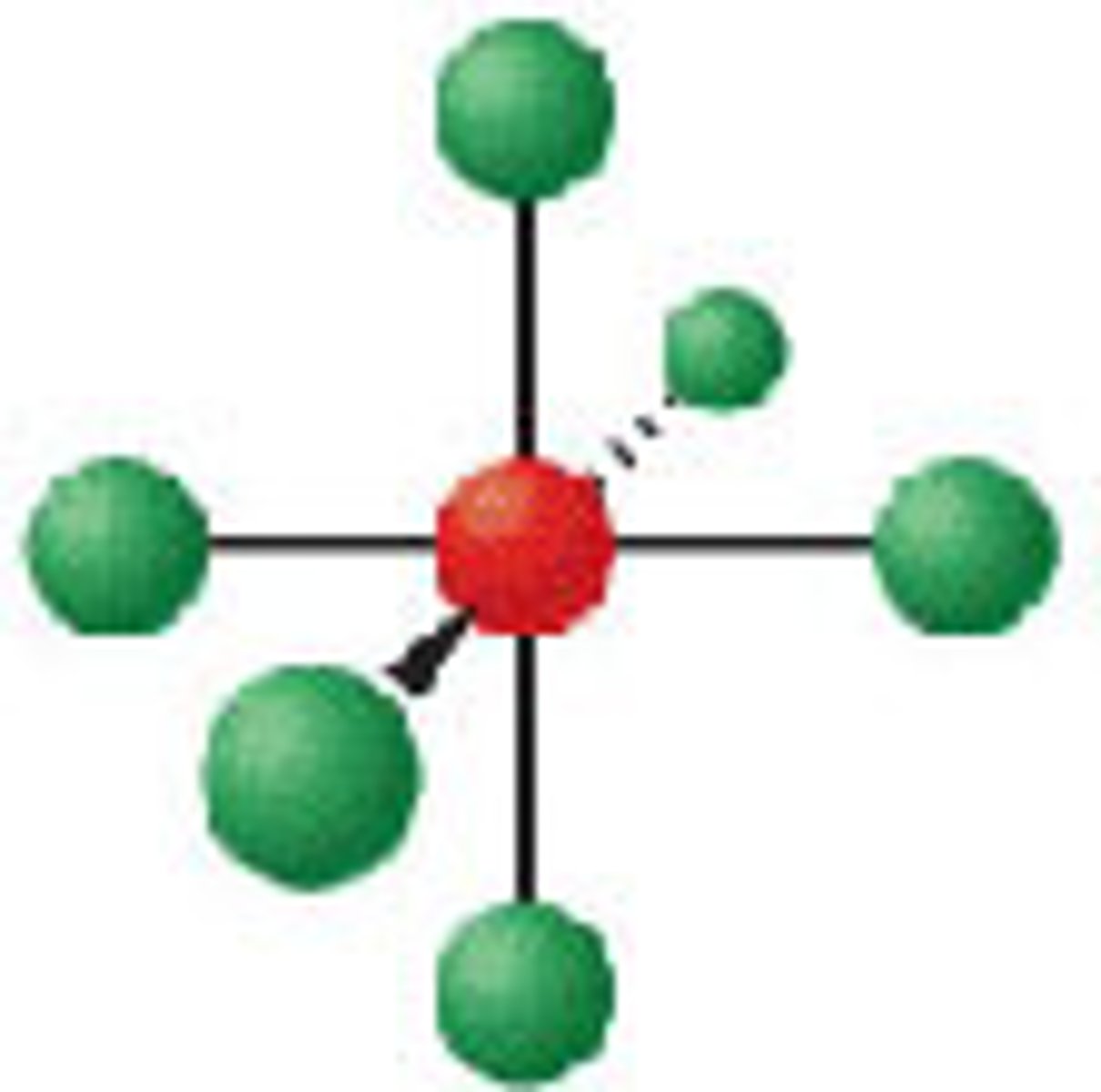

Diagram of VSEPR shape with 6 bonds and 0 lone pairs:

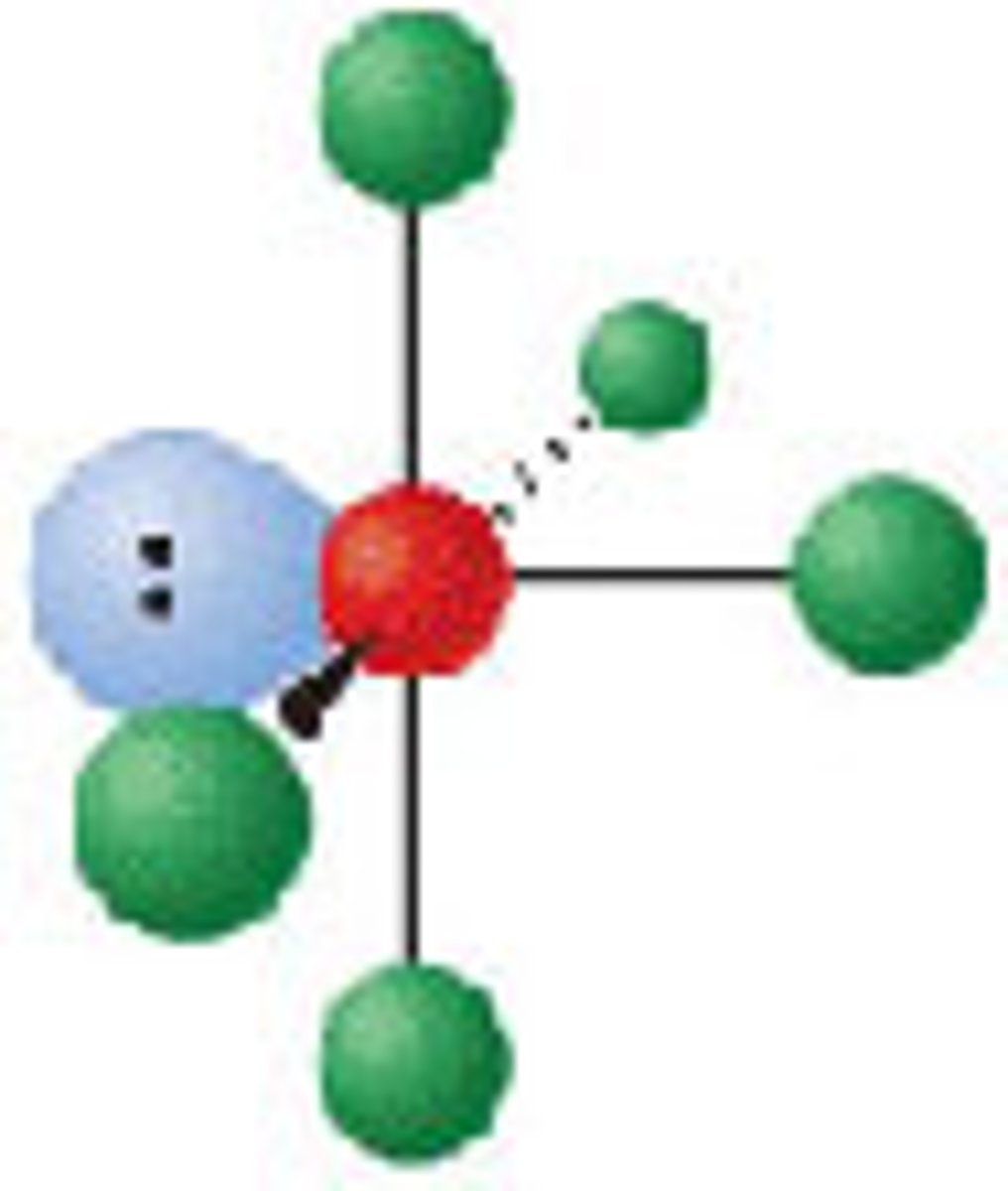

Diagram of VSEPR shape with 5 bonds and 1 lone pair:

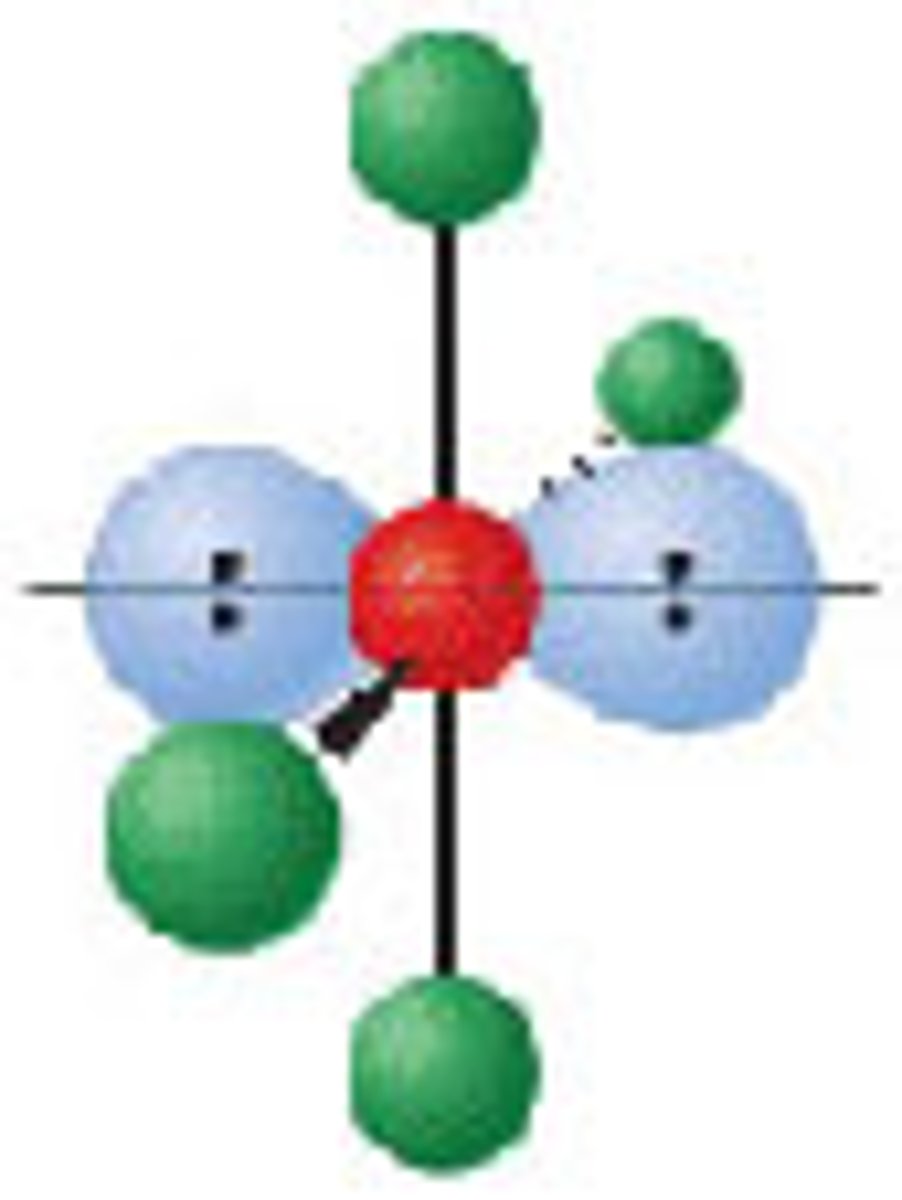

Diagram of VSEPR shape with 4 bonds and 2 lone pairs:

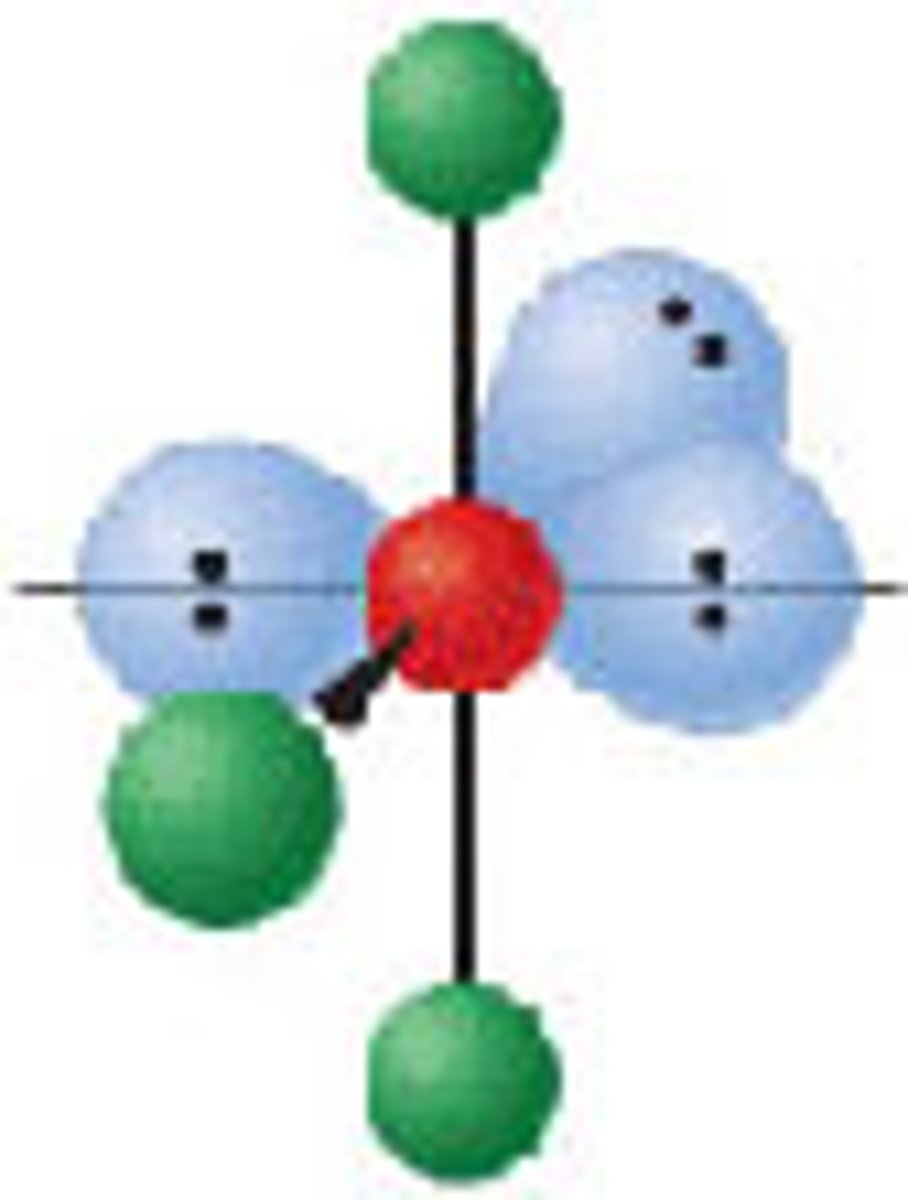

Diagram of VSEPR shape with 3 bonds and 3 lone pairs:

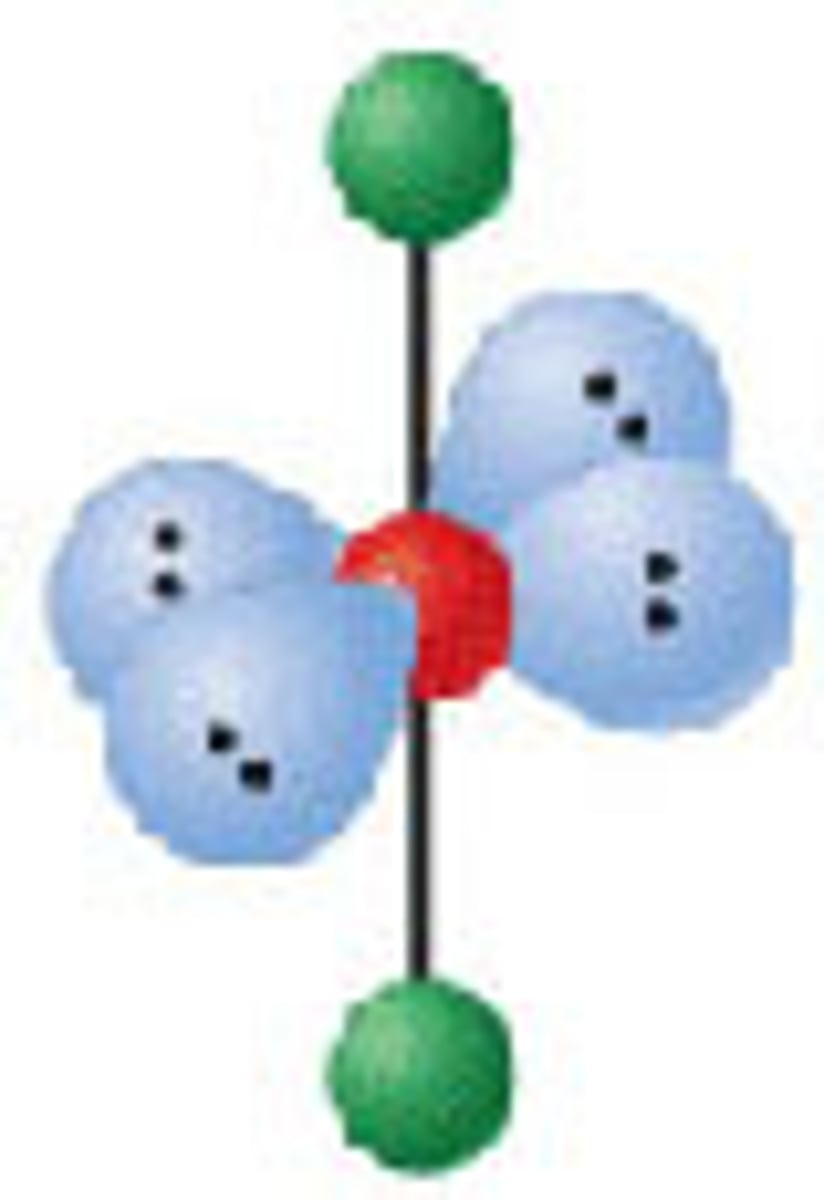

Diagram of VSEPR shape with 2 bonds and 4 lone pairs:

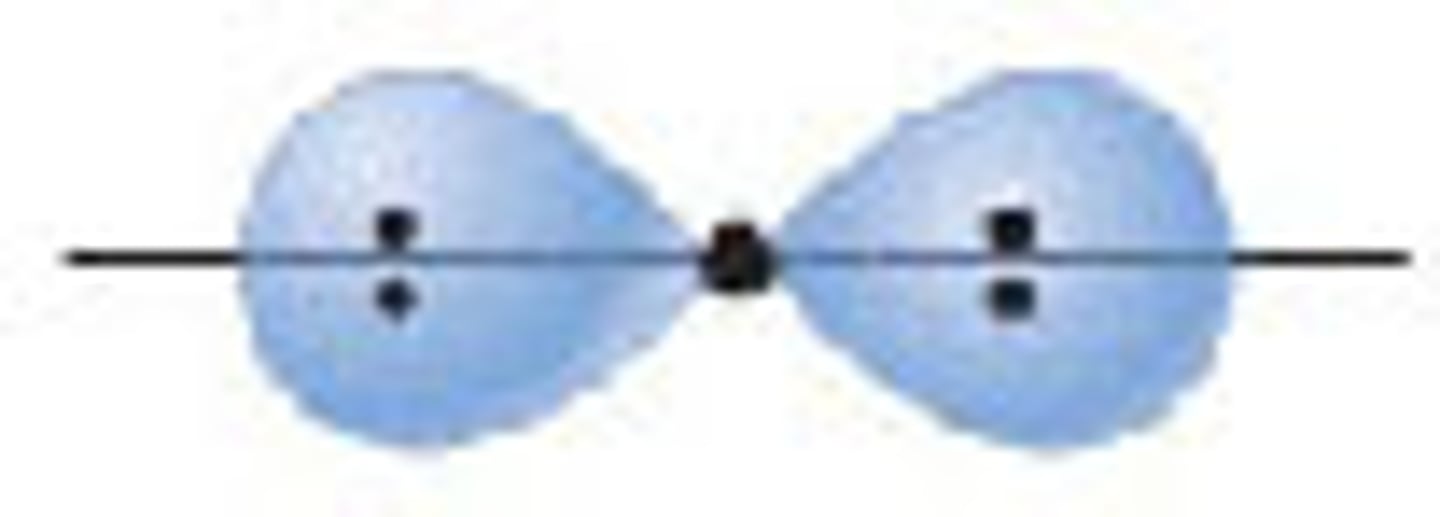

Diagram of Valence Theory hybridization orbital sp:

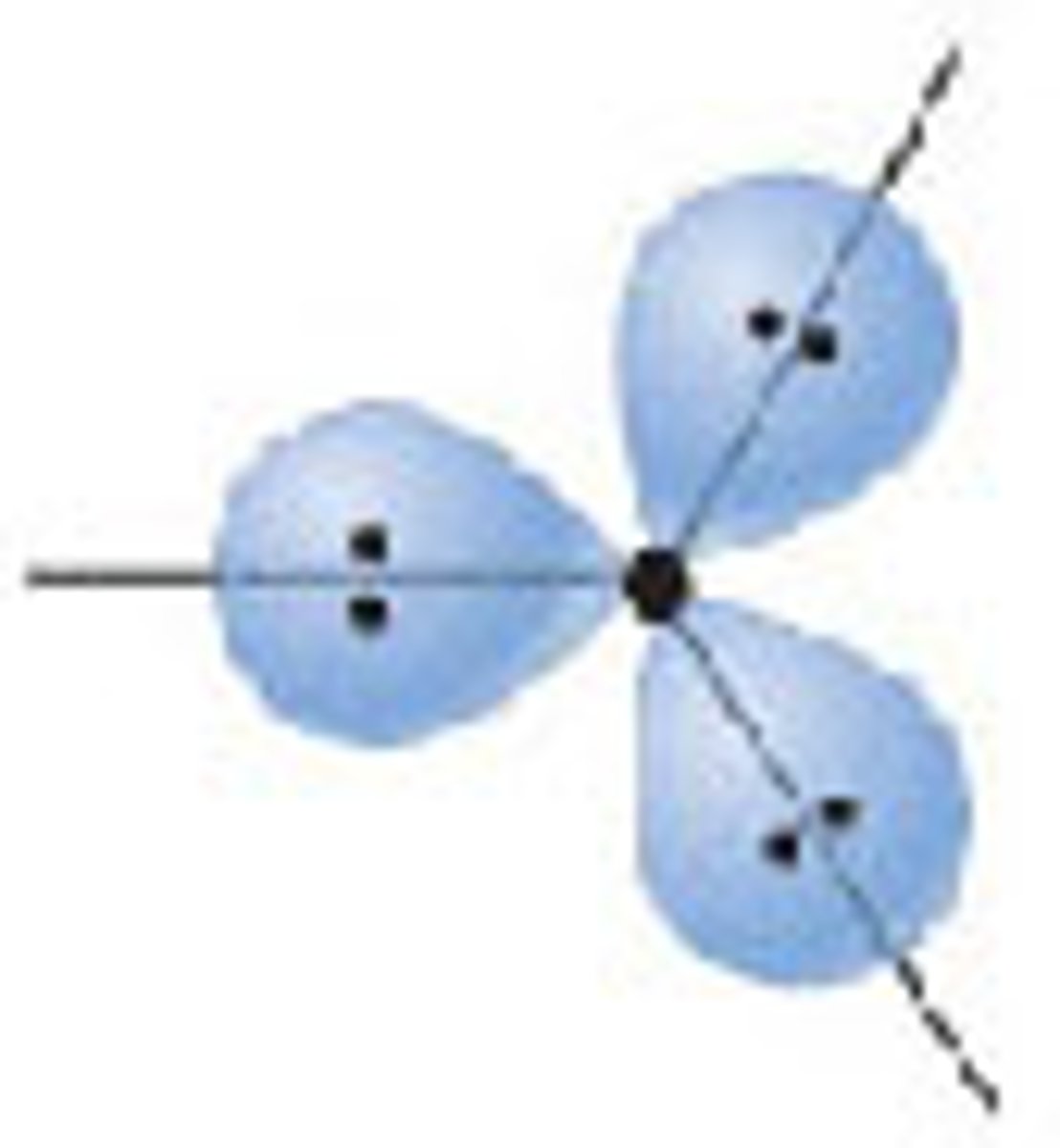

Diagram of Valence Theory hybridization orbital sp2:

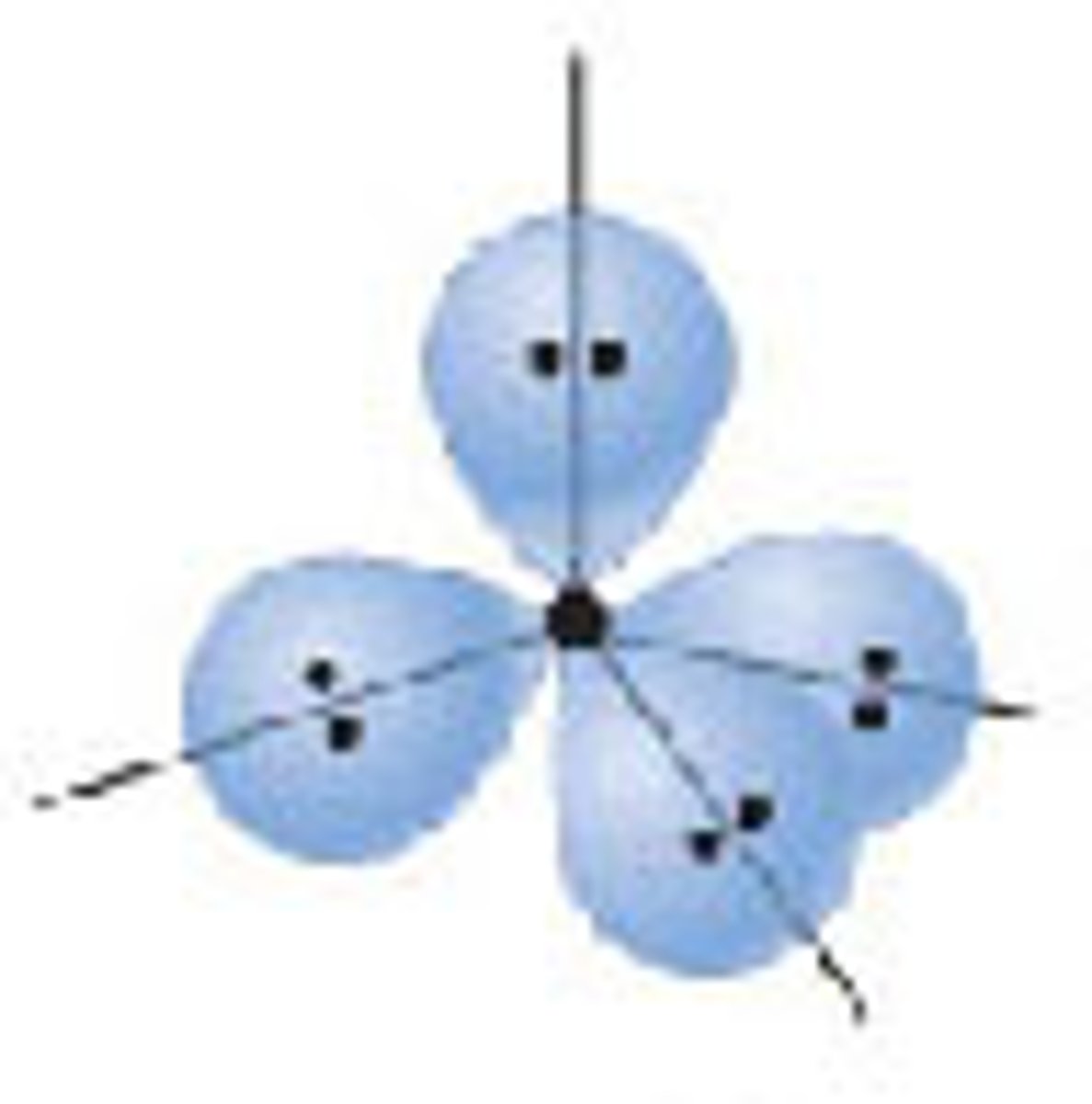

Diagram of Valence Theory hybridization orbital sp3:

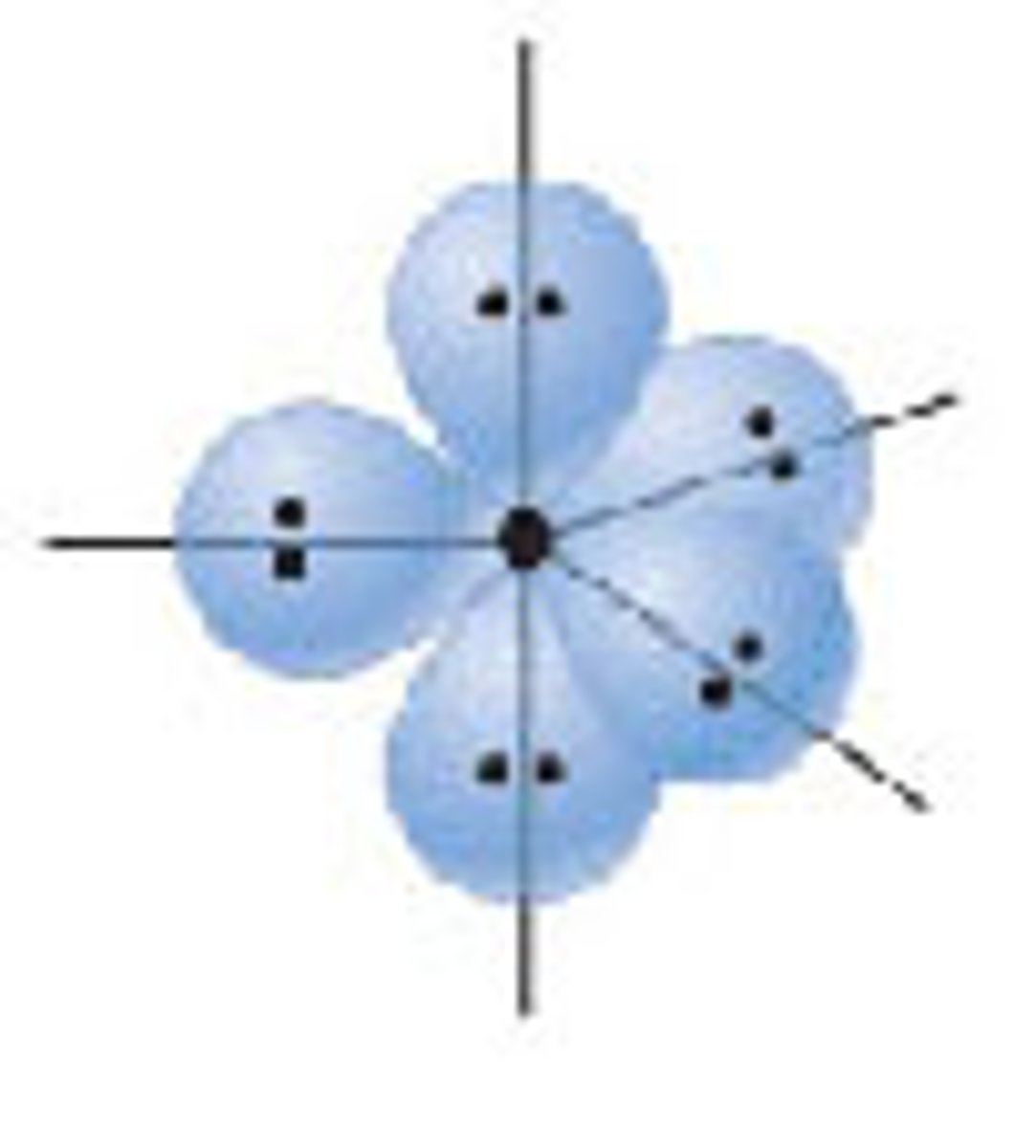

Diagram of Valence Theory hybridization orbital sp3d:

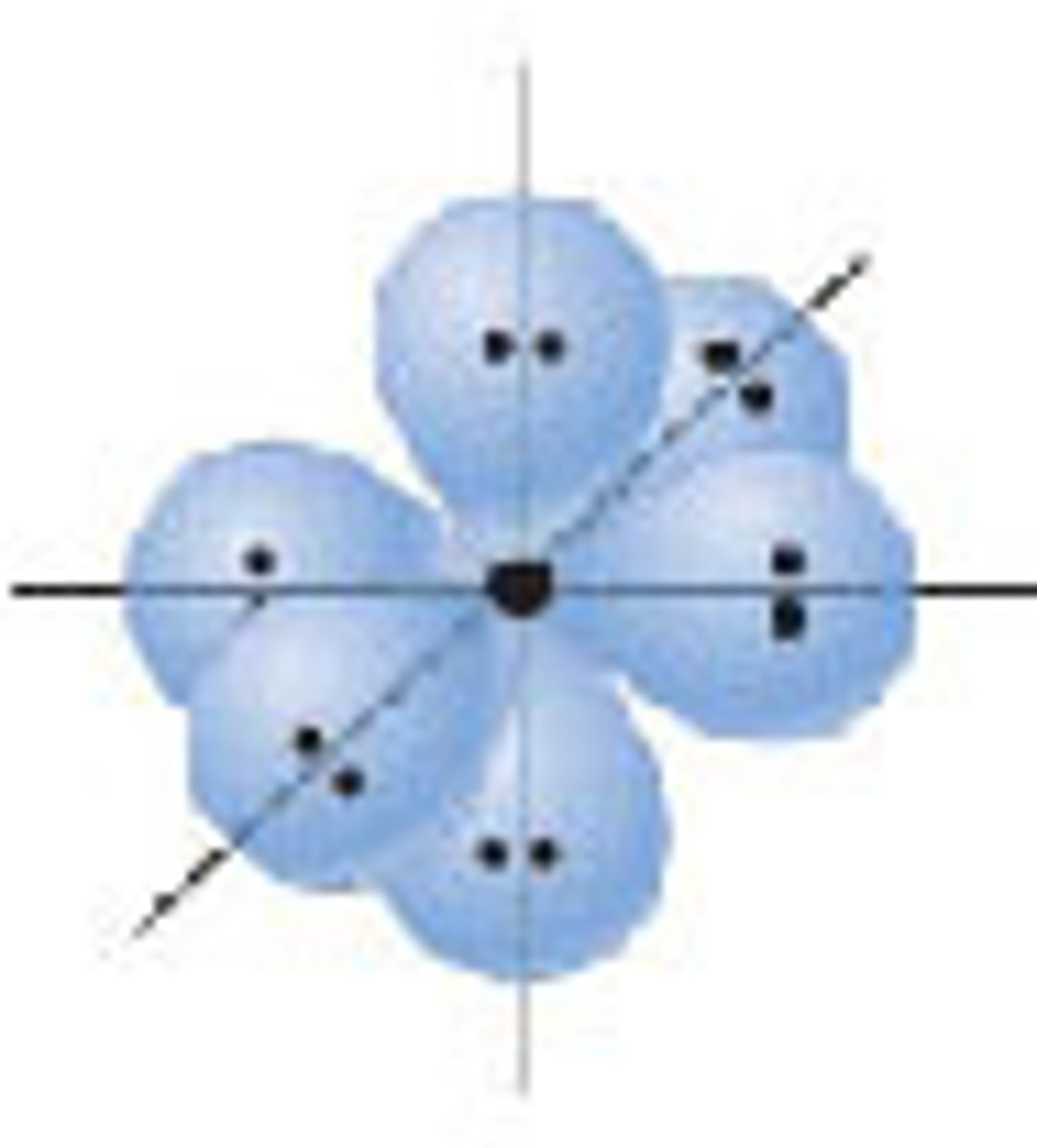

Diagram of Valence Theory hybridization orbital sp3d2:
