3D: Heart Structure & Function

right atrium

1.

right ventricle

2.

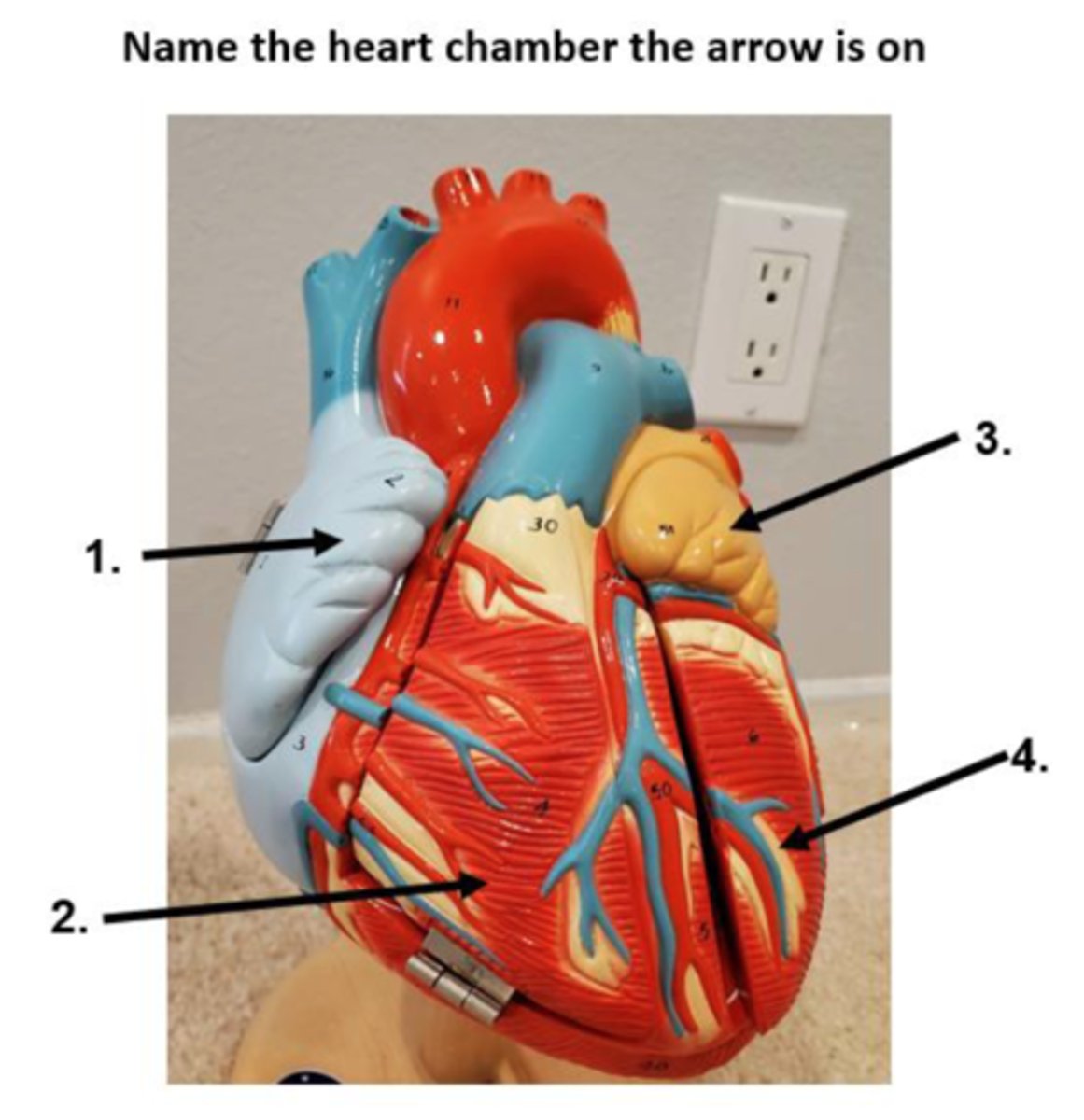

left atrium

3.

left ventricle

4.

deoxygenated blood

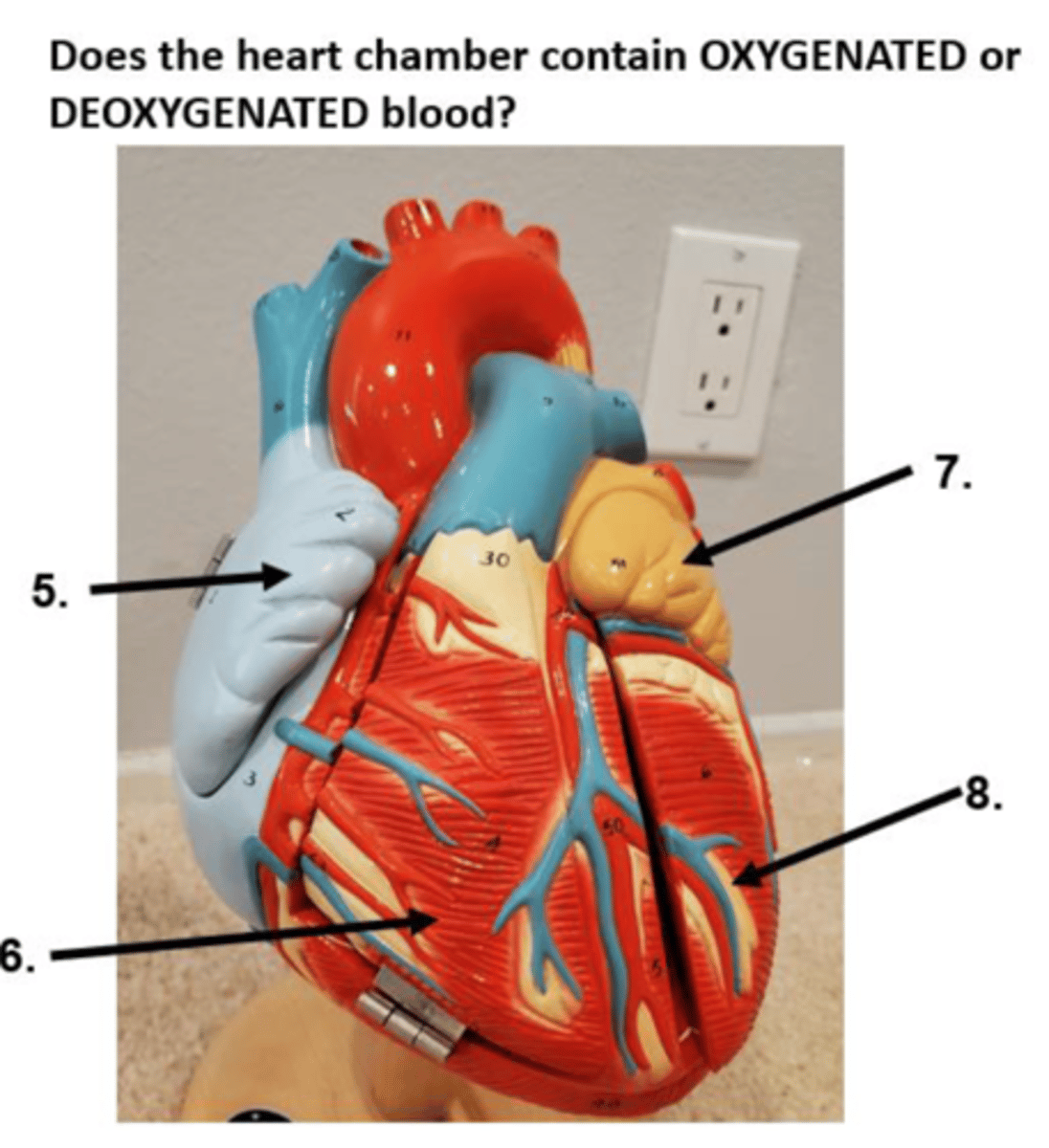

5. does the heart chamber contain deoxygenated or oxygenated blood

deoxygenated blood

6. does the heart chamber contain deoxygenated or oxyegnated blood?

oxygenated blood

7. does the heart chamber contain oxygenated or deoxygenated blood

oxygenated blood

8. does the heart chamber contain oxygenated or deoxygenated blood?

right brachiocephalic vein

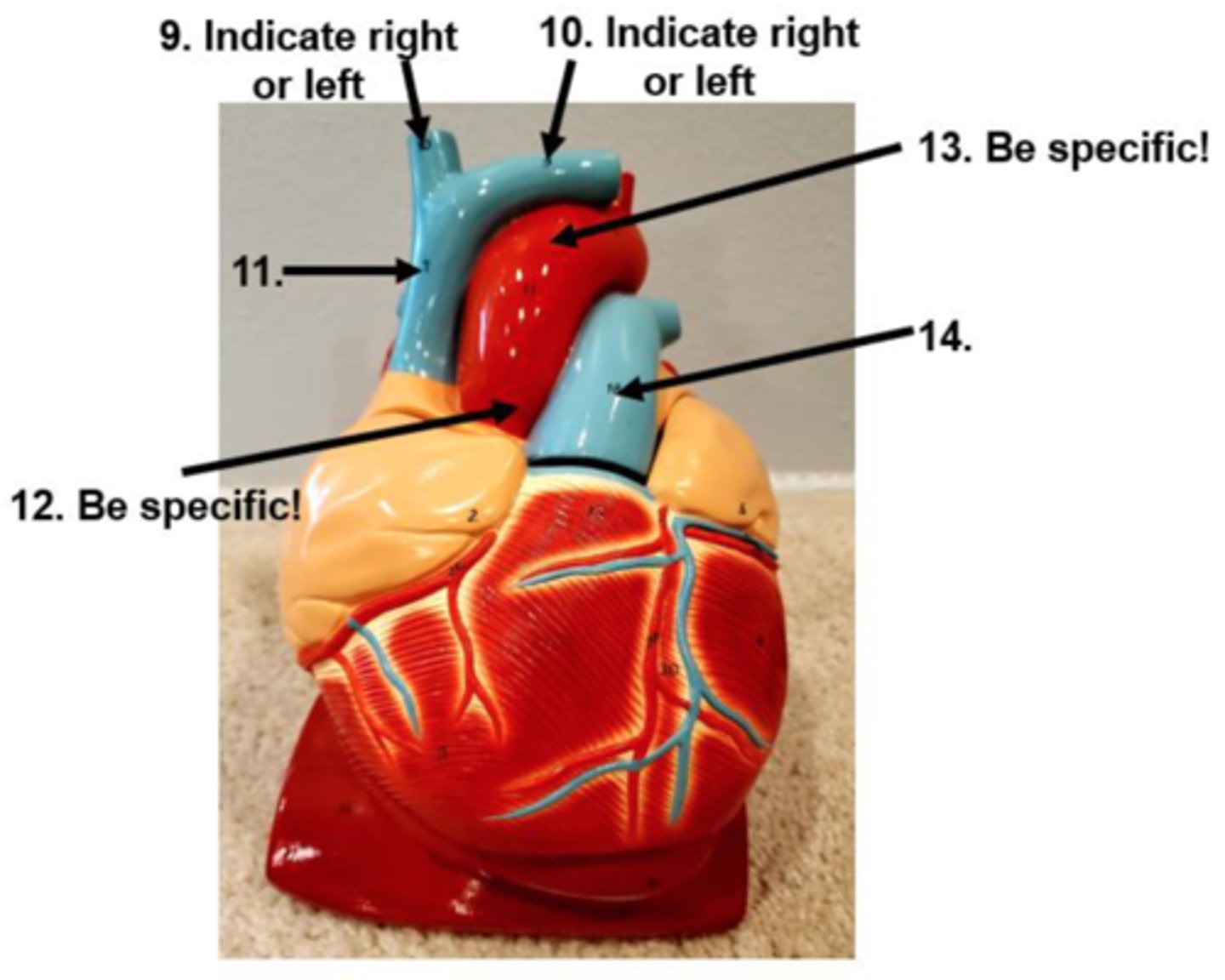

9.

left brachiocephalic vein

10.

superior vena cava

11.

ascending aorta

12.

aortic arch

13.

pulmonary trunk

14.

brachiocephalic trunk

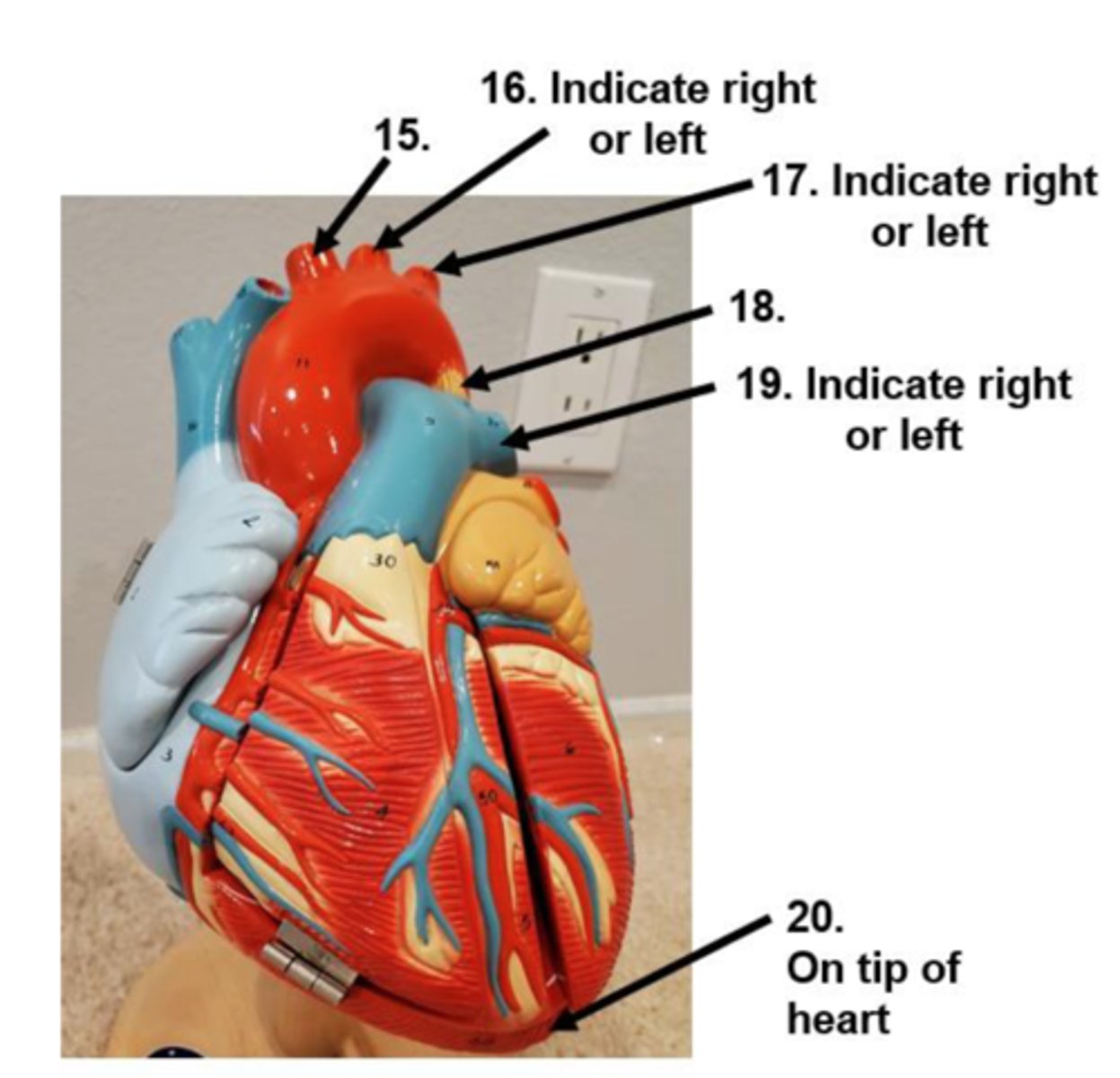

15.

left common carotid artery

16.

left subclavian artery

17.

ligamentum arteriosum

18

left pulmonary artery

19

apex

20

right coronary artery

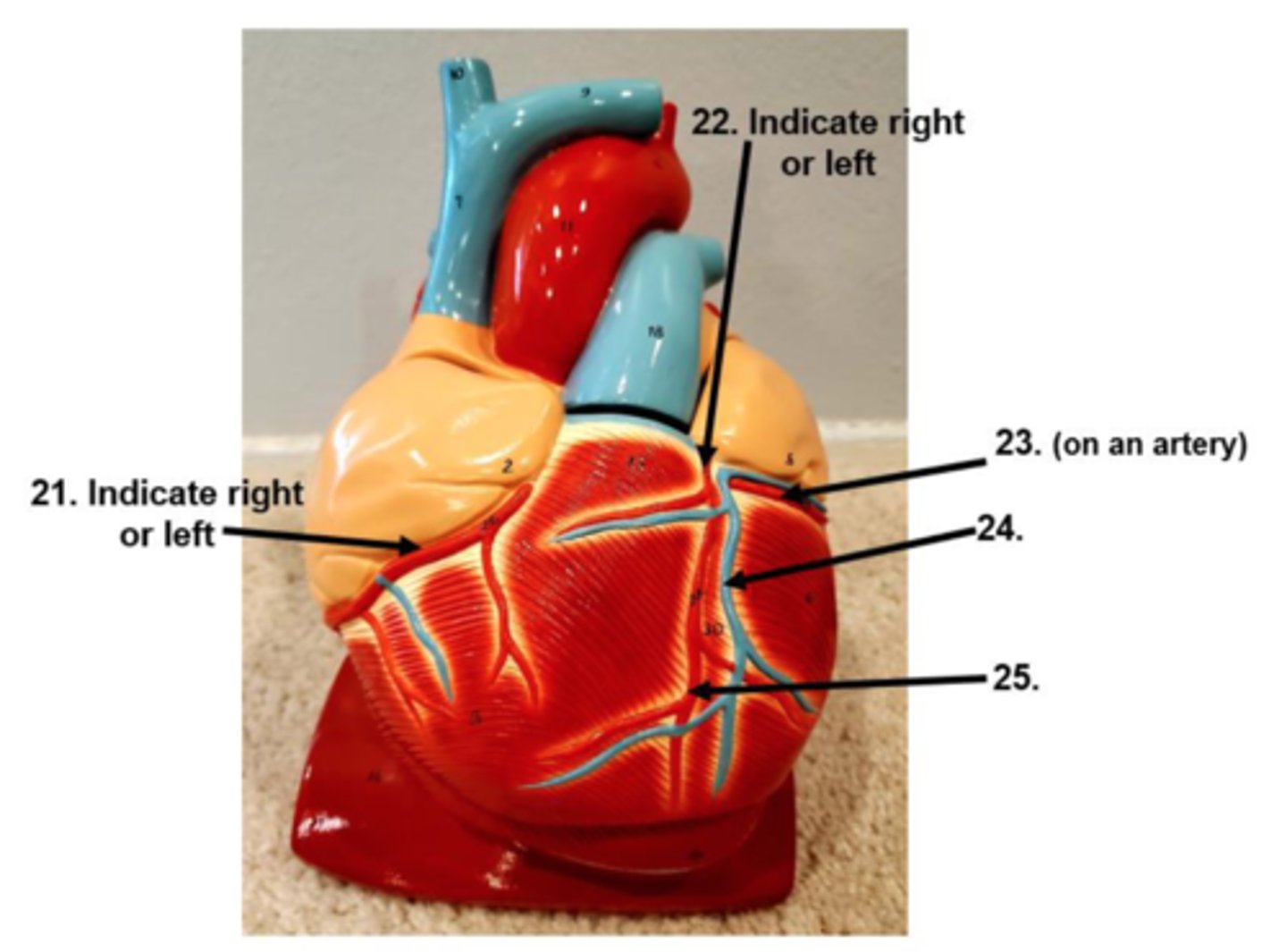

21

left coronary artery

22

circumflex artery

23

great cardiac vein

24

anterior interventricular artery

25

left pulmonary vein

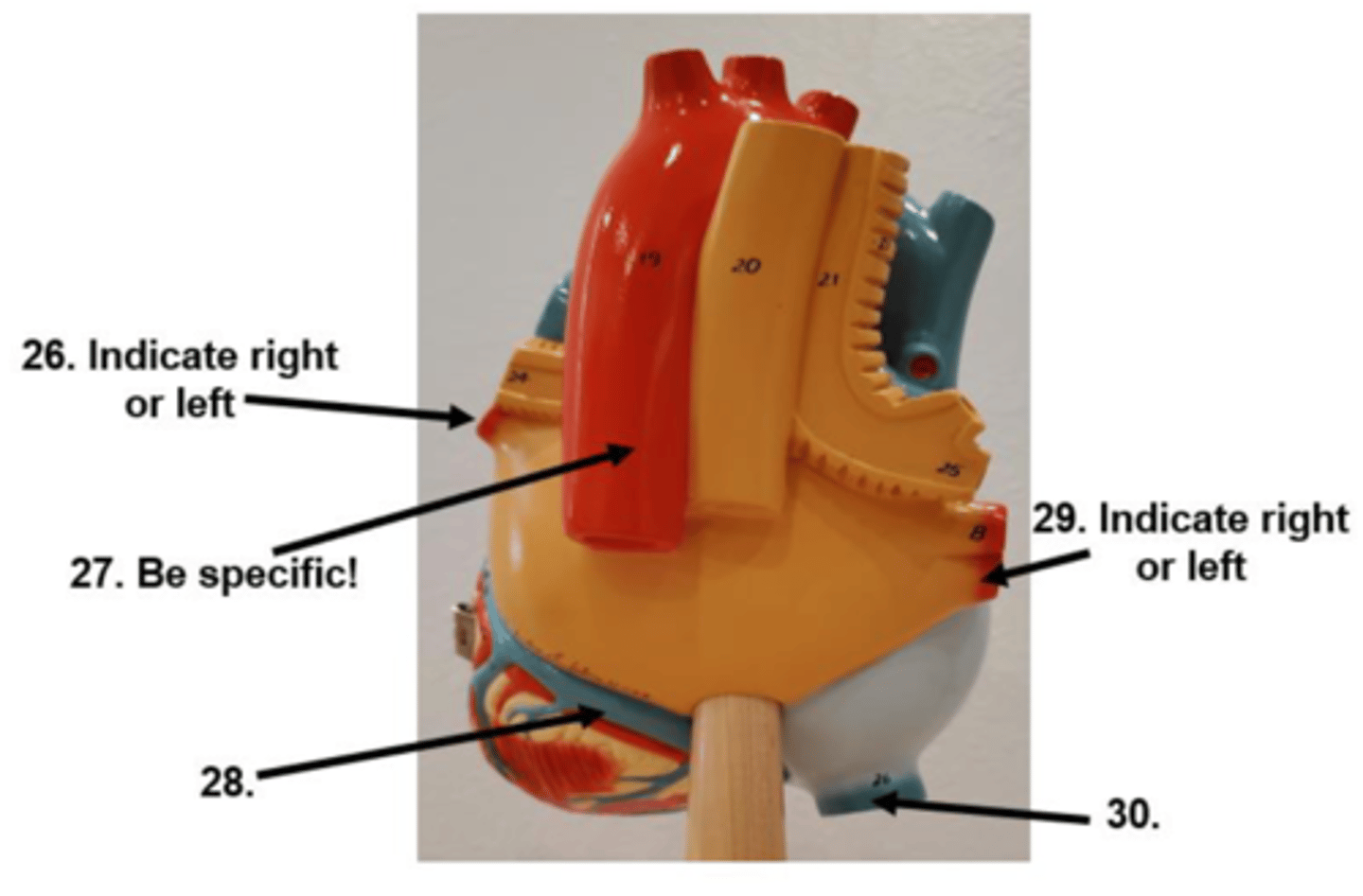

26

descending aorta

27

coronary sinus

28

right pulmonary vein

29

inferior vena cava

30

pectinate muscle

31

fossa ovalis

32

pulmonary trunk

33

papillary muscle

34

trabeculae carneae

35

pulmonary valve

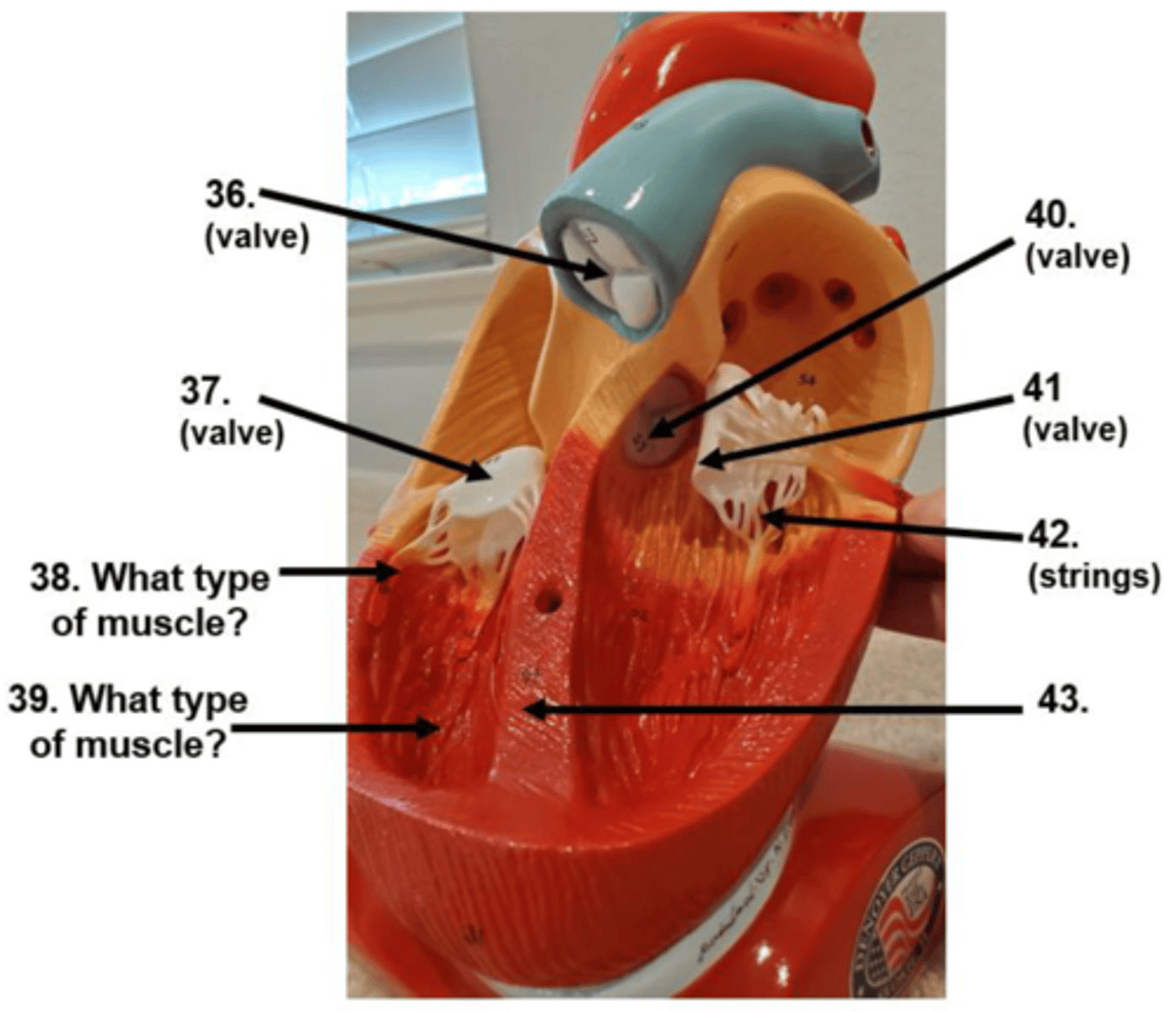

36

tricuspid valve

37

papillary muscle

38

trabeculae carneae

39

aortic valve

40

bicuspid valve

41

chordae tendineae

42

interventricular septum

43

ascending aorta

44

pulmonary valve

45

tricuspid valve

46

aortic arch

47

left pulmonary artery

48

pulmonary trunk

49

left pulmonary vein

50

bicuspid valve

51

Takes deoxygenated blood to the lungs

Pulmonary trunk & left/right pulmonary arteries (function)

Returns deoxygenated blood to the right atrium

superior & inferior vena cava (function)

prevents backflow of blood into right atrium

tricuspid valve (function)

holds the tricuspid/bicuspid valve closed during ventricular systole

chordae tendineae (function)

prevents the backflow of blood into the right ventricle

pulmonary valve (function)

Returns oxygenated blood to the left atrium

left and right pulmonary veins (function)

takes oxygenated blood to the entire head/body

Ascending aorta, Aortic arch & Descending aorta (function)

prevents backflow of blood into left atrium

bicuspid valve (function)

holds the tricuspid/bicuspid valve closed during ventricular systole

papillary muscles (function)

prevents the backflow of blood into the left ventricle

aortic valve (function)
