14 Terms

1
New cards

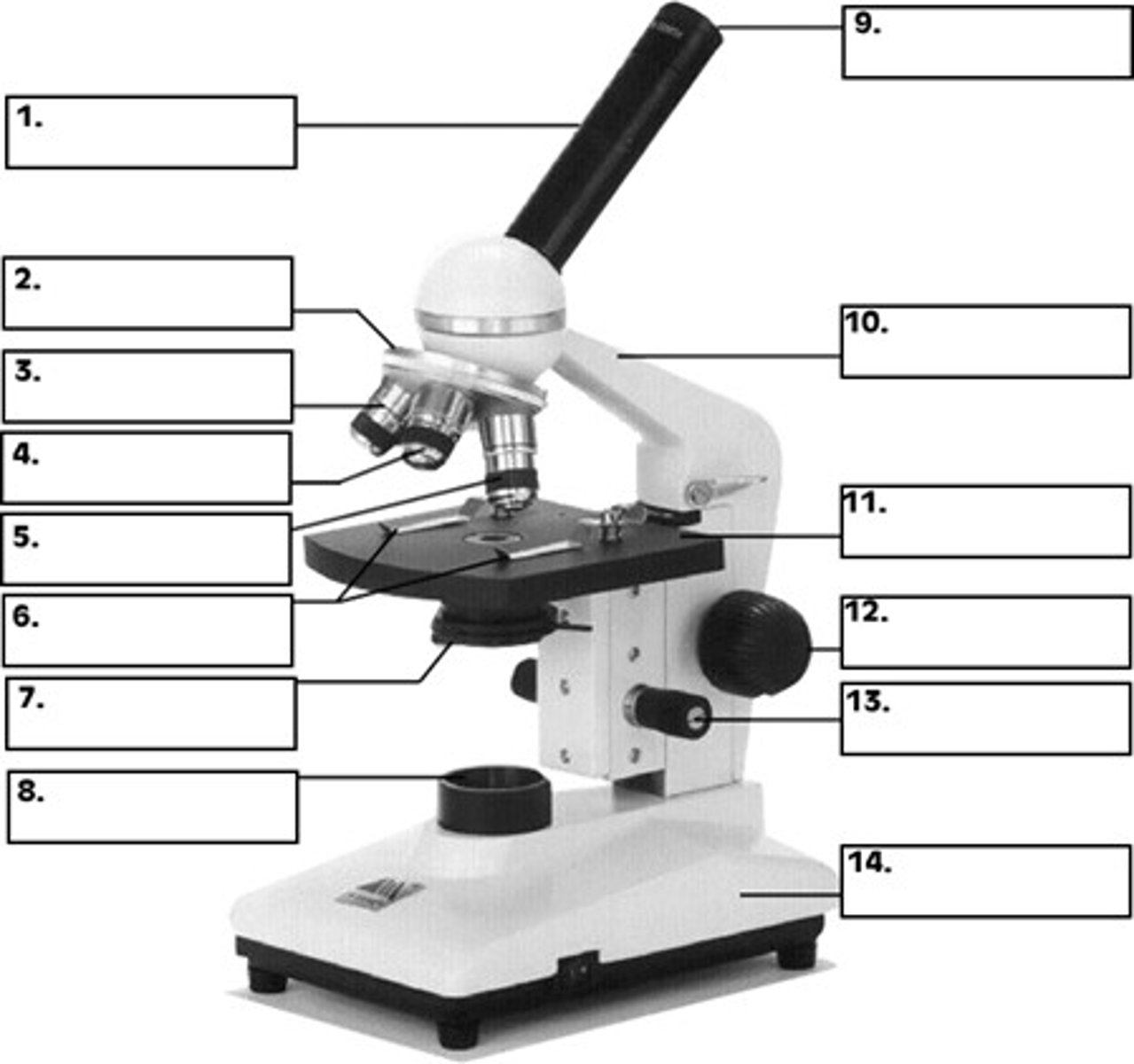

eyepiece tube - connects the eyepiece to the objective lens

what is 1?

<p>what is 1?</p>
2
New cards

nosepiece (turret) - holds and spins the objective lenses

what is 2?

<p>what is 2?</p>
3
New cards

4x objective lens - the 'scanning" objective lens with the lowest magnification

what is 3?

<p>what is 3?</p>
4
New cards

10x objective lens - the "low" power objective lens

what is 4?

<p>what is 4?</p>
5
New cards

40x objective lens - the "high" power objective lens with the most magnification

what is 5?

<p>what is 5?</p>
6
New cards

stage clips - hold the slide in place on the stage

what is 6?

<p>what is 6?</p>
7
New cards

iris diaphragm - controls the amount of light in the picture (the contrast)

what is 7?

<p>what is 7?</p>
8
New cards

illumination system - light source of the microscope

what is 8?

<p>what is 8?</p>
9
New cards

eyepiece (ocular lens) - magnifying piece that is looked into in order to see the specimen

what is 9?

<p>what is 9?</p>
10
New cards

arm (frame) - connects the base to the eyepiece lens and helps to carry the microscope easily

what is 10?

<p>what is 10?</p>
11
New cards

stage - the platform that the slides sit on

what is 11?

<p>what is 11?</p>
12
New cards

coarse adjustment - knob that moves the slide back and forth to bring in into focus

what is 12?

<p>what is 12?</p>
13
New cards

fine adjustment - knob that brings the image to a sharper focus

what is 13?

<p>what is 13?</p>
14
New cards

base - the structural support of the microscope

what is 14?

<p>what is 14?</p>
