Geometry unit 2 test

Set

A collection of elements

Finite set

Has a countable number of elements (ex: a,3,b,f)

Infinite set

Uncountable number of elements (1,2,3,4…) (… -4,-3,-2,-1)

Empty set

No elements ø or ()

Point

Location in space, represented by a dot, and is named by a capital letter. Has no length, width, or thickness.

A. Indicates a place or position

Line

A set of pts. It is an infinite set of points that extends endlessly in both directions. Two points create this however their is an infinite number amount of points on this .

Ways a line can be named

Capital letter, and one lowercase cursive letter

Plane

Flat surface, set of points that form a completely flat surface, extending indefinitely in all directions. Has no boundaries

Ways a plane can be names

Capital letters (ABC) (BAC), one lowercase letter Plane p (cursive p)

Colinear

3 or more points that lie on the same straight line

Noncollinear

3 or more points that do not lie on the same straight line

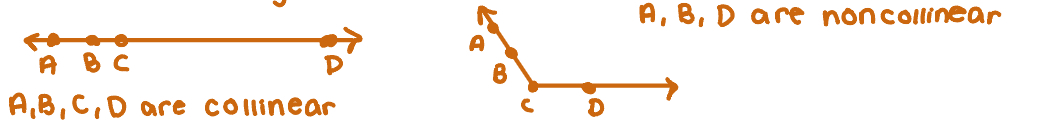

Example of collinear and non collinear

A line segment

A subset or part of a line a set of points consisting of points on a line called end pts

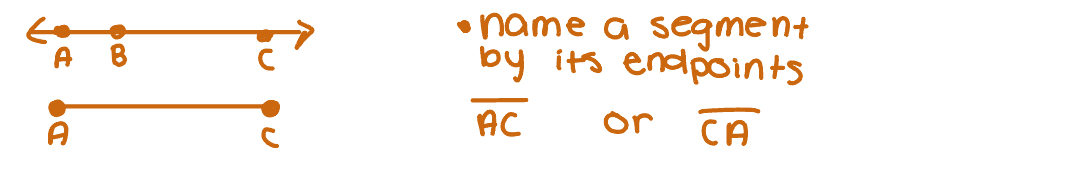

Line segment example

Midpoint

The point on a line segment that divides the segment into two congruent parts

AM≈MB

AM=1/2AB

MB=1/2AB

2AM=AB

2MB=AB

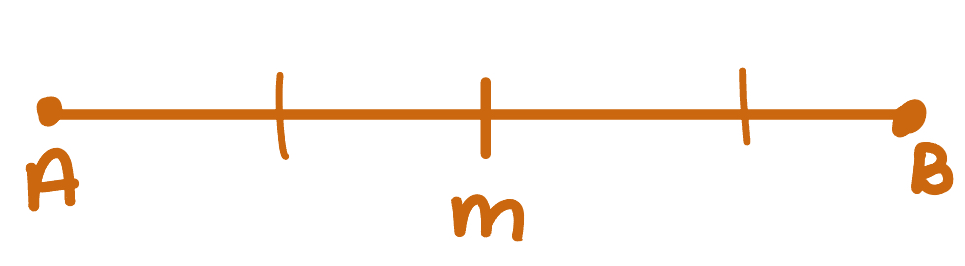

Give 5 conclusions from this picture

Line bisector

Any line of subset of a line that intersects a segment at its mdpt. “Cuts in half”

Ray

Part of a line that consists of a pt on the line called an endpoint and all the pts on one side the endpt.

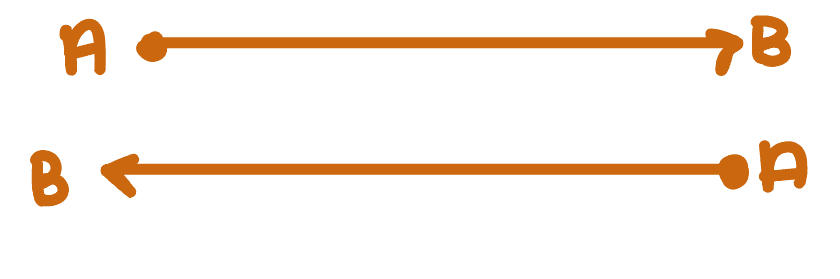

Ray example

Additional and subtraction of segments

A line segment is the sum of two lines within the line segment

Angle

Set of pts that is the union of two rays having the same endpt.

Acute

An angle whose degree measure is greater then 0 and less than 90

Right angle

Angle whose degree measure is exactly 90

Straight angle

Angle whose degree measure is exactly 180

Reflex angle

Angle whose degree measure is greater than 180 and less than 360

Adjacent angles

Two angles (in the same plane) that have a common vertex and a common side but do not have interior pts in common

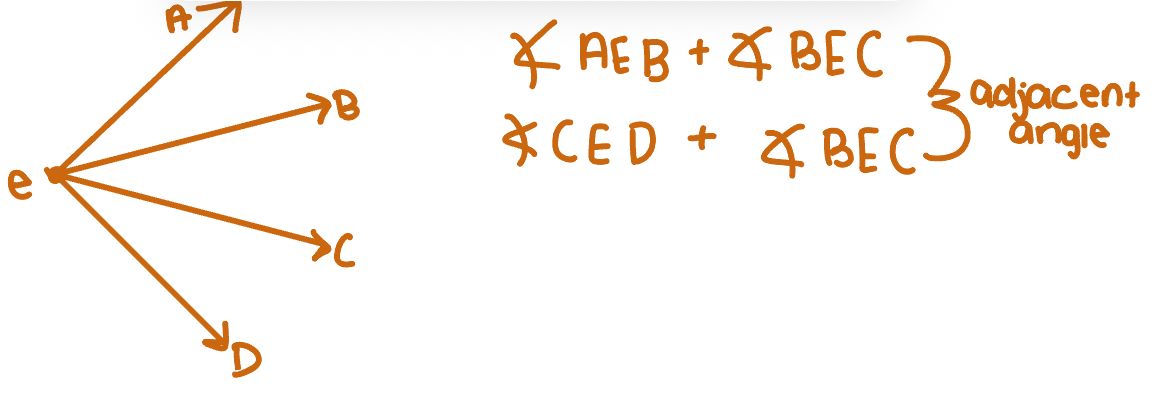

Adjacent angles example

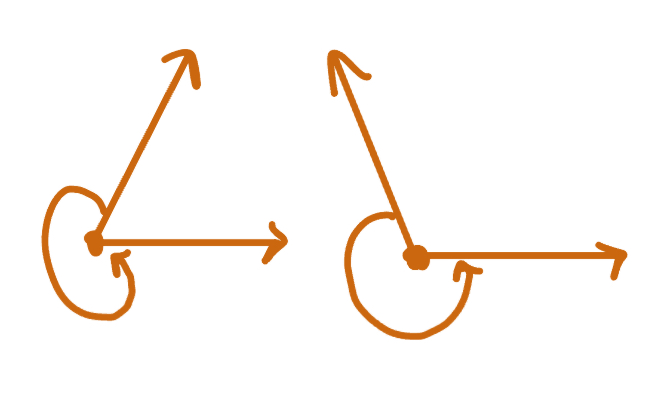

Reflex angle example

Complimentary angles

Two angles the sum of whose degree measure is 90 degrees each angle is called the compliment of the other.

Supplementary angles

Two angles the sun of whose degree measure is 180 degrees. Each angle is called the supplement of the other

Vertical angel

Two angels in which the sides of one angle are opposite rays of the second.

Formed by intersecting lines. Vertical lines make a “X”

Angle bisector

A ray whose endpt. is the vertex of the angle and that divides the angle into two congruent angles

Perpendicular lines

Two lines that intersect to form a right angle

Perpendicular bisector

A line, line segment or ray that is perpendicular to a line segment and bisects the line segment
